Allen & Heath MixWizard WZ4 16:2
Allen & Heath MixWizard WZ4 16:2
Allen & Heath MixWizard WZ4 16:2
Allen & Heath MixWizard WZ4 16:2
Allen & Heath MixWizard WZ4 16:2
Allen & Heath MixWizard WZ4 16:2
Allen & Heath MixWizard WZ4 16:2
Allen & Heath MixWizard WZ4 16:2
$2,339.00$2,699.00

Allen & Heath

W4-16:2DX

Allen & Heath MixWizard WZ4 16:2

Notify me when this product is available:


Type: Analog Mixers

WZ4 16:2 is a true all-purpose mixer, providing a full 16 high specification mic/line inputs in a compact, straightforward format that has made it a consistent best seller.

16 Mic/Line Inputs

16 mic/line inputs with balanced XLR/TRS jack feed our renowned clean and detailed preamp design.

Dual FX Engines

Two digital FX engines with 20 studio quality FX presets designed by the DSP team responsible for our digital flagship mixers.

6 Auxes

Flexible aux section with 2 pre-fade, 2 switched and 2 post-fade sends.

2 Stereo Returns

A pair of dedicated stereo return channels make it easy to connect external FX or stereo line-level sources.

Clean and Detailed Sound

The MixWizard4 preamp delivers extremely low noise, minimal distortion, wide yet smooth gain law and plenty of headroom. The preamp was developed by leading analogue designer Mike Griffin and is adapted from the design used on our legendary large-format analogue consoles.

Comprehensive Aux System

All MixWizard4 models offer a generous 6 auxes, each with its own master level rotary control and impedance-balanced TRS outputs. A clever monitoring system lets you listen to aux outputs in mono or in stereo pairs. Auxes 1-2 are routed pre-fade for monitors; auxes 3-4 are switchable pre or post-fade for monitors, FX or additional recording or zone feeds; and auxes 5-6 are routed post-fader for FX and aux-fed sub. These pre/post settings can be changed via internal jumpers.

Fits Anywhere

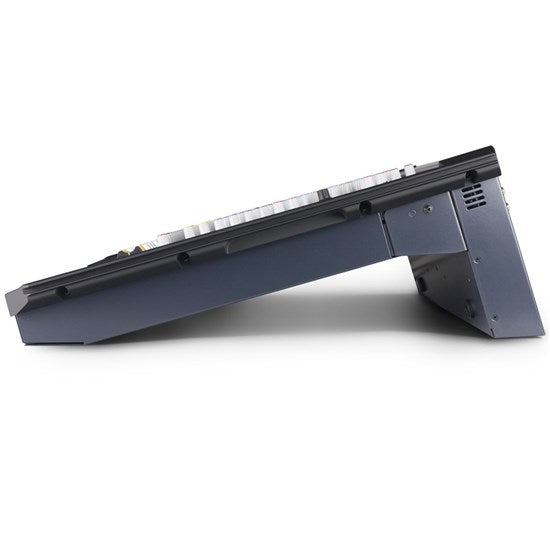

Our unique QCC (Quick Change Connectors) system lets you swiftly change the position of the connector panel to suit desktop, rack or flightcase mounting. The hard plastic side trims can also be removed to reveal the integral rack ears.

Dual Engine Effects

WZ4 12:2 and WZ4 16:2 are both equipped with 2 stereo FX engines, providing 20 studio-quality FX presets. The FX interface has also been upgraded, with a 7-segment LED display, tap tempo and an encoder to adjust FX parameters. The FX algorithms were developed by the same in-house team that created the highly respected FX suite for our digital touring mixers.

Features:

  • 19" Rack Mountable

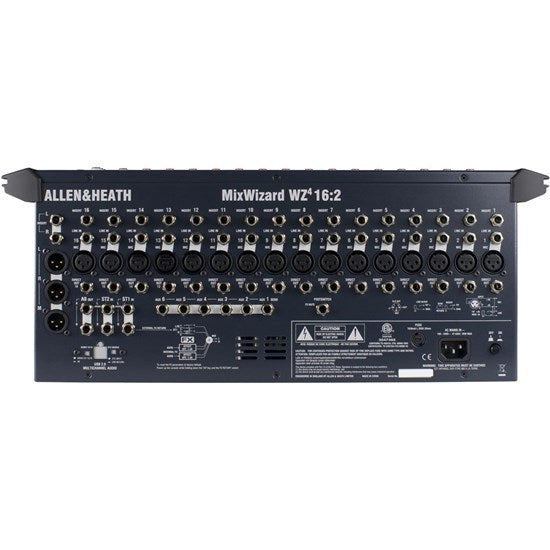

  • 16 mic/line inputs with balanced XLR/TRS jack, insert and direct output
  • 100mm faders
  • 4 band EQ with 2 swept mids
  • 6 aux sends (2 x pre fade , 2 x post fade , 2 x switched)
  • 2 stereo returns
  • dedicated mono output fader (can be switched to provide a L+R mono feed for a centre or fill speaker, or sub bass feed)
  • Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
  • Tri - colour, 12 segment bargraph metering
  • Twin FX engines with 20 studio quality FX presets
  • +48V Phantom Power
  • Signal and Peak LEDs
  • Lamp socket
  • Footswitch connector (mutes/unmutes the ST1 FX Return)
