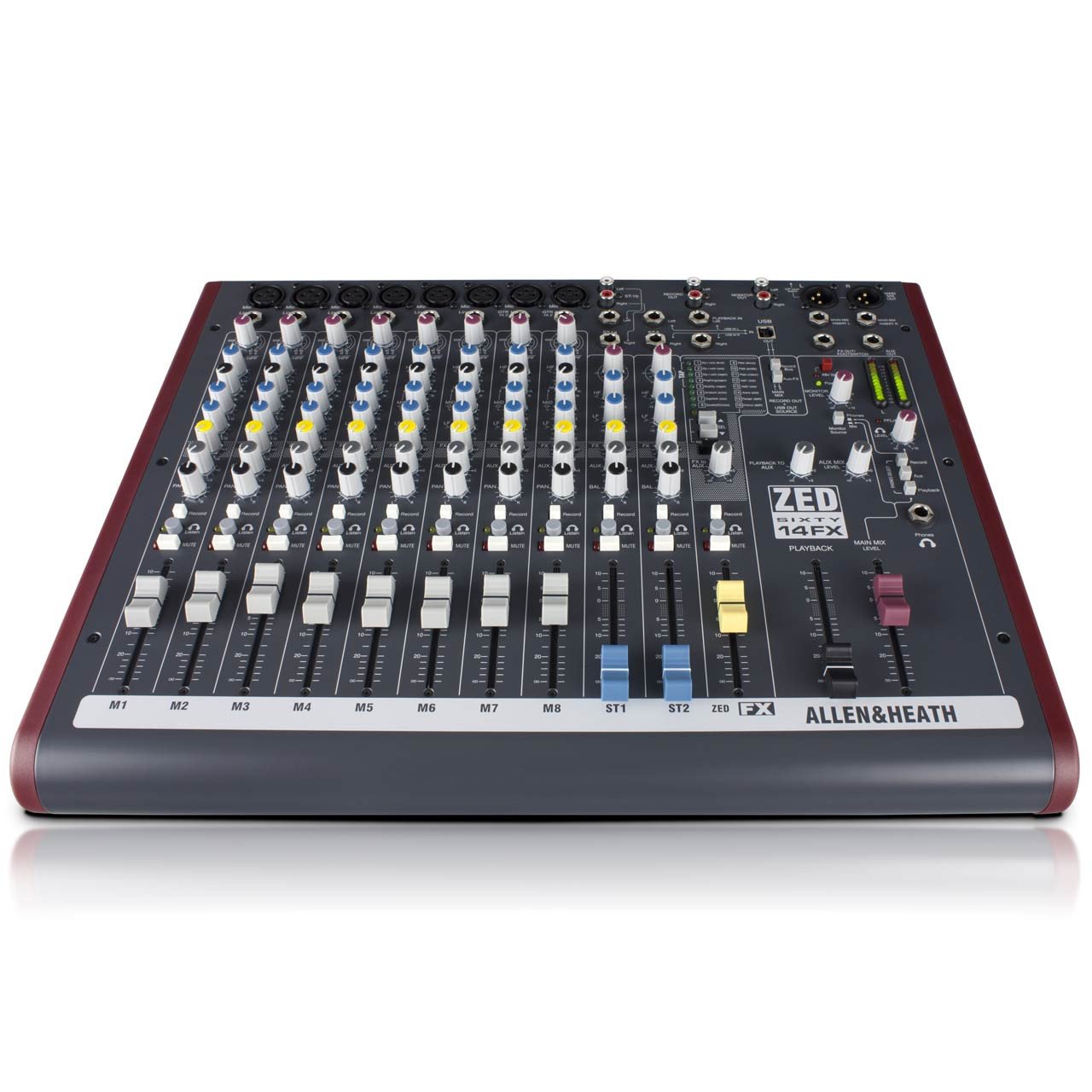

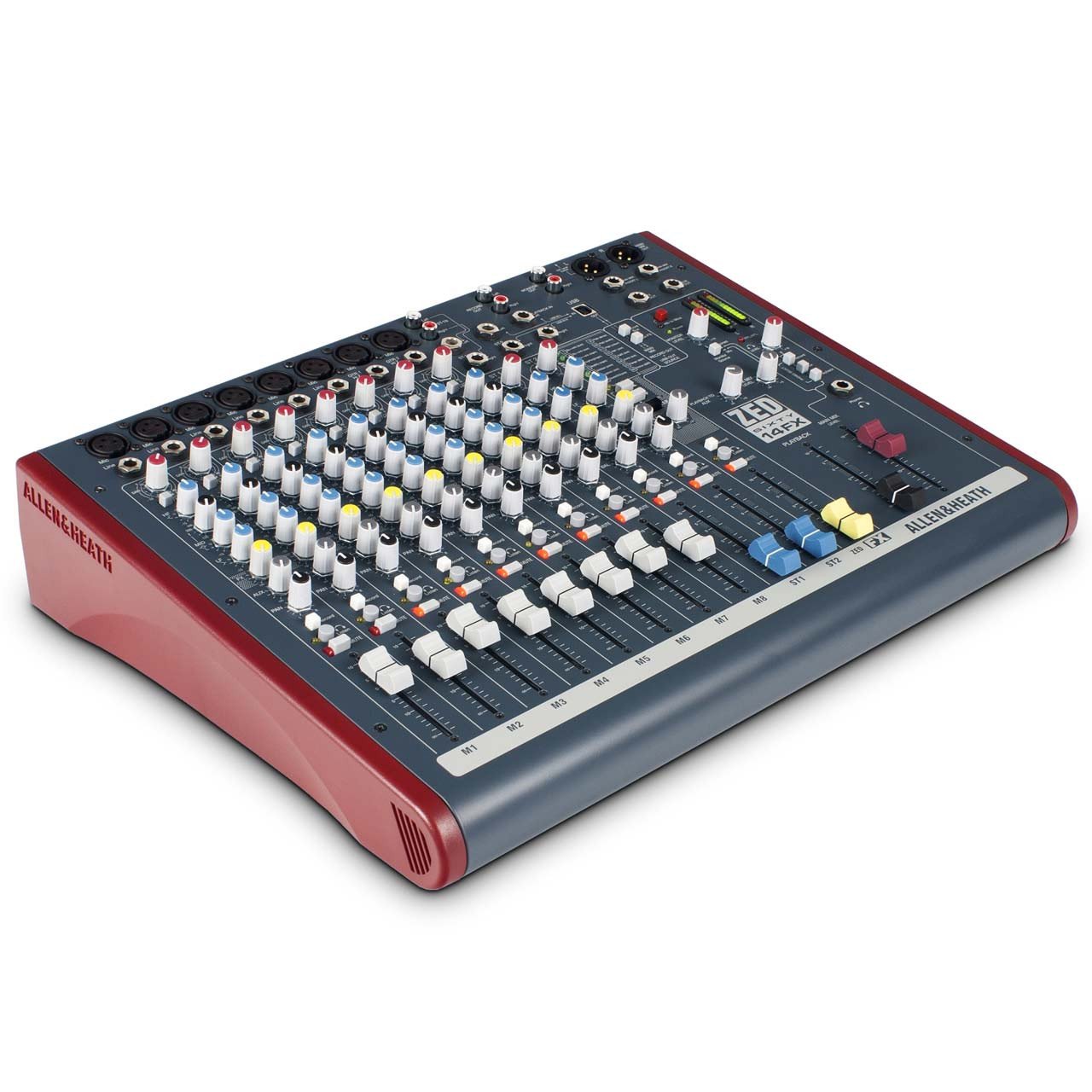

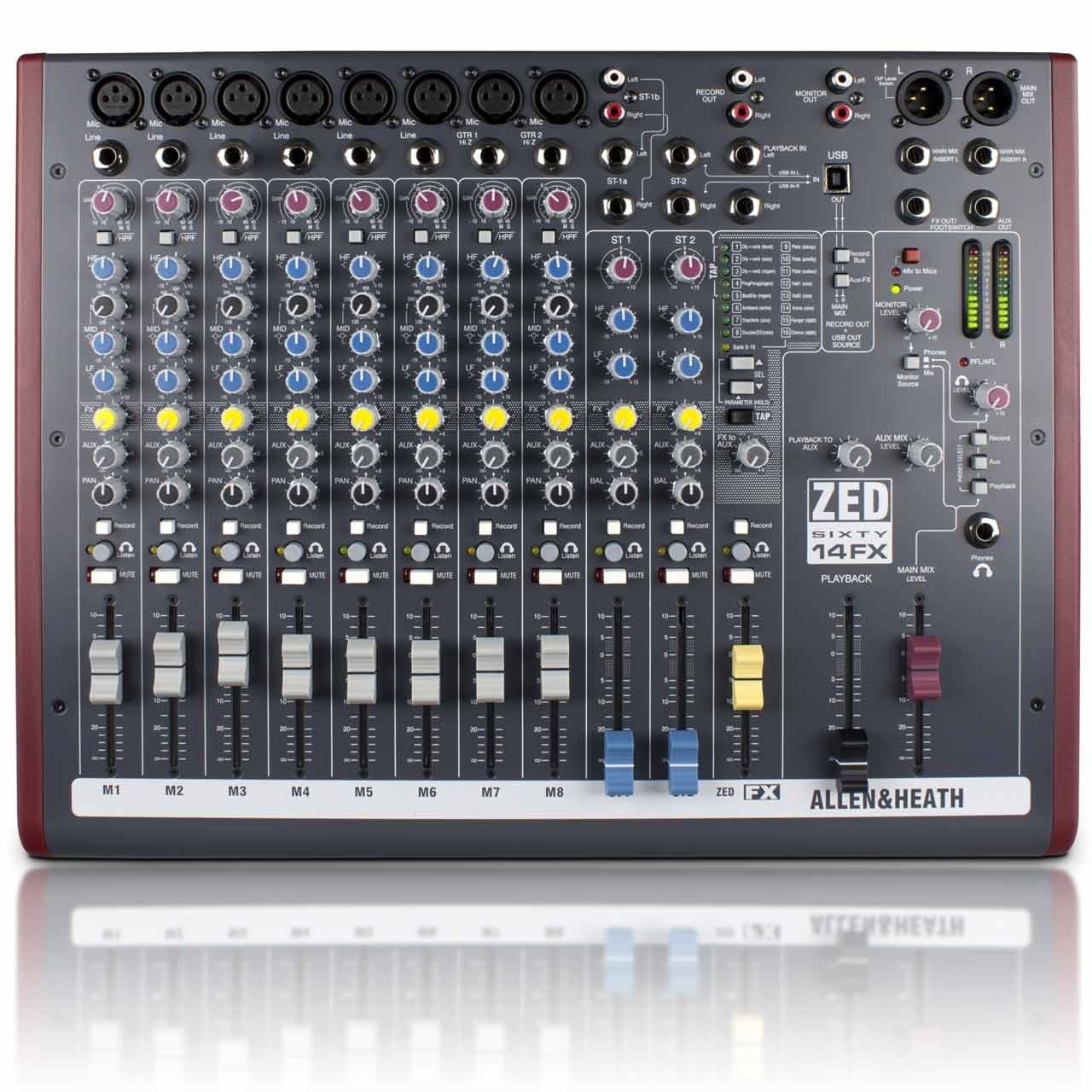

• ZED60-14FX PRODUCT FEATURES:

  Two stereo inputs are provided for MP3/CD players or keyboards.

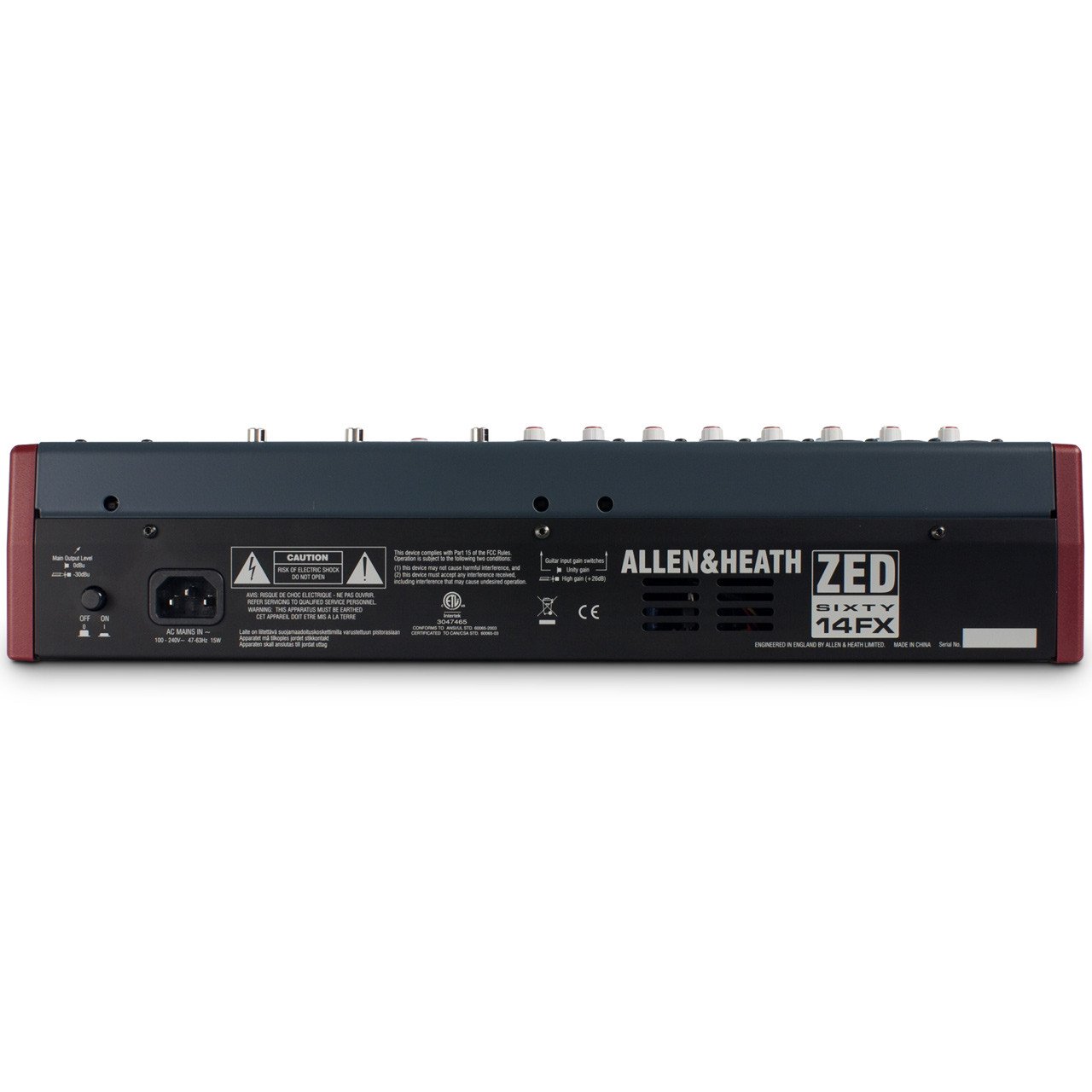

  ZED60-14FX comes with configurable USB audio in/out, making it easy to capture a stereo recording at the gig or in the studio. The mixer is equipped with professional XLR main stereo outputs, a flexible monitoring section with headphone and speaker feed outputs, and 16 stunning FX.

  Most important of all, ZED60-14FX lives up to the audio and build quality standards that have made Allen & Heath one of the most trusted names in professional audio for more than 40 years.

  USB audio flexibility
  Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:


  Send options
  1) Main Mix Left + Right (Post master Level)
  2) Aux + FX bus (Aux is a pre-fade send, FX is a post-fade send)
  3) Record Bus Left + Right (Separate stereo bus to Main Mix)


  Return options
  1) To Playback input (through jack socket break contacts)
  2) To Stereo 2 channel (through jack socket break contacts)


MusiQ
  ZED60-14FX features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments.



  ZED-FX
  ZED60-14FX has an essential selection of 16 time-delay effects, designed for small groups who don’t want to carry around an effects unit with their gear but who still want great quality FX at their gigs and on their recordings. Our DSP engineers worked hard, crafting and refining beautiful reverb algorithms to enhance every performance. These effects are available nowhere else at this price point – this quality and integration is only available from the ZED-FX. ZED effects are easily controlled using 3 buttons with 9 display LEDs. For example, the ideal delay time can be quickly tapped-in, or the perfect amount of reverb on the lead vocal can be dialled-in. There is one-stop navigation and editing – in fact, it’s just as easy as using effects pedals. To alter effects parameters, the TAP button is held down and the up/down buttons pressed to adjust the specific parameter for that effect, for example, the decay length on PLATE, or the depth on CHORUS.



  Guitar DI
  ZED60-14FX’s pre-amps are similar in design to our MixWizard range of mixers, but with a twist! Inputs 7 & 8 have a high impedance jack input capable of taking either a normal line level or a low level input from a guitar pickup. These newly designed inputs have been crafted with the aim of replicating the sound of a classic guitar or instrument tube pre-amp in a combo or head amp. An extremely high input impedance ensures loading on pick-ups is minimal and a Class A FET (field effect transistor) circuit powered from 48V is employed to give the valve-like gain stage. There is a gain “Boost” switch associated with the guitar inputs which boosts gain by 26dB to cater for instruments with very low level outputs and the overdrive characteristics of the guitar inputs are very similar to a valve (tube) circuit, being asymmetric and soft. All this makes for a wonderfully natural sound to be reproduced from the instrument, full of warmth and character.

• ZED60-14FX TECHNICAL SPECIFICATIONS:

  8 mic/line inputs, 2 with Class A FET high impedance
  60mm professional quality faders
  Responsive 3-band, swept mid EQ with MusiQ
  Configurable USB stereo audio in/out
  1 pre-fade Aux send
  1 FX send
  2 stereo inputs
  Separate 2-track record outputs
  16 Internal Effects
  XLR main stereo outputs with inserts
  Comprehensive monitoring
  48V microphone phantom power
  DI level switching with Gain Boost
  Neutrik XLRs and 1/4 inch jacks
