ARTP_SOLOSTUDIO

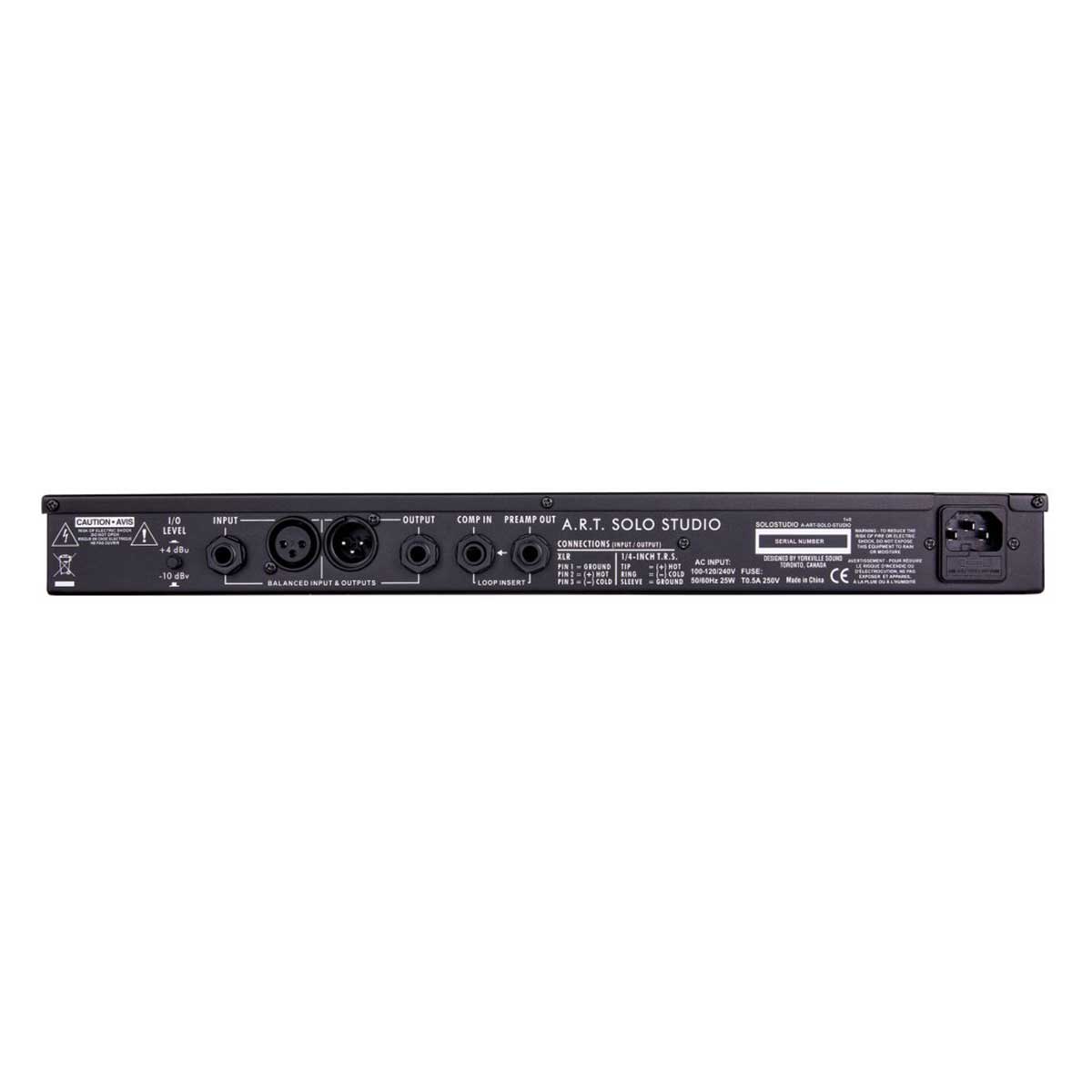

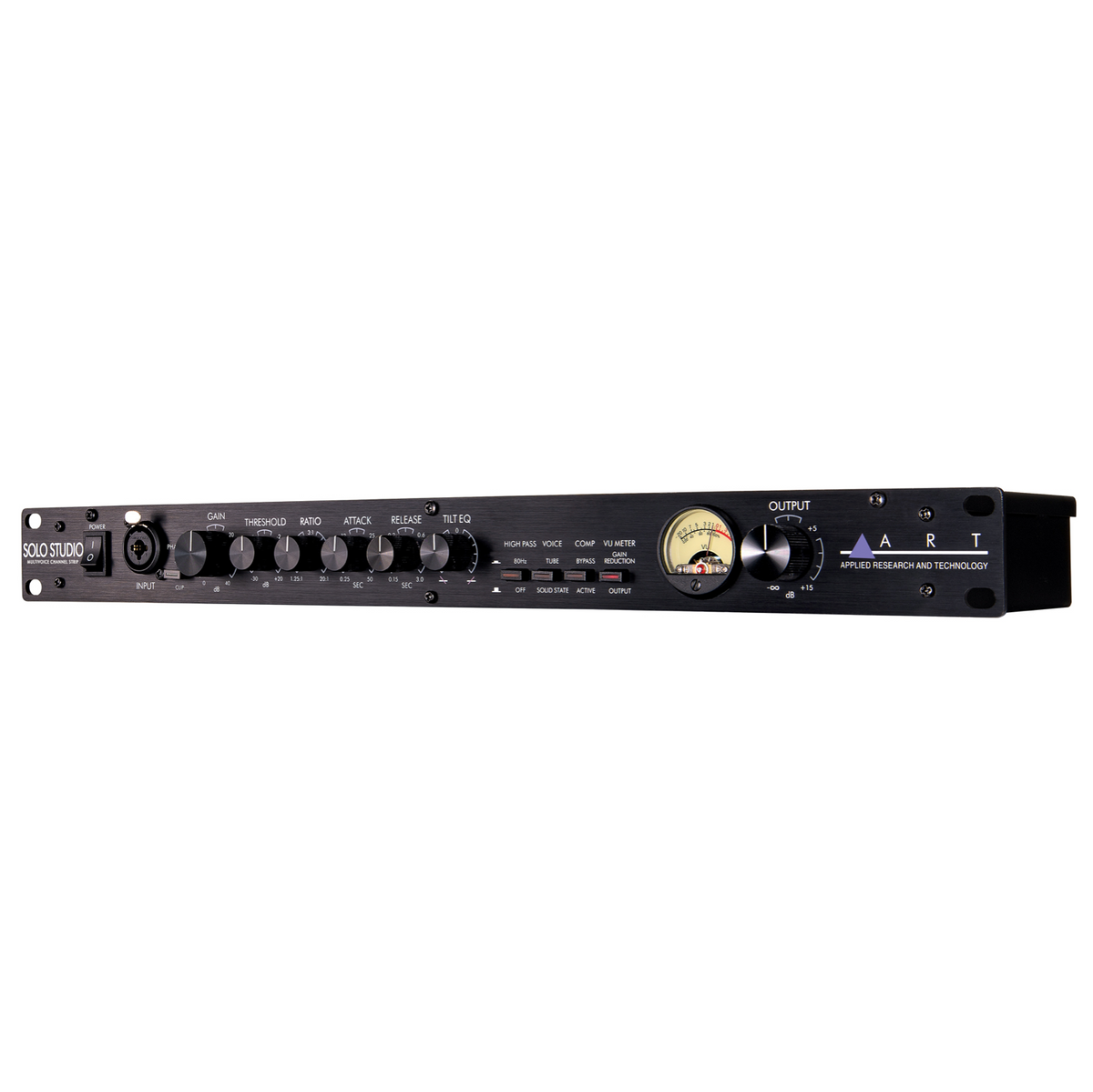

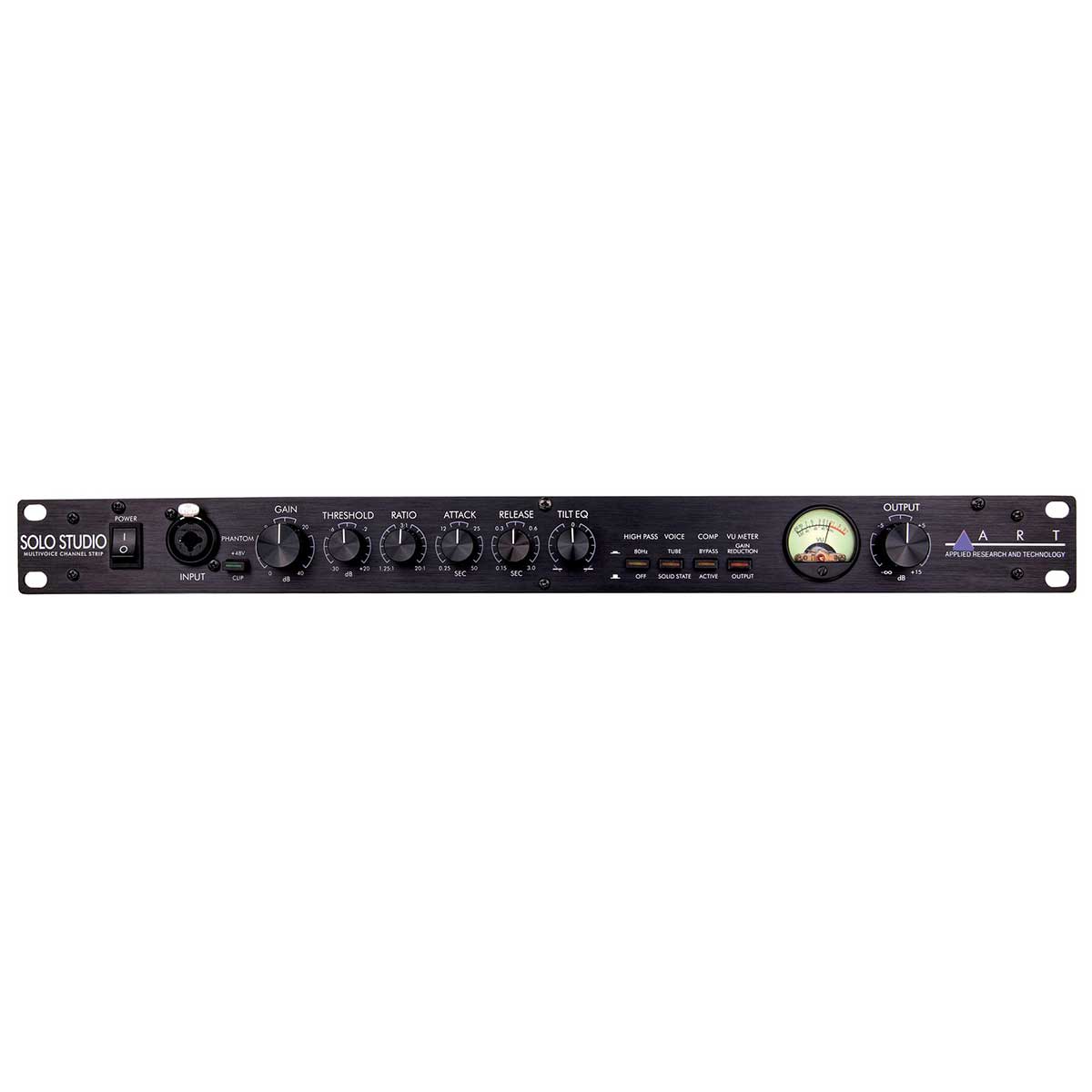

ART Solo Studio Multi-Voice Channel Strip


 Combining the best of both worlds, the Solo Studio Multi-Voice Channel Strip allows users to choose between a pristine low-noise/low-distortion solid state transistor circuit and a warmer Class-A tube mic preamp. Along with the flexible Tilt EQ control, users can voice the Solo Studio to create their own signature sound.

Featuring 48V phantom power, a front Microphone/Line balanced input or a high impedance Instrument input, users can tailor the Solo Studio to suit any sound source. A Low-Cut control allows vocals to be sculpted for clarity while the Tilt EQ can be used to emphasize high presence or low-end warmth.

The Solo Series of single channel rackmount units have been developed for the recording enthusiast with a preference for simplicity.

  • 48 Volt Switchable Phantom Power
  • Selectable Multi-Voice Tube/Solid State Control
  • Hand selected 12AT7 Tube
  • OPTO – Analog Optical Isolators (AOI)
  • Optical Controlled Compression
  • Pre-Compression Insert Loop
  • Flexible Tilt EQ
  • Selectable Low Cut Filter (HPF)
  • Variable Threshold and Ratio controls
  • Variable Attack and Release controls
  • Variable Blend (Compression)
  • Variable Output Level Control

Specifications

Frequency Response 15 Hz to 50 kHz (+0, -1dB)
Dynamic range >110dB (“A” weighted)
CMRR >90dB
THD <0.005% (typical)
Equivalent Input Noise -129dBu (XLR, “A” weighted)
Maximum Input Level +19dBu (XLR)
Maximum Instrument Input +17dBu
Input Impedance 47k ohms (XLR),



>800k ohms (Instrument)

Maximum Output Level) +27dBu (XLR
Output Impedance < 47 ohms (XLR)
Maximum Gain 55dBMeter
Attack Time 0.25msec. to 50msec. variable
Release Time 150msec. to 3sec. variable
CMRR >90dB THD <0.005% (typical
Calibration 0VU = +4dBu output (+4dBu mode)



0VU = -10dBV output (-10dBV mode)

Low Cut Filter single pole, 80Hz
Tilt EQ +/- 3dB adjustable
Power Requirements 100-240V 50Hz/60Hz
Dimensions: (HxWxD) 4.45 cm x 48.3 cm x 15.2 cm
Weight 2.5kg
Box Dimensions 12.6 cm x 51.8 cm x 18.9 cm

Note: 0 dBu = 0.775Vrms
