Whether it’s to fatten up an instrument take, smooth out a vocal performance or prevent clipping while laying down tracks, the ART Solo VLA will elevate your projects to the next level.

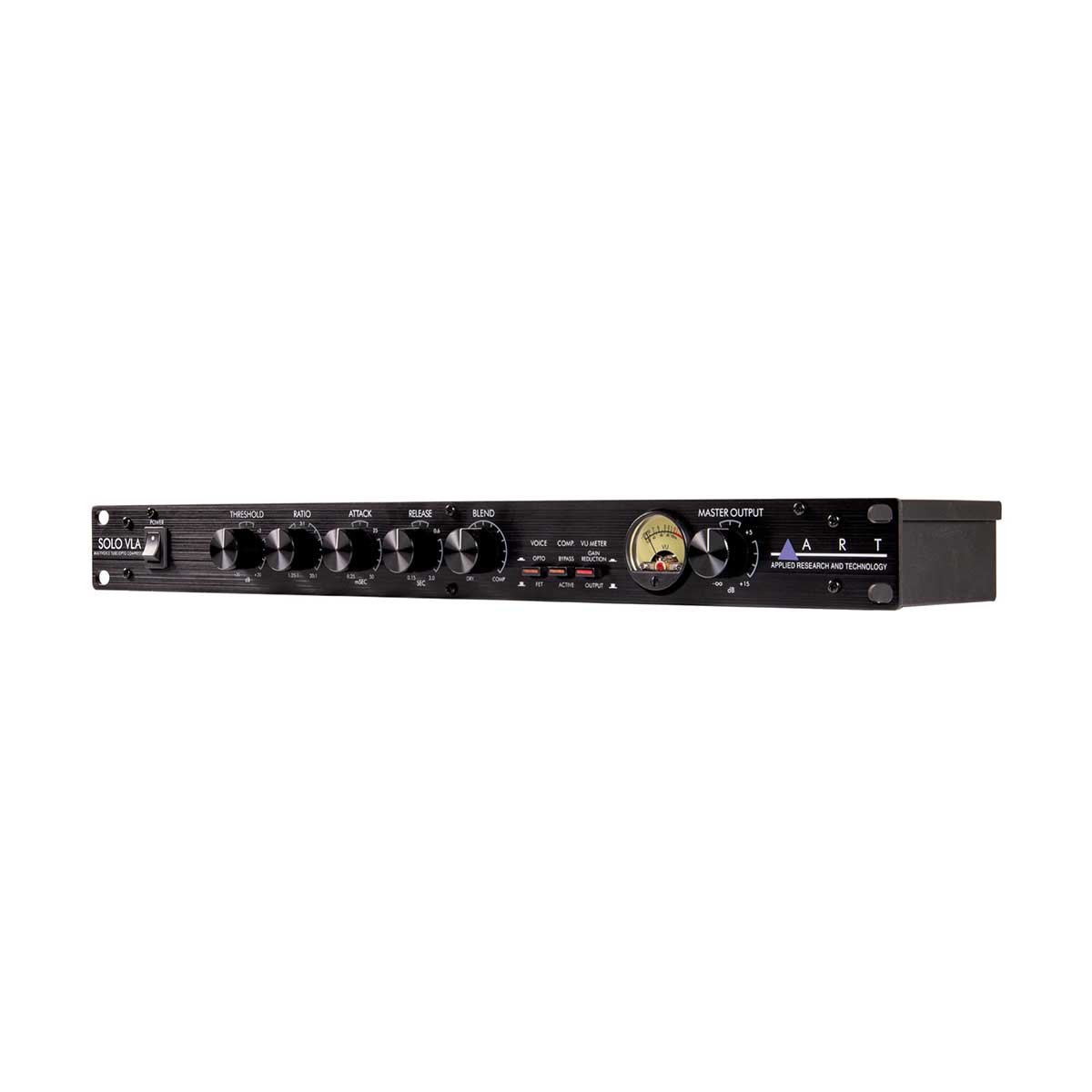

The Solo VLA Multi-Voice Tube/Opto Compressor was designed to excel in applications where transparent, musical dynamic control is desired. The Blend control lets you combine the dry and processed signals for parallel compression, perfect for preserving your full dynamic range while adding fullness and sustain. Select between a pristine solid-state path or a class-A vacuum tube gain stage for warmer saturation.
The Solo Series of single channel rackmount units have been developed for the recording enthusiast with a preference for simplicity.
Key Features
- Studio Quality Audio Signal Path
- Selectable Multi-Voice Tube/Solid State Control
- Hand selected 12AT7 Tube
- OPTO – Analog Optical Isolators (AOI)
- Variable Threshold and Ratio Controls
- Variable Attack and Release Controls
- Variable Blend for Parallel Compression
- Selectable Level Modes(+4dBu/-10dBV)
- 20Hz to 80KHz Frequency Response (+0db+/-1dB)
- >100dB (20-20k Hz) Dynamic Range
Specifications
| Input Impedance | 10k ohms Line In |
| Output Impedance | 47 ohms Line Out |
| Equivalent Input Noise | +4dBu mode -99dBu (‘A’ weighted)
-10dBv mode-107dBu (‘A’ weighted) |
| Maximum Levels Range Switch | +4dBu/-10dBv selectable Inputs +25dBu (in +4dBu mode) / +16dBV ( –10dBV mode) |
| Output +25dBu | +25dBu |
| Output Gain | +15dB Line In |
| Dynamic Range | >100dB (20-20kHz) |
| Frequency Response | 20Hz to 80kHz (+ 0/-1dB) |
| Dynamic range | >110dB (“A” weighted) |
| THD@ 0dBm Out | <0.02% (typical) |
| Attack Time | 0.25msec. to 50msec. variable |
| Release Time | 150msec. to 3sec. variable |
| CMRR | >90dB THD <0.005% (typical |
| Compression Ratio (Slope) Variable | : 1.25:1 to 20:1 |
| Maximum Attenuation | 30dB |
| Maximum Instrument Input | +17dBu |
| Power Requirements | 100-120V 60 Hz / 220-240V 50Hz |
| Dimensions: | (HxWxD) 4.45 cm x 48.3 cm x 15.2 cm |
| Weight | 2.5kg |
| Box Dimensions | (HxWxD) 12.6 cm x 51.8 cmx 18.9 cm |
Note: 0 dBu = 0.775Vrms
