ADX-ADX40-C

Audix AX40 Hanging Choir Mic

Color
Black
White
2 In Stock

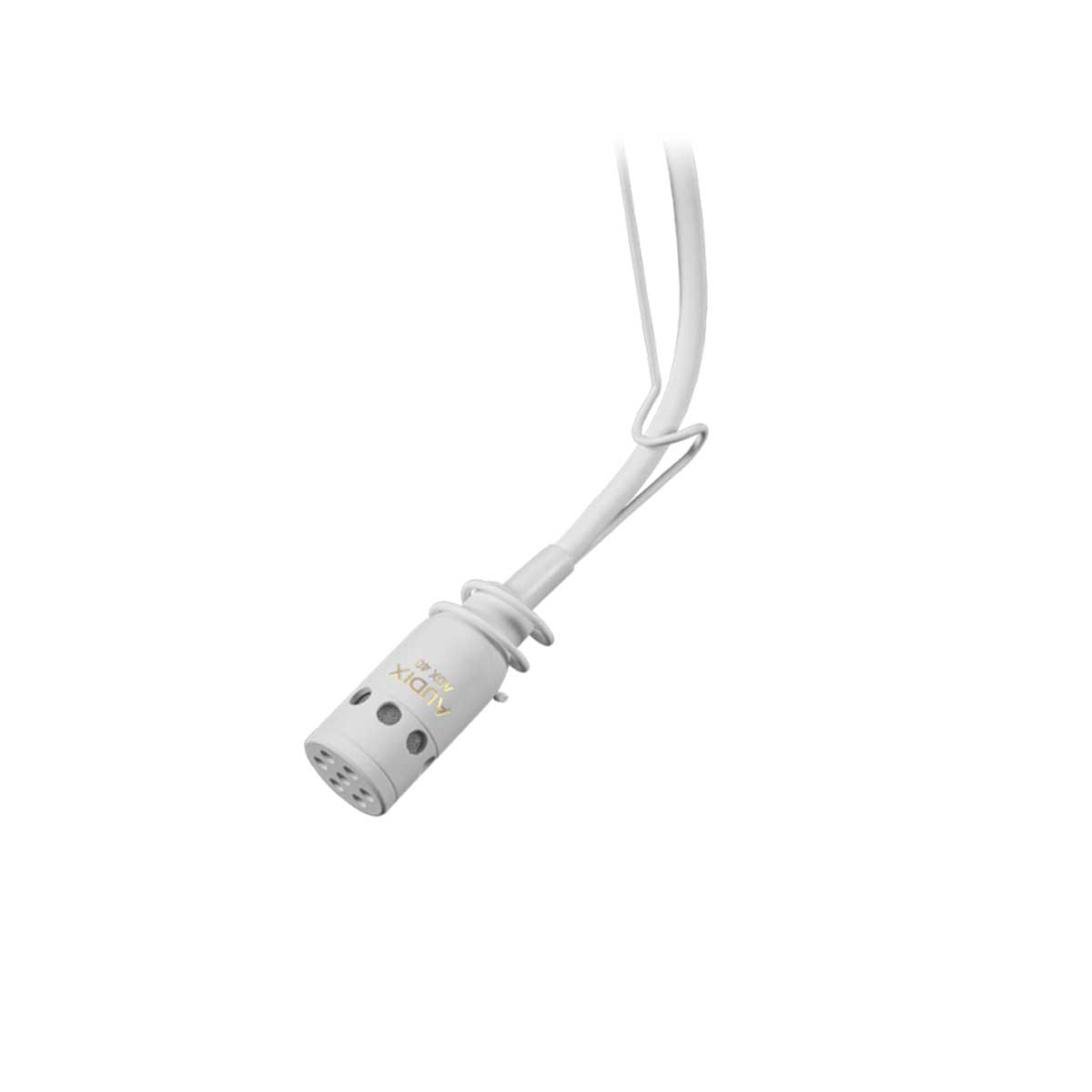

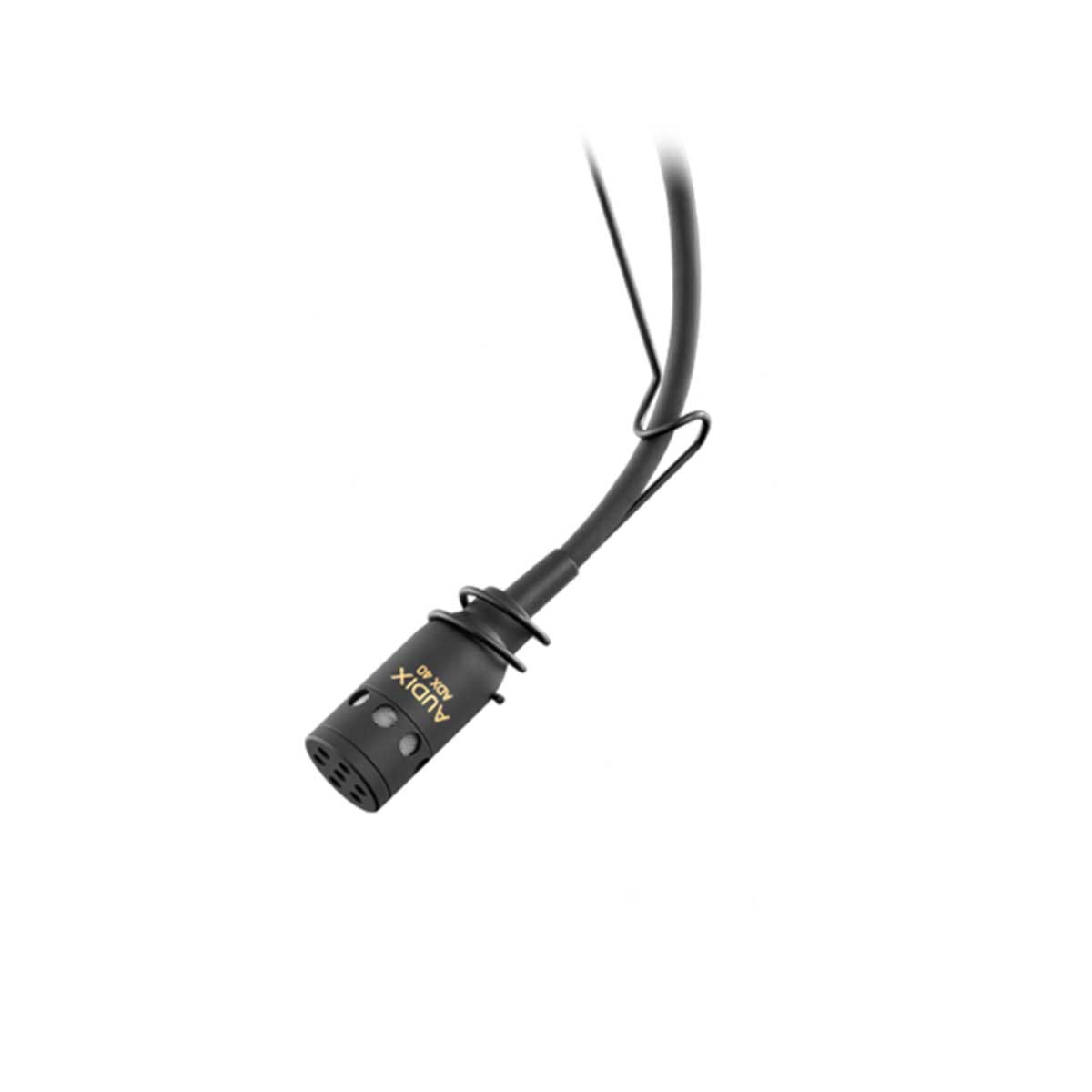

The ADX40 is a miniaturized condenser microphone designed to hang from an overhead position for applications such as group vocals, choir, theatrical production, and room ambience.

Having a uniformly controlled cardioid polar pattern, the ADX40 helps isolate the area or section being miked from other vocals or instruments on stage. The ADX40 is also available in a hyper-cardioid polar pattern for tighter pick-up control. With a wide frequency range of 40 Hz – 20 kHz, the ADX40 provides natural sound with an exceptional sound response.

The ADX40 miniature hanging condenser microphone is supplied with an attached 30′ shielded cable, external windscreen, wire hanger for positioning, and phantom power adapter. 9 – 52 V phantom required.

SPECIFICATIONS

Transducer Type

Condenser

Frequency Response

40 Hz – 20 kHz

Polar Pattern

Cardioid Hypercardioid (ADX40HC)

Output Impedance

250 ohms balanced

Sensitivity

5 mV / Pa @ 1k

Equivalent Noise Level

29 dB (A-weighted)

Signal-to-Noise Ratio

65 dB

Maximum SPL

≥130 dB

Power Requirements

9 – 52 Volts phantom

Cable / Connector

Shielded 30’ terminating to a miniature 3-pin Female XLR connector

Polarity

Positive pressure on the diaphragm produces positive voltage on pin 2 relative to pin 3

Materials / Finish

Brass / Black E-Coat

Weight

110 g / 4 oz

Length

30 mm / 1.2 in
