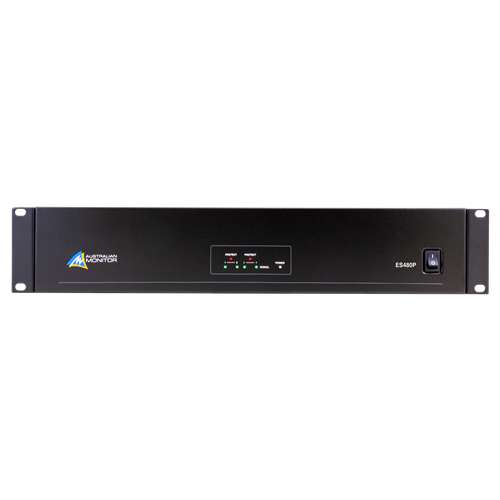

ES480P

The ES480P power amplifier delivers 80 watts per channel at 100 volt or 4 ohm in a 2 RU package.

The ES series booster amplifiers give the audio contractor a reliable, low cost booster amplifier for applications that are price sensitive but still require high quality commercial sound reinforcement.

FEATURES

• 4 x 80W amplifier
• 4 ohm and 100 volt output options
• Rear panel volume control
• Balanced input and thru out
• Fan cooled
• 2 RU

SPECIFICATIONS

• Output Power per Channel:    80W
• Frequency Response:    100Hz - 20kHz
• Output Channels:    4
• THD+N:    < 0.2% (-3dB)
• Output Mode:    4 Ohm-100V
• Signal to Noise Ratio:    > 84dB
• Input Voltage:    230Vac 50-60Hz
• Input Sensitivity:    150mVrms
• Mounting:    2RU
• Cooling:    Fan-assisted
• Warranty:    5 years
• Product Dimensions: (W x D x H)    483mm x 353mm x 88mm
• Shipping Dimensions: (W x D x H)    556mm x 471mm x 171mm
• Net Weight:    9.2 Kg
• Shipping Weight:    10.5 Kg
