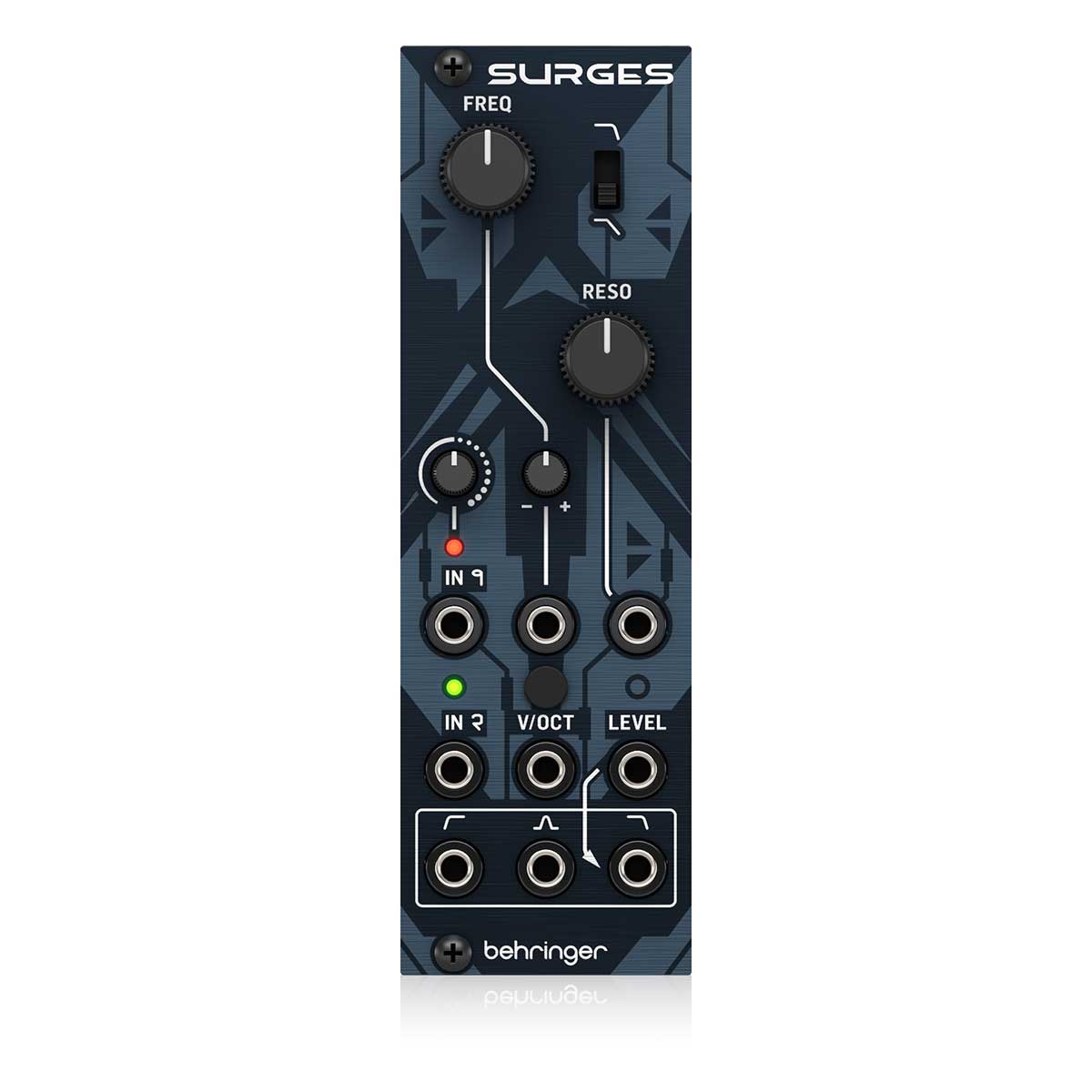

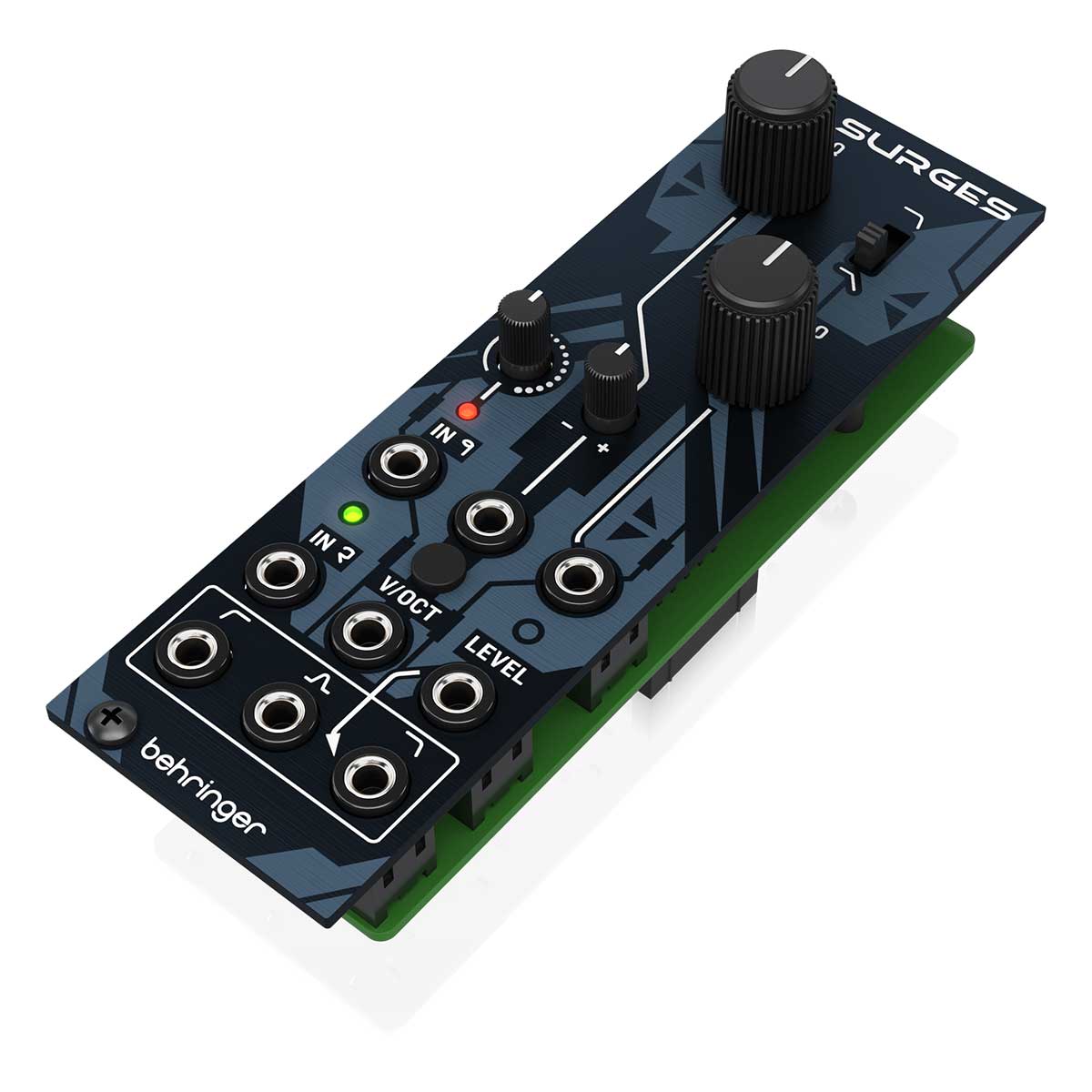

Behringer Surges Liquid Multi-Mode Filter Eurorack Module

“Liquid” Multi-Mode Filter for Eurorack

Features

• Voltage controlled multimode filter which provide high-pass, band-pass and low-pass. The slope of the band-pass and low-pass output is switchable (2-pole or 4-pole)

• Based on Mutable Instruments Ripples

• “Liquid” and musical tone coloration reminiscent of SH/Jupiter filters

• Loudness compensation with increased resonance

• Wide frequency range from 18 Hz to 18 kHz

• Purely analog circuitry based on legendary 2164 and 13700 semiconductors

• Eurorack specs: 8 HP, 35 mA +12 V, 35 mA -12 V
