CHMINX

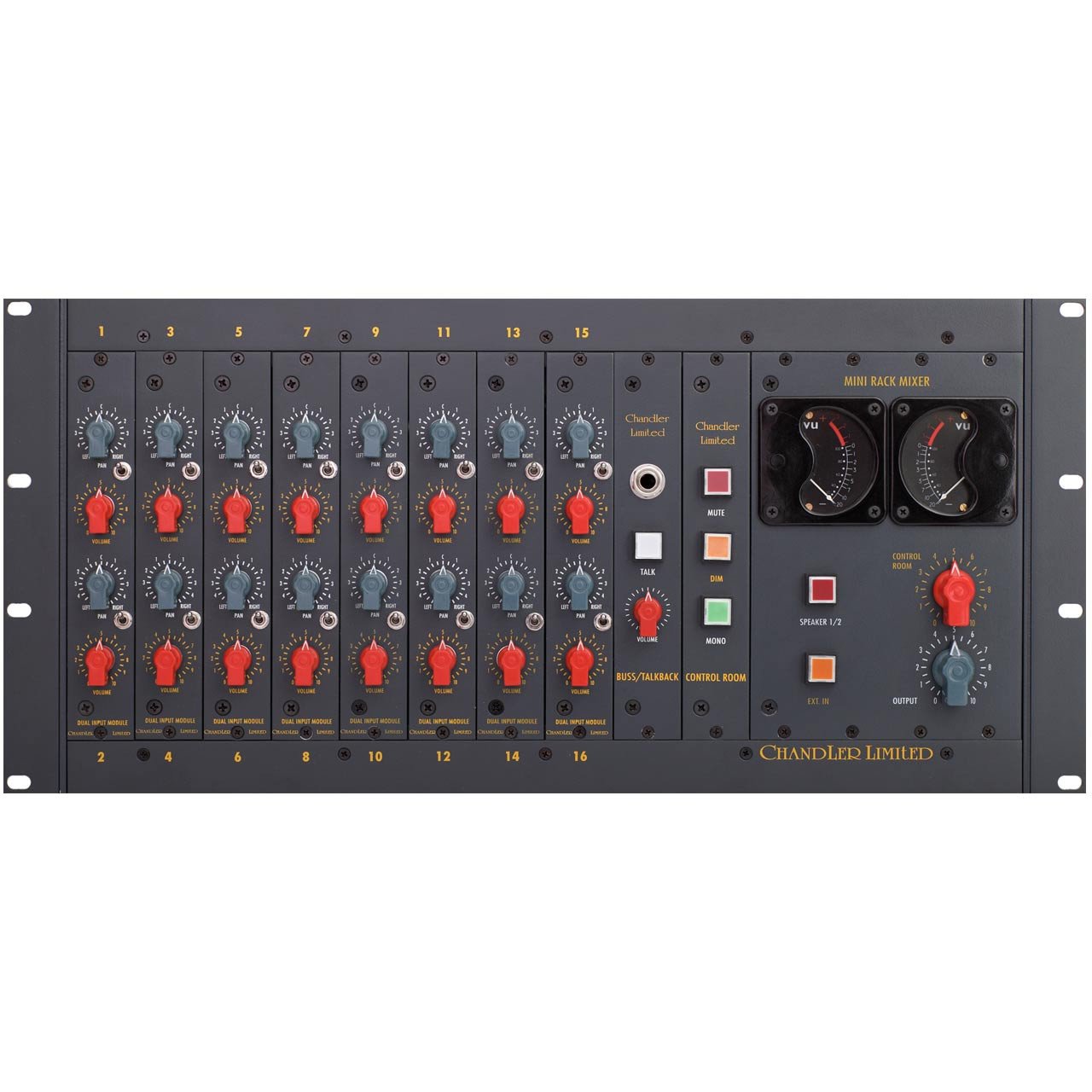

The culmination of Chandler’s experience working with many types of vintage discrete circuits - meet the Mini Mixer. The Mini Rack Mixer traces its lineage back to several types of these amplifiers developed in the 60s and 70s that have been Chandlerized for modern usage.
Type: Analog Mixers
Each Channel of the 16×2 mixer is transformer balanced and driven by the new Chandler line amp, which borrows from Chandler’s other products but has been redesigned for use in this mixer. The Mini Mixer is jam-packed with 20 discrete amplifiers and 22 custom wound transformers, giving it a classic sound with all the punch and tone you need for today’s digital environment.
In addition to the mixer section, the unit has a full featured Control Room section including Talkback, Speaker switching, Mute, Mono, Dim, External input (also used as an insert point), and separate Control Room and Stereo Buss outs. Mixers are easily expandable to 32 channels or more.
CHANNELS: 16×2
CIRCUIT: Class A, Discrete, Transistor

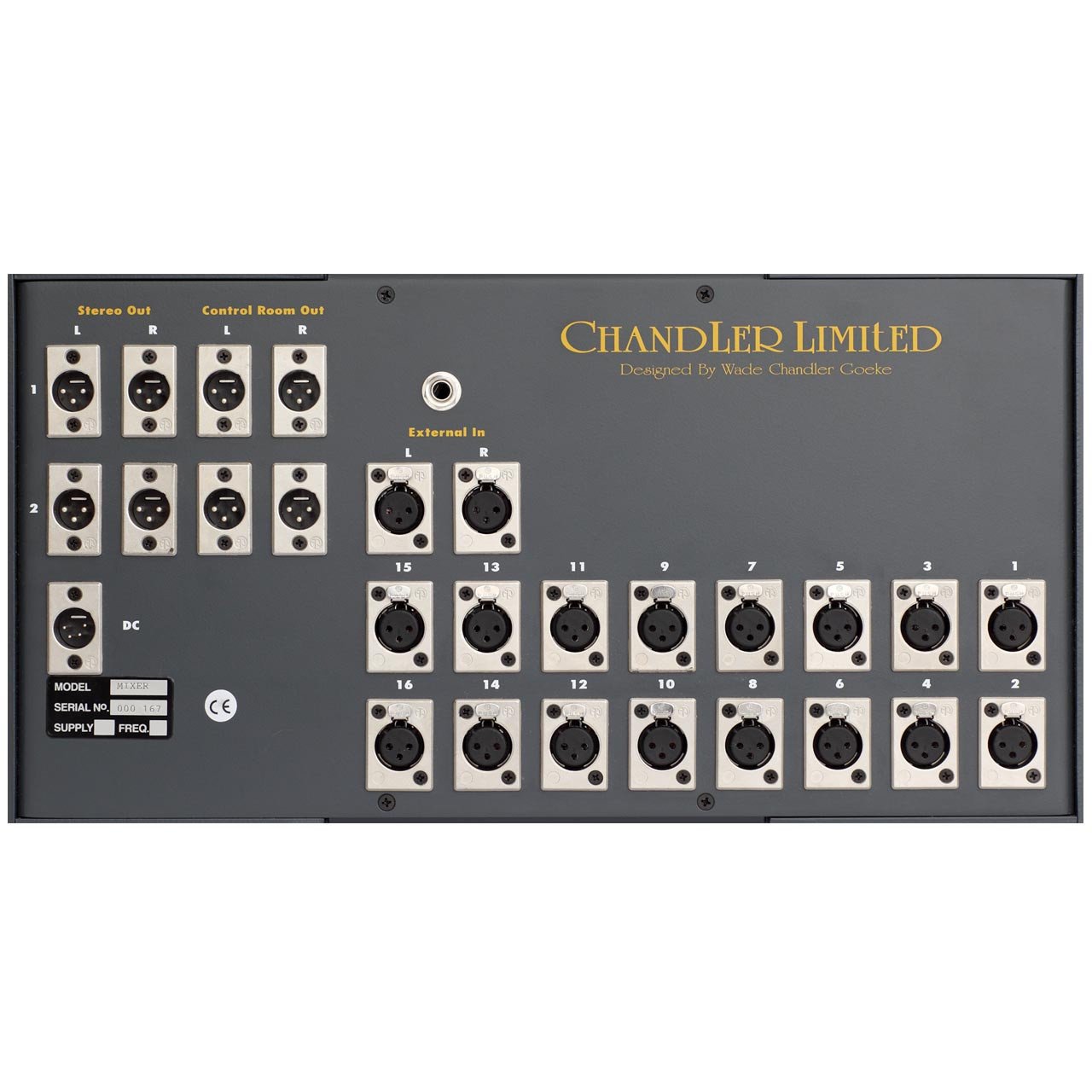

CONNECTIONS
I/O: XLR, Transformer Balanced, Pin 2 Hot, Input Impedance: 10k
Expansion: TRS
Talkback Mic: 1/4″
POWER: +/-28v
Requires Chandler Limited 3-amp external power supply.
