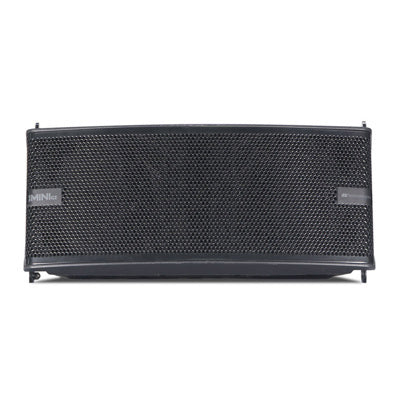

dB Technologies 2-Way Active line array module. 2 x 6.5" LF + 2 x .75" HF. 400w, 131 dB SPL max

dBTechnologies introduces the new generation of its flagship small format 2-way active line array DVA MINI: an incredibly versatile system for both portable and permanent installation solutions.

Enhancing ease of use as well as versatility thanks to complete network capability, DVA MINI G2 provides stunning power and sound pressure in an extraordinary lightweight and compact enclosure.

Each element is equipped with 2x6.5" neodymium woofers and 2x1" high-frequency neodymium compression drivers and driven by a Class D Digipro G3 amp module providing 400 W RMS. The system can reach an impressive 131-dB-per-unit sound pressure level.

The system's advanced sound processing features linear-phase FIR filters allowing an excellent linear response, resulting in a clear and intelligible audio performance from every listening position.

DVA MINI also features complete network capability via Aurora Net control software which allows EQ, delay and processing customisation and real time monitoring of the PA system in use. Nevertheless, the on-board 1 rotary provides for 7 different presets to adapt the system to basic applications.

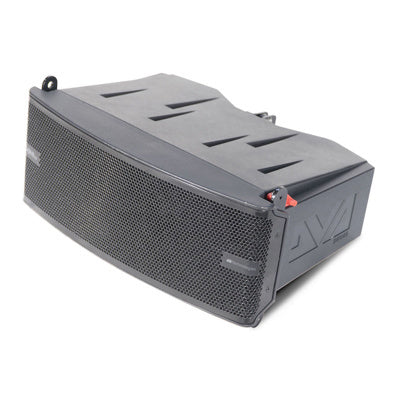

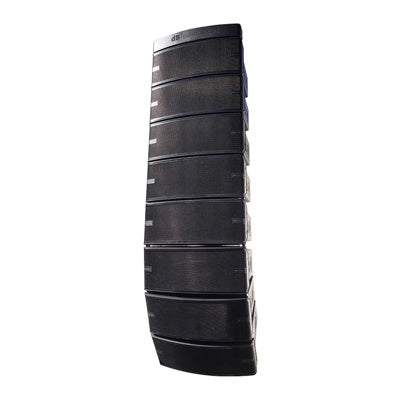

An integrated quick-lock system links enclosures by simply placing one module below a companion module and sliding it towards one side until it locks in place. The rigging hardware is on the rear of every cabinet allowing for incremental steps for line array positioning. Extra-light DRK M5 fly-bar easily allows a fast rigging while DSF M2 accessory enables the system to be stacked on a standard pole.

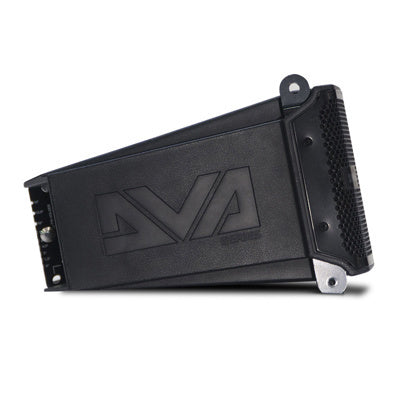

The cabinets are constructed of reinforced polypropylene packing extra power in compact dimensions (460x190x345 mm) and feather-weight (only 8.4 kg per module).

Technical Data

• Speaker Type: 2-Way Active Line Array Module

Acoustical Data

• Usable Bandwidth [-10 dB]: 75 - 20.000 Hz
• Frequency Response [-6 dB]: 80 - 19.000 Hz
• Max SPL: 131 dB per unit
• HF: 2x 0.75"
• Type HF: Neodymium
• Voice Coil HF: 1"
• LF: 2x 6.5"
• Type LF: Neodymium
• Voice Coil LF: 1.75"
• Directivity (HxV): 15° x 100°

Amplifier

• Amp Technology: Digipro® G3
• Amp Class: Class D
• RMS Power Amp: 400 W
• Cooling: Convection

Processor

• Controller: DSP 56 bit
• AD/DA Converter: 24 bit/48 kHz
• Controls: 1x Rotary Encoder (8 presets)
• Limiter: Multiband, RMS/Peak, Thermal
• Crossover Frequency LF-HF: 1900 Hz
• Slope LF-HF: 24 dB/Octave
• Advanced DSP functions: Linear Phase FIR Filters

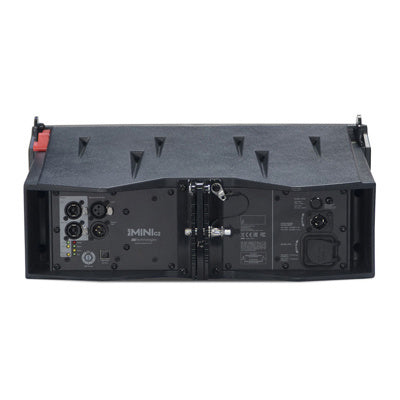

Input

• Signal Input: 1x XLR fem, Bal.
• Signal Output: 1x XLR male, Bal.
• Power Supply: 400W SMPS with PSU Auto-range (110V~ and 220V~)
• Power Socket: 1x PowerConTRUE1 In 1x PowerConTRUE1 Out

Mechanics

• Housing: Polypropylen PP
• Handles: 2x back side
• Fittings: Integrated hardware with fast lock mechanics
• Width: 460 mm (18.1 in)
• Height: 190 mm (7.5 in)
• Depth: 345 mm (13.6 in)
• Weight: 8.4 kg (18.5 lbs)
