dB Technologies BH-15 2 way active speaker 15" woofer

2-Way Active Speaker BH series aims to provide a professional yet efficient sonic performance to all kind of users, combining an extremely efficient CLASS D amplifier with aggressive sound pressure levels (up to 126,5 dB for the 15" cabinet), while delivering the most accurate sound reproduction. The new B-HYPE 15 is a versatile active speaker. It is equipped with one 1" neodymium compression driver (1" voice coil), and one 15" woofer (2" voice coil). The dispersion pattern is asymmetrical on vertical axis, and it is diversified (top and bottom) on the horizontal one. This allows a narrower and more efficient sound coverage, and a better performance in case of reverberant environments. The combo input (with source type selection) allows an easy and versatile use, suitable for a dynamic microphone and standard line input. The user can enhance lower and upper frequencies with the convenient DSP preset function. A balanced link output allows the audio connection to a second loudspeaker.The featherweight cabinets (from 14 to 38 lbs) come with a clean and contemporary full grille design, enhancing both portability (3 handles -1 x side and 1 on top-) and multi-functionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup in order to be used on tripods or stacked on dBTechnologies Subs.

Technical Data

• Speaker Type: 2-Way Active Speaker

Acoustical data

• Usable Bandwidth [-10dB]: 51 - 20.000 Hz
• Frequency Response [-6 dB]: 57 - 19.700 Hz
• Max SPL: 126.5 dB
• Type HF: Compression Driver
• HF voice coil: 1"
• LF: 15"
• LF voice coil: 2"
• Crossover Frequency: 2100 Hz (24 dB/oct.)
• Horizontal Dispersion: asymmetrical 85ø up / 120ødown
• Vertical Dispersion: 85ø (+25/ -60ø)

Amplifier

• Amp Technology: Custom Made
• Amp Class: Class D - Passive cooling (convection)
• Power Peak: 400 W

Processor

• Controller: DSP 28/56 bit- 48 kHz
• Limiter: Peak, RMS, Thermal
• Controls: Volume, Audio Input Sensitivity, DSP Preset

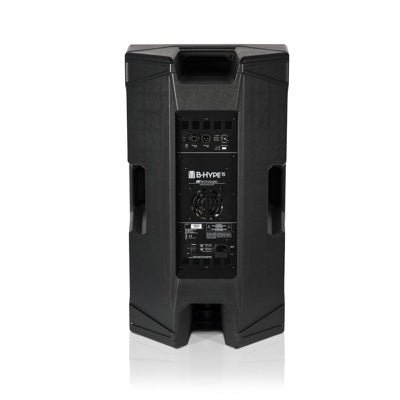

Input

• Main Connection: VDE
• Signal Input: Balanced 1xCombo IN (MIC/LINE)
• SIGNAL Out: (Balanced) 1xXLR OUT (LINK)

Mechanics

• Housing: Polypropylene

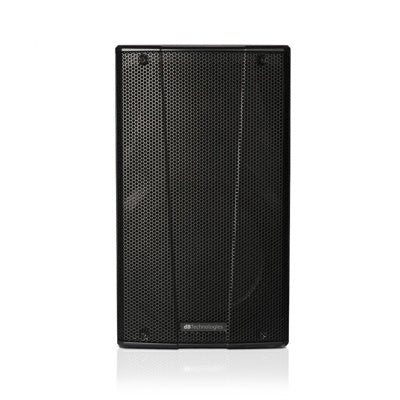

• Grille: Full Metal Grille
• Handles: 3 (2 on side 1 on top)
• Pole Mount: 36 mm
• Width: 415 mm (16.34 in)
• Height: 725 mm (28.54 in)
• Depth: 391 mm (15.39 in)
• Weight: 17.4 kg (38.36 lbs)

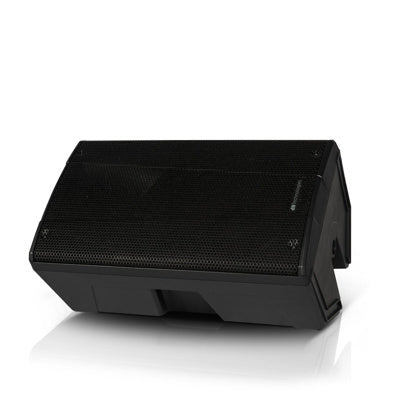

• Angles Up: Double wedge angle 45ø
