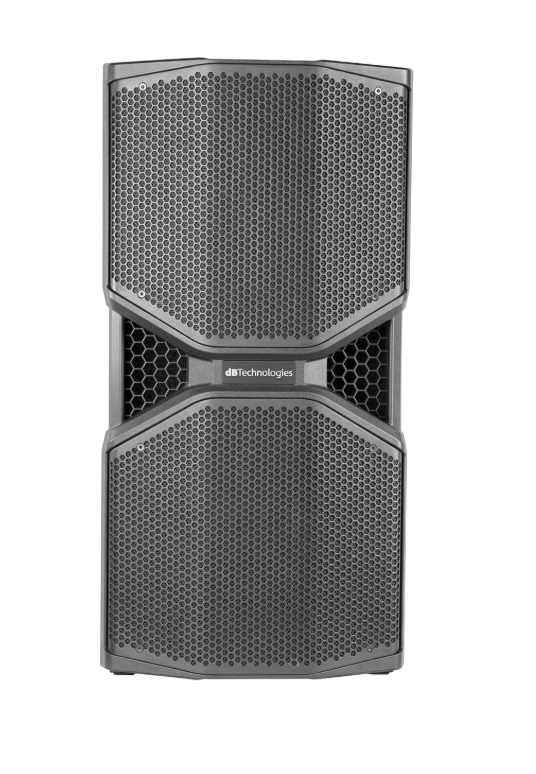

dBTechnologies OPERA REEVO 210 Quasi 3 way active speaker

OPERA REEVO 210 and OPERA REEVO 212 deliver an astonishing sound pressure level with touring-grade sound definition and a remarkable low-end extension in a compact and freshly designed enclosure accessible to anybody who wants great sound anywhere.

The Quasi 3-way configuration delivers a vigorous yet pristine sound. This bold acoustic design is in-fact unparalleled in its category, inspired by dBTechnologies touring series, marks a clear step-up In the longest running and most appreciated dBTechnologies active speaker series of all times.

Opera Reevo translates the mix in an impeccable way, adapting the speaker to complex musical material especially when rich in the midrange region, where separation and clarity can really make a difference in the outcome of any performance.

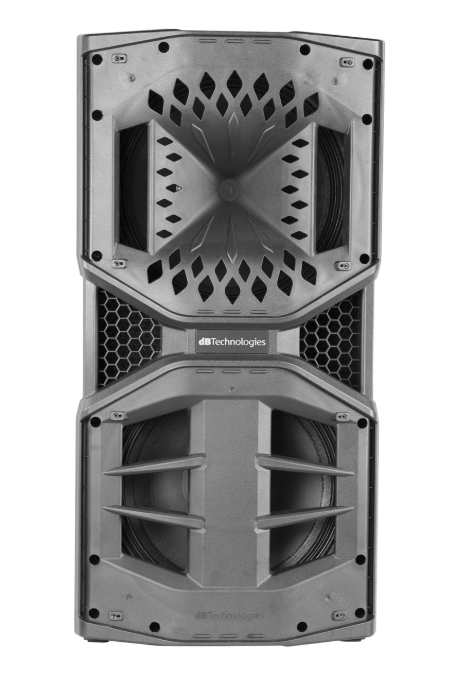

This is granted by the coaxial acoustic design, featuring a front Integrated HF horn with diamond-shaped cutouts with the aim of rendering comb filtering-free high frequency reproduction, and at the same time of improving the upper woofer’s efficiency.

Another phase plug enhances the lower woofer efficiency: this acoustic device greatly improves the transient response and overall behaviour of this transducer.

Low noise reflex ports are integrated in the front molding. The honeycomb structure inside the ports helps reducing wind turbulence caused by the high airflow of this high SPL powerhouse.

Both models are equipped with a Class-D Digipro G2 amplifier which delivers an impressive 1050 W RMS and 2100 W Peak power, and features advanced DSP processing where FIR linear phase filters allow the systems to achieve a coherent audio performance, rendering an uniform and crystal-clear sound. Moreover, Opera Reevo offers factory-tailored voicing presets to adapt to multiple scenarios, including when in need of a wedge stage monitor or a completely standalone full-range PA system.

This versatile sound processing works in tandem with a cleverly designed box shape which combines cutting-edge design and ease of use. OPERA REEVO can be used as a wedge stage monitor or on a classic speaker stand support. When paired with a subwoofer can be mounted on a 36mm standard pole, and can be also suspended thanks to the integrated 3x M10 threaded eyebolts, making this enclosure a perfect permanent installation complement.

Both cabinets have a very compact size compared to the output SPL of 132.5 dB (REEVO 210) and 133 dB (REEVO 212), yet featuring 2x Neodymium woofers (10” for REEVO 210 and 12” for REEVO 212) and one 1.75” coaxial compression driver, keeping the overall weight down to 17.2 Kg / 37 lbs (REEVO 210) and 20.4 Kg / 44 lbs (REEVO 212).

When it comes down to business, Opera Reevo outstanding voicing ensures seamless and transparent rendition of any speech, where intelligibility is mission critical (such as corporate events or houses of worship) with a very wide nominal dispersion: 100°x80° (REEVO 212) and 100°x90° (REEVO 210) granting greatly consistent coverage from every listening position.

Features

• Quasi 3-way configuration
• Coaxial transducers
• 2x Neodymium woofer
• 1050 W RMS / 2100 W Peak
• 132.5 dB Max SPL
• acoustic phase plug
• FIR Filters
• 3x Flying point
• Low noise reflex port
• Made in Italy

Specifications

Technical Data

• Speaker Type: Quasi 3-Way Active Speaker

Acoustical Data

• Frequency Response [-10dB]: 54 - 19.400 Hz
• Frequency Response [- 6dB]: 60 - 19.100 Hz
• Max SPL: 132.5 dB
• HF: 1" Exit CD, 1.75" v.c.
• Type HF: Compression driver
• Horizontal Directivity: 100°
• Vertical Directivity: 90°
• Horn: Asymmetrical Horn
• LF: 2x 10" Neo, 2.5" v.c.

Amplifier

• Amp Technology: Digipro G2 with SMPS
• Amp Class: Class D
• RMS Power: 1050 W (525W + 525W)
• Peak Power: 2100 W (1050W + 1050W)

Processor

• Controller: DSP 28/56 bit
• AD/DA Converter: 24 bit/48 KHz
• CrossOver Frequency: 1260 Hz
• Limiter: Peak, RMS, Thermal
• Advanced DSP Functions: Linear Phase FIR Filters

Input

• Signal Input: 1x Combo (XLR/Jack 6.3 mm) Line
• Signal Output: 1x XLR Male (True link)
• Controls:
  Gain (rotary)
  Preset (Flat, Playback, Wedge)

Mechanics

• Housing: Polyproylene
• Grille: Full grille
• Handles: 1 on left Side, 1 on Top
• Rigging Points: 2x M10 on Top + 1x M10 on Back
• Pole Mount: D36 mm
• Width: 300 mm (11.81 in)
• Height: 604 mm (23.78 in)
• Depth: 324 mm (12.76 in)
• Weight: 17.2 kg (37 lbs)

Note: Data is not binding; dBTechnologies reserves the right to modify data at any time without prior notice.
