DBX-DB12

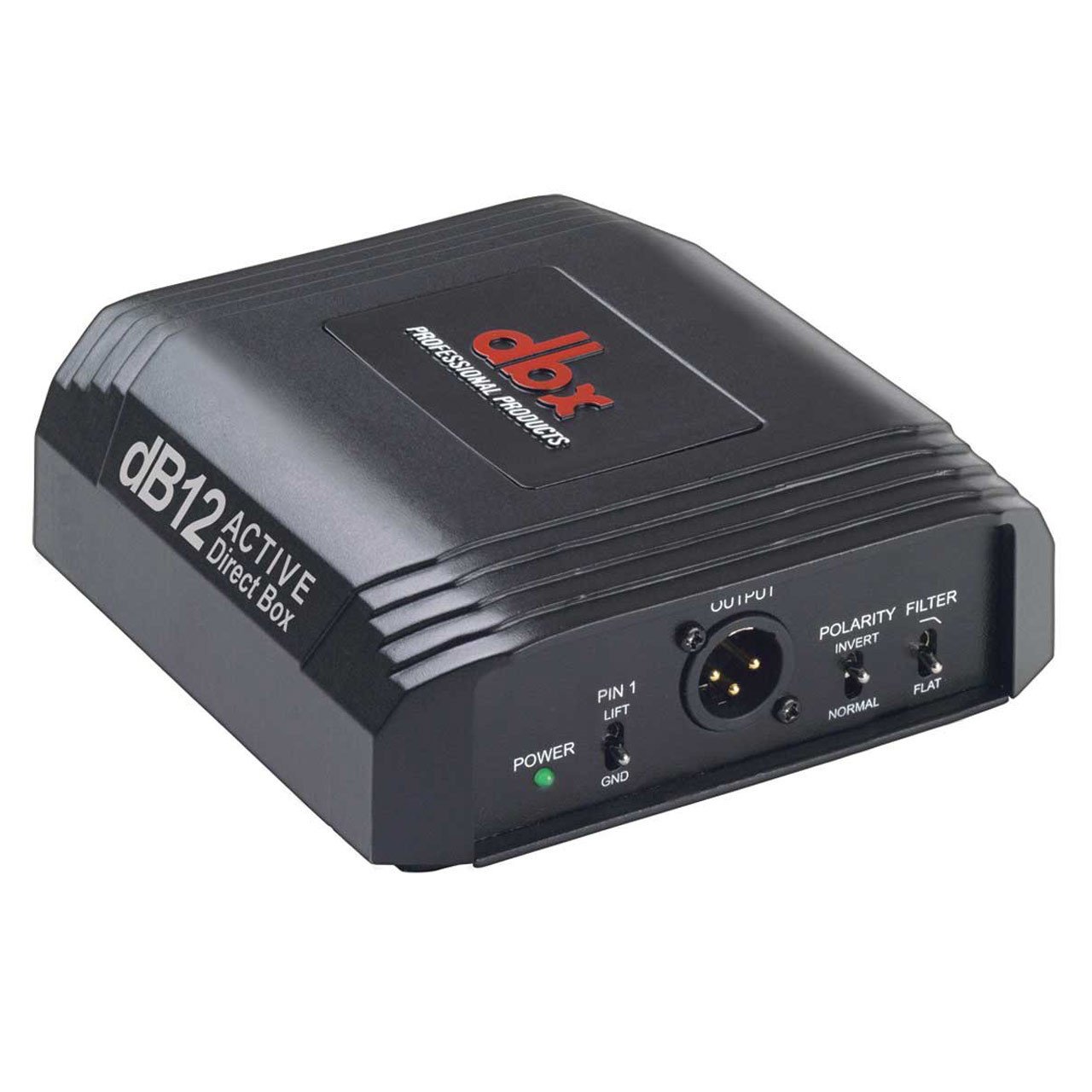

dbx db12 Active Direct Box
The dbx db12 is an active direct injection box with unbalanced TS input and thru jacks, and balanced XLR out. The pad switch on the db12 can be used to match instrument, line and speaker level connections. The db12 features Neutrik connectors and especial dbx mu-metal-shielded audio transformers, that maintain a high-quality signal for recording or playing live. The db12 features a ground lift switch too, and its rock-solid construction makes it ideal for touring.
Type: DI Boxes
-
dbx db12 PRODUCT FEATURES:
Premium Performance
Rugged Design
Stackable Chassis with Durable Rubber Foot
Gold-plated Neutrik® XLR Connector
Premium Chrome Toggle Switches
Hi-Z 1/4" Input Jack
Parallel 1/4" Thru Jack
Transformer Isolated
Premium Shielded Custom dbx Transformer
Balanced XLR Lo-Z Output
3-Way 0/20/40 dB Pad Switch
Flat/High-Cut Filter Switch
Output Polarity Invert Switch
Ground Lift Switch
4 Year Warranty!
Phantom Powered
Green LED Phantom Power Indicator
+48V Phantom Operation
Low-Noise Active Circuitry
-
dbx db12 TECHNICAL SPECIFICATIONS:
Input: 1 instrument/line/speaker level
Input Connectors: 1/4” jack
Input Type: Unbalanced, RF filtered
Insert Impedance: 150k Ohm typical
Max Input: +20dBu (0dB pad); +40dBu (20dB pad); +60dBu (40dB pad)
Output: (Thru) 1 parallel from input jack, 1/4" Unbalanced, RF filtered
Output Connectors: XLR male balanced
Output Impedance: 150k Ohm typical
Max Output: 0dBu
Transformer: Custom dbx mu-metal-shielded
Frequency Response: 20Hz to 20kHz, +/-2.5dB
Noise: <-105dB unweighted, 22kHz BW
THD: <0.01%, 20Hz to 20kHz BW; <0.005%, 1kHz
Dimensions: 5.82" L X 5.44" W X 2.20" H (148 x 138 x 56mm)
Unit Weight: 1.4 lbs / 0.65 kg
