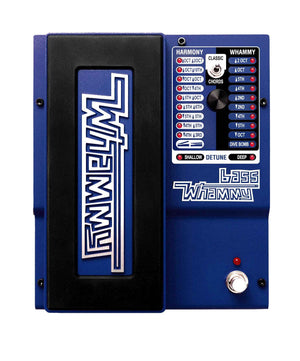

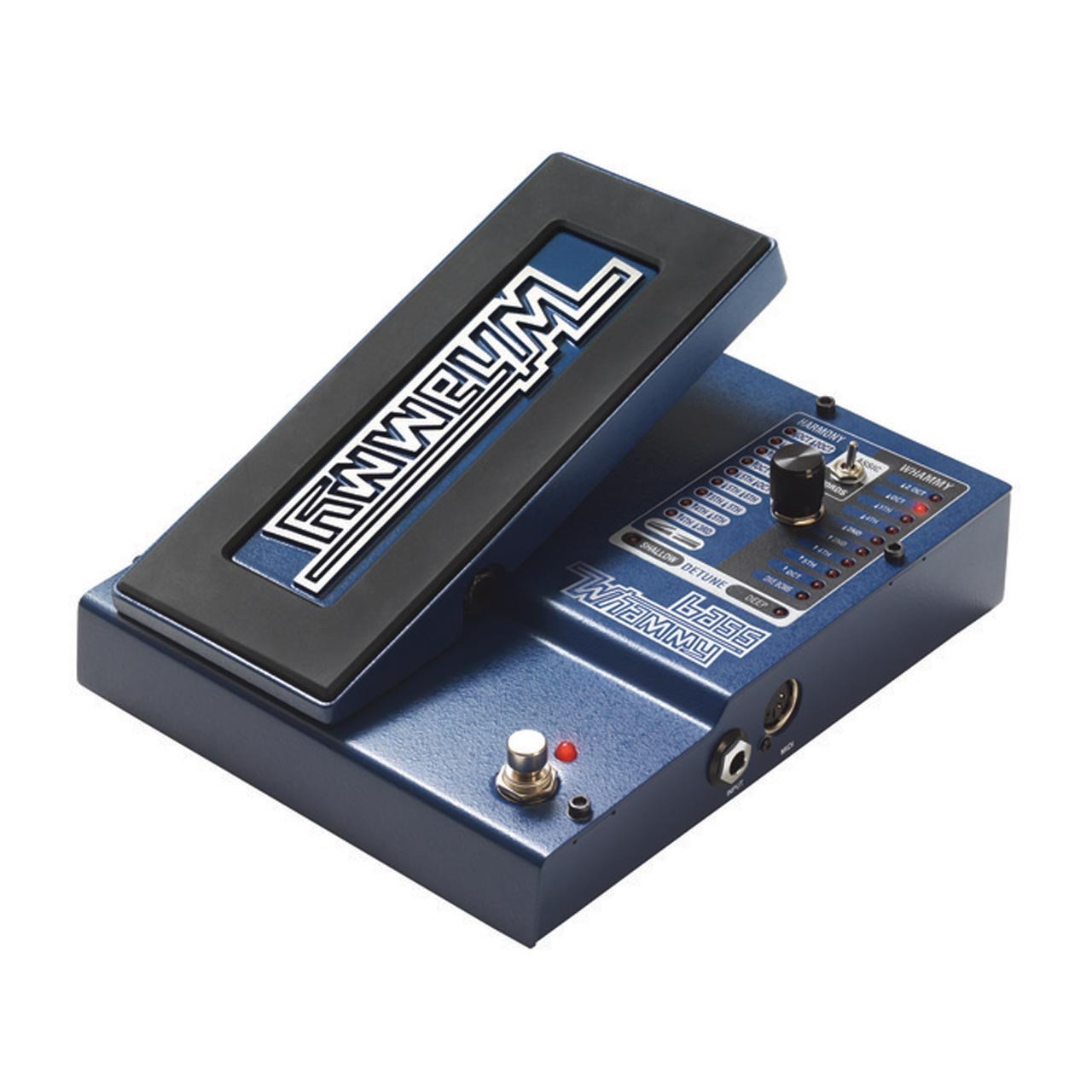

The next-generation Bass Whammy uses the most advanced pitch detection and polyphonic note-tracking technology to create the world’s best pitch-shifting effect pedal optimized for bass. The Bass Whammy maintains the classic settings from the original with many modern upgrades. With two different tracking modes, Classic and Chord, the Bass Whammy gives players the ability to recreate the shift glitch effects from the original or get the smooth pitch shift effect. Chord mode uses advanced polyphonic tracking algorithms for a more exact and smooth pitch shift effect while Classic maintains the tracking artifacts of the original Whammy. The Bass Whammy is true bypass, MIDI controllable, and uses a 9V DC power supply to easily integrate into your existing pedalboard.

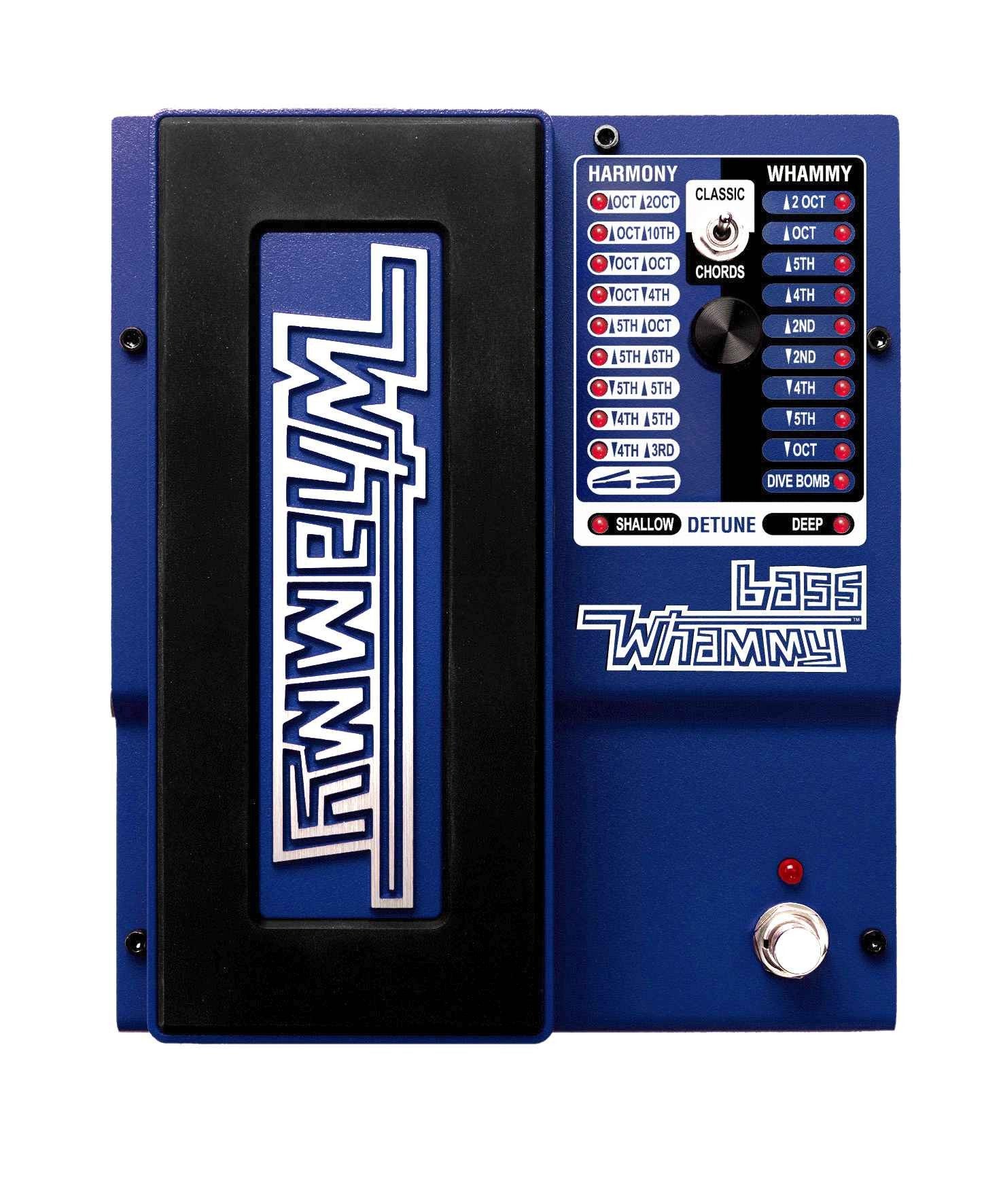

Classic/Chords switch
Toggle between the single note and chordal Whammy modes, providing rock-solid pitch-shifting effects.
Classic and Chords (polyphonic) tracking modes for added musical flexibility
General Specifications | |
---|---|
SAMPLE RATE |
44.1 kHz |
FREQUENCY RESPONSE |
20Hz–20kHz |
SIGNAL-TO-NOISE RATIO |
> -105 dB (A-weighted); ref = max level, 22 kHz bandwidth |
THD |
0.004% @ 1 kHz; ref = 1 dBu w/ unity gain |
A/D CONVERSION |
24 bit |
D/A CONVERSION |
24 bit |
POWER CONSUMPTION |
2.4 Watts (< 265 mA @ 9 VDC) |
POWER REQUIREMENTS |
9 VDC External Adapter |
TRUE BYPASS |
Yes. True Bypass circuitry preserves your tone when the pedal is not in use. |
Dimensions | |
---|---|
LENGTH |
7.75" (197mm) |
HEIGHT |
2.5" (64mm) |
WIDTH |
6.5" (165mm) |
Audio Output | |
---|---|
OUTPUT TYPE |
1/4” Unbalanced TS |
MAX OUTPUT LEVEL |
+10 dBu |
OUTPUT IMPEDANCE |
1 kΩ |
Audio Input | |
---|---|
INSTRUMENT INPUT TYPE |
1/4” Unbalanced TS |
MAX INPUT LEVEL |
+5 dBu |
INPUT IMPEDANCE |
1 MΩ |
MIDI INPUT |
5-Pin Din |
