DP-2028-B-B01

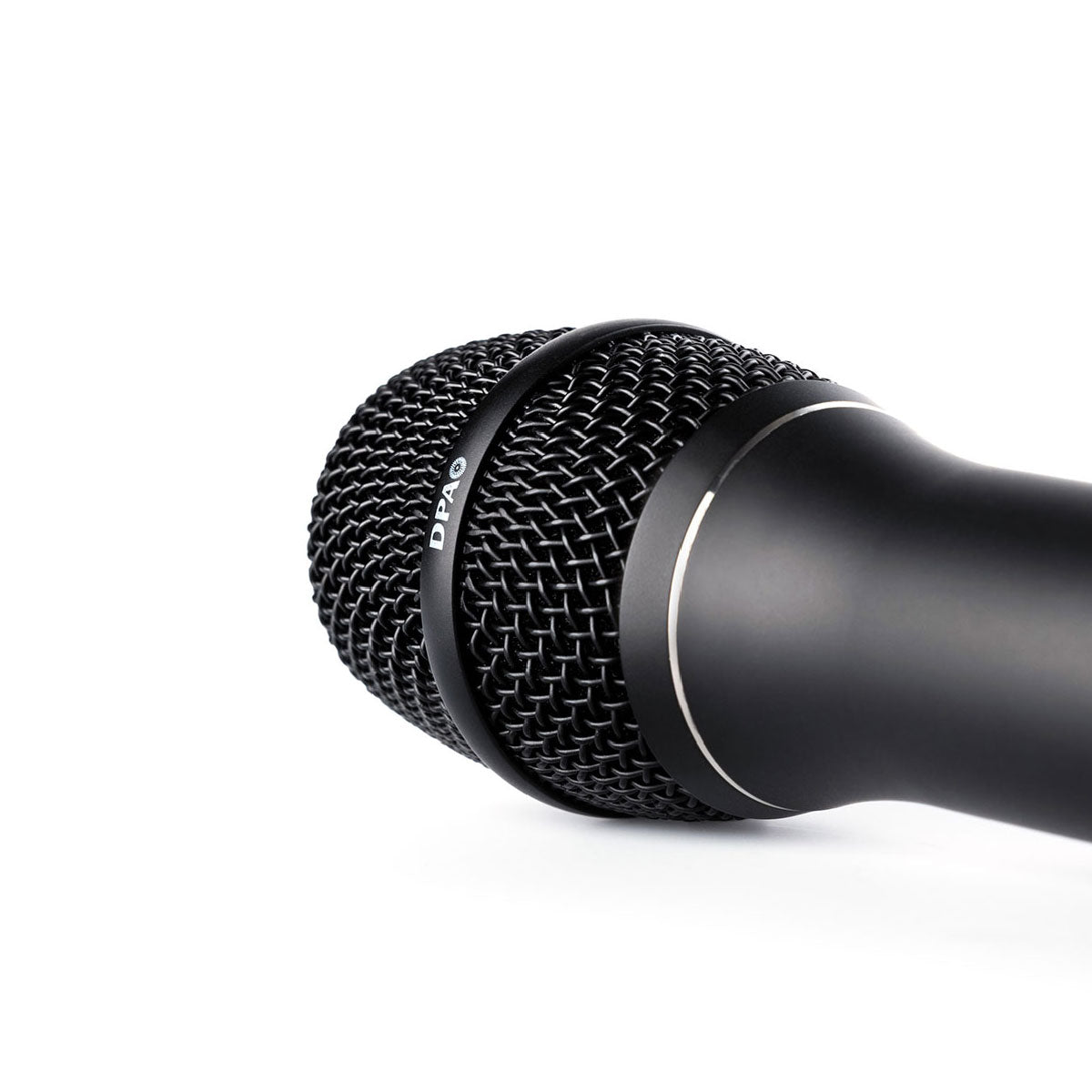

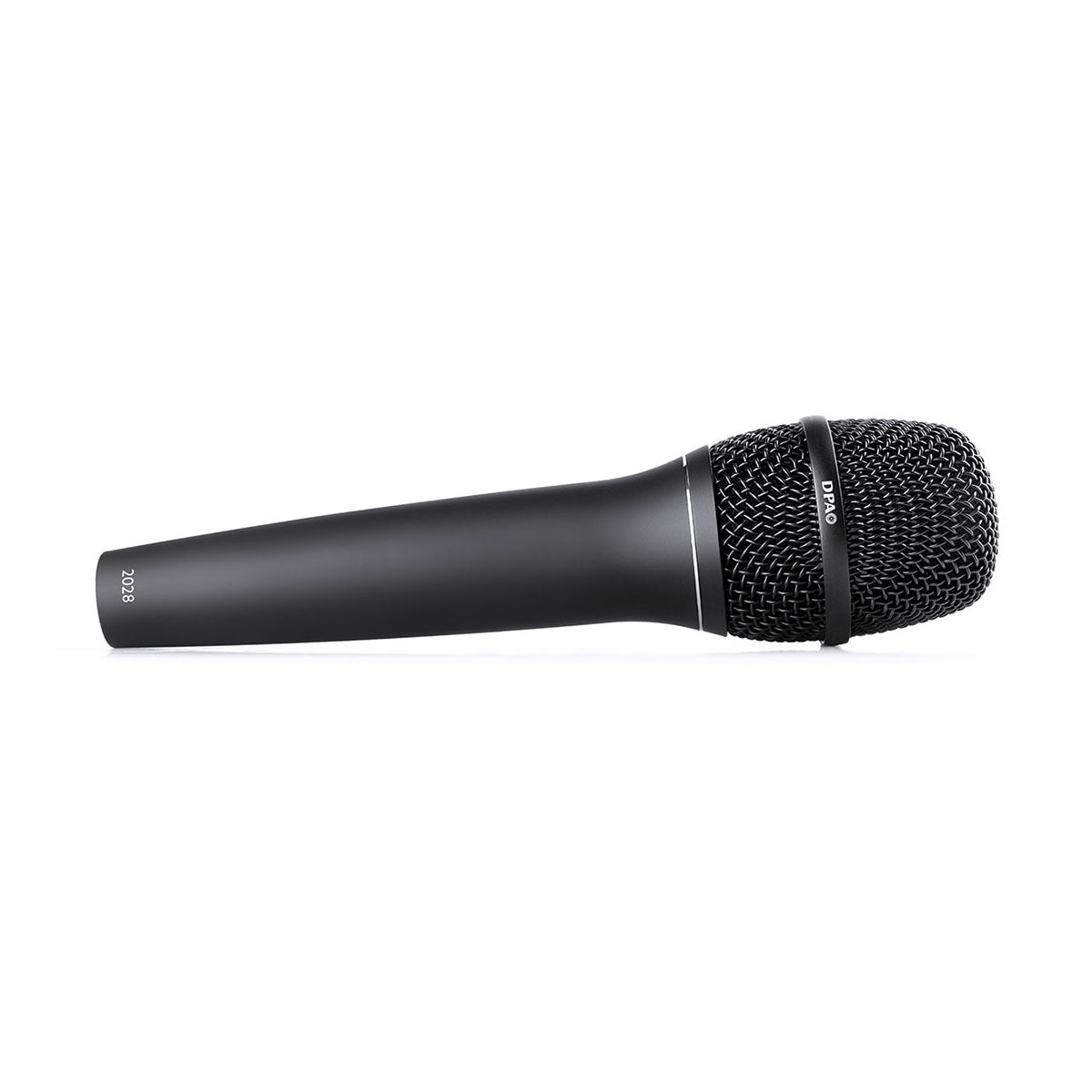

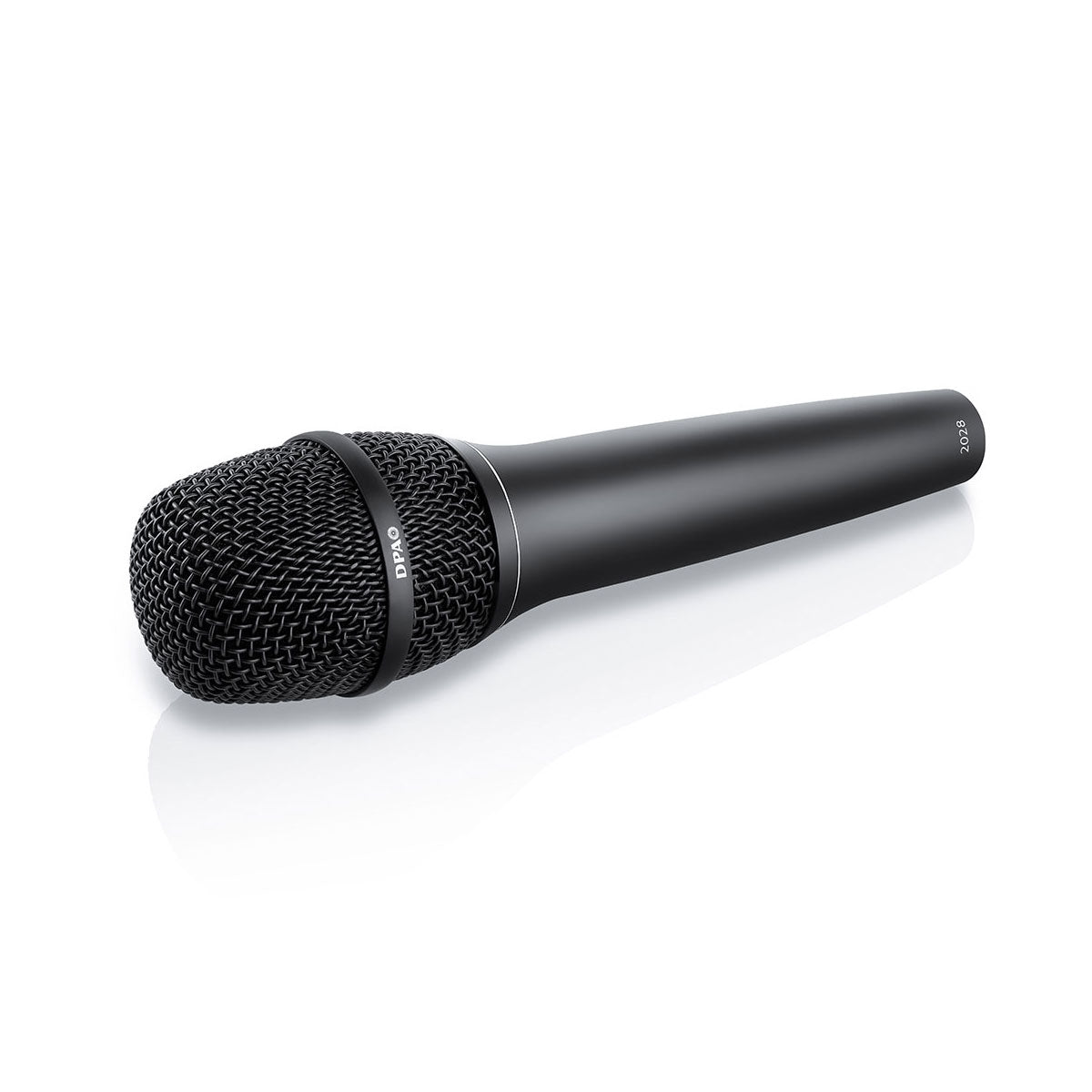

DPA 2028 Handheld Vocal Microphone

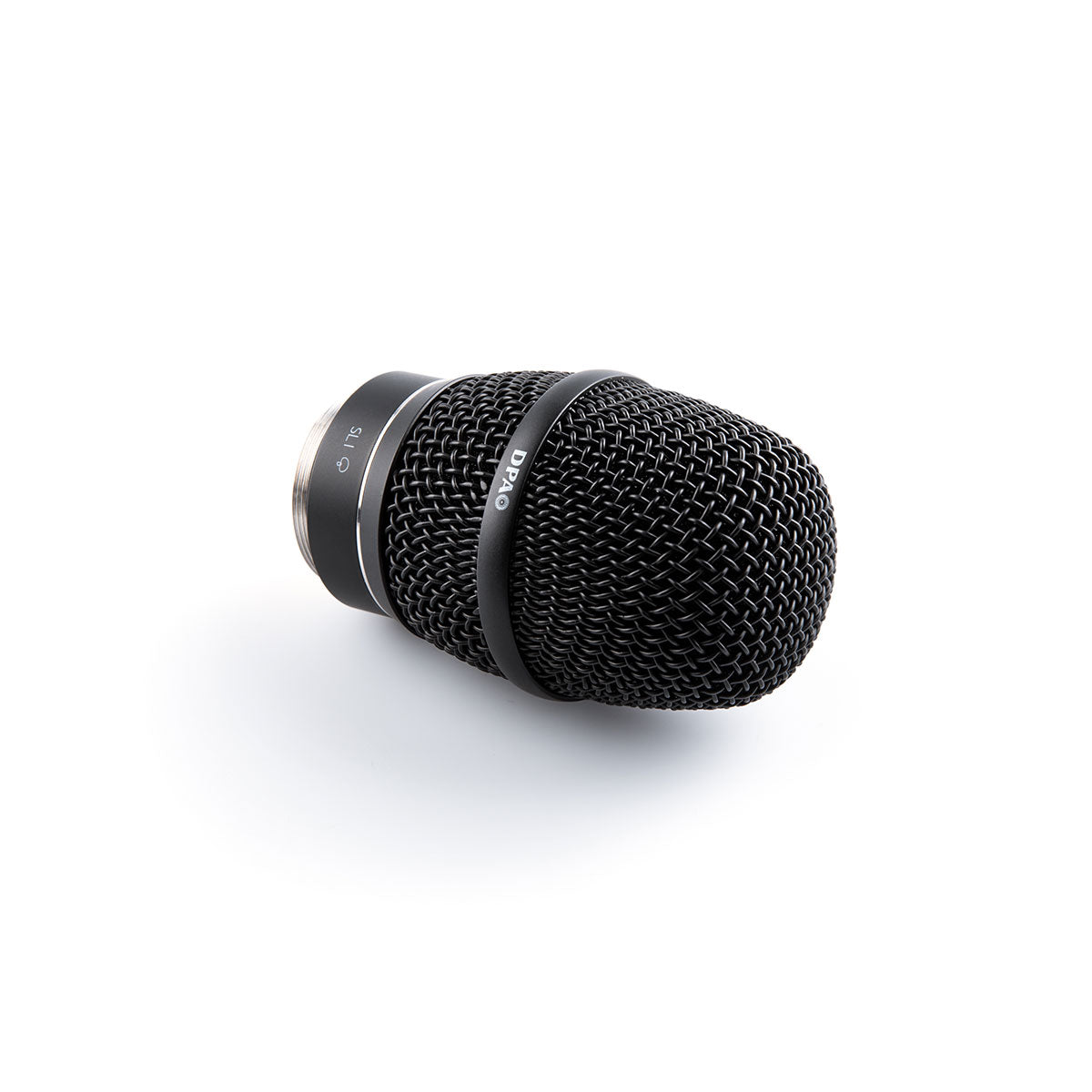

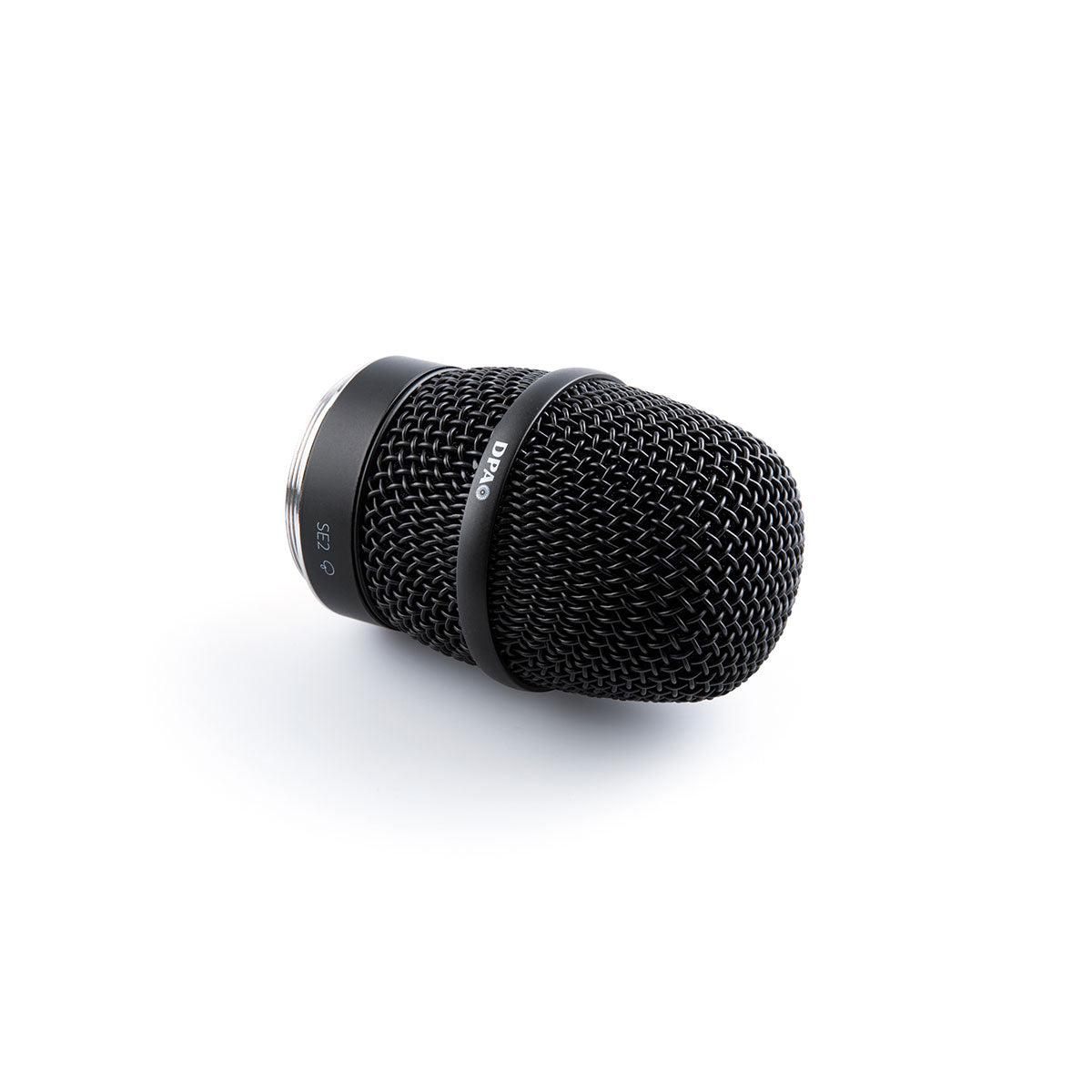

The DPA 2028 Vocal Microphone is designed for the unique challenges of live stage performances. It is a flexible handheld vocal mic, which provides transparent, fantastic vocals to performers from a wide range of markets including live, HoW, broadcast, etc. Available in wired or wireless versions; either way, just plug it in and hear the vocals shine like never before.
The 2028 sports a super-cardioid capsule with the famously flat DPA off-axis response. This gives the microphone a very high gain-before-feedback and at the same time makes it so much easier for sound engineers to handle bleed from other instruments at close proximity. The 2028 picks up these off-axis sounds in the most natural way.
On a live stage, the 2028 will deliver the same open and transparent sound that other DPA microphones deliver. In fact, it needs no (or very little) EQ to sound just like you are standing next to the singer listening to their performance. This allows the singer to use their voice just as if no mic was present, which puts less strain on them. In addition, it allows sound engineers to spend their time shaping the sound experience rather than covering up due to artifacts. This amazing transparency is unique for DPA vocal mics.
Type: Condenser Microphones
-
-
Product Features:
Renowned DPA sound
Natural vocals – from folk to metal
Reduces feedback issues
Rugged enough for the live stage
Uniform super-cardioid directionality
Extreme SPL handling
-
Technical Specifications:
Directional pattern: Supercardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Effective frequency response: 20 Hz - 20 kHz
Frequency range: , ±2 dB, at 12 cm (4.7 in) 100 Hz - 16 kHz. Permanent 3rd order low-cut filter at 80 Hz
Sensitivity, nominal, ±3 dB at 1 kHz: 5 mV/Pa; -46 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. : 22 dB(A) re. 20 µPa (max. 23 dB(A))
Total harmonic distortion (THD) < 1%: up to 139 dB SPL peak
Dynamic range Typ. : 117 dB
Max. SPL, peak before clipping: 160 dB
Output impedance: 150 Ω
Minimum load impedance: 1 kΩ
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common mode rejection ratio (CMRR): > 50 dB at 1 kHz
Power supply (for full performance): 48 V Phantom power (±4 V)
Current consumption: Max 2.5 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Weight: 286 g (10.1 oz)
Diameter: 48 mm (1.9 in)
Capsule diameter: 19 mm (0.75 in)
Microphone length: 188 mm (7.4 in)
Maximum output voltage, RMS: 9 Vrms; 19 dBV; 28 dBu
Polarity: +V at pin 2 for positive sound pressure
