Home / Products / DPA d:fine CORE 6066 Subminiature Headset Microphone
Headset Microphones - DPA D:fine CORE 6066 Subminiature Headset Microphone
Headset Microphones - DPA D:fine CORE 6066 Subminiature Headset Microphone
Headset Microphones - DPA D:fine CORE 6066 Subminiature Headset Microphone
Headset Microphones - DPA D:fine CORE 6066 Subminiature Headset Microphone
$1,135.00$1,539.00

DPA Microphones

DP-6066-OC-R-B00

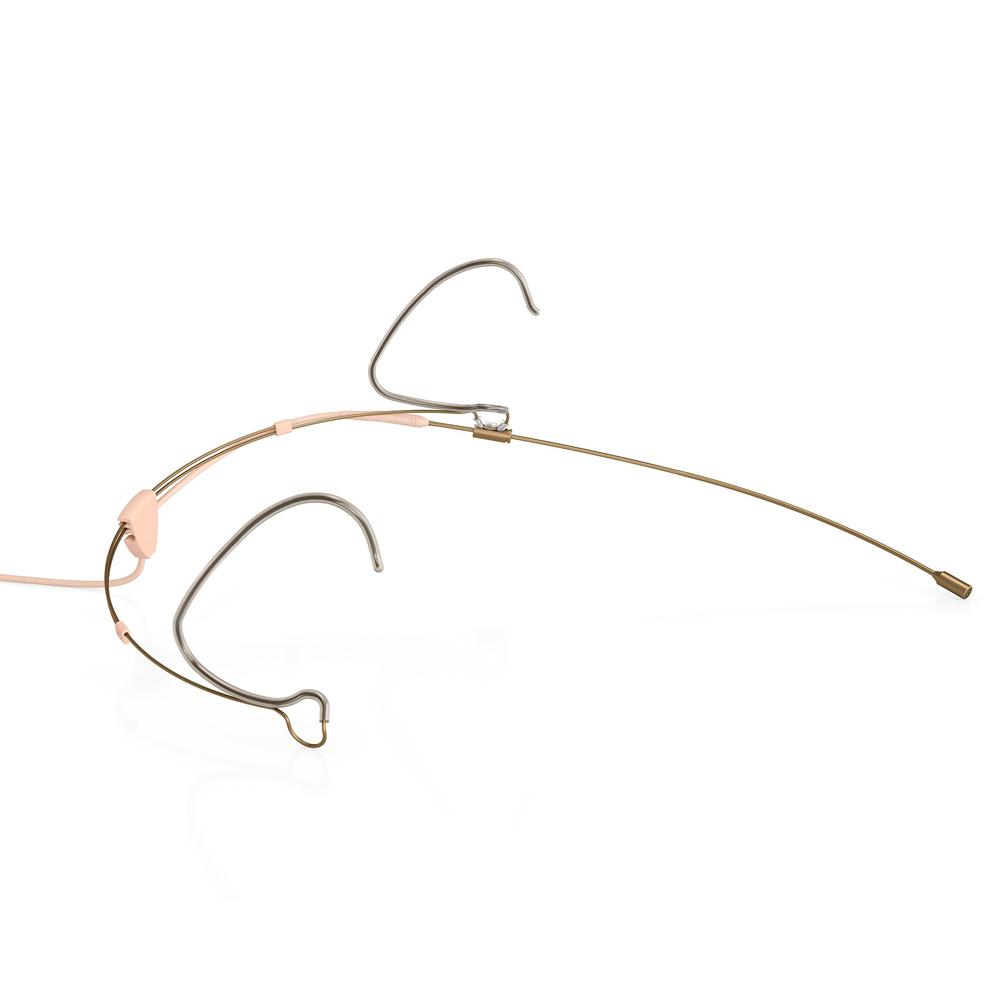

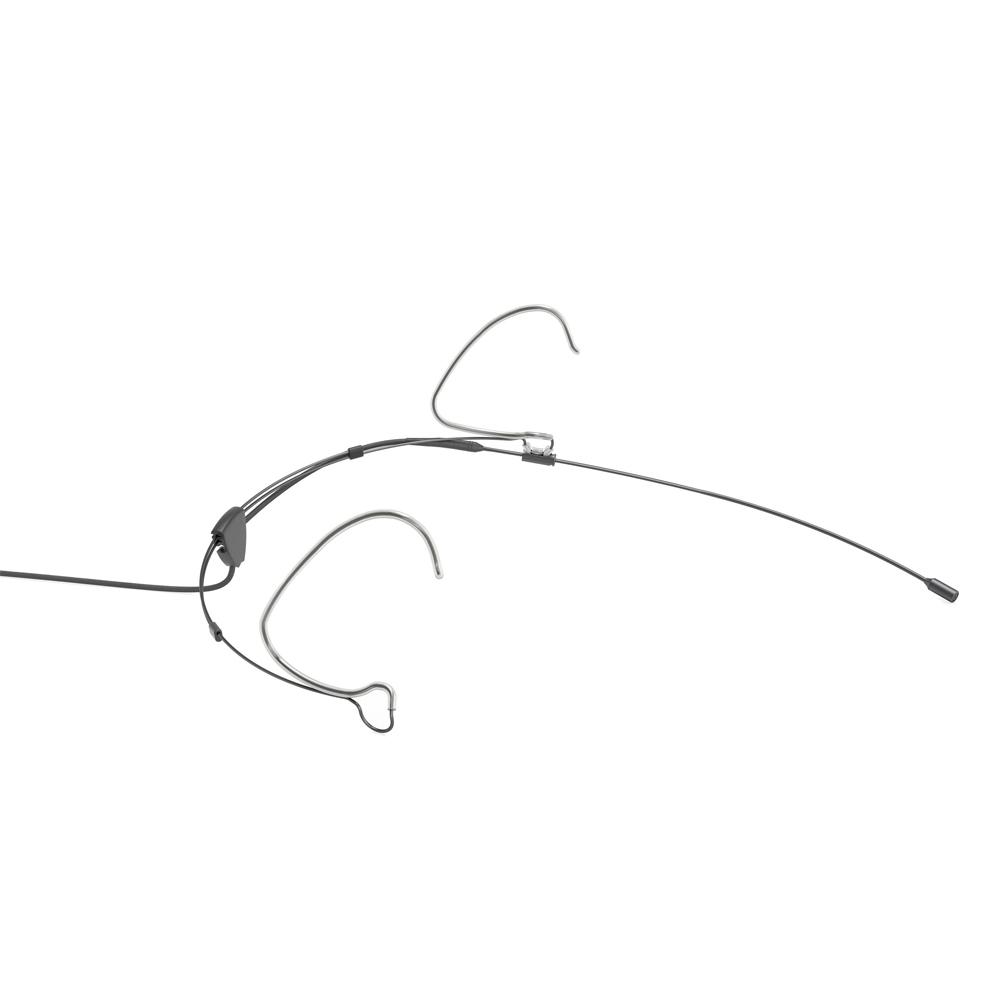

DPA d:fine CORE 6066 Subminiature Headset Microphone

Colour
Black
Beige
Connector
2 In Stock

The 6066 Subminiature Headset is a all-day headworn solution. The capsule of the d:fine™ CORE 6066 Subminiature Headset is just 3 mm (0.12 in) in diameter, but still packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability. without compromise on sound to focus on aesthetics.


Type: Headset Microphones

    • DPA d:fine 6066 Product Features:

      Amazing 3 mm CORE by DPA capsules technology
      Renowned DPA sound in a 60% smaller capsule
      One-size-fits-all, headset fits securely and comfortably
      2-way adjustable, non-reflective boom with locking system
      Unique, comfortable 3-point gripping system above, below and behind the ear
      New 90° cable management constructed to guide the cable and minimize cable breaks

    • DPA d:fine 6066 Technical Specifications:

      Directional pattern: Omnidirectional
      Principle of operation: Pressure
      Principle of operation: Pre-polarized condenser
      Frequency range: 20 Hz - 20 kHz
      Frequency range, ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
      Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
      Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
      S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
      Total harmonic distortion (THD): < 1% up to 128 dB SPL peak
      Dynamic range: Typ. 102 dB
      Max. SPL, peak before clipping: 144 dB
      Output impedance: From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω
      Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
      Power supply (for full performance): Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V
      Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
      Color: Black or beige
      Weight: 11 g (0.40 oz) incl. Cable and MicroDot connector
      Microphone head size (h x w x d): 3.4 / 8.9 mm (0.13 / 0.35 in)
      Capsule diameter: 3 mm (0.12 in)
      Cable length: 1.3 m (4.3 ft)
      Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
      Temperature range: -40°C to 45°C (-40°F to 113°F)
      Relative humidity (RH): Up to 90%
