$8,499.00$10,629.00
DP-CO10-CLASSIC
DPA Microhones DPA d:vote™ CORE 4099 Classic Touring Kit, 10 Mics and accessories, Loud SPL
Ready for on-the-road use for rental companies, musicians or theatres, the d:vote Touring Kit offers a wide selection of microphones and accessories selected for typical use in an acoustic music setting.
Type: Microphone Kits
- CORE by DPA technology inside
- Supercardioid condenser microphone
- Handles high SPLs
- Superior gain-before-feedback
- Flexible and easy mounting
- Gentle and easy to mount on the instrument
- Detachable cable and a versatile gooseneck extender

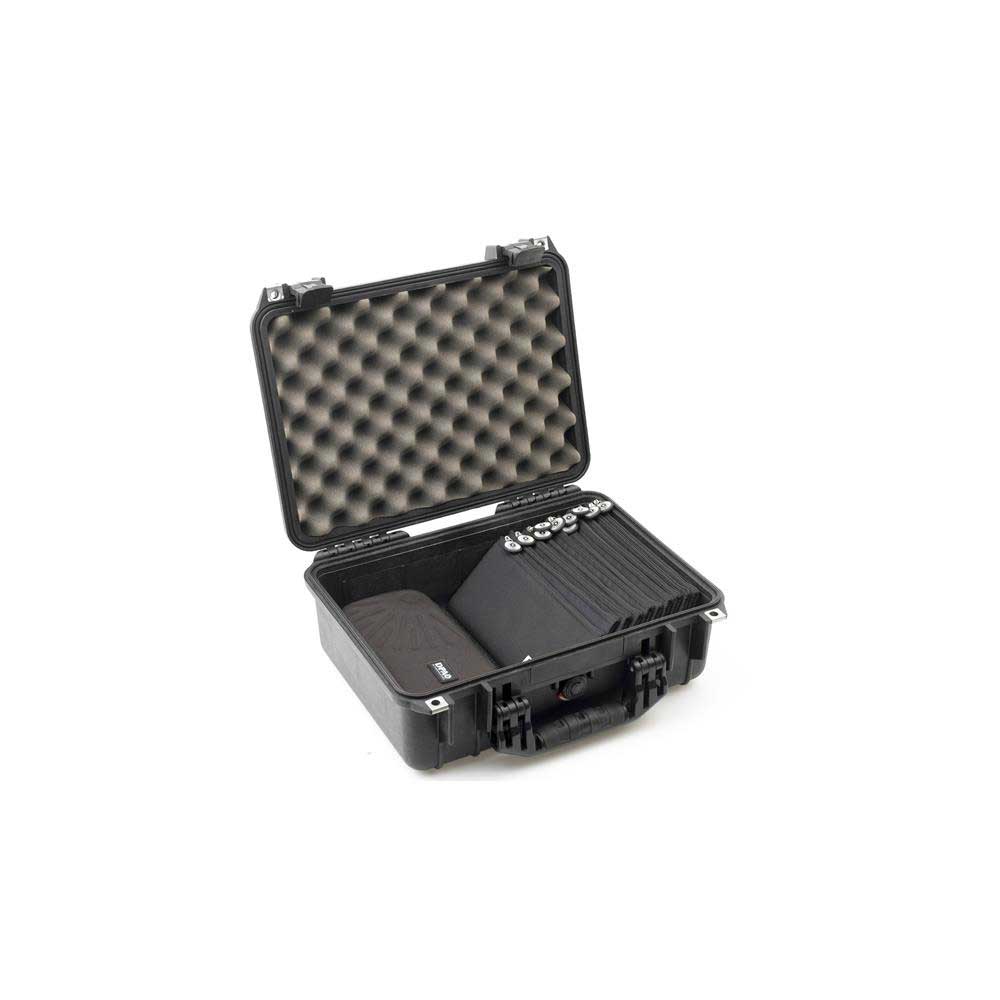

What's in the box:
- 10 X DPA VO4099hi d:vote 4099 instrument microphones
- 10 X DPA miniature microphone cables
- 10 X DPA XLR Adaptors with belt clips
- 8 x DPA d:vote clips for violin
- 4 x DPA d:vote clips for guitar
- 2 x DPA d:vote clips for cello
- 2 x DPA d:vote clips for bass
- 2 x DPA d:vote clips for saxophone
- 2 x DPA d:vote universal clips
- 2 x DPA d:vote clamp mounts
- 1 x DPA d:vote stand mount
Specifications
Directional pattern |
Supercardioid |
Principle of operation |
Pressure gradient |
Cartridge type |
Pre-polarized condenser |
Frequency range |
20 Hz - 20 kHz |
Frequency range, ± 2 dB, at 20 cm (7.9 in) |
80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz |
Sensitivity, nominal, ±3 dB at 1 kHz |
6 mV/Pa; -44 dB re. 1 V/Pa |
Equivalent noise level, A-weighted |
Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A)) |
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) |
Typ. 71 dB(A) |
Total harmonic distortion (THD) |
< 1% up to 131 dB SPL peak |
Dynamic range |
Typ. 108 dB |
Max. SPL, peak before clipping |
142 dB |
Output impedance |
From MicroDot: 30 - 40 Ω. From DAD4099/DAD6001-BC: 100 Ω |
Cable drive capability |
Up to 300 m (984 ft) with DAD4099 or DAD6001-BC XLR Adapter |
Output balance principle |
Signal balanced with DAD4099 or DAD6001-BC XLR Adapter |
Common mode rejection ratio (CMRR) |
> 60 dB from 50 Hz to 15 kHz with DAD4099 or DAD6001-BC XLR Adapter |
Power supply (for full performance) |
Min. 5 V to max. 50 V through DPA adapter for wireless systems |
Current consumption |
Typ. 1.5 mA (microphone). 3.5 mA with DAD4099 or DAD6001-BC XLR Adapter |
Connector |
MicroDot |
Colour |
Black |
Weight |
27 g (0.95 oz) |
Microphone diameter |
5.4 mm (0.21 in) |
Microphone length |
45 mm (1.8 in) |
Cable length |
1.8 m (5.9 ft) |
Cable diameter |
1.6 mm (0.06 in) / 2.2 mm (0.09 in) |
Polarity |
+V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099 or DAD6001-BC XLR adapter) |
Temperature range |
-40°C to 45°C (-40°F to 113°F) |
Relative humidity (RH) |
Up to 90% |
Gooseneck length |
140 mm (5.5 in) |
