DY-CORE-47-L

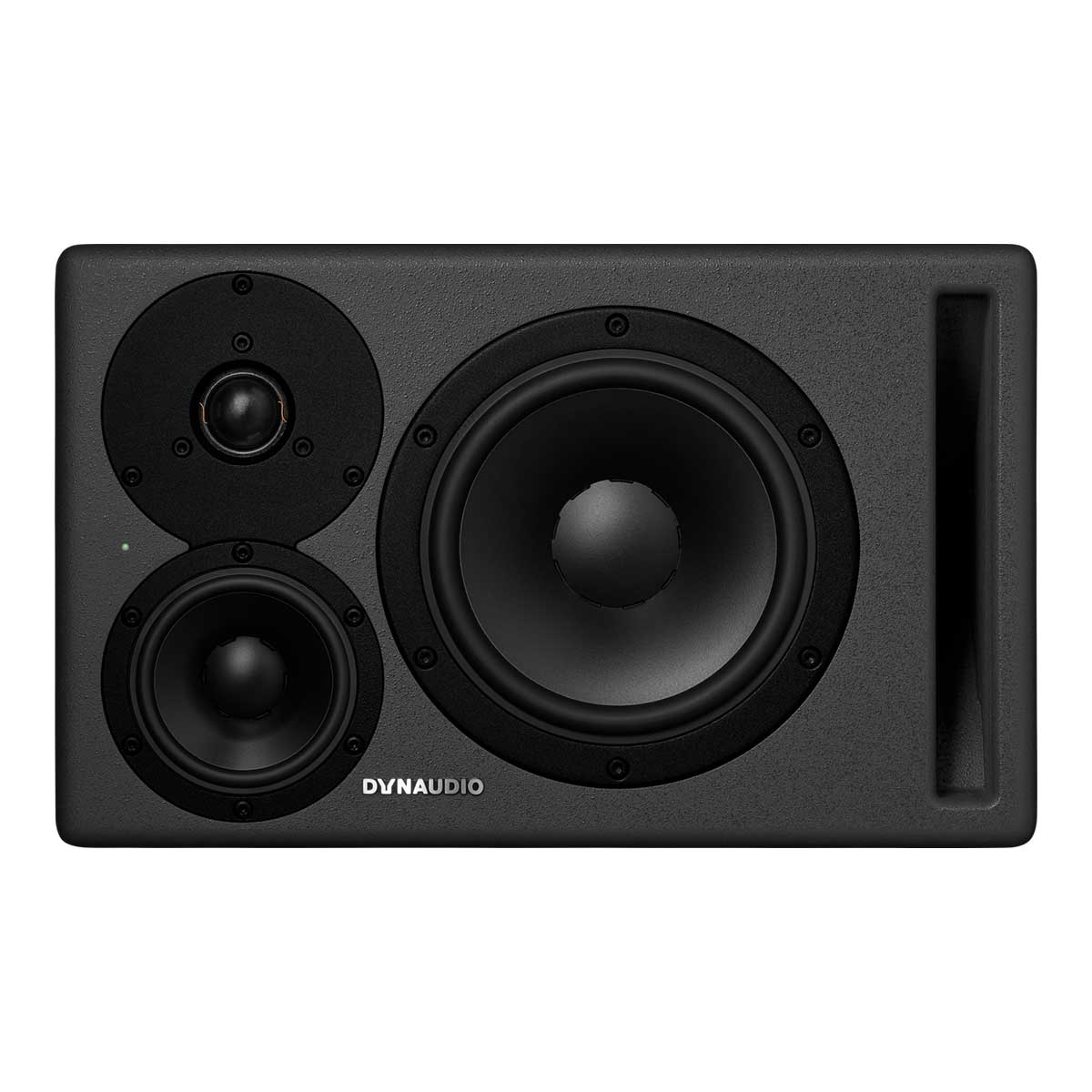

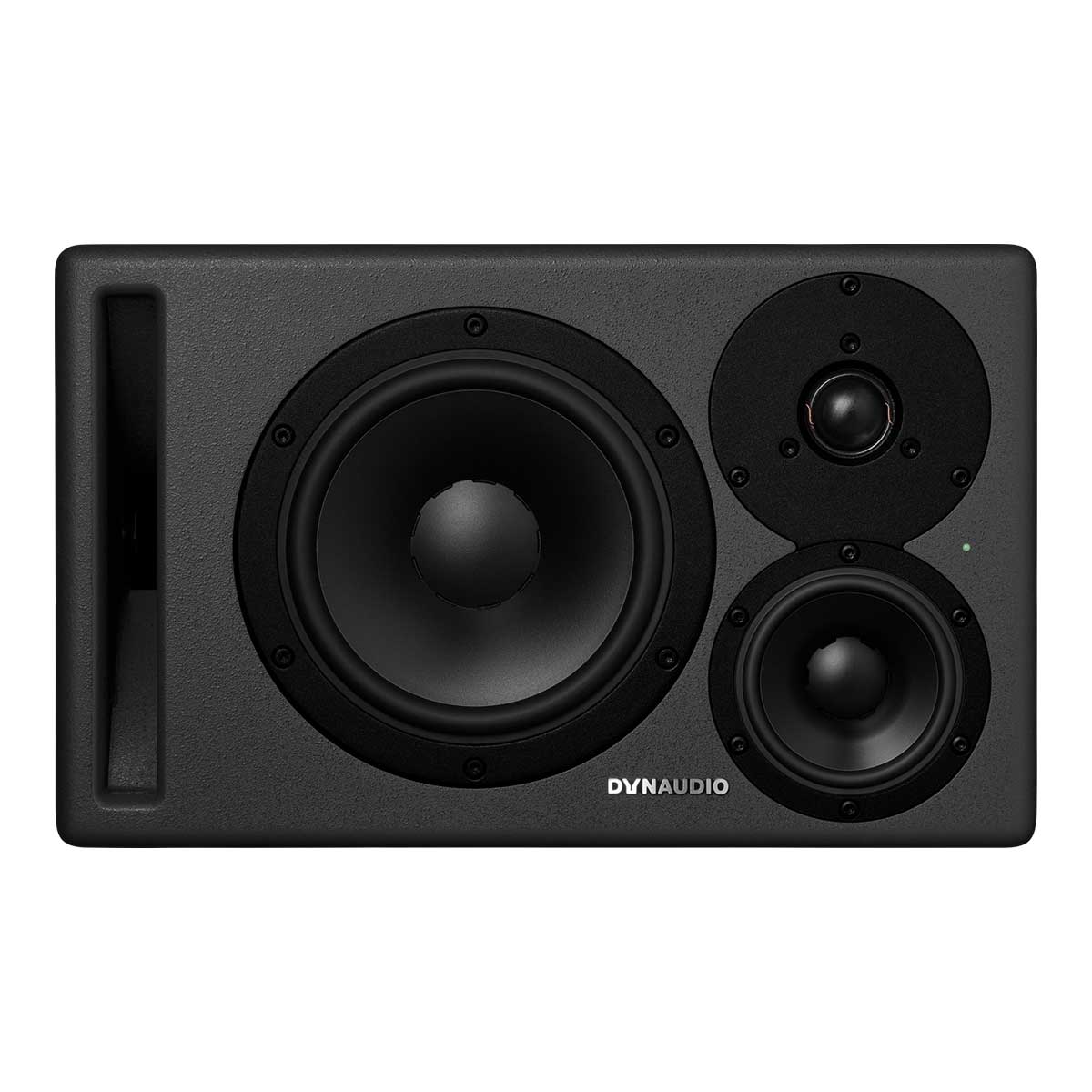

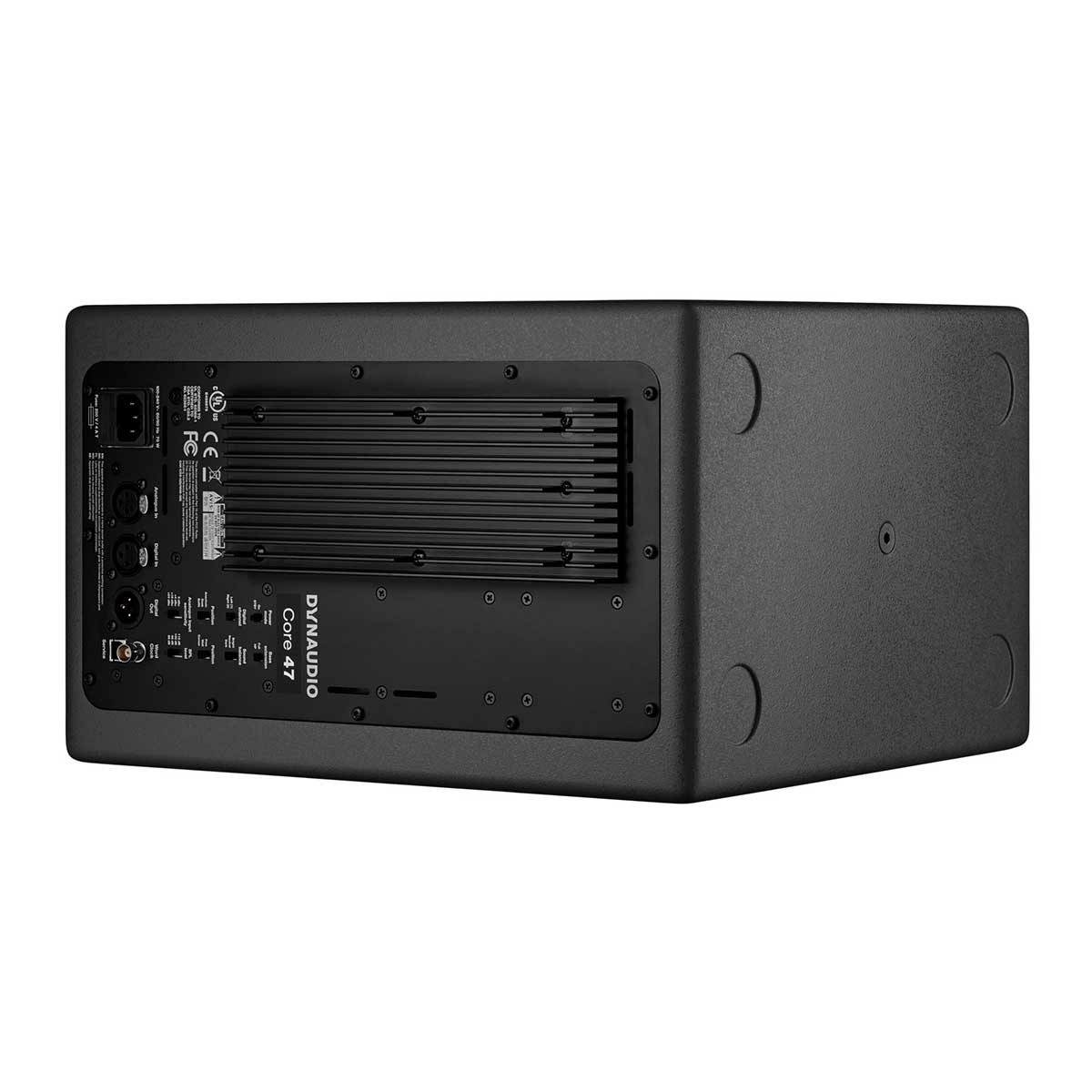

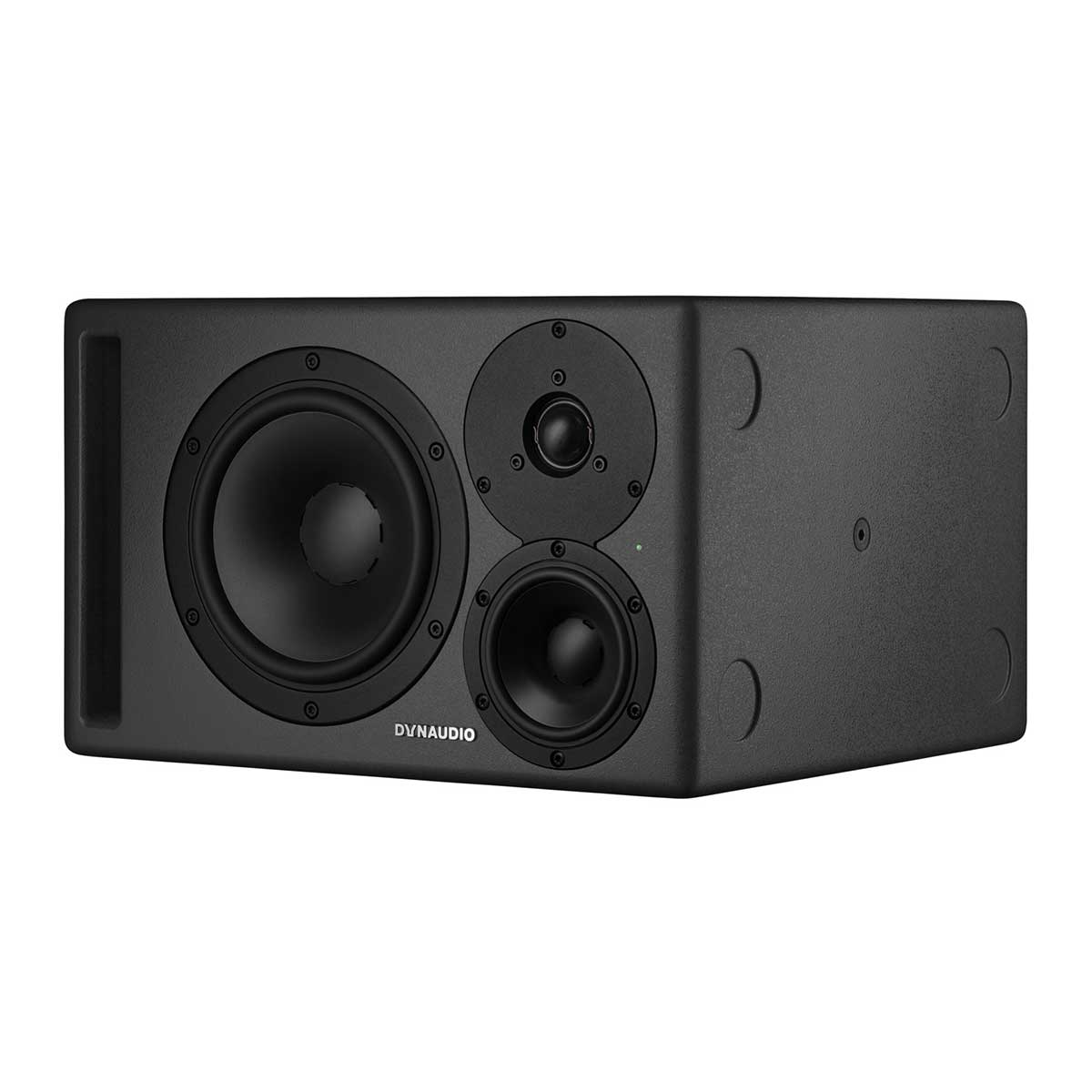

Dynaudio Core 47 3-Way Compact Studio Monitor (SINGLE)
The Core 47 is the mid-size model of Dynaudio's flagship professional reference monitor series. Dynaudio's engineers codenamed it ‘Bulldog’. You’ll know why when you fire it up.
This compact three-way monitor features an eyebrow-raising 500W + 500W + 150W of Class-D power from Pascal amplification, as well as sophisticated digital signal processing and a flat bass response down to 44Hz at -3dB, and 37Hz at -6dB with a gentle roll-off. And it reaches all the way up to 31kHz – never let it be said monitoring can’t give you a real high.
Type: Active Studio Monitors
Features
- High-quality amplification: 500 watts each for the mid/woofer and 150 watts for the tweeter
- All-new drivers: Designed and made in Denmark using our world-class Jupiter measuring facility
- Advanced DSP: Simple to use, powerful to listen to: it lets you tailor Core 47 for any listening environment
Technical specifications
| Tweeter: | 1in |
|---|---|
| Midrange: | 4in |
| Woofer: | 7in |
| Inputs: | Analogue and AES3 digital inputs (no sample-rate conversion) |
| Resolution: | Maximum 24-bit / 192 kHz, depending on input signal |
| 32, 44.1, 48, 96 & 192 kHz sample rates supported, analogue runs at 192 kHz | |
| Max SPL: | 112 dB @ 1 m anechoic |
| 118 dB half space |
| Crossover frequency: | 475 Hz (LF/MF) / 5250 Hz (MF/HF) |
|---|---|
| Frequency response (- 6 dB): | 37 Hz – 31 kHz |
| Frequency response (+/- 3 dB): | 44 Hz – 27 kHz |
| Box principle: | Front-loaded bass reflex |
| Amplifiers: | Pascal Class-D amplifiers: HF 150 W / MF 500 W / LF 500 W |
| Dimensions: | 390 mm, 355 mm, 240 mm (W x D x H) |
| 15 3⁄8in, 14in, 9 7/16in (W x D x H) | |
| Weight: | 15.1 kg (33.3 lb) |
