ELEKSYNTAKT
Type: Desktop Synthesizers
Syntakt is a drum specialist, full of percussive possibilities, but its 12 tracks can be used for melody, harmony, and bass sounds too. Experience epic sounds from the past, pulling others into existence from the future, using over 35 analog and digital machines. For the uninitiated, machines in the Elektron universe are special sound generators synthesizers inside your synthesizer.
Specifications
Performance features
1 × Retrig modifier
1 × Velocity modifier
2 × Assignable trig modifiers
Keyboard mode with 36 different scales
MIDI Machine features
4-note polyphony per step
8 × assignable CC controls
1 × assignable LFOs per track
Sequencer features
64 steps per pattern and track
Individual pattern length per track
Individual time scale multiplier per track
Parameter locks
Trig conditions & trig chance
Retrig
Micro timing
Send effects
Delay
Reverb

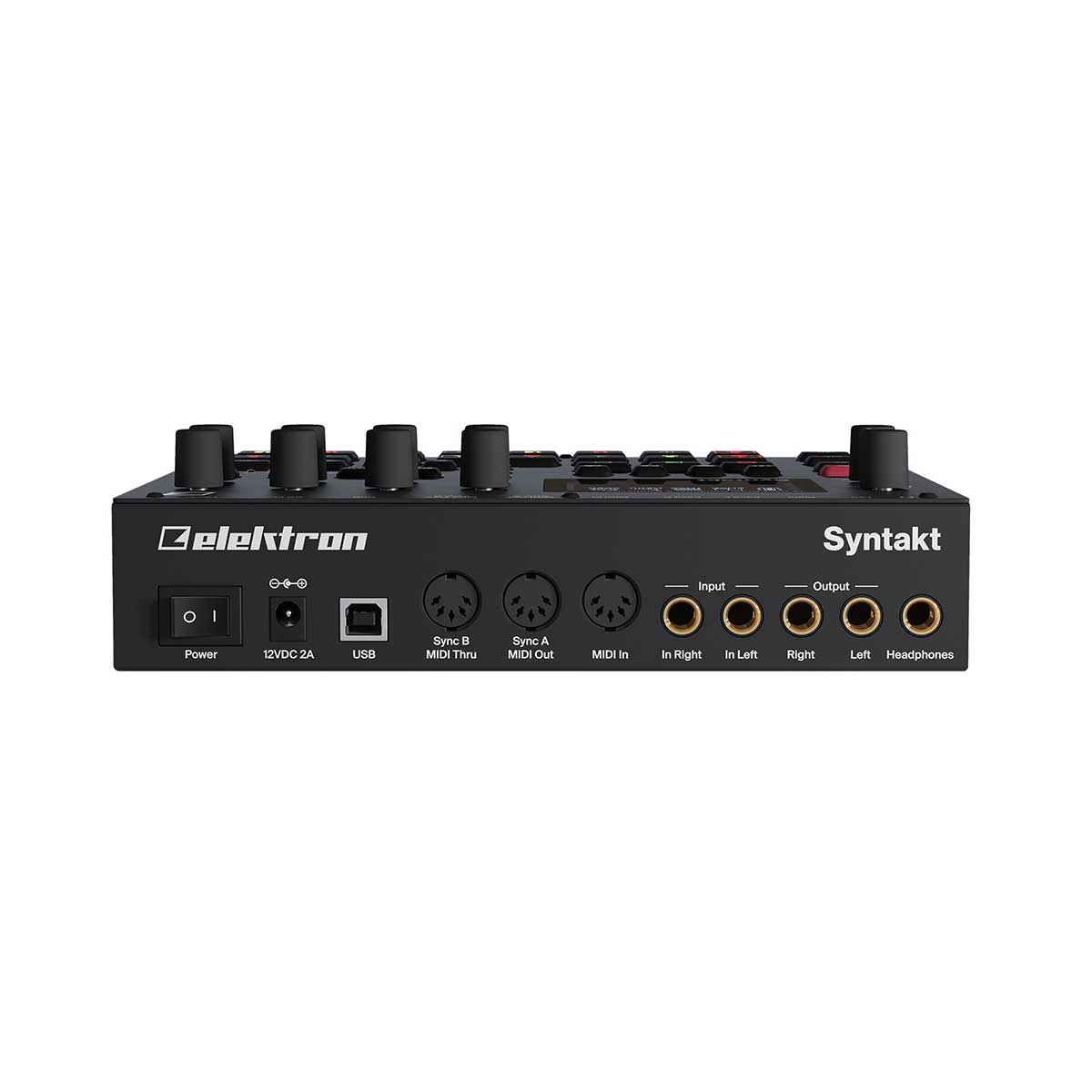

Hardware
128 × 64-pixel OLED screen
2 × ¼” impedance balanced audio out jacks
2 × ¼” audio in jacks
1 × ¼” stereo headphone jack
48 kHz, 24-bit D/A and A/D converters
Hi-Speed USB 2.0 port
MIDI In/Out/Thru with DIN Sync out
Physical specifications
Sturdy steel casing
Dimensions: W 215 × D 176 × H 63 mm
Weight: approximately 1.53 kg (3.6 lbs)
100 × 100 mm VESA mounting holes. M4.
Miscellaneous
Overbridge enabled
Class Compliant USB Audio
External Input mixer
3 year Elektron warranty
Included in the box
Power Supply PSU-3c
Elektron USB cable
Quick Guide
Exclusive artwork & epic stickers
