Home / Products / Erica Synths Fusion Modulator

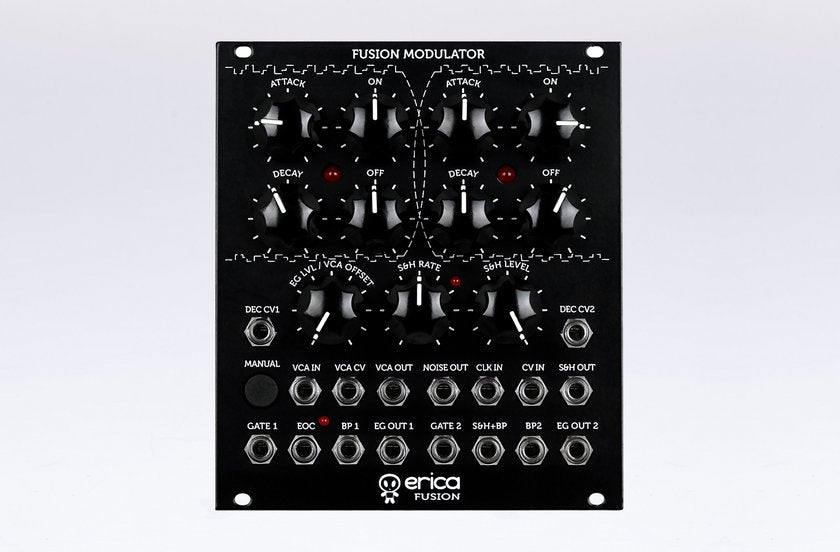

Erica Synths Fusion Modulator
$0.00$589.00

Erica Synths

ESFSMODULATOR

Erica Synths Fusion Modulator

Notify me when this product is available:

Fusion Modulator is complex, all analogue modulation source with lots of distinct features. It consists of several blocks – two EMS Synthi functionality inspired looping envelope generators with simultaneous unipolar (0V-10V) and bipolar (-5V-+5V), VCA, Noise generator and Sample&Hold. This makes Fusion Modulator a versatile modulation source for advanced modular setups, especially drone music oriented ones. Set lopping envelope generators to high frequencies and have two sub bass sound sources, use VCA to control the amplitude of the envelope signal, modulate the decay time by random voltages from S&H circuit and get ever evolving sonic awesomeness!

Features

  • Full analogue design
  • Two looping envelope generators with Attack, On, Decay and Off time control
  • CV control over Decay time
  • Simultaneous unipolar (0V-10V) and bipolar (-5V - +5V) envelope outputs
  • Manual trigger button
  • End of Cycle output
  • VCA with the offset control
  • Zener diode based white noise source
  • Sample&Hold circuit with internal and external clock source

Type: Eurorack Modules
