Welcome to PULSE16

The PULSE16 converts 16 x 16 studio-grade balanced analog inputs and outputs up to 96kHz to ADAT I/O. As a cost-effective and mature interface, ADAT is already available almost everywhere – so expanding your studio with the PULSE16 by 16 x 16 analog channels is done in a few steps.

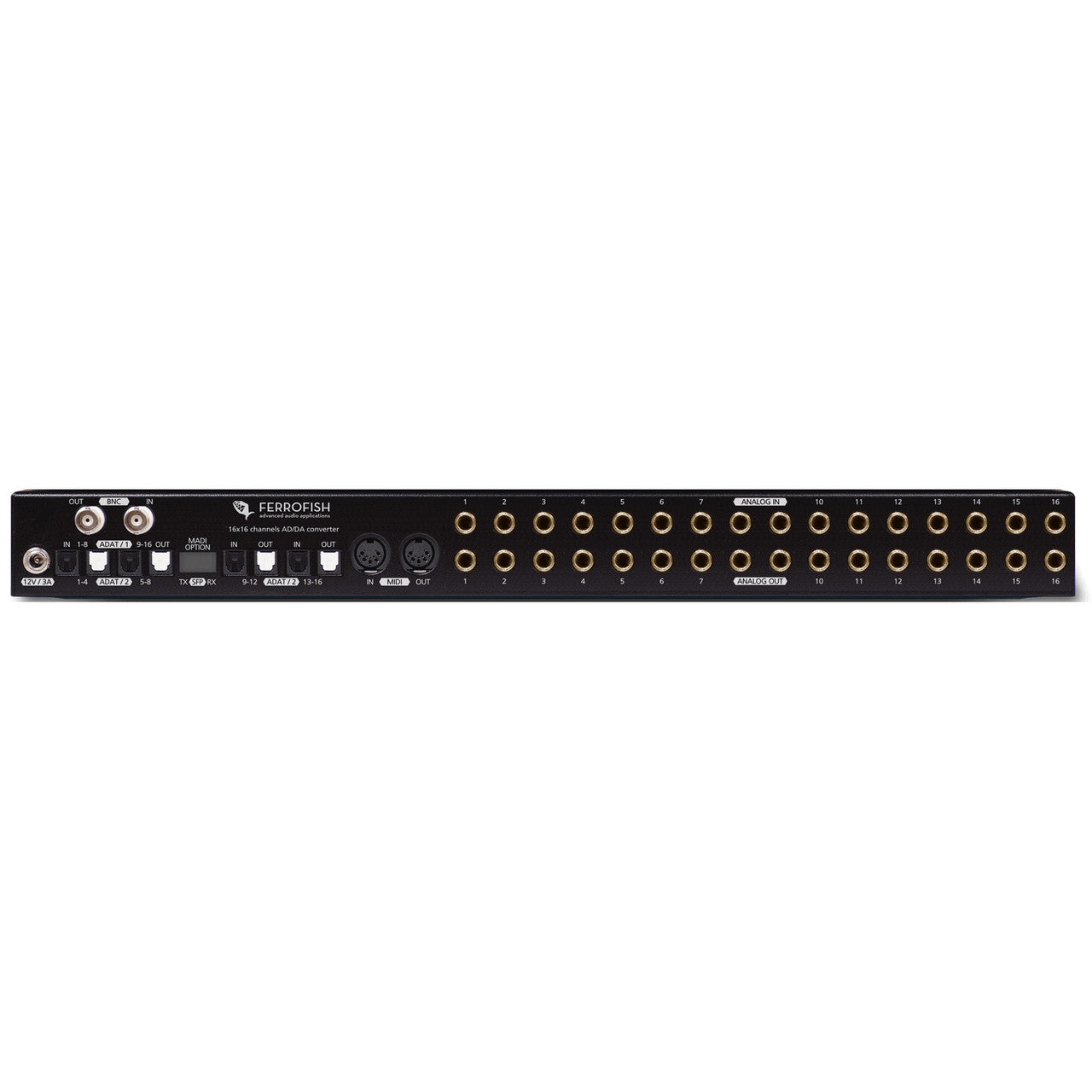

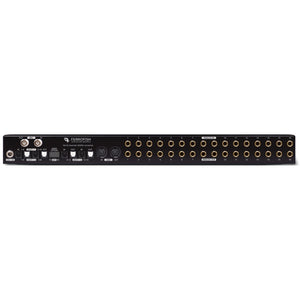

The Low Latency Cirrus Logic converters, accompanied with a temperature-compensated clock and jitter reduction PLL, guarantees best crystal clear sound. All this packed in a compact 1HU, the PULSE16 delivers studio levels of up to +20dBu, individually adjustable in 1dB steps, brought to 32 TRS connectors. Thanks to the 4 x 4 ADAT interfaces, 16 x 16 channels can still be converted without any problems even at 96kHz.

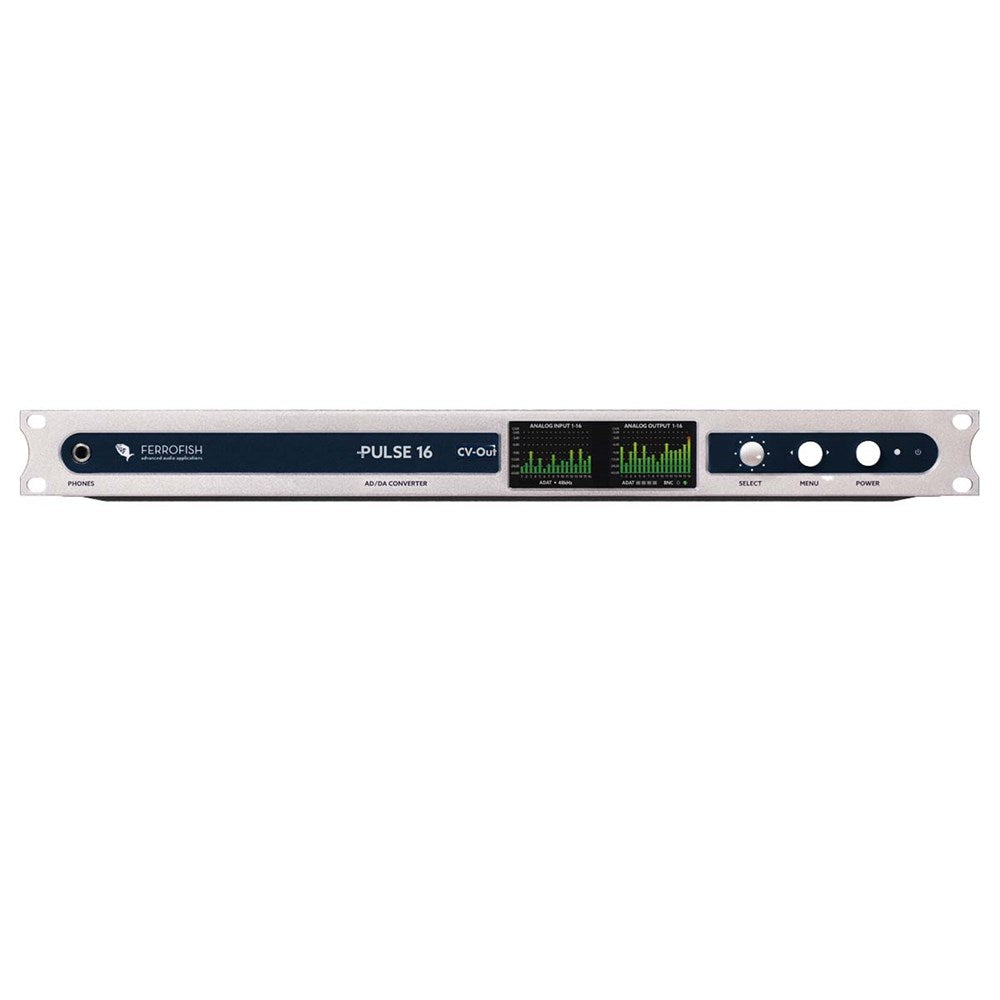

Configuring the device is a breeze thanks to the two TFT screens. No need to consult the manual, every information is displayed clearly on the screens. Remote control via MIDI and MADI is also possible. The headphone can be connected to any analog or digital input or output: ideal for control or monitoring. If your studio grows, the PULSE16 grows with it: MADI I/O can be added via a MADI-SFP module together with an upgrade of the firmware. The PULSE16 then becomes a full-fledged PULSE16 MX.

Features

• Internal Routing Matrix
• Dual TFT Display
• Optional MADI Upgrade
• 16 x 16 Balanced TRS
• 4 x 4 ADAT Toslink
• Phones Stereo TRS (front)
• Word Clock I/O
• MIDI I/O
• SFP Port
• SMUX4 with 192 kHz operation (requires installed MADI option)
• Delay-compensation for MADI chain (requires installed MADI option)
• MIDI over MADI Preset Management (requires installed MADI option)
• TCXO (temp. compensated oscillator) with high accuracy
• Initial accuracy: +/-1.5ppm
• Over temperature range: +/-2.5ppm
• Aging: +/-1ppm
• Digitally controlled PLL / Jitter reduction system
• Output jitter: 50ps … 100ps typ.
• 2 x TFT Color Screens for the complete control of all analog I/O levels and all settings of the unit
• One Key Control provides an easy control of all functions.
• Multi language help pages guides available (No need to study the manual.)
• 1HU
• Depth: 19cm (7.5”) (including connectors)
• Weight: 2 kg

For more information, please visit the manufacturer's website.
