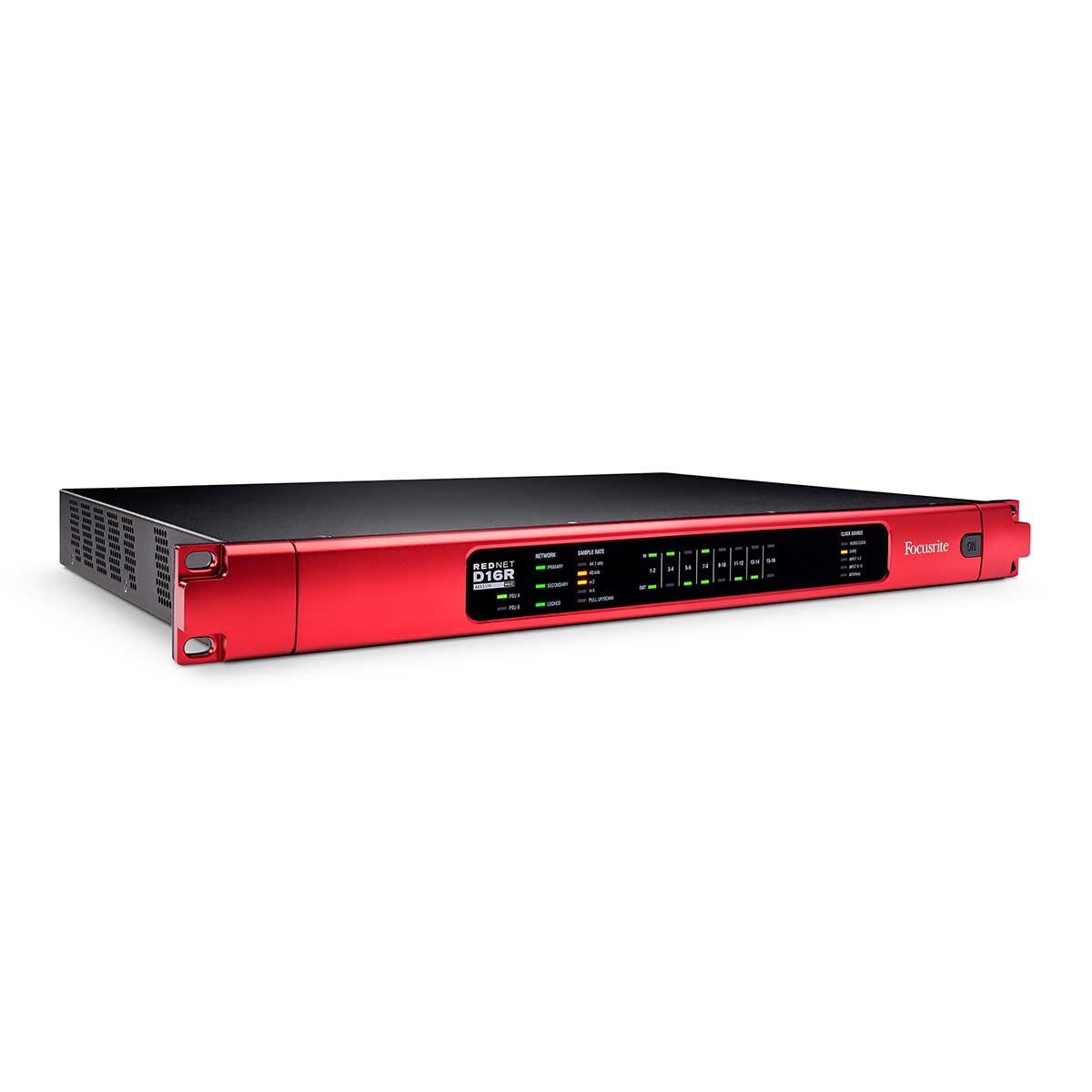

Focusrite RedNet D16R MKII, 16 Channel AES3 Dante I/O Interface with Level Control and Redundant Network & Power

Features

• 16-channel bi-directional digital interface for Dante networks.
• Individual input and output channel level control using RedNet Control software.
• Dual PSUs with locking IEC inlets.
• Dual locking etherCON connectors for Primary and Secondary network connections.
• Power supply and ethernet redundancy with auto switchover in case of failure.

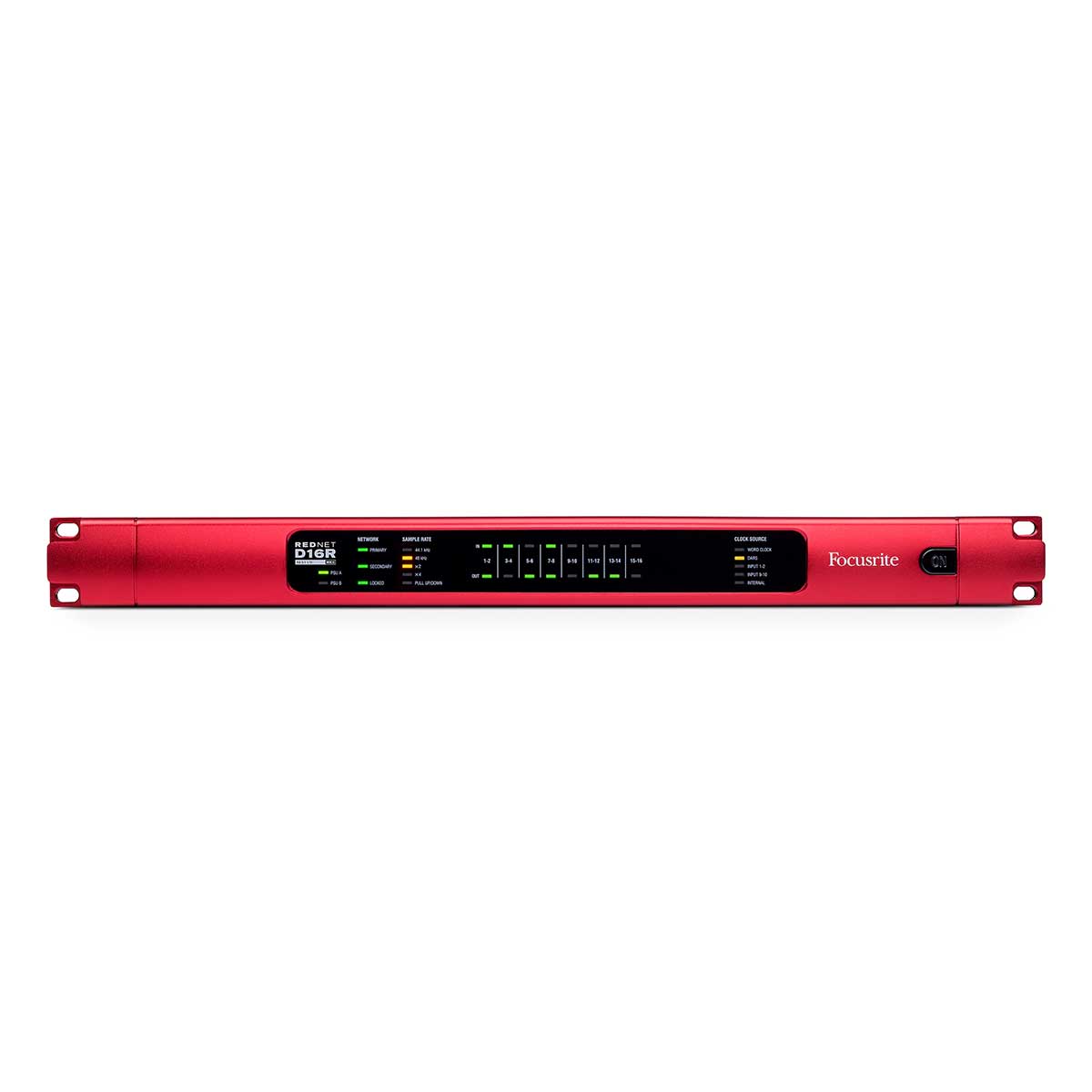

• Front-panel LED indicators for PSU, network, sample rate, signal present and clock source status.
• Sample rate conversion on all input channels.

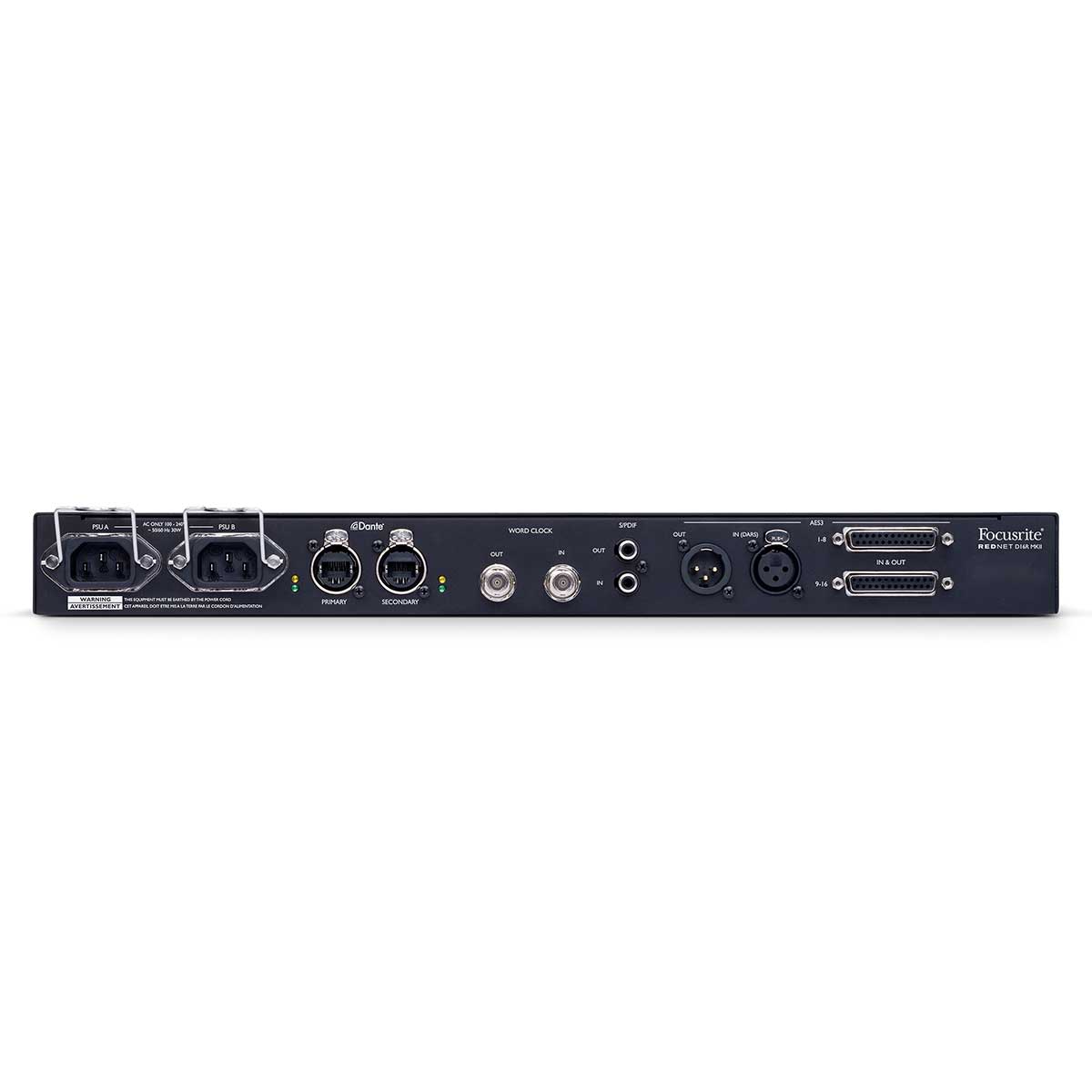

• Two DB25 connectors with AES59 standard configuration; each carries eight channels of AES3 I/O.
• RCA connectors for two-channel S/PDIF input and output.
• XLR connections for alternate AES3 I/O and DARS input.
• BNC connectors for Word Clock input and output.
• Compact 1U chassis allows maximum functionality in minimum rack space.
• Full operability with Focusrite RedNet and Red interfaces, plus all Dante devices from hundreds of manufacturers.
• Remote routing and control using RedNet Control and Dante Controller.
