MOSC0029AU

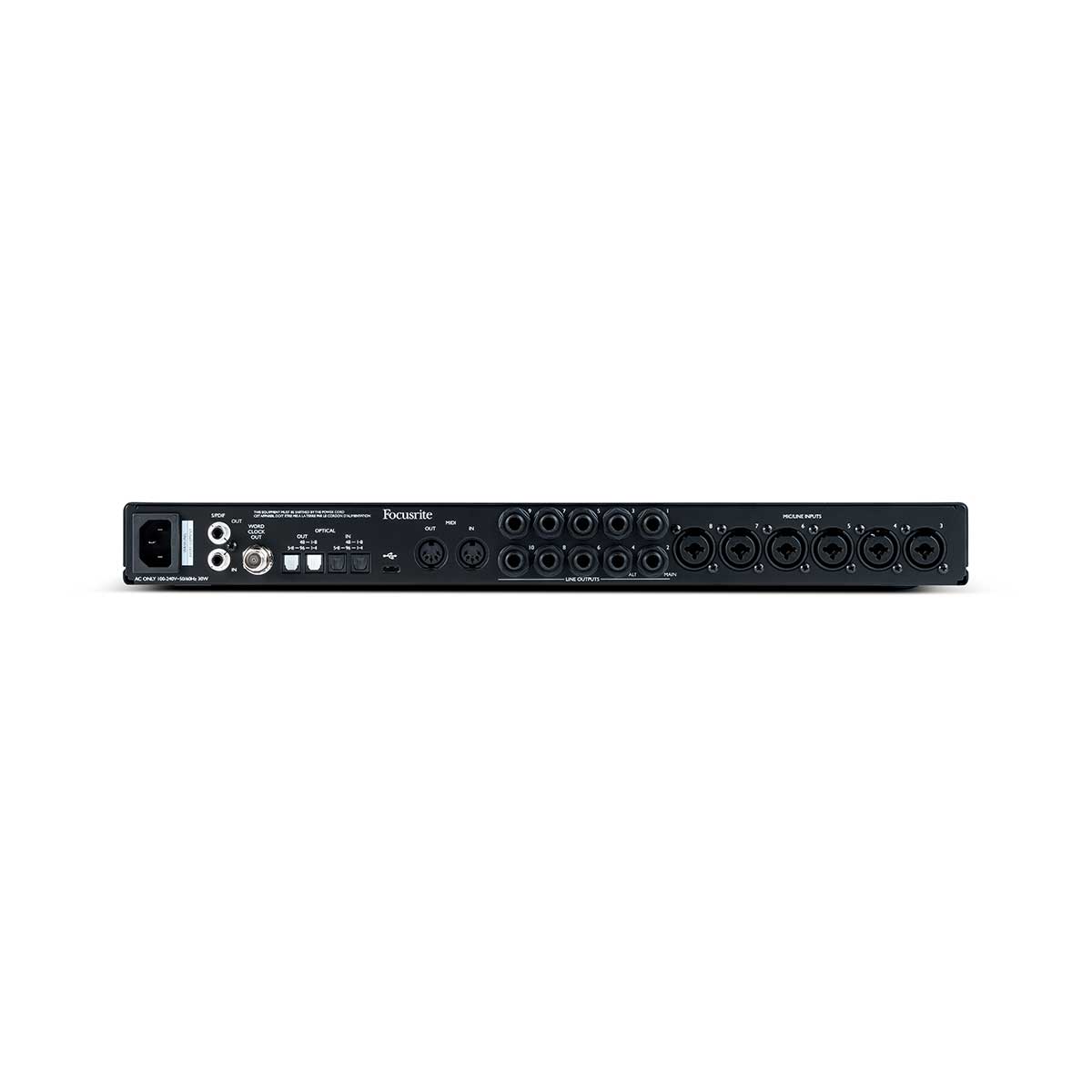

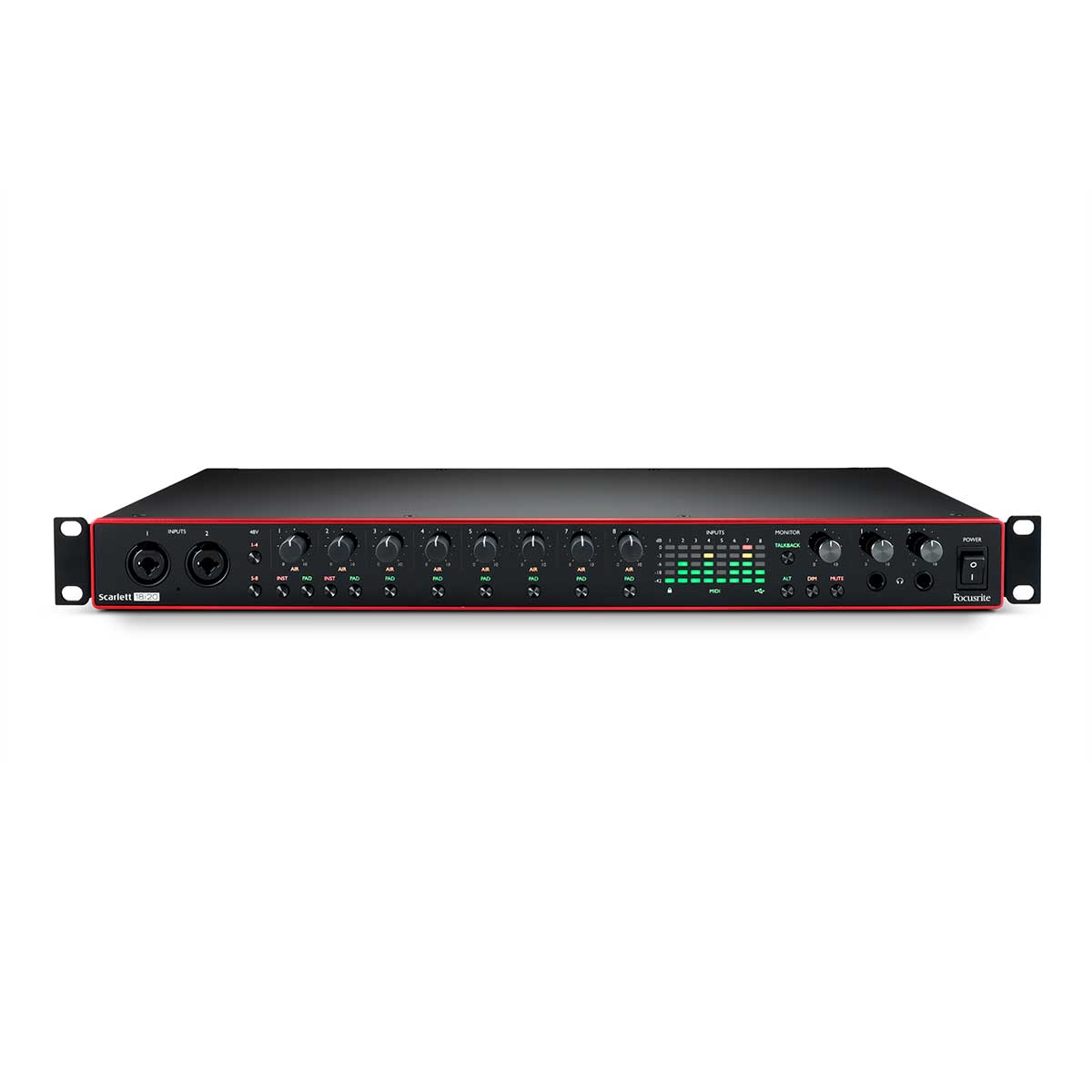

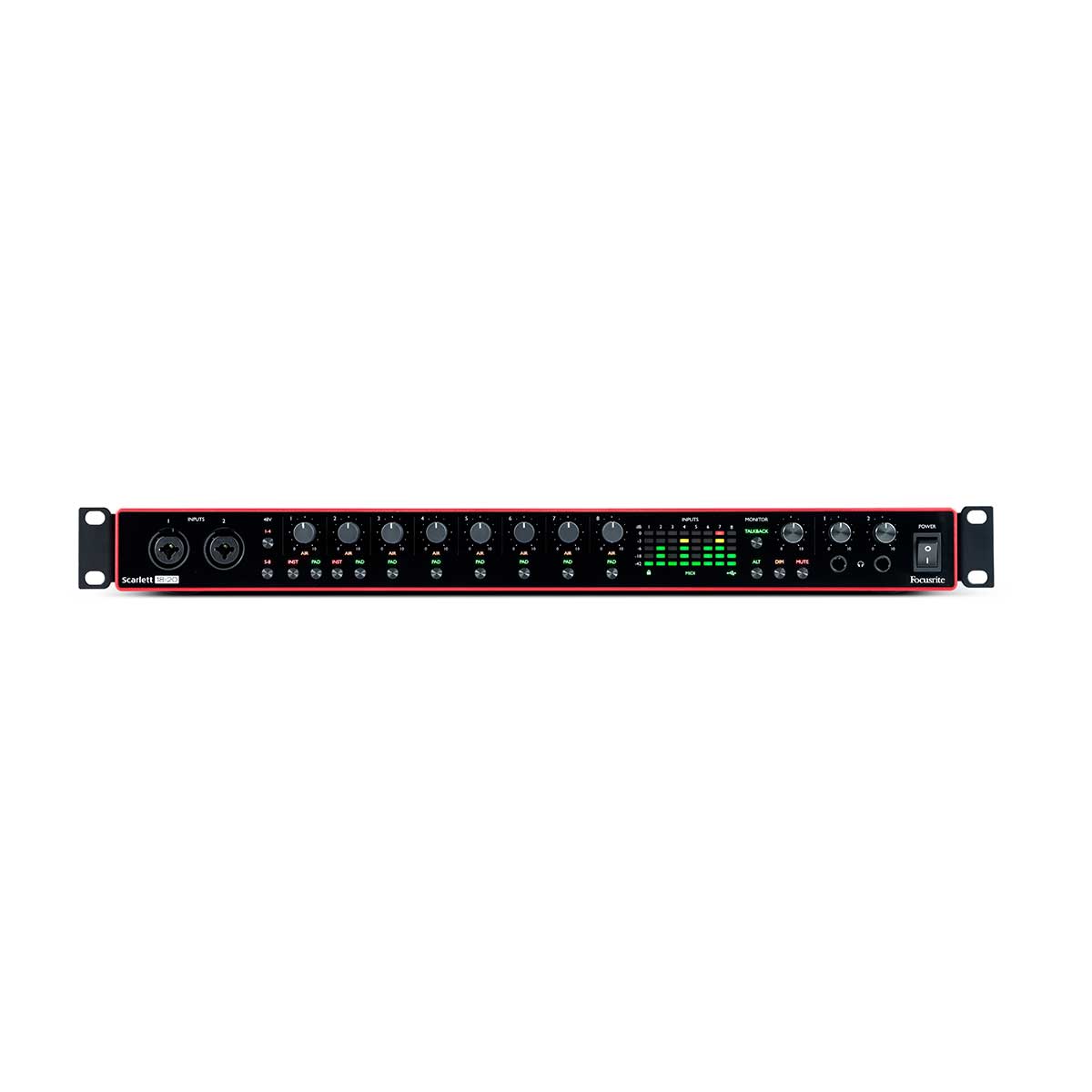

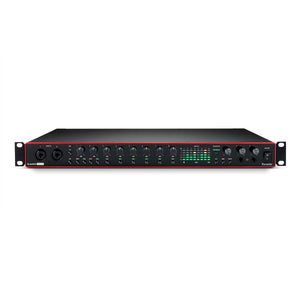

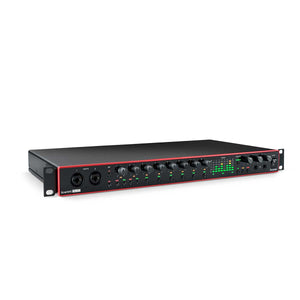

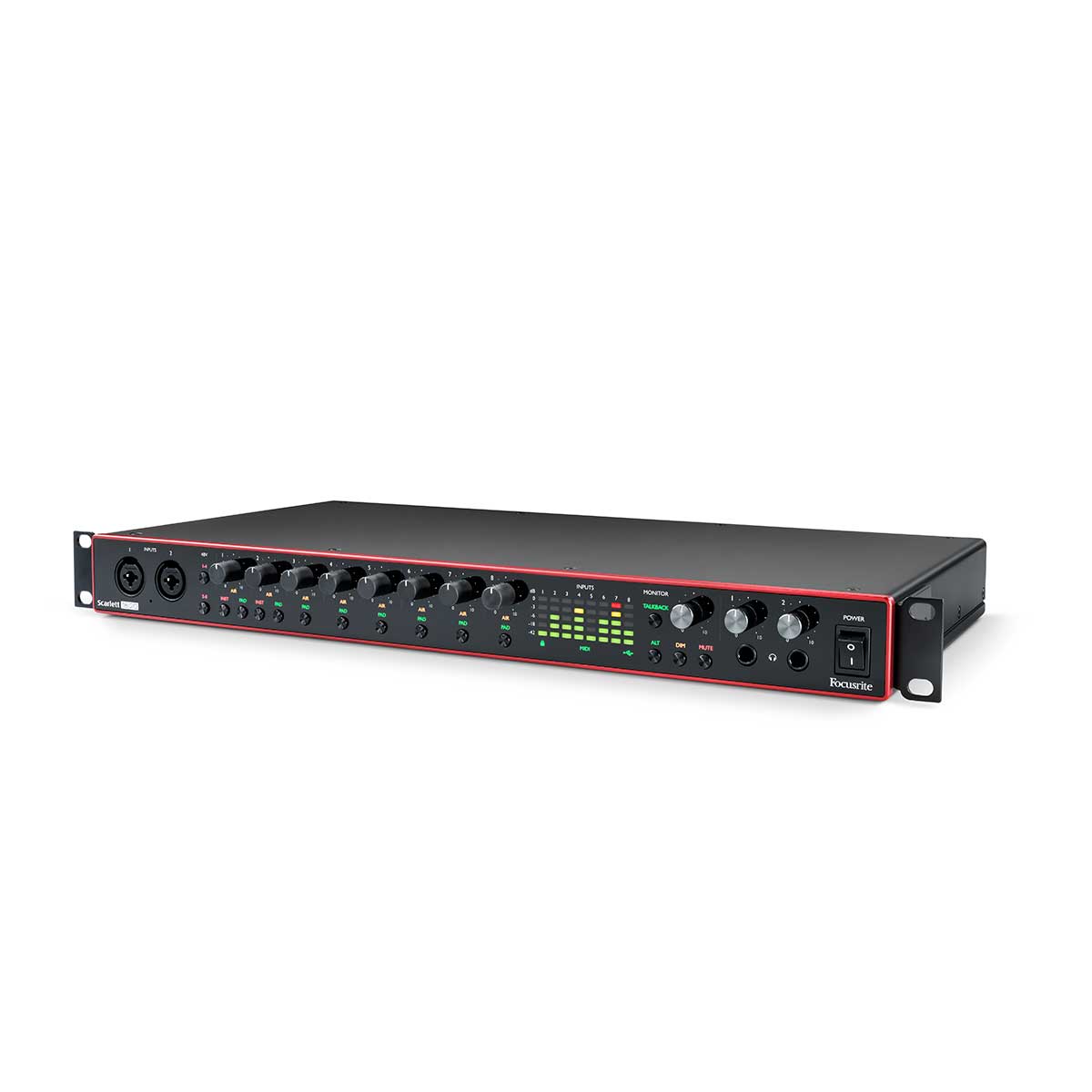

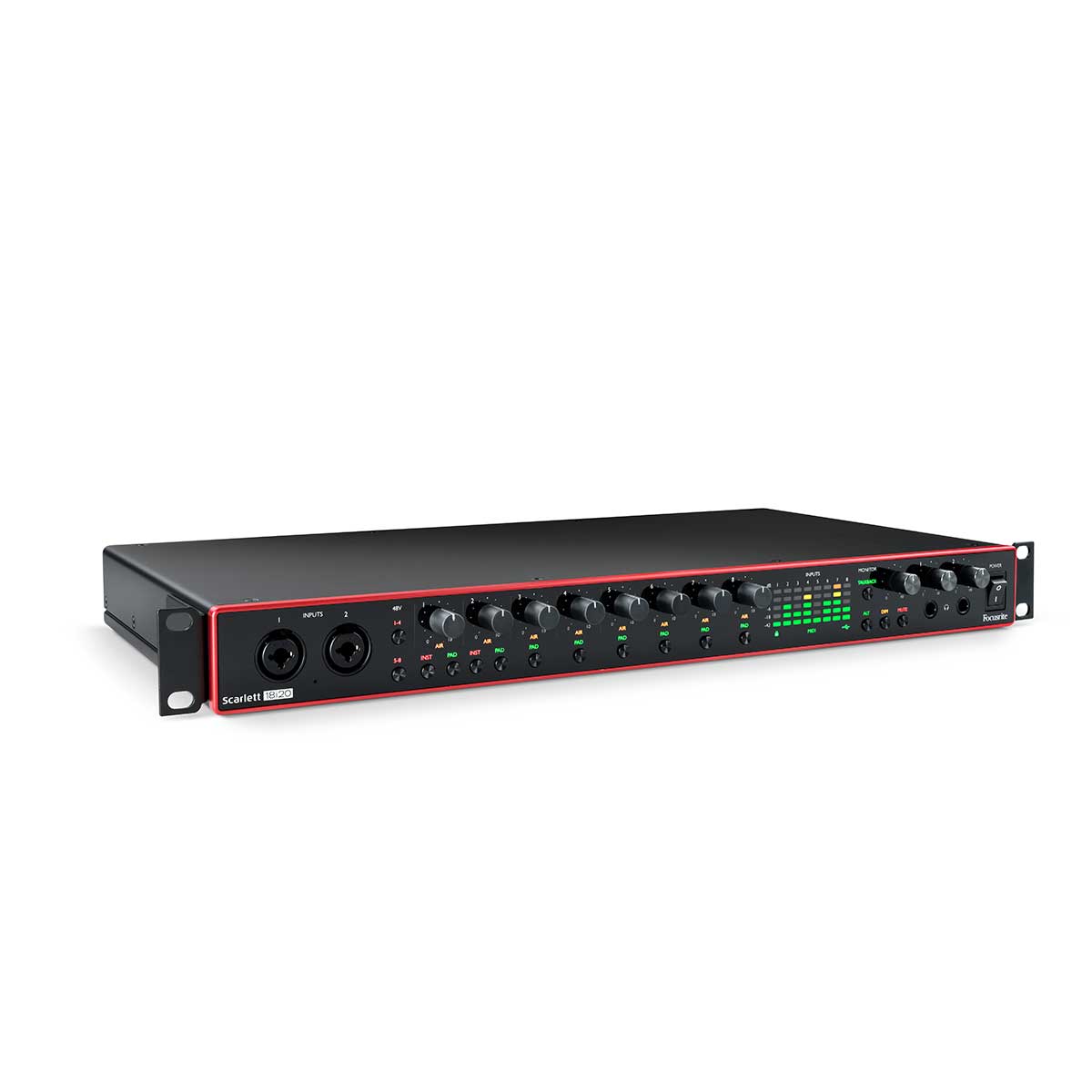

Housed in a 1U rack-mountable enclosure, the third-generation 18i20 boasts extensive simultaneous I/O comprising eight mic preamps, 18 inputs and 20 outputs in total. Take your studio to the next level with the 18i20, offering superior sound quality, talkback functionality and onboard speaker switching. Improved A-D and D-A conversion ensures your recordings and playback will sound clear and pronounced up to 24-bit/192kHz, vital to helping you perfect your mix.
Type: USB Audio Interfaces
Eight of the best-performing mic preamps the Scarlett range has ever seen, now with switchable Air mode to give your recordings a brighter and more open sound
High-performance converters enable you to record and mix at up to 24-bit/192kHz
Two high-headroom instrument inputs to plug in your guitar or bass
Four monitor outputs with anti-thump technology and speaker switching, and onboard talkback functionality with built-in, front panel talkback mic.
Eight balanced line inputs for connecting synthesisers, drum machines and other line-level sources
Included Software
Ableton Live Lite music making software
Pro Tools | First Focusrite Creative Pack
Free 3-month Splice Sounds subscription with new Splice accounts
Focusrite Red 2 & Red 3 Plug-In Suite
A choice of 1 of 4 XLN Audio Addictive Keys virtual instruments
Softube Time & Tone Bundle
Access to the Focusrite Plug-in CollectiveConnectivity | USB Type-C | ||||||
Protocol | USB 2.0 | ||||||
Form Factor | Rack Mount (1U) | ||||||
Simultaneous I/O | 18 x 20 | ||||||
A/D Resolution | 24-bit/192 kHz | ||||||
Number of Preamps | 8 | ||||||
Number of Pads | 8 | ||||||
Phantom Power | YES | ||||||
Instrument Inputs | 2 | ||||||
Line Inputs | 8 | ||||||
Analogue Outputs | 10 | ||||||
Headphone Outputs | 2 | ||||||
Main/Alt Speaker Switching | YES | ||||||
Talkback | YES | ||||||
Digital Inputs | S/PDIF & 2 x ADAT | ||||||
Digital Outputs | S/PDIF & 2 x ADAT | ||||||
Loopback | YES | ||||||
MIDI I/O | YES | ||||||
Bus Powered | NO | ||||||
Included PSU | YES |
The easiest way to check that your computer’s operating system (OS) is compatible with the Scarlett 18i20 is to use ouronline OS Checker | |||||||
** Please note, system requirements may change. For the most recent system requirements please visit the manufacturer's official product listing **
