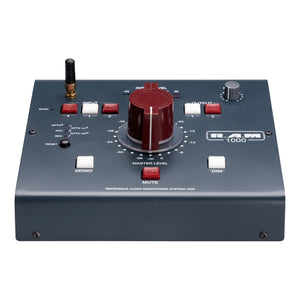

Heritage Audio R.A.M 1000 Audio Monitoring Controller

Ditch the hassle of unreliable minijack cables and poor device connections. The R.A.M 1000 offers a seamless Bluetooth connection with mobile devices up to 150 meters away. Enjoy simultaneous selection of multiple INPUTS and OUTPUTS. OUTPUT 1 features a versatile switch between Monitor and Recording out to your Interface. Experience top-tier headphone output with precise level control, all powered conveniently via USB-C (cables included).

The R.A.M SYSTEM 1000 by Heritage Audio is a pinnacle of professional audio monitoring, beautifully encased in a tabletop design. With its expansive input-output matrix, it’s tailor-made to cater from budding project studios to the most advanced professional setups, all at an unmatched value proposition.

Features:

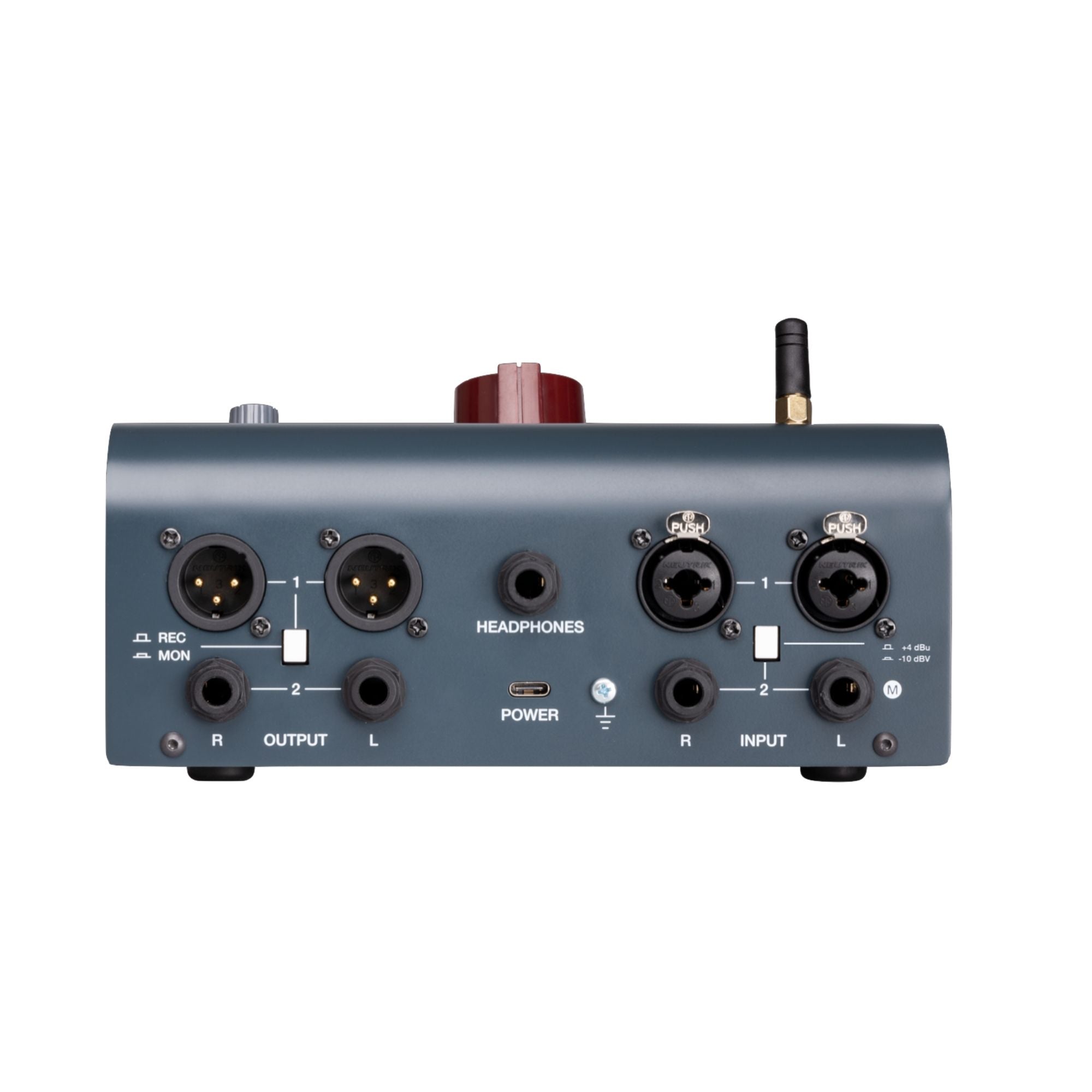

• Comprehensive I/O: Equipped with two pairs of +4 dBu balanced analog inputs (one being -10 dBV selectable) and dual stereo outputs, both on balanced XLR and ¼” jack connections.
• Bluetooth Integration: Seamlessly integrate sound from mobile devices with a Bluetooth input optimized to choose the best CODEC for supreme quality. Switching Bluetooth input sources is just a button away.
• Simultaneous Selection: Choose multiple inputs and outputs concurrently, granting enhanced versatility in monitoring choices. An exclusive back button lets users toggle between MONITOR and RECORD modes, allowing flexibility in volume control and output signal management.
• Precision Volume Control: Features a 64-step, gold-plated relay ladder attenuation, offering a nuanced 64 dB attenuation in 3 dB increments. Minimal active electronics ensure minimal noise and coloration.
• Superior Headphone Monitoring: Recognizing the importance of headphone monitoring, the system utilizes a high-current diamond buffer configuration for powerful, clear, and noise-free output.

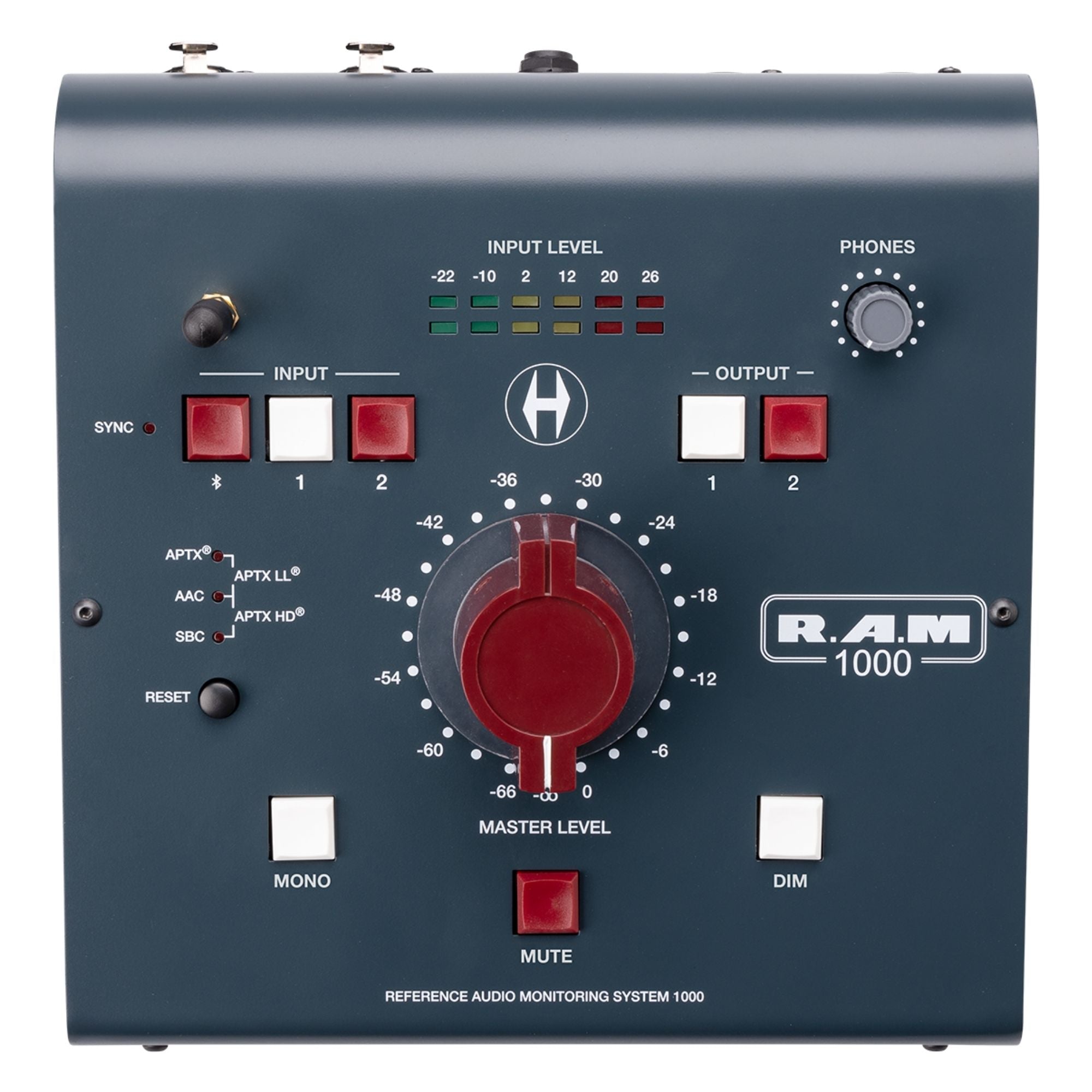

• Visual Input Monitoring: Centralized 6-bar LED Input Levels for both left and right channels ensure you’re always aware of input levels.
• Functional Controls: Comprehensive controls including DIM (a 20 dB drop), MUTE, and MONO buttons put you in the driving seat of your audio.

Aesthetic and Build:

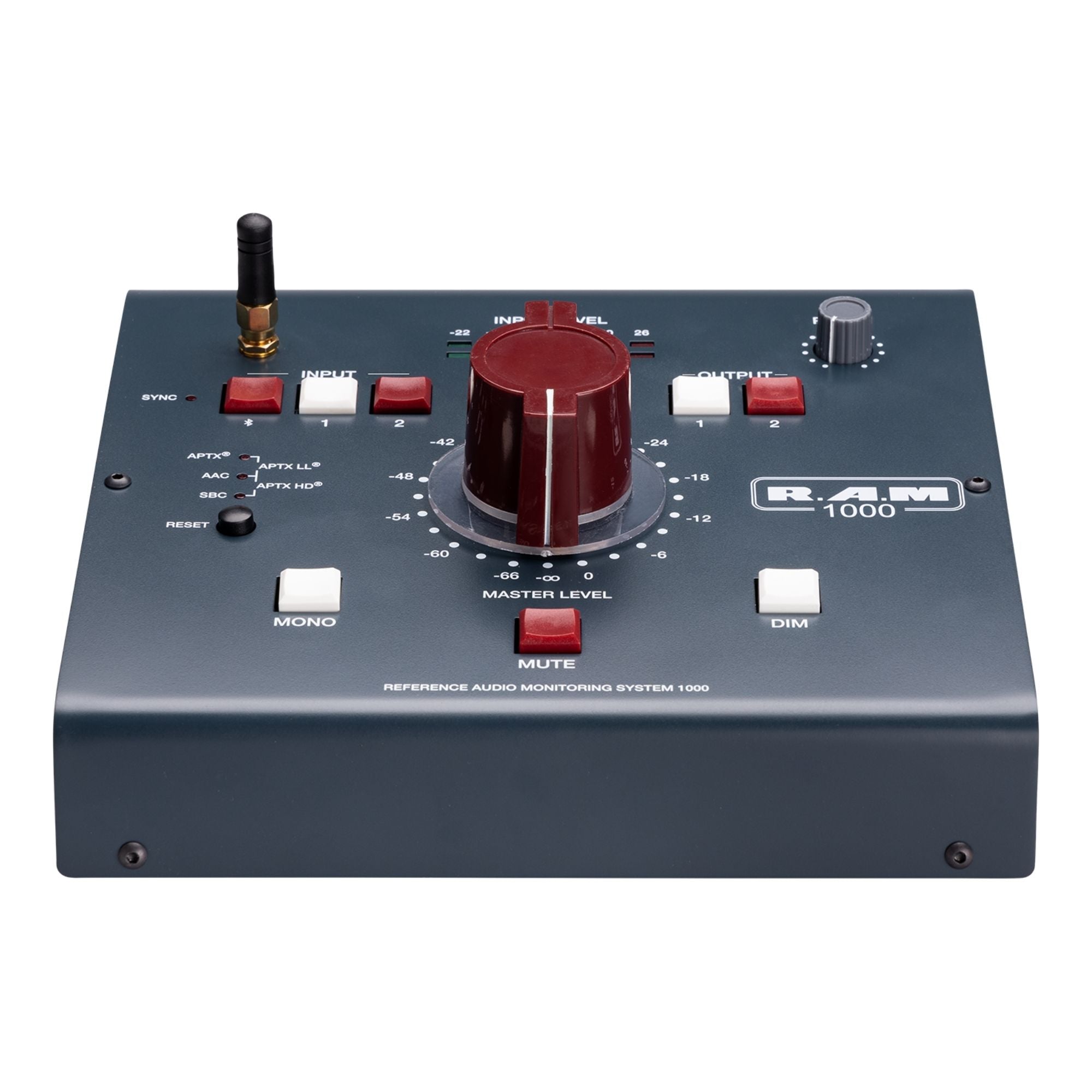

• Classic European Design: Taking cues from iconic console master sections and highlighted by a striking red Marconi knob, the R.A.M SYSTEM 1000 is as much a visual treat as it is an audio marvel.
• Convenient Powering: Easily powered via USB-C, with cables included.

Key Takeaways:

• Advanced Bluetooth reception with the latest CODECS.
• Simultaneous multiple INPUT & OUTPUT selection.
• Premium headphone monitoring experience.
• Instantly send signals to your Interface for recording.
• Exclusively designed volume control, reminiscent of classic European console designs.
• Easy and efficient USB-C power input.
