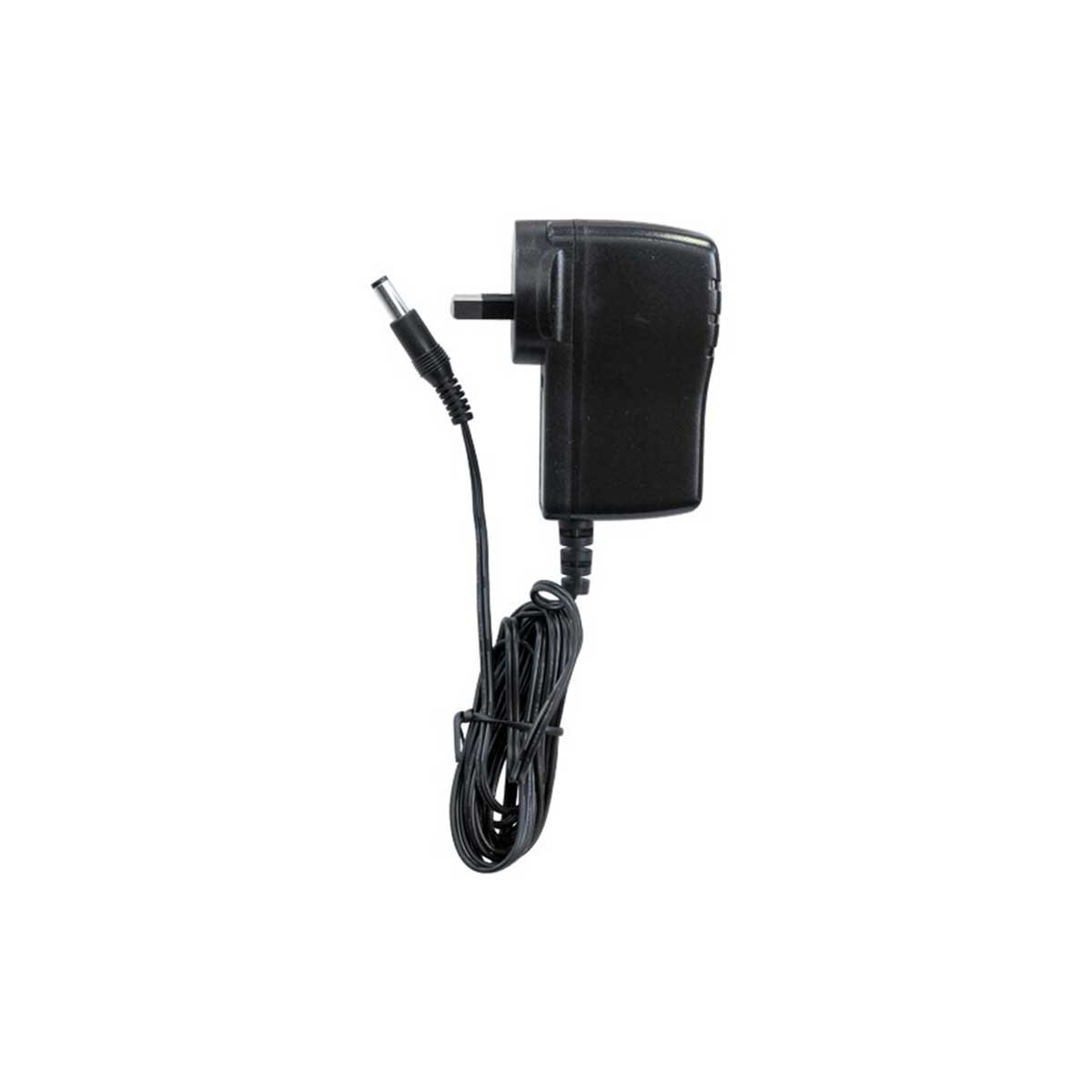

iConnectivity Power Supply Optional power adapter for iConnectMIDI2+

The power adapter is only necessary for keeping an iOS device charged; the iConnectMIDI2+ itself is powered over the USB bus (in USB Device port 2).
Please use only the iConnectivity 6V/18W center positive supply, or you risk damaging the device. This adapter operates over a range of 100-240V/50 or 60Hz, so it can be used internationally with wall plug adapters.

Specifications

• Input Voltage Range: 100V RMS to 240V RMS
• Input Frequency: 50Hz / 60Hz
• Output Voltage: 6V +/- 0.15V DC
• Rated Power Output: 18W (min)
• Rated Supply Current: 3A (min)
• Over Voltage Protection (shutdown): 110% to 150%
• DC Plug Type: 2.1mm ID x 5.5mm OD, Positive Center, Barrel length 12mm.

*Does not support iConnectAUDIO2+
