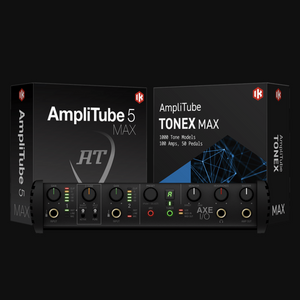

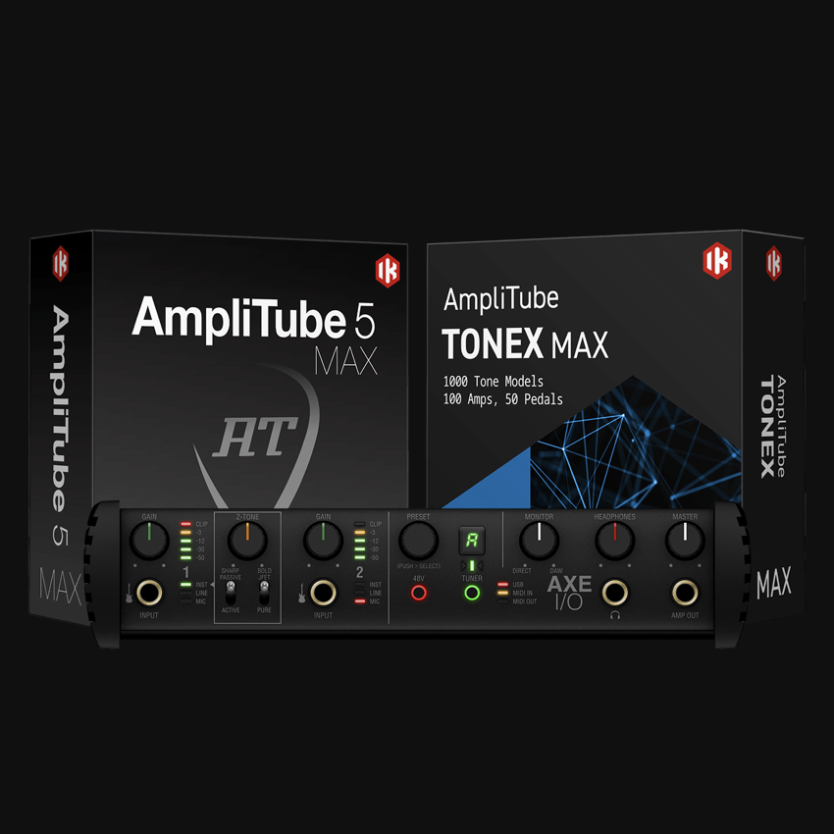

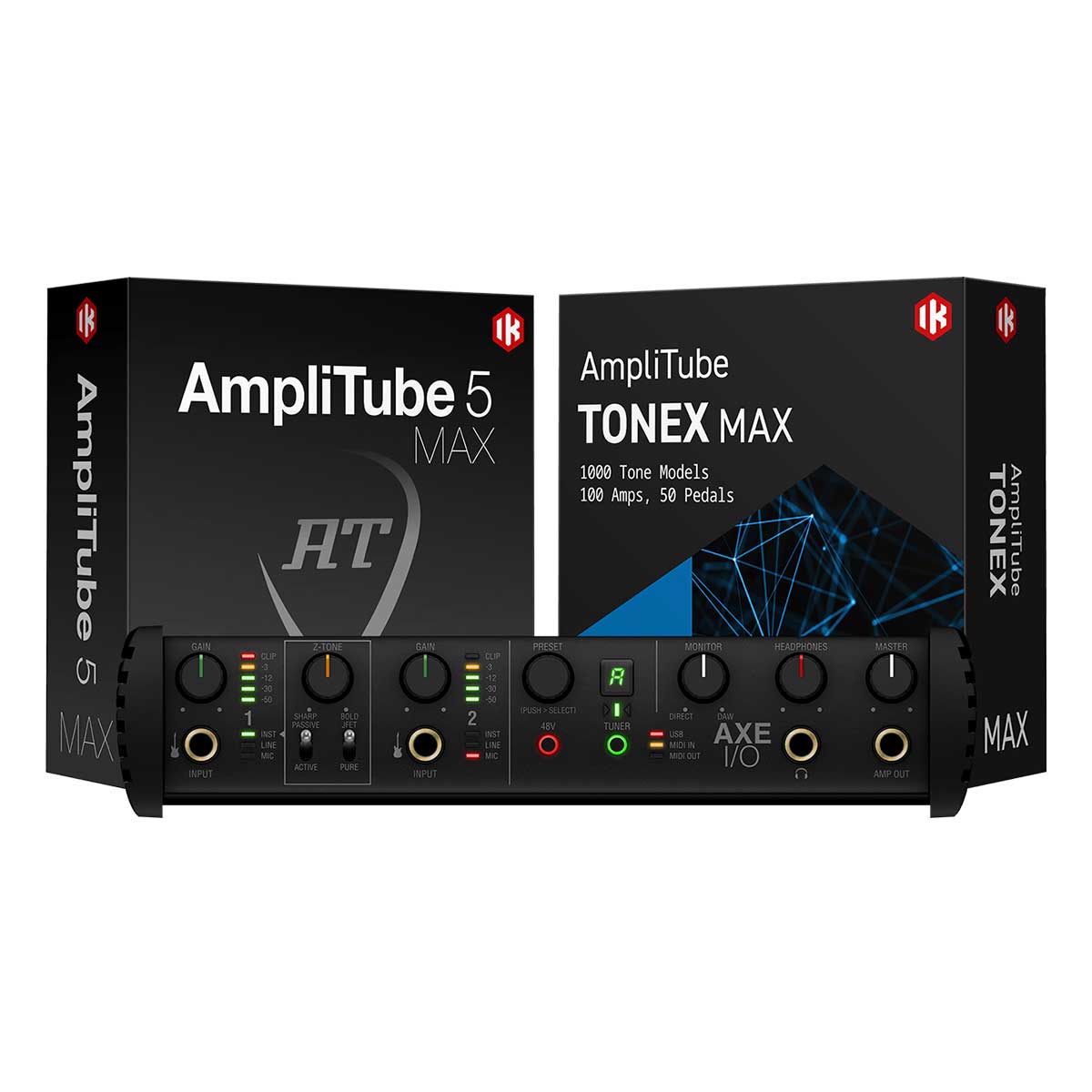

IK Multimedia AXE I/O + AmpliTube 5 MAX + TONEX MAX Bundle

PREMIUM AUDIO INTERFACE WITH ADVANCED GUITAR TONE SHAPING

The audio interface guitar players were waiting for

Since they pioneered guitar amp & effects modelling in 2002, IK Multimedia has spent more time studying guitar and amp recording than possibly anyone else on the planet. Modelling over 400 pieces of gear has required tens of thousands of hours painstakingly measuring the interactions between instruments, pickups and amplifier circuits, not to mention the cooperation of the world’s most iconic guitar players, amplifier manufacturers, and engineers to learn how to create and capture great guitar tones.

FEATURES

• AXE I/O brings all that experience to you.
• AXE I/O is a professional 2 in/5 out audio interface – and controller – designed specifically with the needs of the recording guitarist in mind, providing best-in-class sound quality and powerful features aimed squarely at making your recordings faster, easier and better than ever.
• AXE I/O offers an exclusive triple-topology, fully discrete input circuit, with both PURE and JFET input stages, to go from transparent to tube-like with just a single switch.
• Its patent-pending Z-Tone™ impedance-adapting circuit interacts with your guitar’s pick-ups to give you a massive range of tonal flexibility, you’ve never heard before.
• Plus AXE I/O includes a dedicated Amp Out, so you can process your recording with real guitar amps and stomps without the need for external accessories (and without having to unplug your existing connections!). This low-noise out also eliminates ground loops, to keep even the highest-gain re-amplification as quiet as possible.
• And AXE I/O seamlessly integrates with AmpliTube to select presets and control values via the front input knob and lets you connect pedals and switches to get the most from your virtual rig without ever taking your hands off your axe.
• They even included an onboard tuner so you can be ready to record in an instant whenever inspiration strikes.
• Every element of AXE I/O has been created with no-compromise quality and real-world usefulness.
• 117 dB dynamic range, 3 Hz – 32 kHz frequency response – these aren’t the specs you typically find on instrument inputs. But they’re essential to capturing the most accurate details of your performance, coaxing the best performance from your instrument, and keeping your sound pure and transparent.

AXE I/O provides 2 Hi-Z front ¼” inputs for guitars and basses, 2 rear combo inputs with phantom power to connect mics and line instruments, and clear precision front peak meters to conveniently monitor the signal level at the channels input. Two floating balanced outputs, two unbalanced and one floating unbalanced Amp out plus a high-current headphone out let you connect monitors, mains and headphones, with independent volume for both. A Monitor knob makes it easy to blend direct monitoring and the audio from your computer for zero-latency monitoring.

24-bit, 192 kHz conversion and an ultra-stable, low jitter internal clock ensure the highest fidelity, whether you’re capturing vocals, acoustic instruments, amplified guitar or just direct signal for use with AmpliTube.

But that’s just scratching the surface.

YOUR GUITAR’S GOLDEN CHANNEL

AXE I/O’s main channel offers 3 different circuit topologies – that means you have 3 different options to adapt to any type of guitar, pick-up and style so you can always dial in the perfect tone from any instrument.

All three stages offer a 117 dB dynamic range to ensure the cleanest signal. And the 3 Hz – 32 kHz frequency response preserves the full sonic impact of your instrument. Unlike the 20 Hz bass response in budget interfaces, AXE I/O captures the full impact of even the deepest bass and won’t artificially cut off sounds above 20 kHz.

TONE AND FEEL LIKE YOU’VE NEVER HEARD

Guitar pickups can dramatically change their character depending on the impedance of your preamp. Many guitar amps offer a load of 1 MOhms, while pedals can run much lower. That’s why the tone and responsiveness of your guitar can change so much when plugging into a different gear.

AXE I/O’s patent-pending Z-TONE™ circuit lets you dial in impedance from 1 MOhm (“sharp”) down to 2.2 kOhms (“bold”) that interacts with your pick-ups.

At the maximum impedance, you’ll find your sound tighter, sharper and more precise. Increase the load and the sound becomes more thick and bold.

You’ll quickly find yourself using this to give your guitars even more sonic character – with just a few minutes’ experimentation you can dial in a sound that fits the mix beautifully, as if it’s been EQ’d.

PURE MIC PREAMPS FOR TRANSPARENT RECORDING

When it comes to recording with microphones, AXE I/O offers two PURE mic preamps designed for transparent and clean recording.

These mic pres offer a wide, flat frequency response: 5 Hz to 32 kHz, ± 0.5 dB (at 96 kHz) to avoid unwanted colouration and perfectly preserve the sonic character of your acoustic guitar, piano or another instrument, and maintain the signature of whichever mics you connect.

They offer 116 dB of dynamic range, for ultra-quiet sound perfect for recording even the most delicate instruments, but make it easy to also pull back and record the loudest amp stack.

TONE MODELLING AND RE-AMPLIFICATION MADE EASIER THAN EVER

AXE I/O also includes a dedicated Amp Out, so you can create the perfect Tone Models of your amps and pedals using TONEX for Mac/PC. Or process your recorded tracks using real guitar amps and stomps without the need for external accessories (and without having to unplug your gear). This low-noise output also eliminates ground loops during amplification and Tone Modeling to keep your high-gain amps as quiet as possible.

It’s simple: connect the Amp Out to your amp, then mic it up using AXE I/O microphone preamp. Now you can create a perfect Tone Model using TONEX for Mac/PC. Capture a clean copy of your signal while recording and feed it back to your amp afterwards to experiment with different amp, stompbox and microphone settings without re-recording countless takes.

AXE I/O offers a simple, streamlined reamplification setup in a single box to save you time, money and energy and open up unlimited sonic flexibility for all your guitar recordings.

SEAMLESS AMPLITUBE INTEGRATION – AND MORE

For those who prefer in-the-box modelling, AXE I/O also offers a range of useful features.

First, a Preset knob lets you quickly and easily scroll through AmpliTube presets. Just push the knob to select and load one. You can find the perfect preset without ever having to grab a mouse. And if you use any other software, the Preset knob can be freely assigned to any CC so you can have direct control of your preferred virtual rig.

Second, two dedicated controller inputs let you connect up to two expression pedals or two single/double switches to control AmpliTube, or any other software, in real-time while playing. With AmpliTube’s MIDI Learn function, just right-click on any parameter you want to control, move the pedal, and it’s assigned. You can do up to 6 different controller configurations with AXE I/O, mixing pedals and switches, to suit your needs.

You can also use AXE I/O’s MIDI input and output to connect floor controllers or iRig Stomp I/O to add even more real-time controls – or use it with regular keyboards and other standard MIDI gear. There’s also a dedicated tuner on the front panel, making it easier to tune in between takes.

And we’ve worked hard to ensure AXE I/O offers minimal latency, giving you the tightest response and feel while tracking.

ADVANCED DIGITAL CONTROL & ROUTING

AXE I/O also includes a powerful, convenient Control Panel application to manage inputs & outputs and assign routing & controller inputs.

In the INTERFACE tab, you can view the active inputs, enable phantom power and control the ground lift to dial in the least noise for your setup. Adjust output volume, direct monitoring routing, select the sample rate and more.

The CONTROLLER tab gives you control over the preset knob and 2 controller inputs. Set behavior, MIDI channel, MIDI CC #, minimum and maximum values, and more, to dial in the best settings for whatever application you want to control.

The AXE I/O Control Panel lets you keep focused on your work, instead of adjusting settings on the unit itself, for a faster, freer workflow.

What’s new in AXE I/O Control Panel v.1.1.0

Route instrument input 1 directly to the Amp output to record both DI and amplified signals simultaneously, with zero latency.

Tuner can now be configured to mute inputs when engaged, for silent tuning.

Outputs 1 & 2 can now be mirrored to outputs 3 & 4, to send the same signal to two different destinations more easily.

A FULL-BLOWN ANALOG IN-THE-BOX STUDIO –
OUT OF THE BOX

AXE I/O offers a massive bundle of software and plug-ins, so you have everything you need to track, mix and master your music right out of the box.

SPECIFICATIONS

Connections

• 2 in / 5 out (one low-noise Amp out)
• 2 ultra-low noise mic in/balanced line in
• Triple topology guitar input with Z-TONE™
• 2 balanced monitor out / 2 line out
• Reference headphones out
• 2 fully configurable external control input
• MIDI input/output
• USB 2.0 compatible with Mac/PC

Best-in-class guitar tone

• Selectable Active/Passive/discrete JFET/Pure instrument preamp
• Patent pending Z-TONE® input for a tonal palette never heard before
• Amp Out for reamplification or Tone Modeling using TONEX for Mac/PC
• Comes with AmpliTube 5 MAX and TONEX MAX for Mac/PC
• Connect up to 2 expression pedals, single and double-switches
• Fully assignable data knob – for AmpliTube preset browsing and more
• Built-in Tuner
• Rugged/compact metal housing

Premium studio sound

• High-resolution ultra low-noise Class A microphone preamps
• Best-in-class conversion and superior analog design
• Asynchronous USB audio, ultra-low conversion jitters for premium quality
• 117dB dynamic range
• Includes control software
• Up to 192 kHz sampling rate
