JC715

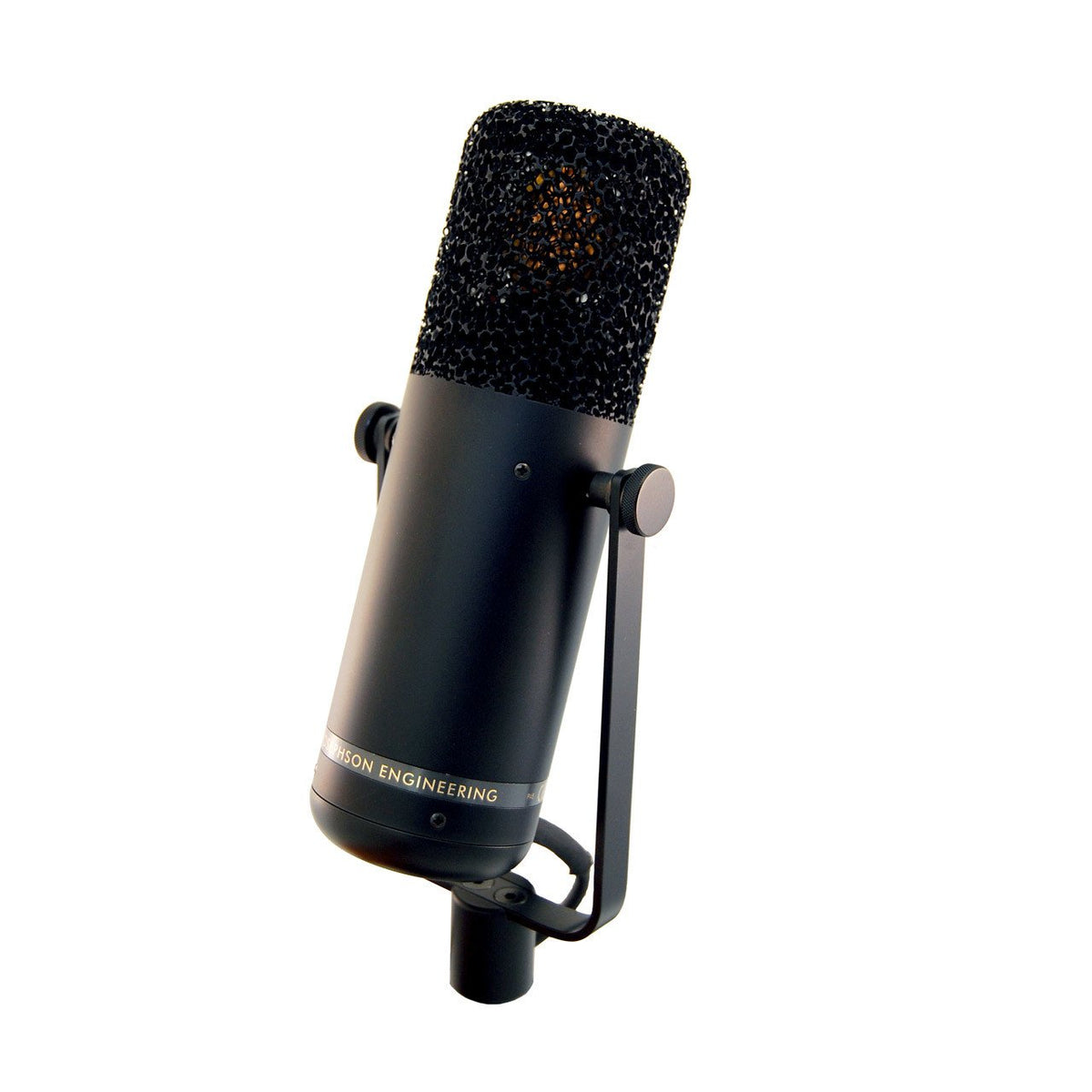

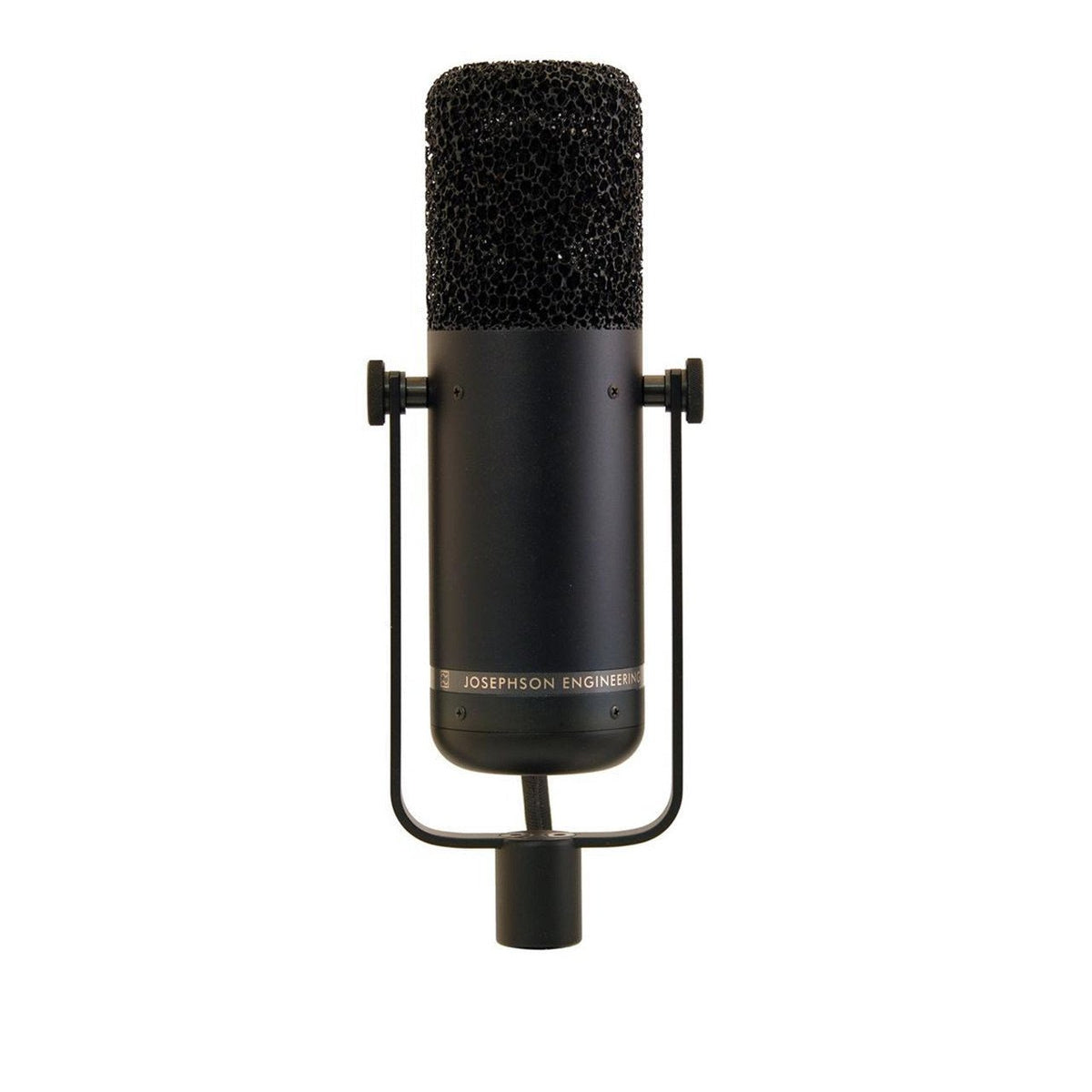

Josephson C-715 - Large Diaphragm Condenser Microphone
The Josephson C-715 is a large diaphragm Pressure-Gradient condenser. It features a unique design, by varying the omni and cardioid characteristics mechanically. Absolute exquisite sound-quality, and handmade in the USA. Series Seven microphones provide unprecedented flexibility in studio pickups with a variety of directional patterns. The C715 uses a unique single large diaphragm capsule with an adjustable vent allowing cardioid or omni operation, and includes a new, patent-pending metal foam housing for minimum acoustic coloration due to the elimination of many internal reflecting surfaces.
Type: Condenser Microphones
-
-
Josephson C-715 PRODUCT FEATURES:
The C715 features the new single-sided capsule with a 5 micron evaporated gold diaphragm. The backplate has an adjustable vent, reached through an opening in the back of the grille, that allows the mic to be adjusted from cardioid to omni. The single diaphragm capsule has a particularly smooth sound, usable for many studio applications where some conventional dual diaphragm mics are too harsh or bright.
The internal circuitry uses a class-A cascode FET front end, driving a large nickel core Lundahl output transformer for compatibilty with a wide range of preamps and consoles. The internal high voltage linear supply generates capsule polarization voltage without using a switching oscillator, for very low noise.
The capsule assembly in the C715 is internally shock mounted so that the mic may be attached directly to a stand through its rugged yoke mount, without using any external accessories. -
Josephson C-715 TECHNICAL SPECIFICATIONS:
Type
Pressure-gradient condenser microphone transducer
Polar Pattern
Variable cardioid/omni directional pattern
Frequency range
20-20,000 Hz
Sensitivity
-55 dB ref 1V/Pa (1.8 mV/Pa)
Equivalent noise level
<19 db="" spl="" a="" weighted="" rms="" br="">
Overload sound level
140 dB SPL
Power supply
P48 phantom, 2 mA
Diameter
63 mm (100 mm wide at yoke), length 261 mm
Weight
1.2 kg
Output connector
3-pin XLR
Made in USA
