LIN-PEX-500

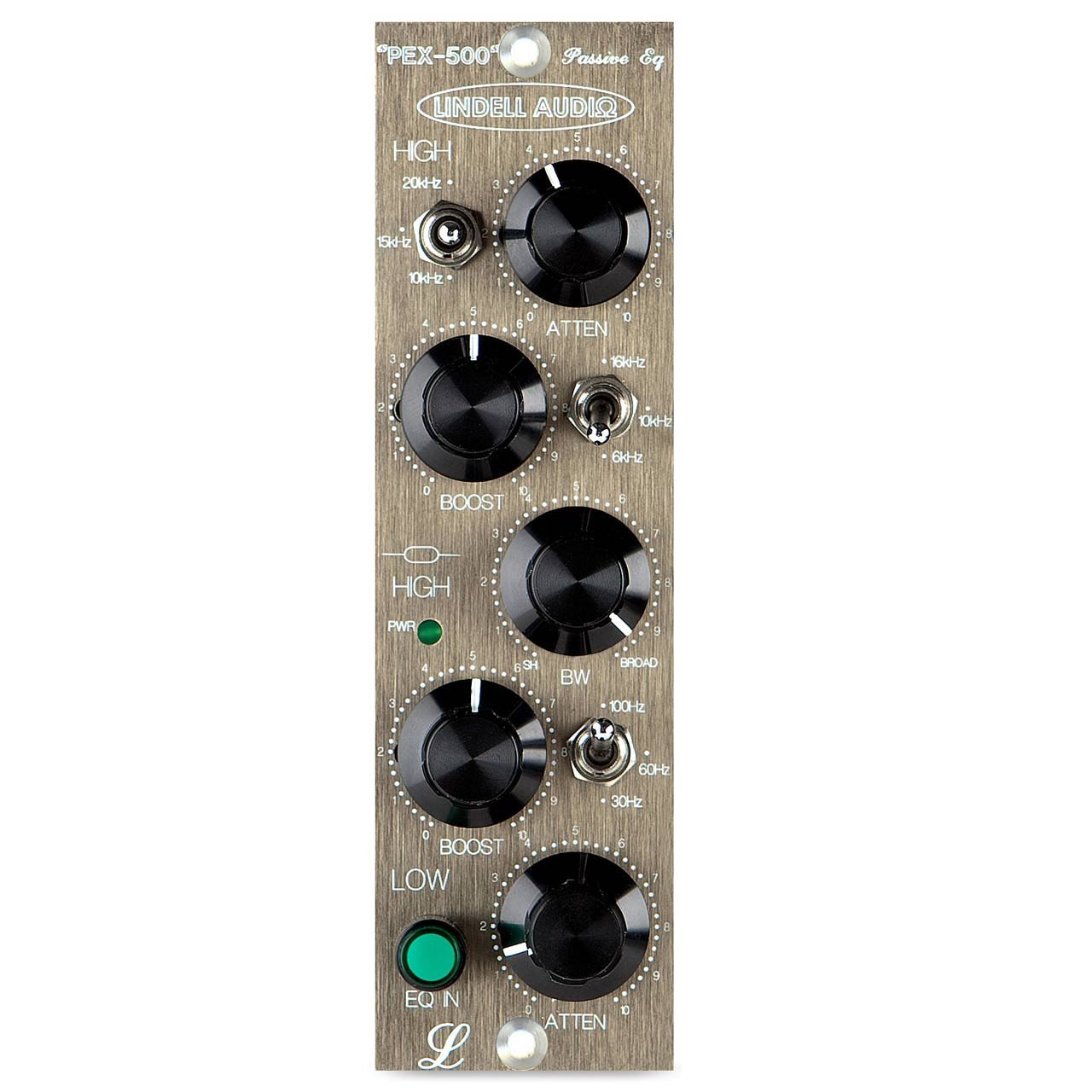

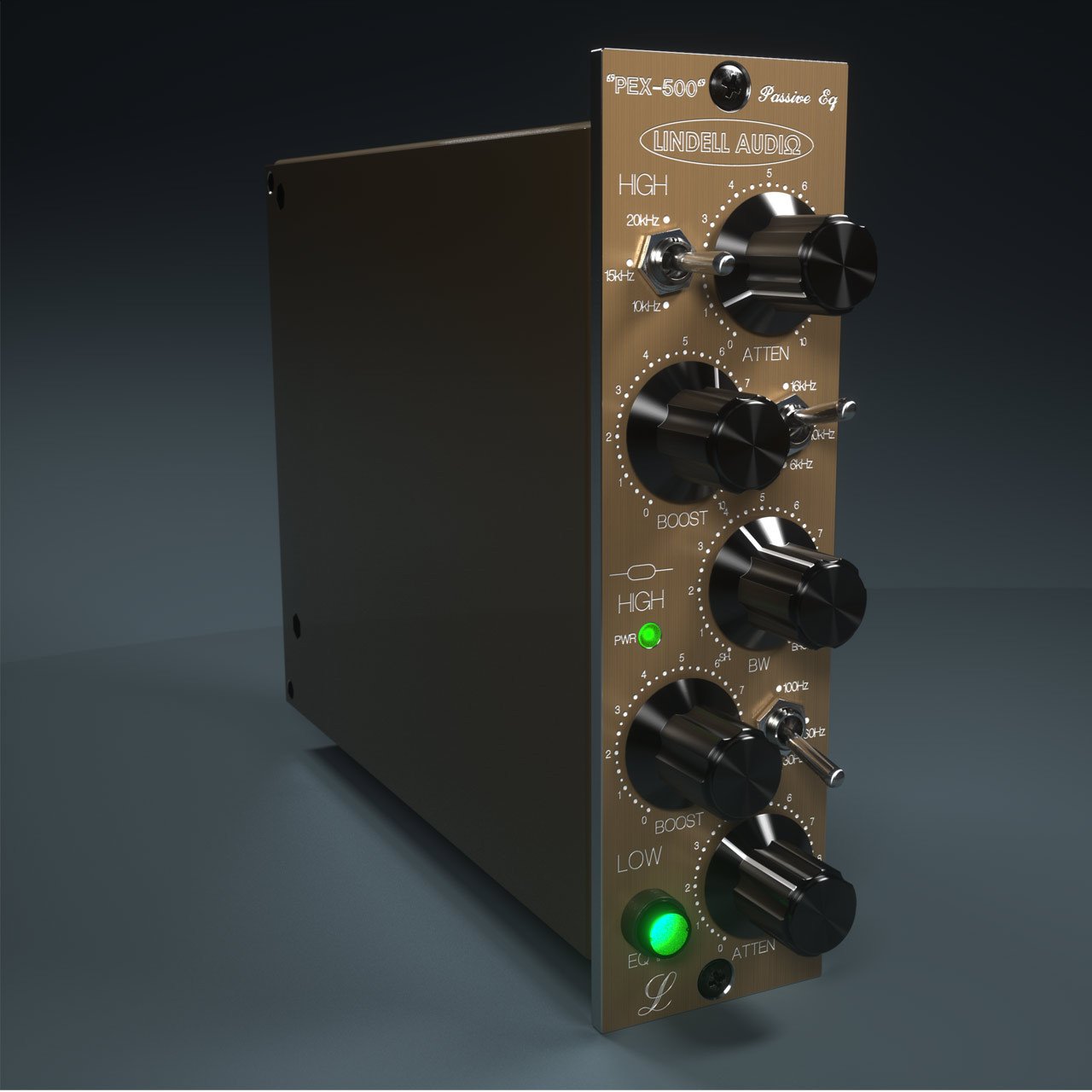

Lindell Audio PEX-500 - 500 Series Equaliser
The PEX-500 from Lindell Audio is their take on the infamous Pultec design. This passive EQ is also offered on the 6X-500, although it has control over the boost, attenuation and bandwidth.
Type: 500 Series
-
-
Lindell Audio PEX-500 PRODUCT FEATURES:
The PEX Five Hundred is a one channel transformer coupled Passive Pultec inspired Equalizer. It’s an all discrete design based upon our hybrid amplifier. (It can be upgraded with our Vintage OPA)
The Equalizer is our take on the magical classic Pultec design. It’s got 15db boost of the creamiest high end you’ve ever heard and the most punchy low end heard in the 21st Century.
-
Lindell Audio PEX-500 TECHNICAL SPECIFICATIONS:
Transformer coupled Balanced inputs and Balanced Outputs
Passive Pultec Equalizer. Inductor
Hybrid gain make-up amplifier
3 Step Switched Eq Low Freq Boost 30Hz, 60Hz, 100Hz +/-10%
3 Step Switched Eq High Freq Bosst 6kHz, 10kHz, 16kHz +/-10%
3 Step Switched Eq High Freq Attenuation 10kHz, 15kHz, 20kHz +/-10%
True Hardwire Eq Bypass
Gold Plated Pcb
-
Lindell Audio PEX-500 SYSTEM REQUIREMENTS:
Please visit Lindell Audio’s website for more detailed documentation regarding their 500-series modules. Requires a 500-series power supply chassis to operate.
