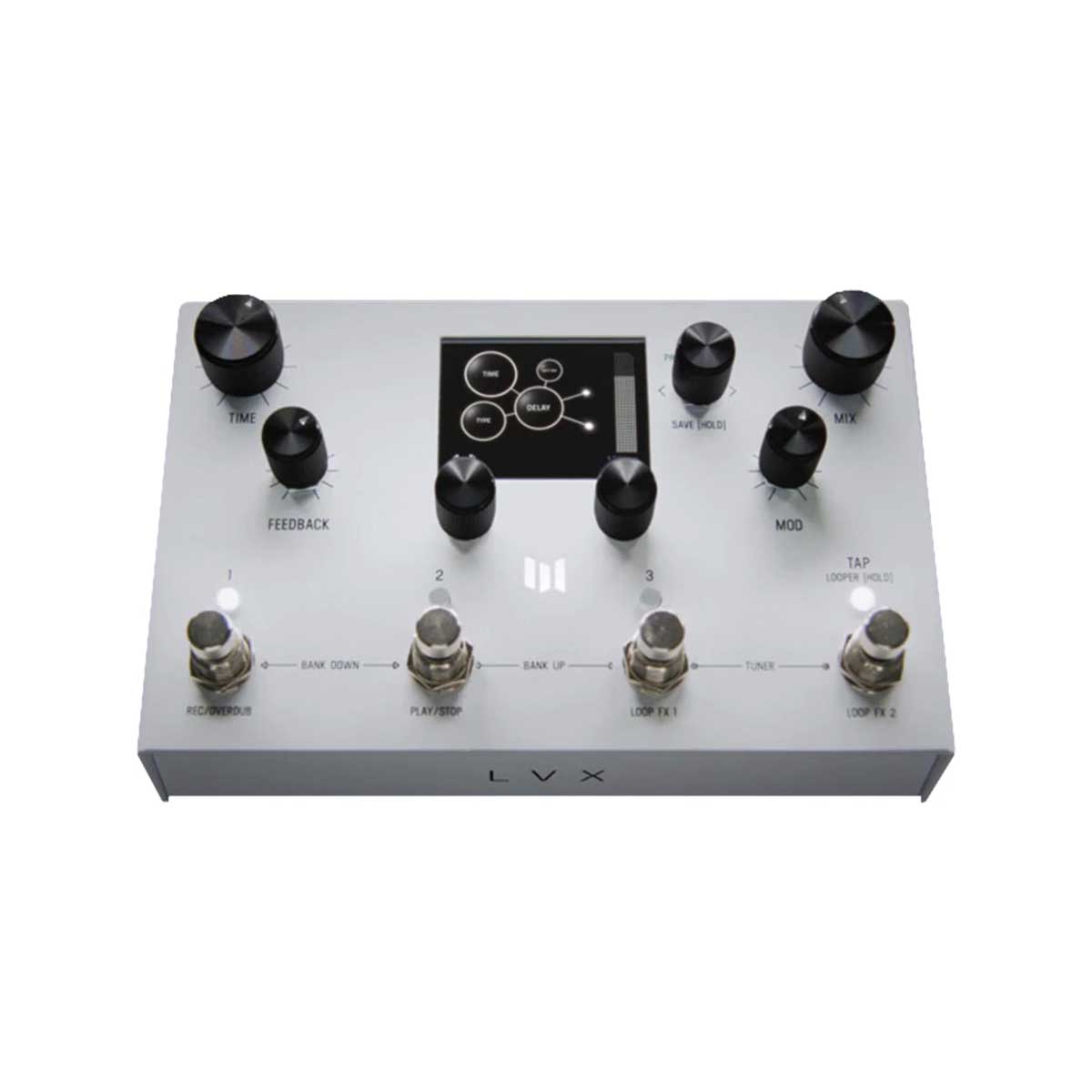

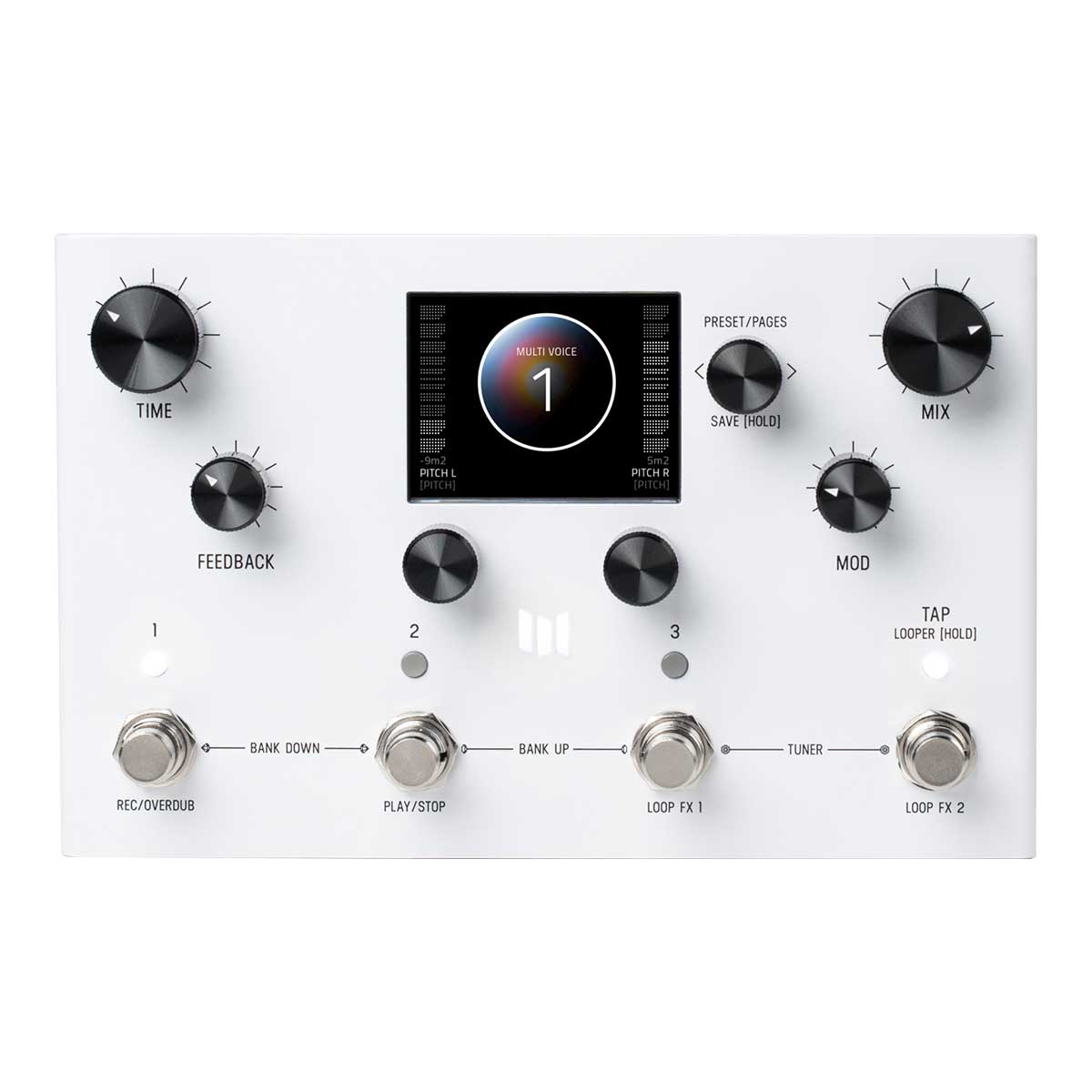

Meris LVX Modular Delay System

The Meris LVX is a Modular Delay System with pro audio heritage, advanced processing and high performance signal path.

LVX is a Modular Delay System which breaks the paradigm of pre-set delay types in favor of freedom and flexibility. A completely new UI and user experience has been designed from the ground up to make LVX immediately intuitive to navigate. The architecture of LVX allows ultimate creative freedom to design a custom delay. The pedal features discrete processing elements and control signal modifiers that can be connected as desired for nearly infinite flexibility in crafting custom sounds.

Features

• Modular Delay System architecture
• 2540mS of Highly Configurable Dual Delay
• Advanced ARM Processor
• Configurable Delay Structures, Types, and Processing Elements for the ultimate customization in delay processing
• Intuitive Color Screen based User Interface
• Always Available True Stereo 60 Second Looper
• 99 Preset Locations in 33 Banks
• Favorite Preset Bank for instant access to your 3 favorite presets
• Instant Access Tuner with configurable Reference and Output mode
• Deep Modifier Section lets you Route Control Signals to Processing Parameters
• True Stereo Processing Elements (Poly Pitch Shifter operates in mono)
• All New Processing Elements including Preamps, Granulize, Cassette, Poly Pitch, and more
• Includes Processing Elements from the Meris family: Polymoon, Hedra, Enzo, and Ottobit Jr.
• Selectable Note Divisions for each side of the stereo Dual Delay
• Digitally controlled Analog mix bus
• Stereo input and output with separate jacks for each
• Switchable input/output headroom level for Instrument or Synthesizer / Line levels
• MIDI In and Out over standard MIDI Din Jacks
• Assignable Expression Pedal control for multiple parameters simultaneously
• Dedicated Expression Pedal Jack
• MIDI implementation for Continuous Control Parameters
• MIDI Preset Send and Receive
• MIDI beat clock synchronization
• Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
• Premium Analog Devices JFET input section
• Dimmable screen and logo light
• Color – white powder coat with fine iridescent flake
• Designed and built in California, U.S.A.

Specifications

• Conversion 24 bit A/D and D/A
• DSP 32 bit floating point
• Sample Rate 48000 Hz
• Input Impedance 1 Meg Ohm
• SNR 115 dB Typical
• Frequency Response 20Hz-20kHz
• Max Input Level +9 dBu (instrument level setting)
  +12.5 dBu (line/synth level setting)
• Power 9V DC center-negative, 300mA, 2.1mm jack
• Bypass Selectable True Bypass (Relay) or Analog Buffered Bypass
• Dimensions 7.25” wide, 4.5” long, 2” tall.  (Same depth and height as all other pedals.)
• Weight 24 ounces
