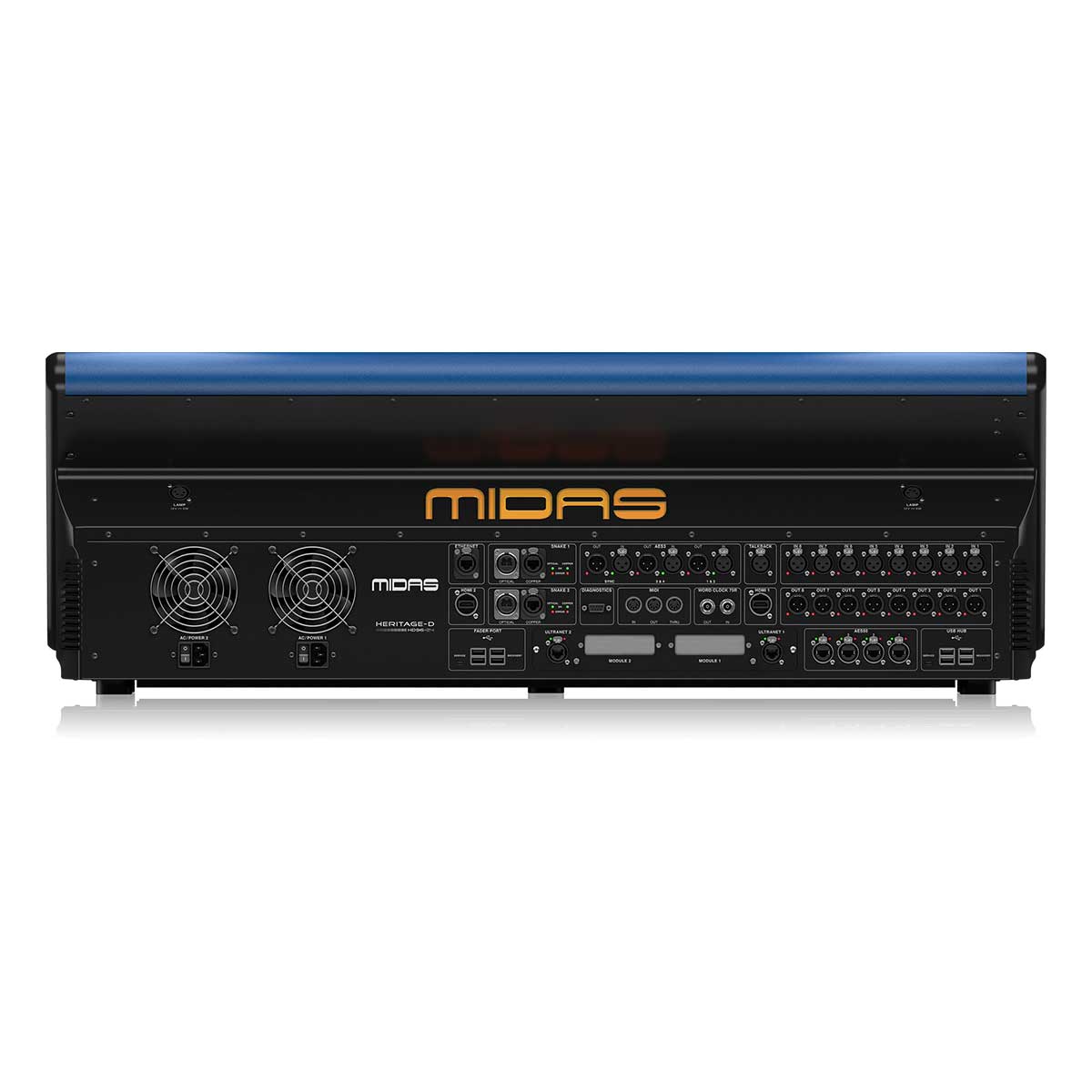

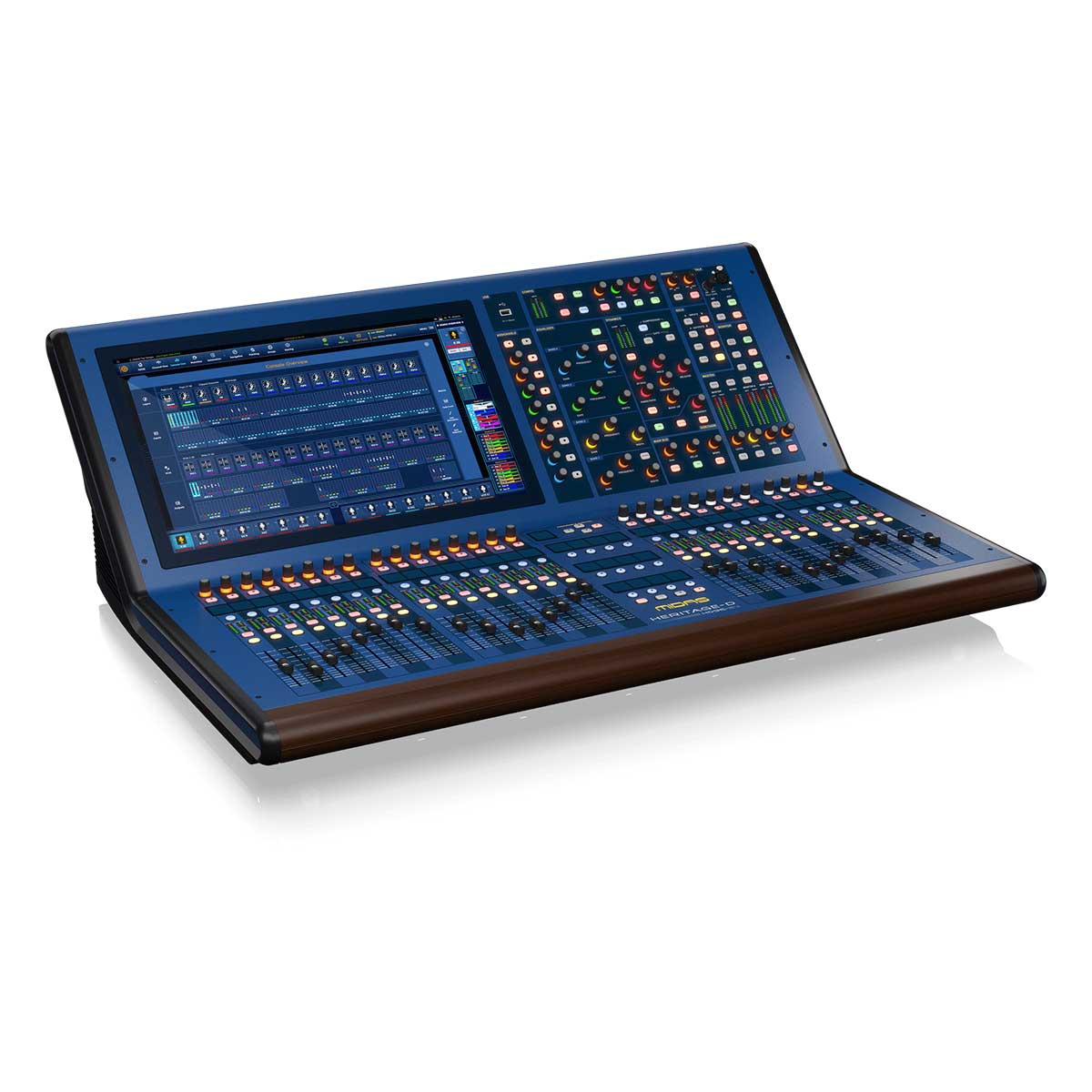

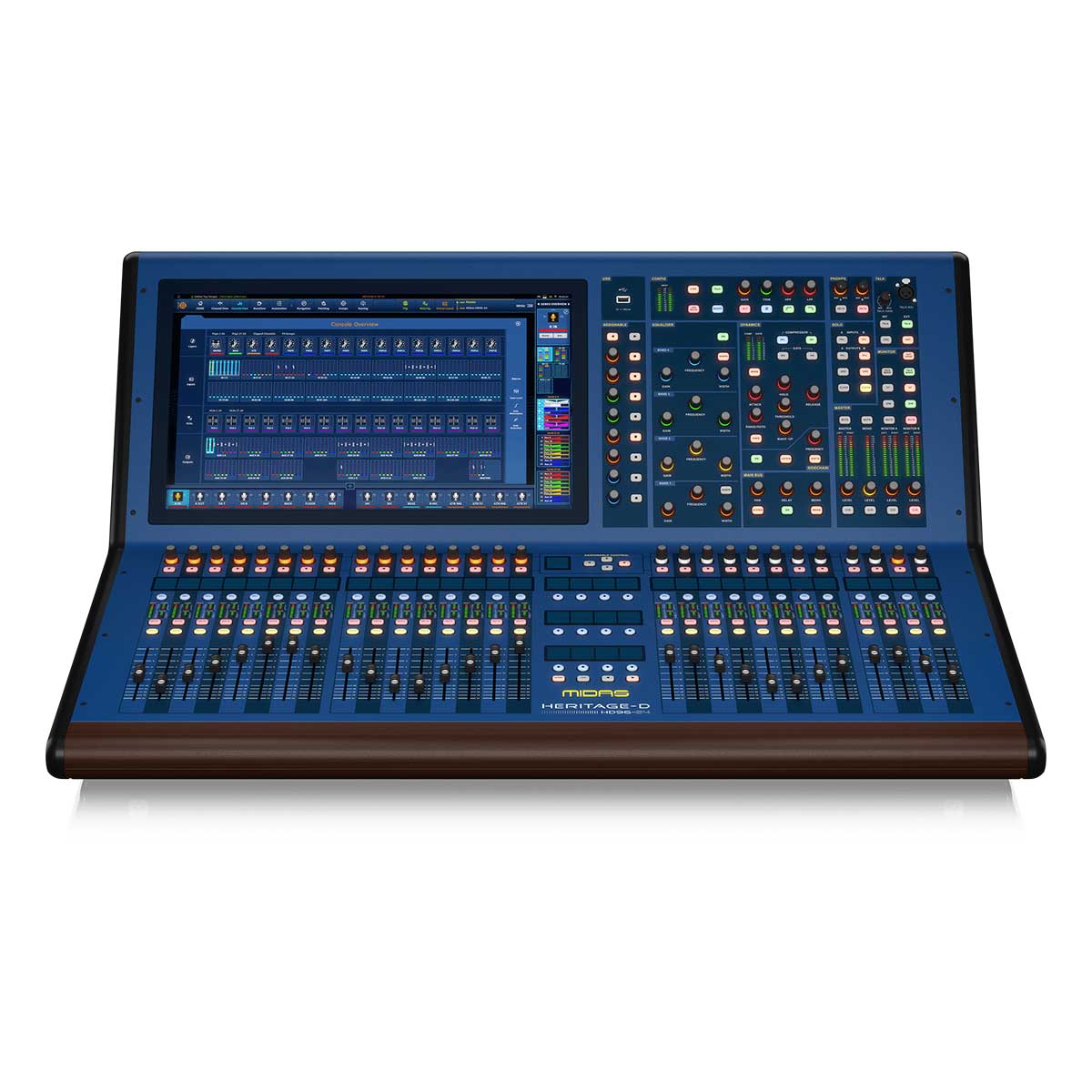

Midas Live Digital Console Control Centre with 144 Input-Channels, 120 Mix Buses, 96 kHz Sample Rate and 21" Multi-Touch Screen

Building on the prolific history of the H3K and PRO Series consoles, the new Heritage D now reinvents the workflow of the sound engineer. Finally, a Midas you can touch. Featuring a powerful 21” HD touch screen and formidable ultramodern Graphic User Interface (GUI) control all at your fingertips. Heritage D is a vision of the future with thought provoking new features such as Channel AI (yes, Artificial Intelligence).

This platform is designed for the future and will continue to grow and develop over many years with an impressive Midas team that are eager to improve and constantly add new features. Your investment in the Heritage D is safe.

Features

• ive performance digital control centre with up to 144 simultaneous input channels and 96 kHz sample rate

• 123 time-aligned and phase-coherent mix buses

• 21" full colour TFT display screen with capacitive touch sensing

• Advanced and multi gesture, touchscreen user interface

• Award-winning Midas microphone preamplifiers

• HyperMAC and AES50 networking allows up to 480 inputs and 480 outputs @ 96 kHz sample rate

• Dual Network Bridge Format Converter with up to 128 Bidirectional Channels and Asynchronous Sample Rate Conversion

• 24 VCA (variable control association) groups, and 24 POPulation groups

• Up to 48 assignable 1/3 octave Klark Teknik DN370 graphic equalisers

• Up to 24 multi-channel digital signal processing effects engines

• Integrated Bluetooth and wireless transceiver module

• Dual ULTRANET Ports providing 32 additional digital outputs

• 28 MIDAS PRO motorised 100 mm faders

• Fully interpolated touch sensitive controls

• Optional wireless remote control with remote application

• Dual redundant auto-ranging universal switch-mode power supplies

The Graviton Mk 2 Processing Engine

At the heart of every mixing console is the most important part – Audio. Overlooked by other manufacturers, we have always put sound at the top of our priority list.

It was hard, almost impossible, but we improved on the legendary Midas digital sound with our new 64-bit summing mix engine with increased dynamic range. Driving a Midas has never been easier.

The key to the Midas sound is in giving ultimate flexibility while still being delay compensated. Avoiding the dreaded comb filtering effect is so very important. Many other consoles simply ignore this crucial part of the audio signal path.

Flexi-Aux

The Flexi-Aux system gives the ability to send aux to aux for group or stem style mixing. Now you can smash a whole drum kit with parallel compression and feed it to an artists in ear mix.

Variable Channel Phase

The new, intuitive, easy to use Variable Phase per channel allows sound sources to be blended together seamlessly, with high or low phase changes to mix signals together in ways never achievable before.

Tap Off Points

New tap off points on channels have been introduced to allow signals to be sent from any point in the signal path. This gives greater flexibility for sending signals to stage before any element of processing has been performed. All this without affecting what Midas magic is needed for the main mix.

For the first time on a Midas, post insert fader points are available plus all processing options orders can be changed by simply dragging and dropping in the order you desire.

With Great Power Comes… More Chips

With 18 Sharc DSPs, 14 layer boards, 5 Eighth Generation FPGAs and 2 GPU co-processors there has never been such a technologically advanced board in the world.

True Innovation

Channel AI™

True Preview™

True Audition™ Console Connected

A true plethora of Effects with Music Tribe's unparalleled sister companies including TC Electronic, we have the world’s best effects emulations. Up to 96 effects can be used to craft a beautiful sounding mix including:

TC 6000 (VSS4)

TC 3000 (VSS3)

TC Electronic 2290

HD2A

HD670

KT1176

R-Comp

KT Bus compressor

Mteq Program EQ-HD

M6 compressor

HD Stressor compressor

Ultra-Dualistic Voice Doubler

Rack-Amp (guitar amp and cab emulation)

Glow (harmonic mix glue)

Rotor Motor (Leslie cabinet emulation)

Enlightenment Bass

XL4 EQ

M Harmonics

Uncl HD Distortion

Prime Input Expander

Wave Designer

Shout Mixer

The Shout Mixer allows complex communication groups to be easily created and stored. 16 shout inputs (independent of the input and output channel count) can be used to create multifarious talk systems with 12 dedicated outputs. Instant recall allows you to use different settings for soundcheck and the all-important big show.

Channel AI ™

Never before has a console been able to listen to your source, tell you what it is, suggest Gain, EQ, Compression and Gate settings if required. All this presented in an easy user interface that lets you decide which parts of suggested settings you wish to use. Adaptive presets let you pick the style of sound you want and the Channel AI ™ does the rest. You’ll wonder how you ever lived without it.

The development of the HD96-24 can be summed up with one phrase “We Listened”.
