• Moog Mother-32 PRODUCT FEATURES:

  The Moog Mother-32 is the first tabletop semi-modular synthesizer from Moog. It is a distinctive analog instrument that adds raw analog sound, sequencing and extensive interconnectivity to any electronic or modular ecosystem.

  This expansive new live performance and production instrument is handcrafted in Asheville, NC and has been meticulously designed to provide musicians with a diverse array of creative tools to inspire new music, unique sound and endless sonic exploration.

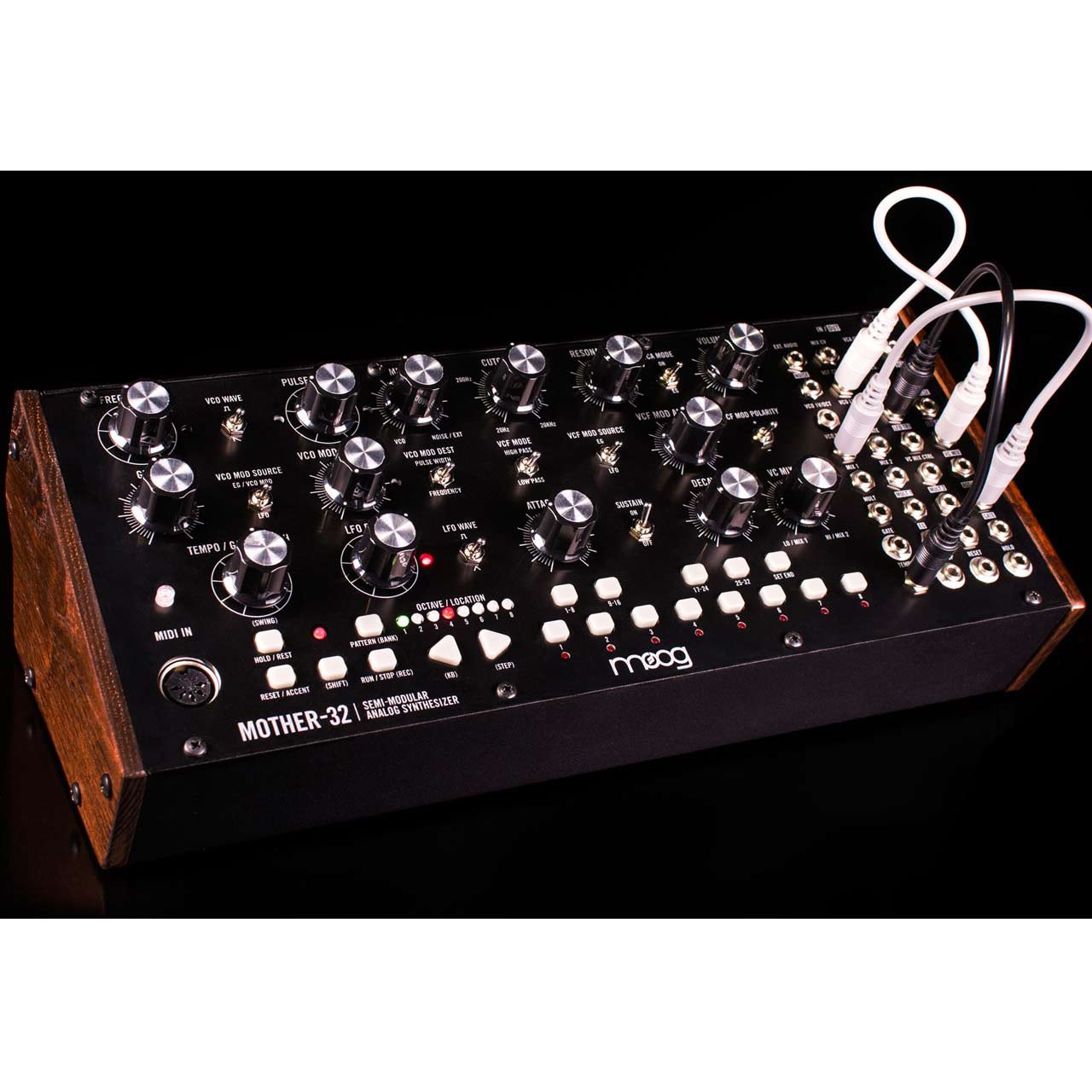

  Mother-32 comes secured in a rugged extruded aluminum enclosure with wood sides and features a voltage controlled 32-step sequencer with 64 sequence locations, definitive Moog low pass and high pass Ladder Filter, 2 voltage controlled mixers, a classic Moog oscillator with dual outputs, wide-range LFO with audio-rate modulation capability, MIDI input and MIDI to CV conversion, white noise, a modular patchbay with 32 patch-points for extended synthesis complexity and an assignable CV jack with 16 assignable sources.


  Semi-Modular design requires no patching for swift, inspired music creation

  Voltage Controlled 32 Step Sequencer with 64 Sequence Locations

  Low Pass & High Pass Moog Ladder Filter (20Hz–20kHz) with voltage controlled resonance

  External audio input for processing outside sound sources

  Definitive Moog oscillator with Pulse and Sawtooth wave outputs

  5-pin MIDI input and MIDI to CV converter

  32 Modular Patch Points (Includes 5 patch cables)

  2 Voltage controlled mixers

  Superb companion to Werkstatt 01, Minitaur and other synthesizers

  Main module can be easily transferred into a Eurorack skiff or case

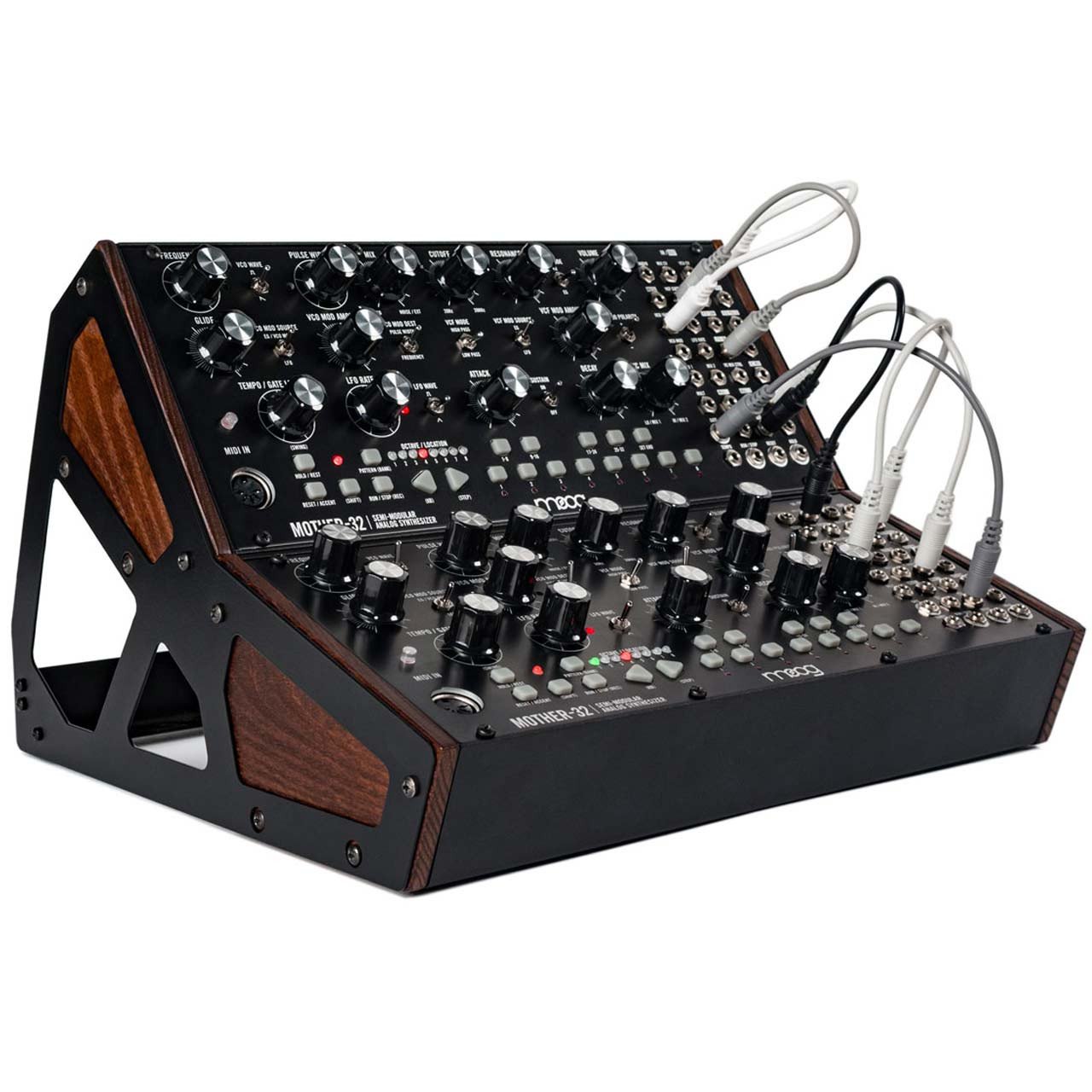

  Mount 2 or 3 units vertically with optional 2 and 3 Tier kits

  Complete solution for new Eurorack users – no other items required

• Moog Mother-32 TECHNICAL SPECIFICATIONS:

  VOLTAGE CONTROLLED OSCILLATOR

  Single VCO with simultaneous Sawtooth and Pulse wave Outputs (+/-5V)

  1 V/Octave from 8Hz to 8KHz (16KHz max with LFO/CV)

  Panel Frequency control (+/-1 Octave)

  Toggle Selector for waveform routed to the mixer

  Pulse Width control

  Linear FM and 1V/Octave Exponential FM inputs (+/-5V)

  NOISE

  Output normalled to Ext Audio input

  White Noise output (+/-5V)

  VOLTAGE CONTROLLED MIXER

  Crossfades between selected VCO waveform and Ext Audio input (normalled to White Noise)

  Mix CV input (+/-5V)

  VOLTAGE CONTROLLED FILTER

  20Hz to 20KHz switchable Low Pass/High Pass 4-pole Transistor Ladder Filter with voltage controlled Resonance

  VCF Cutoff input (+/-5V)

  VCF Resonance input (+/-5V)

  VCF Output (+/-5V)

  VOLTAGE CONTROLLED AMPLIFIER

  Selectable CV Source: EG or ON (drone)

  VCA CV input (0 to +8V in EG mode and +/-5V in ON mode, summed with signals from ON/EG switch)

  Output Volume Control (VCA Out and Line/Headphone Out)

  VCA output (+/-5V) and rear panel 1/4" Headphone/Audio Output (+/-1.7V peak)

  LOW FREQUENCY OSCILLATOR

  Square wave output (+/-5V)

  Triangle wave output (+/-5V)

  Selectable waveshape to VCO and VCF MOD sections

  Panel Rate control .1Hz to 350Hz  (600Hz max)

  LFO Rate CV input (+/-5V)

  ENVELOPE GENERATOR

  Variable controls for Attack and Decay

  Sustain ON/OFF for single-trigger (ASD) or multi-trigger (AD) behavior

  External Gate input (0 to +5V; Tolerant of 10V gates)

  EG output (0 to +7.5V)

  VCO MODULATION

  Selectable Source: EG/VCO MOD or LFO (EG normalled to VCO MOD in)

  VCO Mod input (normalled to EG/VCO MOD switch position)

  Variable Modulation Amount control

  Selectable Modulation Destination: VCO Pitch or PWM (PWM summed with Pulse Width panel control)

  VCF MODULATION

  Selectable Source: EG or LFO

  Variable Modulation Amount control

  Selectable VCF Modulation Polarity (+/-)

  VOLTAGE CONTROLLED MIXER/ATTENUATOR

  Voltage controlled crossfade/mix circuit for mixing two DC coupled signals

  Mix 1 Input (Normalled to ground)

  Mix 2 Input (Normalled to +5V)

  Mix Control CV input (-5V to +5V)

  Mix Output: Un-inverted output (-5 to +5V)

  MULTIPLE

  1x input 2x output signal multiplier

  Mult Input: Buffered signal

  Mult Outputs: 1 and 2

  KEYBOARD

  Single octave 13-note keyboard (In Step Edit Mode this is used to select, mute and enable sequencer steps.)

  Octave Up/Down buttons select from 8 available octave settings

  Glide Time control

  KB CV output (-5 to +5V)

  Gate Output  (0 to +5V)

  SEQUENCER

  Dual-mode 32 step sequencer with 64 sequence locations

  Performance Modes:
  In KB Mode, the Keyboard is used to play the instrument, enter sequence data and transpose sequences.

  In Step Mode, the keyboard functions as the step sequencer interface and is used to enable and mute steps, update note data and select sequence banks.

  Each sequence step includes:
  Note Value, Gate Length (Tie), Rest On/Off, Accent On/Off, Glide On/Off and Ratchet count (up to 4 note-repeats occurring in the duration of a single note)

  Sequencer Panel Controls: Tempo, Swing, Run/Stop, Hold, and Reset

  Sequencer Control Inputs: Tempo, Run/Stop (also used for sync), Reset and Hold

  Sequencer Control Outputs: KB, Gate, Accent Pulse

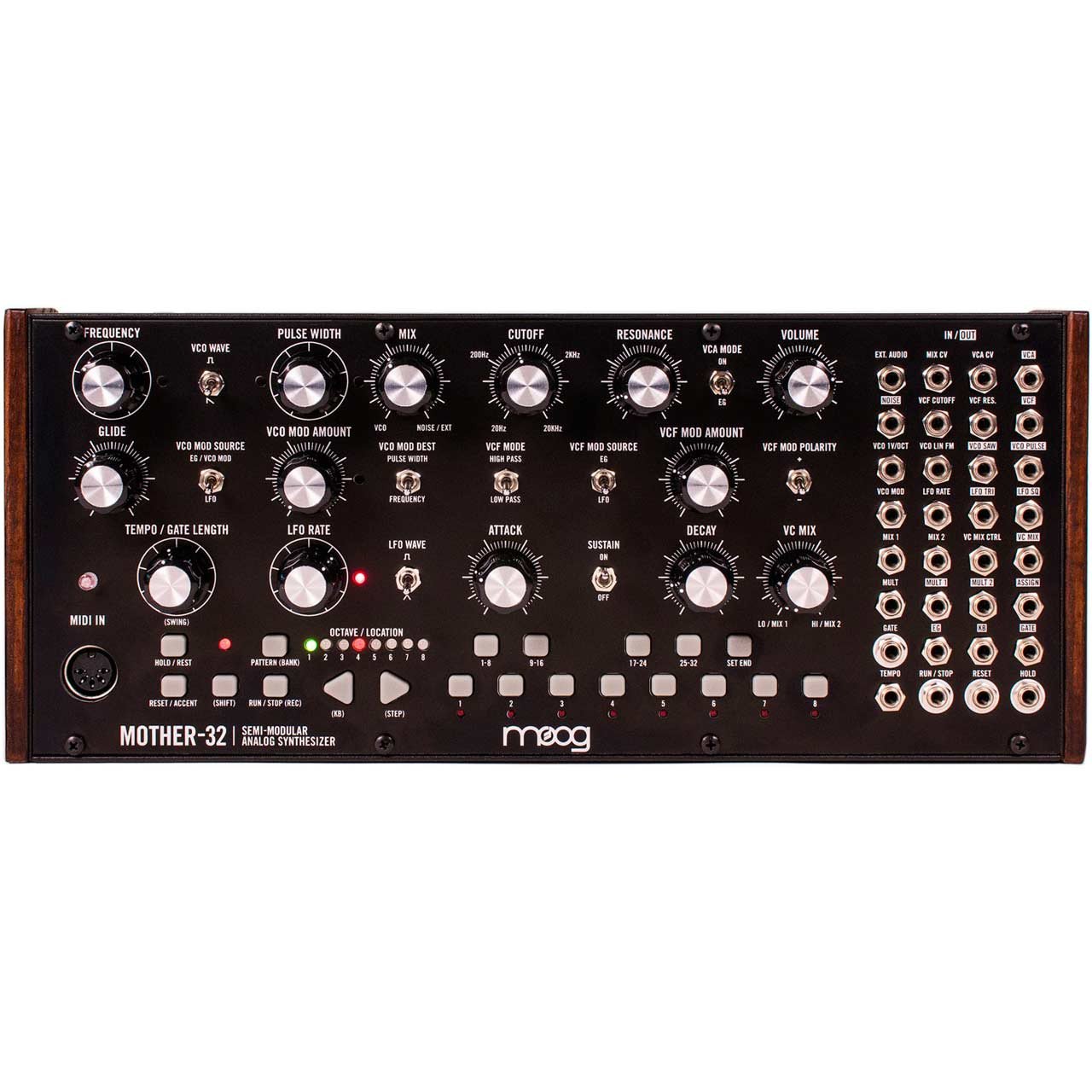

  PATCHBAY

  The patchbay contains 32 patch points (3.5mm)

  Available Inputs: External Audio, Mix CV, VCA CV, VCF Cutoff, VCF Resonance, VCO 1V/Octave, VCO Linear FM, VCO Modulation, LFO Rate, Mix 1, Mix 2, VC Mix Control, Mult, Gate, Tempo, Run/Stop, Reset and Hold

  Available Outputs: VCA, Noise, VCF, VCO Saw, VCO Pulse, LFO Triangle, LFO Square, VC Mix, Mult 1, Mult 2, Assign, EG, KB, Gate

  ASSIGNABLE OUTPUT

  Multipurpose control output for selecting from 16 available functions: Sequencer Accent, Sequencer Clock, Sequencer Clock /2 Sequencer Clock /4, Decimated "Ramp”,                   Decimated "Saw”, Decimated "Triangle”, Stepped Random, STEP 1, MIDI Note On Velocity, MIDI Channel Aftertouch, MIDI Pitch Bend, MIDI CC1 Mod Wheel, MIDI CC2,                 MIDI CC4 and MIDI CC7

  SPECS

  Dimensions: 12.57“W x 4.21“H (with knobs) x 5.24“D

  Weight: 3.5 lbs.

  Power Consumption: 2.8W

  Included Power Supply: 100-250VAC, 50-60Hz, +12VDC 1A

  Patchbay: 32x 3.5mm jacks

  Rear Panel Audio Out: ¼” Headphone / Audio

  EURORACK SPECS

  Current Draw: 230mA (+12V – from 10-pin header)

  Mounting Dims: 60HP (.69” 26mm Module Depth)

  Moog see the Mother-32 as a complete, all-in-one synth voice that will let new Eurorack users get up and running right away and provide a starting point for building a larger system.
