NEV-4081

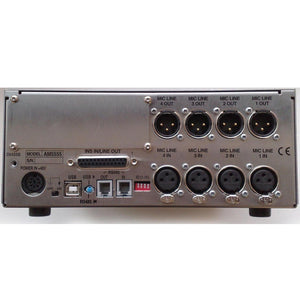

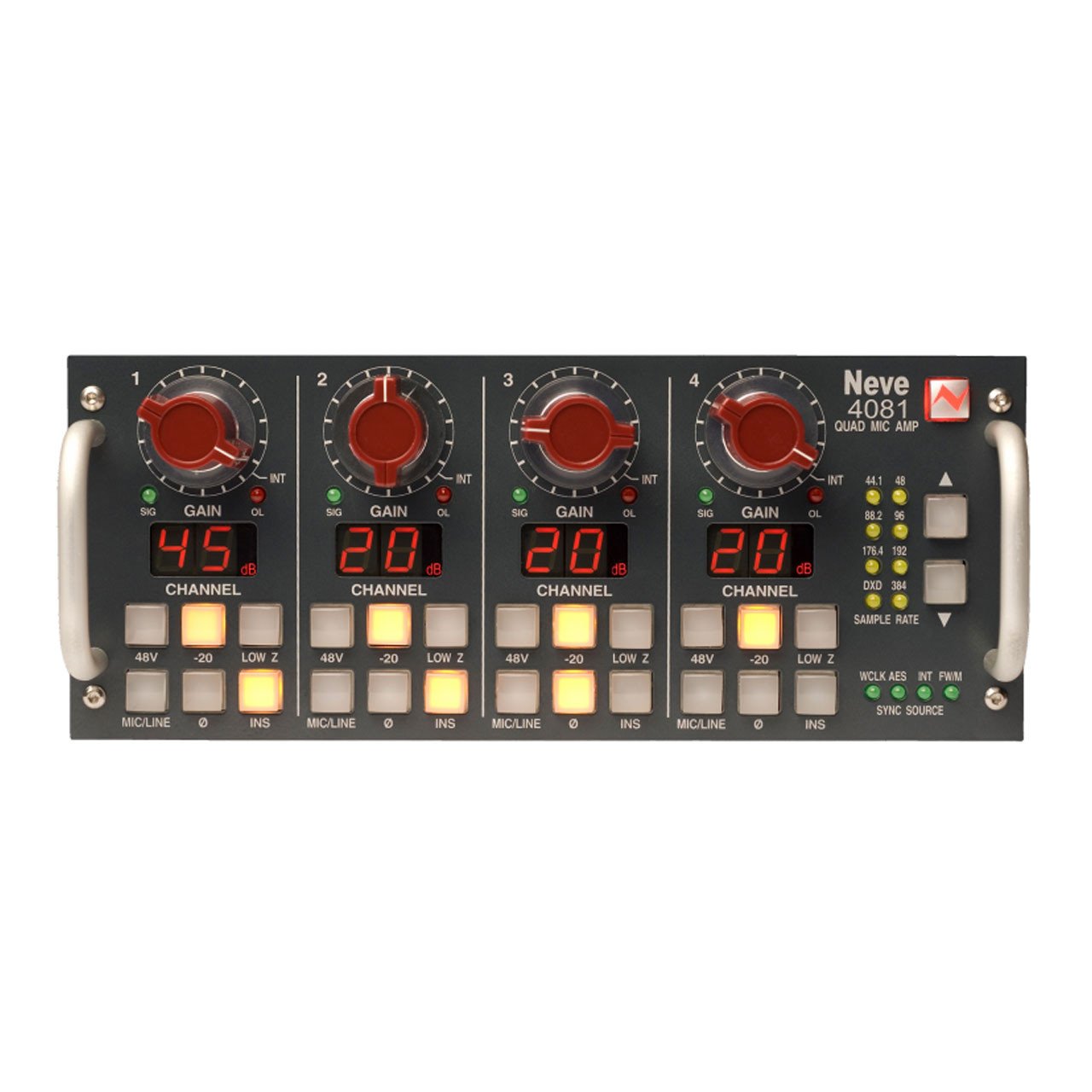

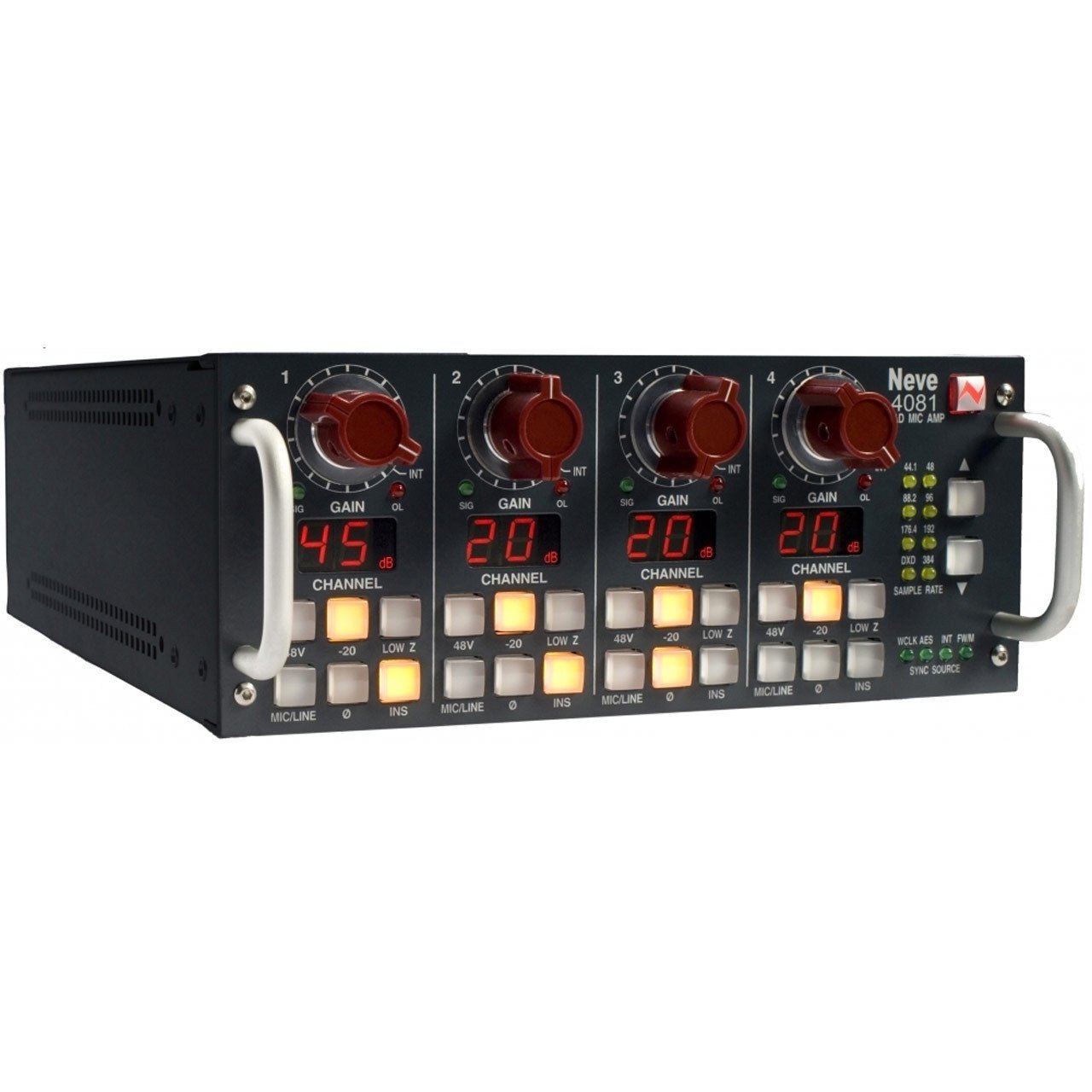

Neve AMS 4081 Quad Mic Preamp
The Neve AMS 4081 Quad Mic Preamp, is a compact four channel mic-pre module that houses 4 x of the legendary Neve 1081 preamps! The 4081 can be digitally controlled via the Neve AMS Remote Control software for Mac/Windows systems. That allows you to save and recall your settings. The 4081 has an optional digital expansion card, that provides a 4 channel A/D convertor via AES or FireWire. In FireWire mode, up to 4 units can be linked together creating 16 channels of Neve front end. Neve also make a rack-mounting kit, that can house either one or two 4081 units.
Type: Preamps/Channel Strips
-
-
Neve AMS 4081 PRODUCT FEATURES:
Remote Control of legendary Neve microphone preamp design
Four genuine 1081 Mic preamp channels in a single 9.5” wide unit
Two units can be linked together to provide 8-channels in a 19” unit with optional 19″ rack-mount kit
Remote control using a Mac or PC with Neve Remote Control software
XLR Mic input can be switched between Mic and electronically balanced Line
Switchable 48V Phantom power supply
Digital I/O Option: Firewire/AES interface with four channels of A/D conversion to either AES or FireWire and 4 channels of D/A conversion. Analogue Insert (pre A/D converter) per channel. -
Neve AMS 4081 TECHNICAL SPECIFICATIONS:
Mic Input: XLR input, Z in 1Kohm @ 1kHz, Gain +20 dB to +70 dB in 5dB steps
Maximum mic input level (with Pad): +24dB
Outputs: Max +26dB into 600 ohms, Z out 50 ohms +/-5% @ 1kHz, balanced
Distortion: <0.07% for 20dBm output from 50Hz to 10kHz @ 60dB Gain
Equivalent Input Noise: >-123dBm 20Hz to 20kHz @60dB Gain
Line Input: Z in 50k ohm, unity gain, electronically balanced
