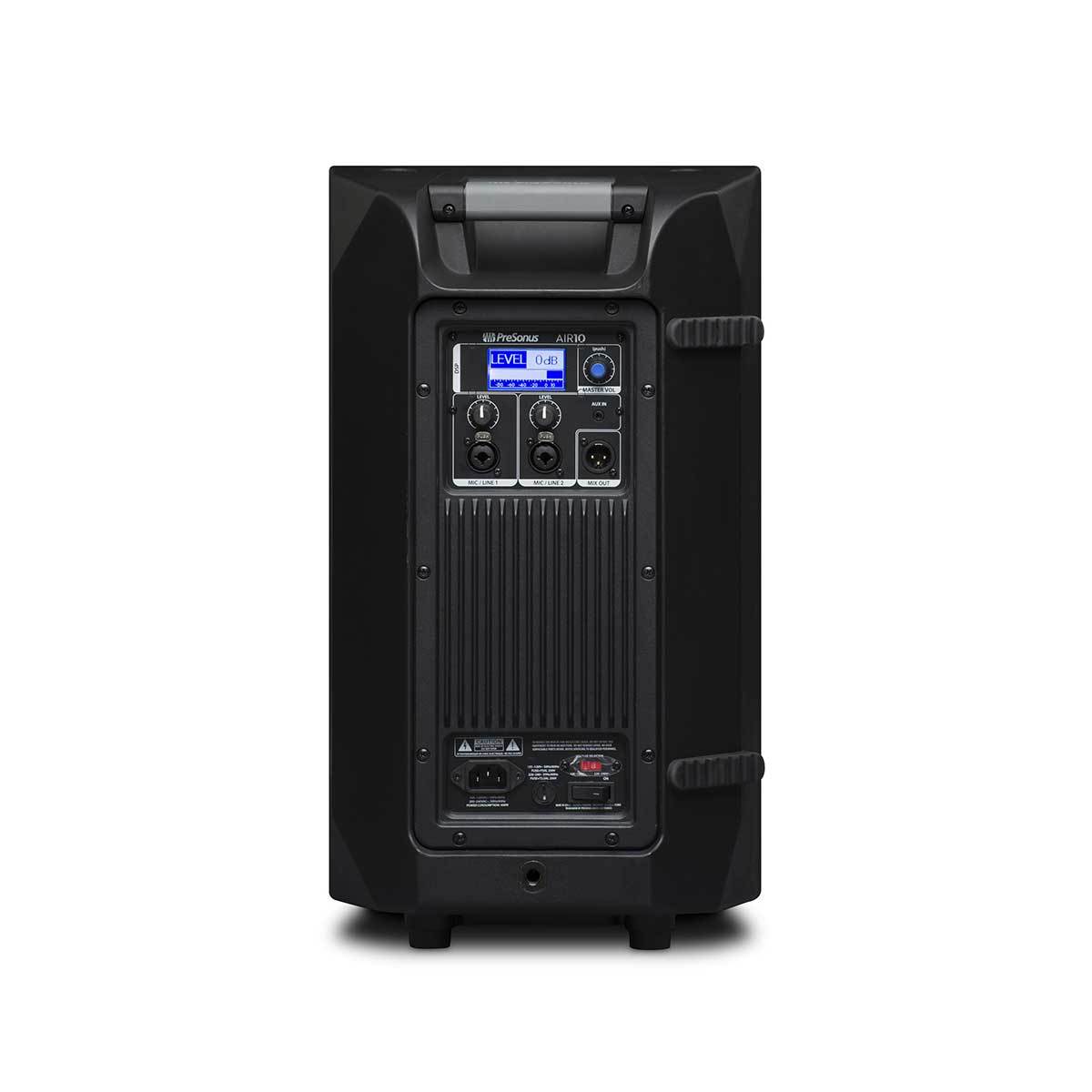

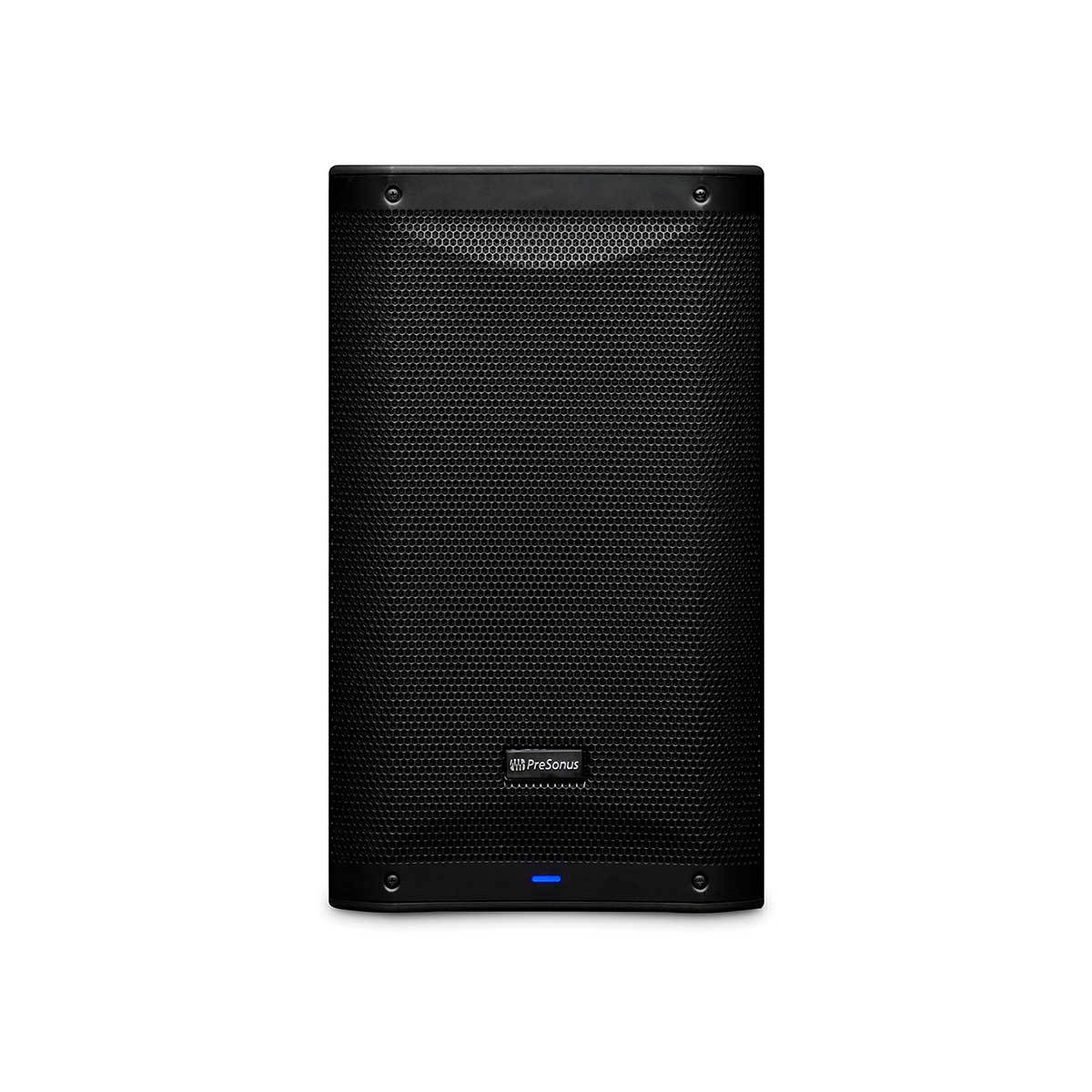

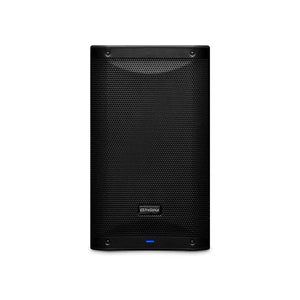

PreSonus AIR10 2-Way Active PA Loudspeaker
Compact and lightweight, AIR10 active loudspeakers provide a rich, extended low-end and natural high-frequency extension in an enclosure that will easily fit in the backseat of a small car. Backed by 1,200W (dynamic) of Class D/Class AB power and enhanced with easy-to-use digital tuning functions, the AIR10 gives you all the power and tools you need for both mobile and installed sound.
Type: Powered PA Speakers
-
-
Product Features:
Main Components
Hybrid “best of both worlds” 1,200W (peak) power amp configuration:
Low-frequency driver: 900W, Class D amplifier
High-frequency driver: 300W, Class A/B amplifier
Maximum SPL 121 dB peak
1-inch, high-frequency compression driver
10-inch woofer with a 2-inch voice coil
66 Hz to 20 kHz frequency response
121 dB SPL (max)
90° x 60° (horizontal x vertical) dispersion pattern
Onboard mixer with two combo XLR and ¼” inputs and one summed balanced outputControls
Easy-to-use DSP performance presets:
DJ—music playback
FOH—normal front-of-house o Enhance – enhanced low end for a warmer sound
Monitor – optimized for floor wedge placement
Speech—applications where speech intelligibility is critical
Additional presets and controls:
Stand—for mounting on a pole or tripod
Bracket - for wall-mount applications
Suspend – for suspended applications
Convenience Features
Multi-angle enclosure for mains or monitor-wedge applications
Comfortable ergonomic handle
35 mm pole socket with 7.5˚ downward tilt
M10 rigging points for suspended installation
Defeatable front-panel LED
Rugged plastic enclosure
Tour-grade, 1.2 mm steel grille -
Technical Specifications:
Acoustic Performance
Configuration Active 2-way Frequency Range (-3 dB) 66 Hz to 20 kHz Frequency Range (-10 dB) 55 Hz to 20 kHz Crossover Frequency 2.2 kHz Maximum Output 121 dB SPL Nominal Dispersion (HxV) 90˚x 60˚ Transducer
LF Driver 10” (2” voice coil) HF Driver 1” compression Amplifier
Amplifier Type Class D (LF), Class AB (HF) Total System Power 1,200W (Peak) LF Power 900W HF Power 300W Connections and Controls
Inputs 2 x XLR/TRS mic/line combo; 1 x 1/8” TRS stereo Outputs 1 x XLR Mix Out DSP
DSP Features LCD screen with EQ and multiple presets Enclosure
Cabinet H-PP molded Grille 1.2 mm steel Handles 1 top Flypoints 2 top, 1 back Pole Mounting Dual position (0˚, 7.5˚)* Dimensions (H x W x D) 20.3" x 11.8" x 11.5" (516 mm x300 mm x 291 mm) Weight 28.7 lbs (13 kg) Power
Power Input 115V / 230V ~50/60 switchable Maximum Current 2.3A (230V-50 Hz), 4.6A (120V)
