PRE-AIR15

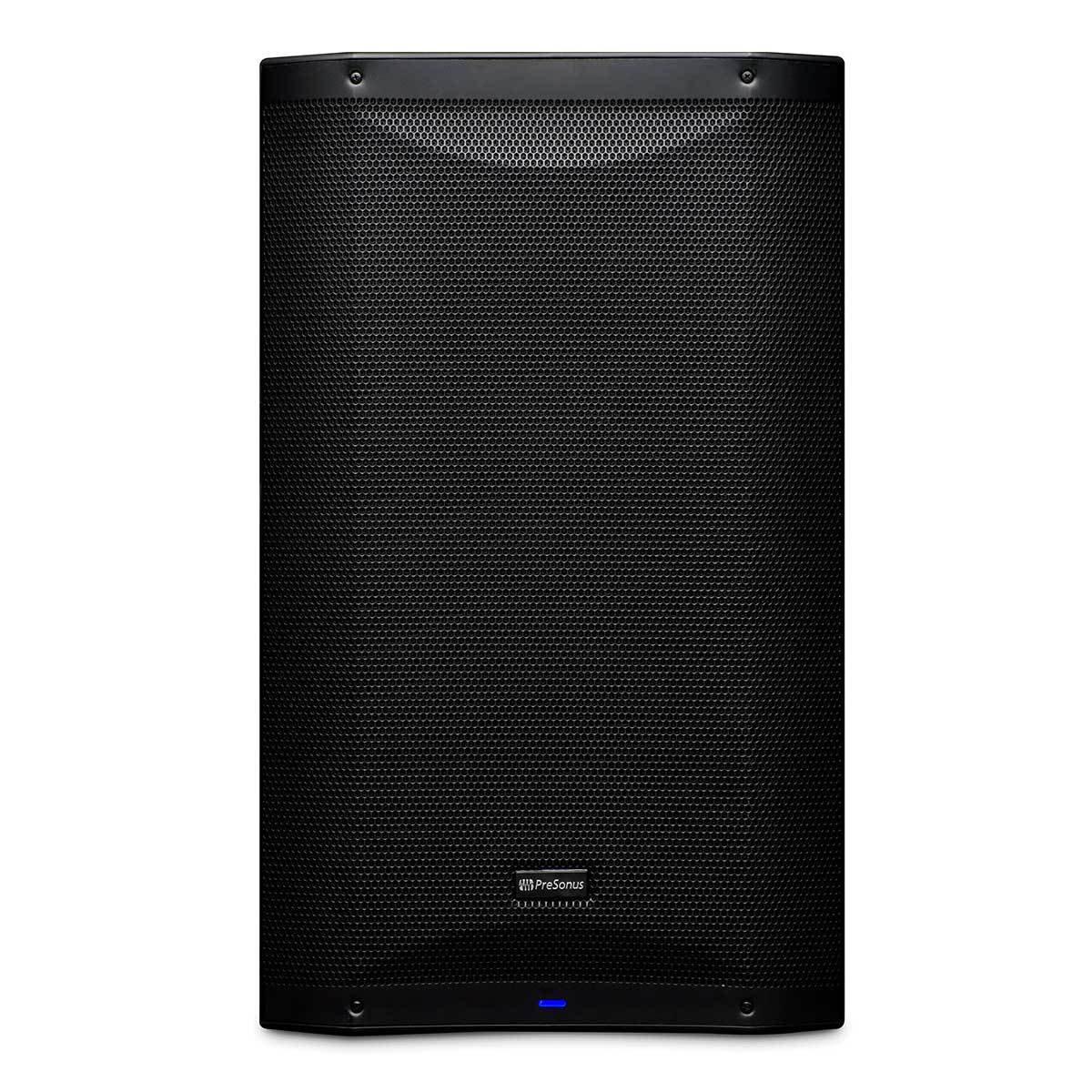

Compact and lightweight, AIR15 active loudspeakers provide a rich, extended low-end and natural high-frequency extension in an enclosure that will easily fit in the backseat of a small car. Backed by 1,200W (dynamic) of Class D/Class AB power and enhanced with easy-to-use digital tuning functions, the AIR15 gives you all the power and tools you need for both mobile and installed sound.
Type: Powered PA Speakers
Main Components
Hybrid “best of both worlds” 1,200W (dynamic) power amp configuration:
Low-frequency driver: 900W, Class D amplifier
High-frequency driver: 300W, Class A/B amplifier
Maximum SPL 124 dB peak
1.35-inch, high-frequency compression driver
15-inch woofer with a 2.5-inch voice coil
45 Hz to 20 kHz frequency response
124 dB SPL (max)
90° x 60° (horizontal x vertical) dispersion pattern
Onboard mixer with two combo XLR and ¼” inputs and one summed balanced output
Controls
Easy-to-use DSP performance presets:
DJ—music playback
FOH—normal front-of-house o Enhance – enhanced low end for a warmer sound
Monitor – optimized for floor wedge placement
Speech—applications where speech intelligibility is critical
EQ
HF response ±10 dB
LF response ±10 dB
Additional presets and controls:
Stand—for mounting on a pole or tripod
Bracket - for wall-mount applications
Suspend – for suspended applications
Convenience Features
Multi-angle enclosure for mains or monitor-wedge applications
Acoustic Performance |
|
|---|---|
| Configuration | Active 2-way |
| Frequency Range (-3 dB) | 47 Hz to 20 kHz |
| Frequency Range (-10 dB) | 40 Hz to 20 kHz |
| Crossover Frequency | 1.6 kHz |
| Maximum Output | 124 dB SPL |
| Nominal Dispersion (HxV) | 90˚x 60˚ |
Transducer |
|
|---|---|
| LF Driver | 15” (2.5” voice coil) |
| HF Driver | 1.35” compression |
Amplifier |
|
|---|---|
| Amplifier Type | Class D (LF), Class AB (HF) |
| Total System Power | 1,200W dynamic |
| LF Power | 900W |
| HF Power | 300W |

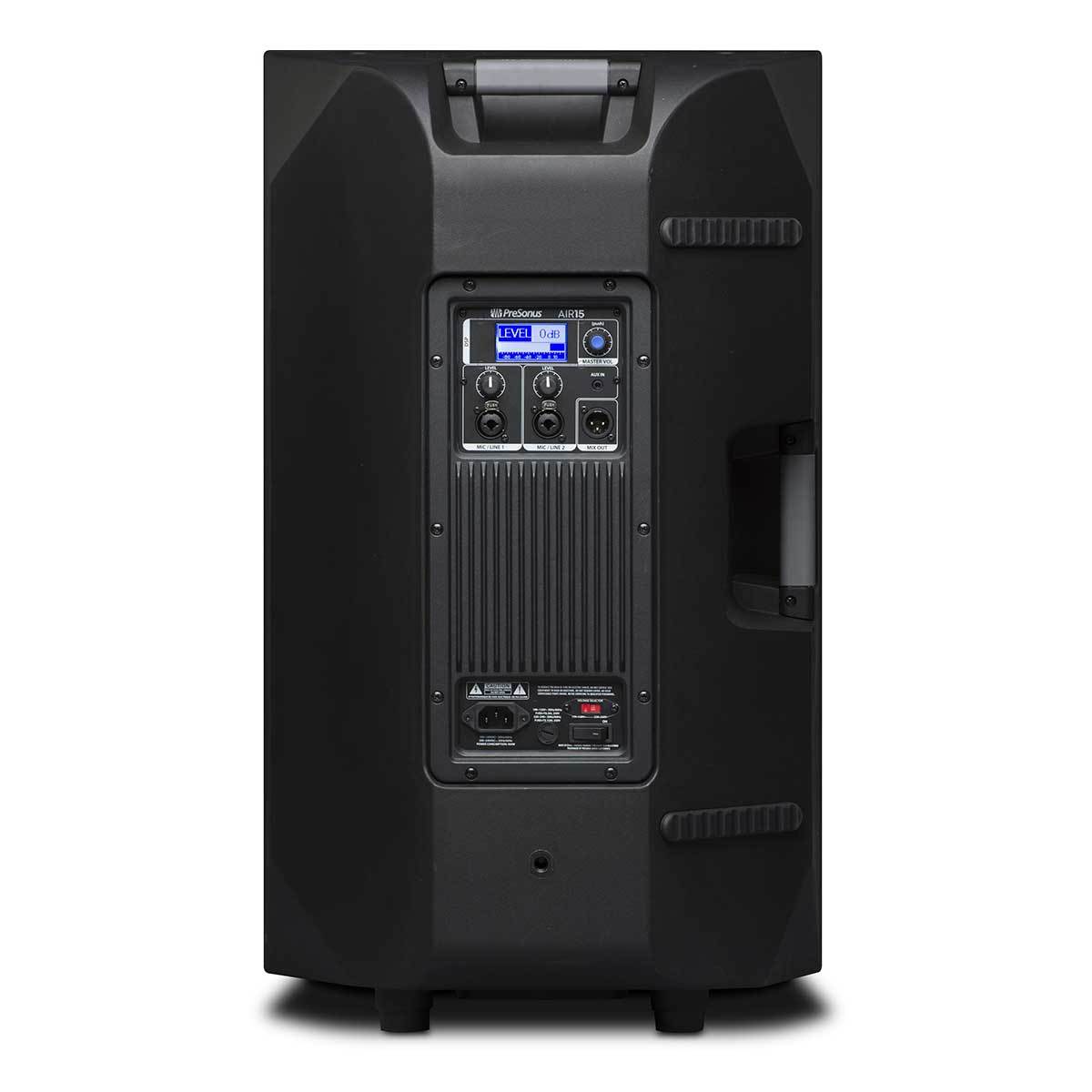

Connections and Controls |
|
|---|---|
| Inputs | 2 x XLR/TRS mic/line combo; 1 x 1/8” TRS stereo |
| Outputs | 1 x XLR Mix Out |
DSP |
|
|---|---|
| DSP Features | LCD screen with EQ and multiple presets |
Enclosure |
|
|---|---|
| Cabinet | H-PP molded |
| Grille | 1.2 mm steel |
| Handles | 1 top, 1 side |
| Flypoints | 2 top, 1 back |
| Pole Mounting | Dual position (0˚, 7.5˚)* |
| Dimensions (H x W x D) | 27.9" x 16.9" x 15.8" (708 mm x 430 mm x 402 mm) |
| Weight | 46.3 lbs (21 kg) |
Power |
|
|---|---|
| Power Input | 115V / 230V ~50/60 switchable |
| Maximum Current | 3.5A (230V-50 Hz), 7A (120V) |
