PreSonus TubePre V2 Tube Preamp
PreSonus TubePre V2 Tube Preamp
PreSonus TubePre V2 Tube Preamp
PreSonus TubePre V2 Tube Preamp
PreSonus TubePre V2 Tube Preamp
PreSonus TubePre V2 Tube Preamp
$222.00$352.93

Presonus

PRE-TUBEPRE

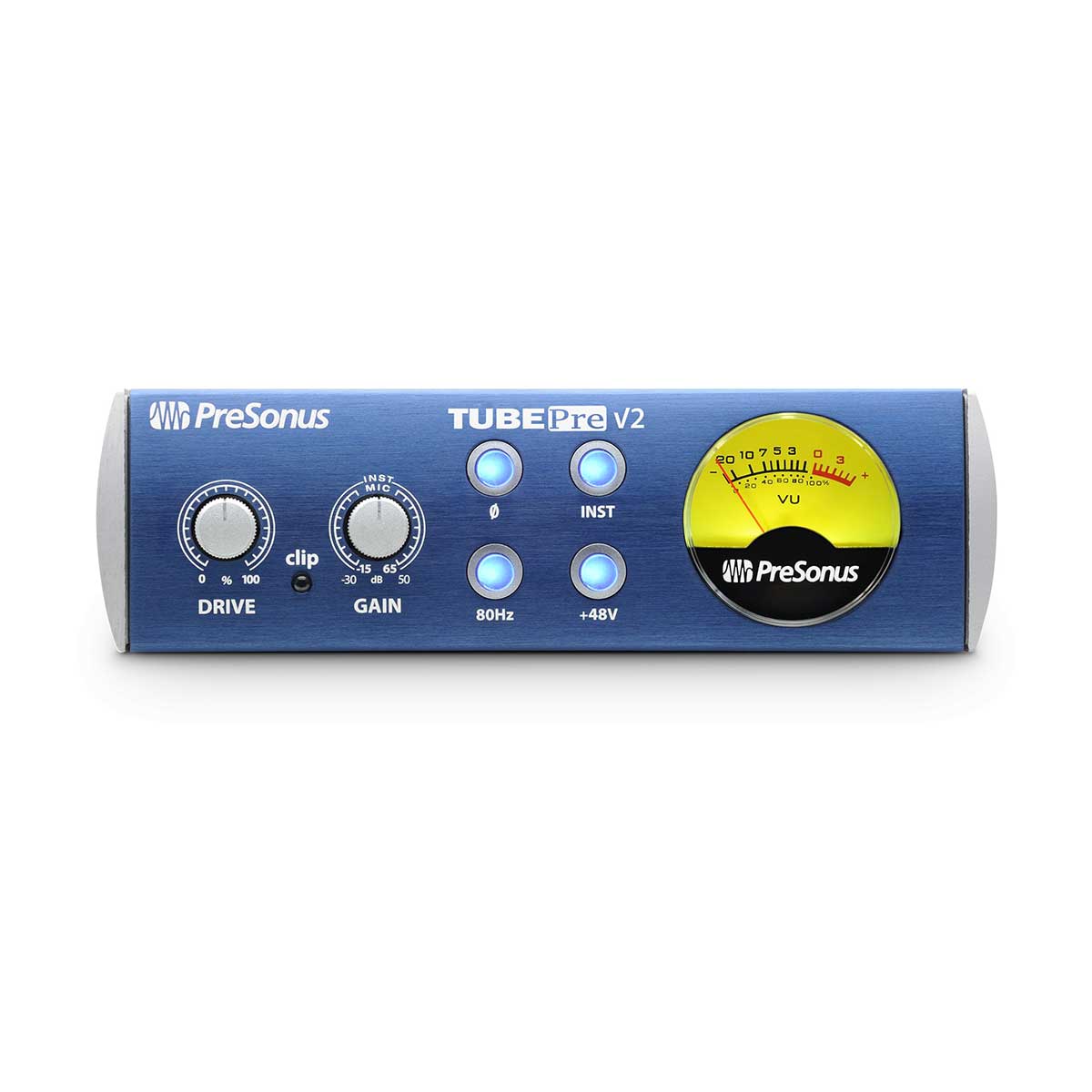

PreSonus TubePre V2 Tube Preamp

1 In Stock

Compact and affordable, the ever-popular TubePre V2 professional tube preamplifier employs our popular XMAX Class A solid-state preamp, followed in the signal path by a 12AX7 vacuum-tube stage. A dual-servo (no capacitors) gain stage lets you boost the signal to smoking hot levels without significantly increasing noise. Discrete components and high-voltage operation offer dynamic range and detail not found in other single-channel tube preamps in its class. Built tough enough for serious gigging, the TubePre V2 is a great choice for guitars and microphones alike.


Type: Preamps/Channel Strips

Features

  • XMAX Class A preamp input stage
  • 12AX7 dual-servo vacuum tube output stage
  • Input Gain control
  • 48V phantom power
  • 80 Hz high-pass filter
  • -20 dB pad
  • Instrument input select
  • Polarity-reverse switch
  • Backlit VU meter
  • Clip LED

Input/Output

  • 1 unbalanced ¼” instrument input
  • 1 balanced XLR mic input
  • 1 unbalanced ¼” line output
  • 1 balanced XLR line output

Physical

  • Compact 1/3U rack-mount chassis
  • External 12 VDC, 1A power supply

Technical Specifications

Mic Input
Connector Type XLR, female, balanced
EIN -131 dB, 20 kHz BW, max gain, Rs=40Ω, A-wtd -128 dB, 20 kHz BW, max gain, Rs=40Ω, unwtd
Frequency Response 20 Hz – 20 kHz, -0.3 dB, +4 dBu, unity gain 5 Hz - 120 kHz, -3 dB, +4 dBu, unity gain
THD+N 0.01%, -10 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd
Dynamic Range 115 dB, 1 kHz, unity gain, 20 kHz BW, A-wtd 107 dB, 1kHz, unity gain, 20 kHz BW, unwtd
Input Impedance 1.3 kΩ
Phantom Power +48 VDC, 10 mA

Instrument Input
Connector Type ¼” TS, female, unbalanced
Input Impedance 1 MΩ

Analog Output
Connector Types XLR, male, balanced ¼” TS, female, unbalanced
Maximum Output +20 dBu
Output Impedance 51Ω

Tube Stage
Type 12AX7

Power
External Power Adapter +12 VDC, 1A, center-pin positive
PSU Barrel Dimensions 5.5 mm O.D., 2.1 mm I.D., 9.5 mm length

Physical
Dimensions 1/3U rack-mountable (screw-mount to standard rack tray, not included)
Height 1.75” (44.45 mm)
Depth 5.5” (139.7 mm)
Width 5.5” (139.7 mm)
Weight 5 lb. (2.27 kg)
