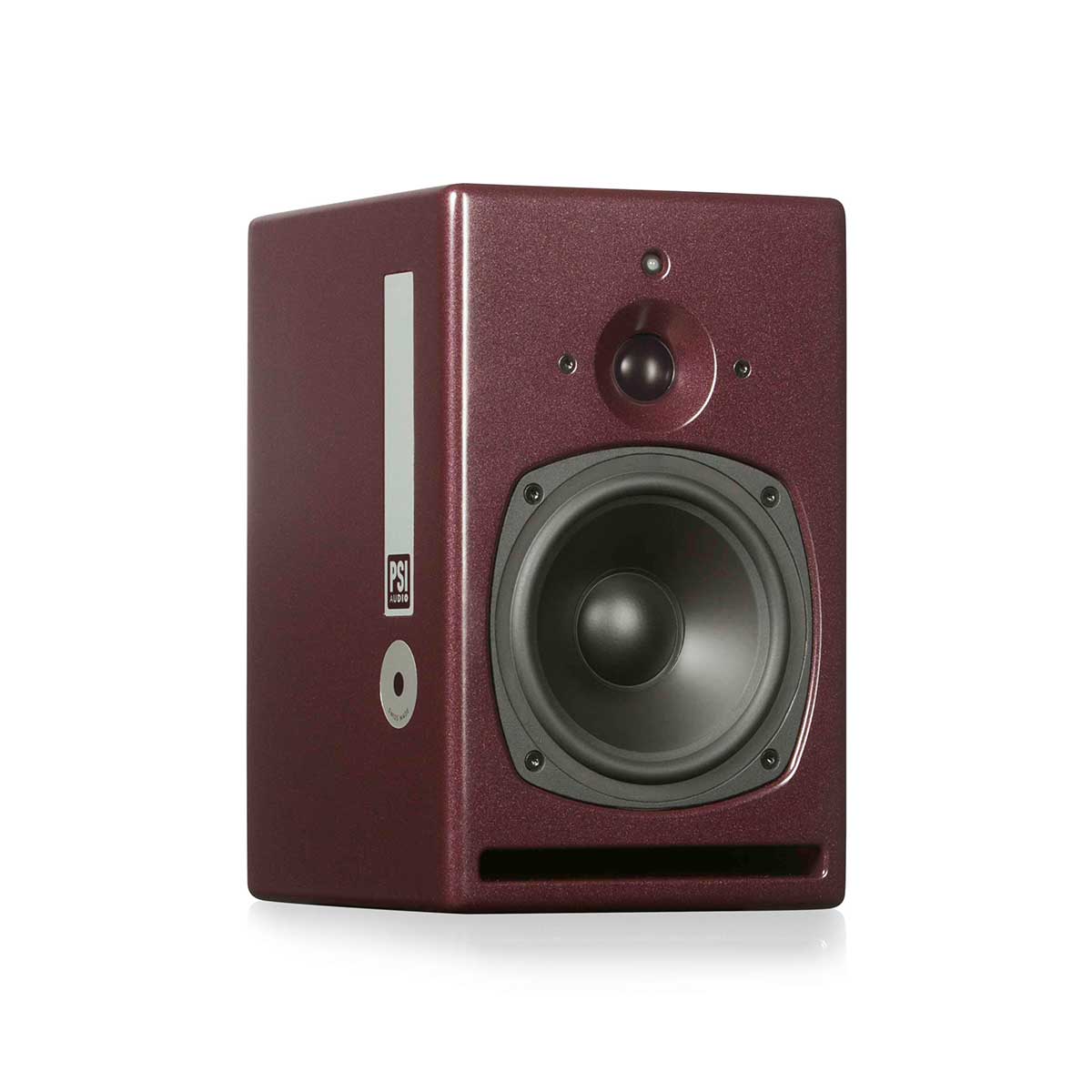

The PSI Audio A17-M is THE REFERENCE of near field monitors. Powerful for its size, it delivers an uncompromised quality in term of stereo image, low end control and transparency all over the bandwidth. Are you ready to step ahead?
Compact in size yet stunningly powerful, the A17-M can be employed in virtually any scenario that requires accuracy and fidelity, from producing and recording to mixing and even mastering.
The A17-M is the ideal choice for studios that provide a large range of services but still prefer a compact monitoring solution.
Main Features
Power
170 + 45W
Frequency Range
44Hz – 23kHz
Peak max. SPL@1m
115dB
Typical listening distance
0.7 to 2m
100% Analog – No DSP
Flat frequency response
Perfect stereo image
Handmade Tweeter
Class A/B Amplifiers
Individually calibrated
5+1 years warranty
Handmade in Switzerland
Perfect Stereo Image
Stereo is more than just volume differences between the left and right channels. Phase relations are paramount to determine the accurate position of a signal in the acoustic space – and hence equally important in the development of PSI Audio speakers. The accurate phase alignment provided by PSI Audio CPR technology recreates the vivid spatial listening experience as it was intended. Instrument placement, reverb envelopes, even compression artefacts are easy to identify with the phase-corrected reproduction of PSI Audio speakers.
Handmade tweeter
What do you do when you cannot find a driver appropriate for the sonic accuracy you want to achieve with your speaker? At PSI Audio, we decided to just build our own then.
The tweeter used in the A17-M is unique, our own development and built by hand in our manufacture in Switzerland. Superior to any market-bought solutions, our tweeter offers unparalleled clarity, subtlety and fidelity. It took a lot of time and effort to create this tweeter – certainly a lot more than buying one from an international supplier would have.
But the result is absolutely worth it.
A17-M Technical Data
| Data | A17-M | [Unit] |
|---|---|---|
| Potential peak power | 170+45 | W |
| Continuous max SPL@1 m | 102 | dB |
| Short term max. SPL@1m | 105 | dB |
| Peak max. SPL@1m | 115 | dB |
| Signal to noise ratio (S/N) | 96 | dBA |
| Bandwidth at -6dB | 44-23'000 | Hz |
| SPL tolerances | ±2.2 | dB |
| Phase tolerances | ± 45 (300 Hz – 20 kHz) | deg |
| Dispersion (H x V) | 75 x 40 | deg |
| System | 2 | ways |
| Crossover frequency | 3500 | Hz |
| Woofer ext. diam. | 180 | mm |
| Woofer ext. diam. | 7.1 | in |
| W. diaphragm diam. | 130 | mm |
| W. diaphragm diam. | 5.1 | in |
| Medium ext. dim. | N/A | mm |
| Medium ext. dim. | N/A | in |
| M. diaphragm diam. | N/A | mm |
| M. diaphragm diam. | N/A | in |
| Tweeter ext. dim. | 90 | mm |
| Tweeter ext. dim. | 3.5 | in |
| T. diaphragm diam. | 27 | mm |
| T. diaphragm diam. | 1.06 | in |
| Dimensions W x H x D | 200 x 320 x 230 | mm |
| Dimensions W x H x D | 7.9 x 12.6 x 9.1 | in |
| Net Weight | 7.4 | Kg |
| Net Weight | 16.3 | lbs |
| Input connector | 1 x XLR F / 3P | |
| Warranty | 5 (+1) | years |
Flat Response
