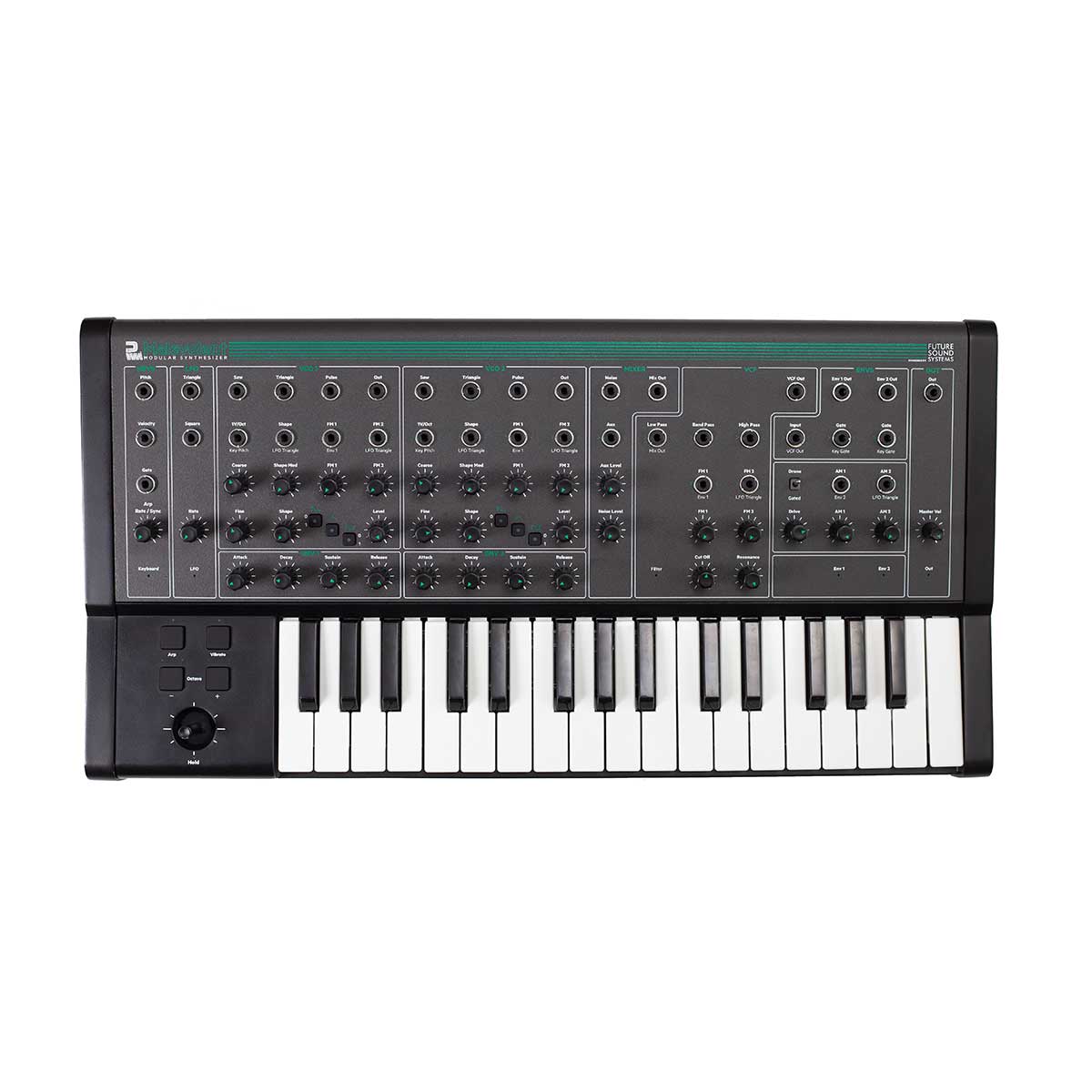

PWM Malevolent Semi Modular Analog Synthesizer

Paul Whittington has a healthy knowledge of the music manufacturing process. With past lives in Evolution Electronics, M-Audio, Avid, Focusrite and Novation, Paul has been directly involved in countless products that have famously been featured in studio and live industries. Aside from his Product Management experience, he is a passionate synthesis designer and professional keys player, with appearances on radio and television.

With so much knowledge and expertise in the music industry, Paul has finally launched PWM, by hand picking the best industry specialists to develop the innovative and exciting products soon to reach the public.

PWM is beginning its journey with the Analog Semi Modular Malevolent which one best synth at this year's Superbooth festival in Berlin. The reviews have been nothing short of amazing and for those looking to get into modular it has an amazing easy to understand workflow and many cool features.

Pure Analogue signal path designed by Future Sound Systems
* Pure VCOs
* 19 Outputs and 19 Inputs for 3.5mm mono jack cable patching
* Normalised signal path for immediate sound Malevolence

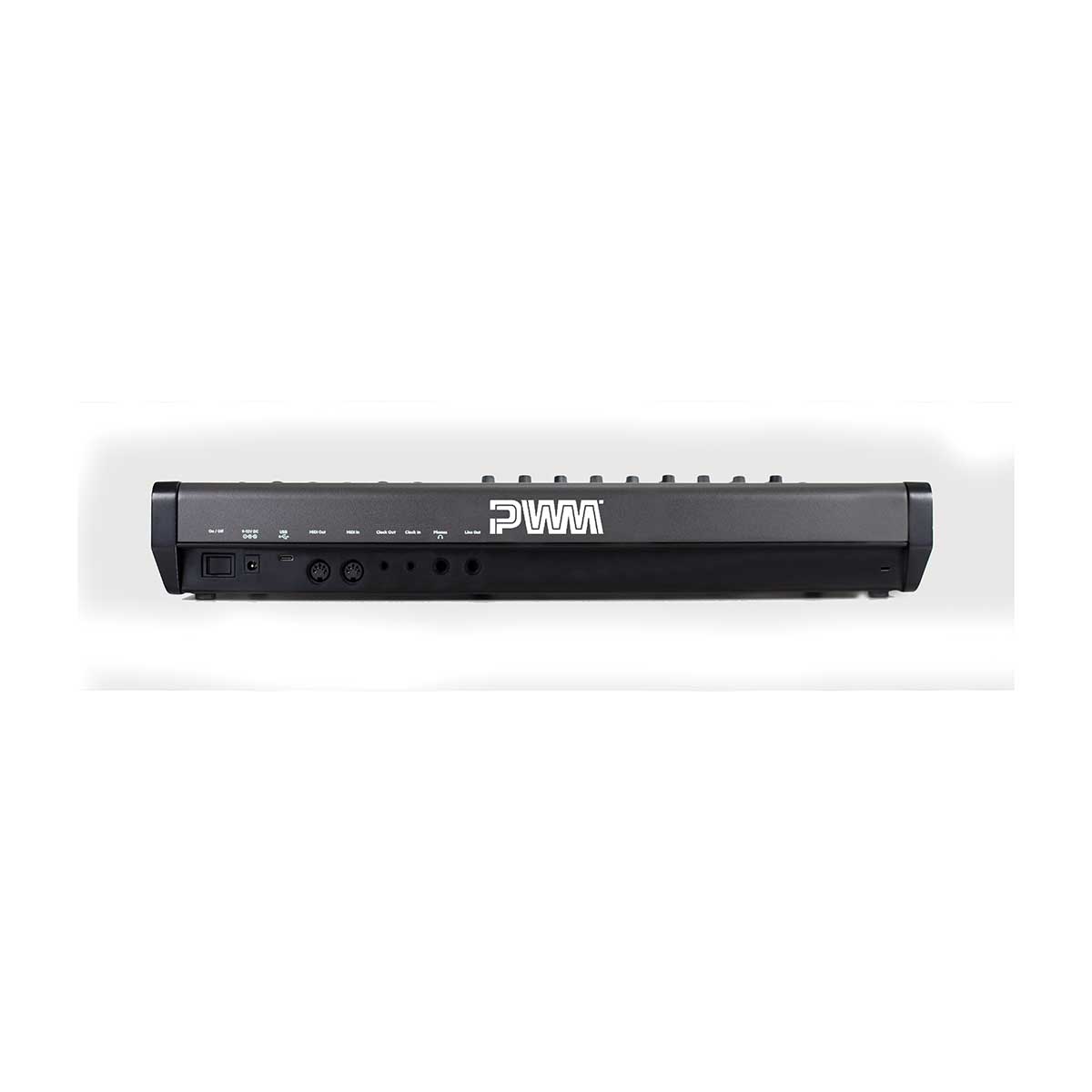

* Additional rear panel line out
* Additional headphone out

2 Voltage Controlled Oscillators
* Saw / Triangle / Pulse outputs plus Mix for each oscillator
* 1V/Oct pitch control input
* Shape control / pulse width modulation input
* 2x Frequency Modulation inputs
* Coarse / Fine tune control
* Shape mod amount control
* FM1 and 2 mod amount controls
* Shape control
* Selectable waveforms for the mix output
* Individual osc level control

LFO (Low Frequency Oscillator)
* Triangle / Square wave outputs
* Rate control

* 2x Envelopes
* Individual ADSR controls for each envelope
* Individual gate inputs
* Individual envelope outputs

Multi-mode 2 pole VCF (Voltage Controlled Filter)
* Low pass / Band pass / High Pass individual inputs
* 2x Frequency Modulation inputs with amount controls
* Filter cutoff
* Filter resonance

Mixer
* Noise w/level control
* Aux input w/level control

VCA (Voltage Controlled Amplifier) with overdrive control

* Compatible with Eurorack standard 1V/Oct gear

* Monophonic and patchable allowing individual pitch control of each VCO and gate control of each envelope

* USB bus-powered

* MIDI In / Out

* Headphone out

* Line out

* Analogue clock in & out

USB-MIDI to 1V/Oct CV & gate conversion
* All pitch and gate control is fully analogue
* Analogue clock In / Out

Multi-function Joystick control
* Left / right for pitch bend
* Performable portamento
* Performable vibrato
* This is in addition to the analogue LFO
* Latching hold mode

Arpeggiator
* 6 arpeggiator types
* Up, Down, Up/Down 1, Up/Down 2, Played & Random
* Auto clock sync
* Detects analogue / MIDI or USB-MIDI clock and synchronises the
arpeggiator automatically
* Selectable sync rates when clock detected
* Rate / sync control
* Latch
* 6 Octave range
* Analogue / MIDI / USB-MIDI Clock output when arpeggiator is running

Keyboard Control
* 32 Velocity-sensitive mini-keys
* Octave shift +/- 4 octaves
* Pitch output
* Velocity output
* Gate output
* Local Off mode for DAW use


Includes:
5 Patch cables
Power Supply (9V 600mA)
USB C lead
Getting Started Guide
