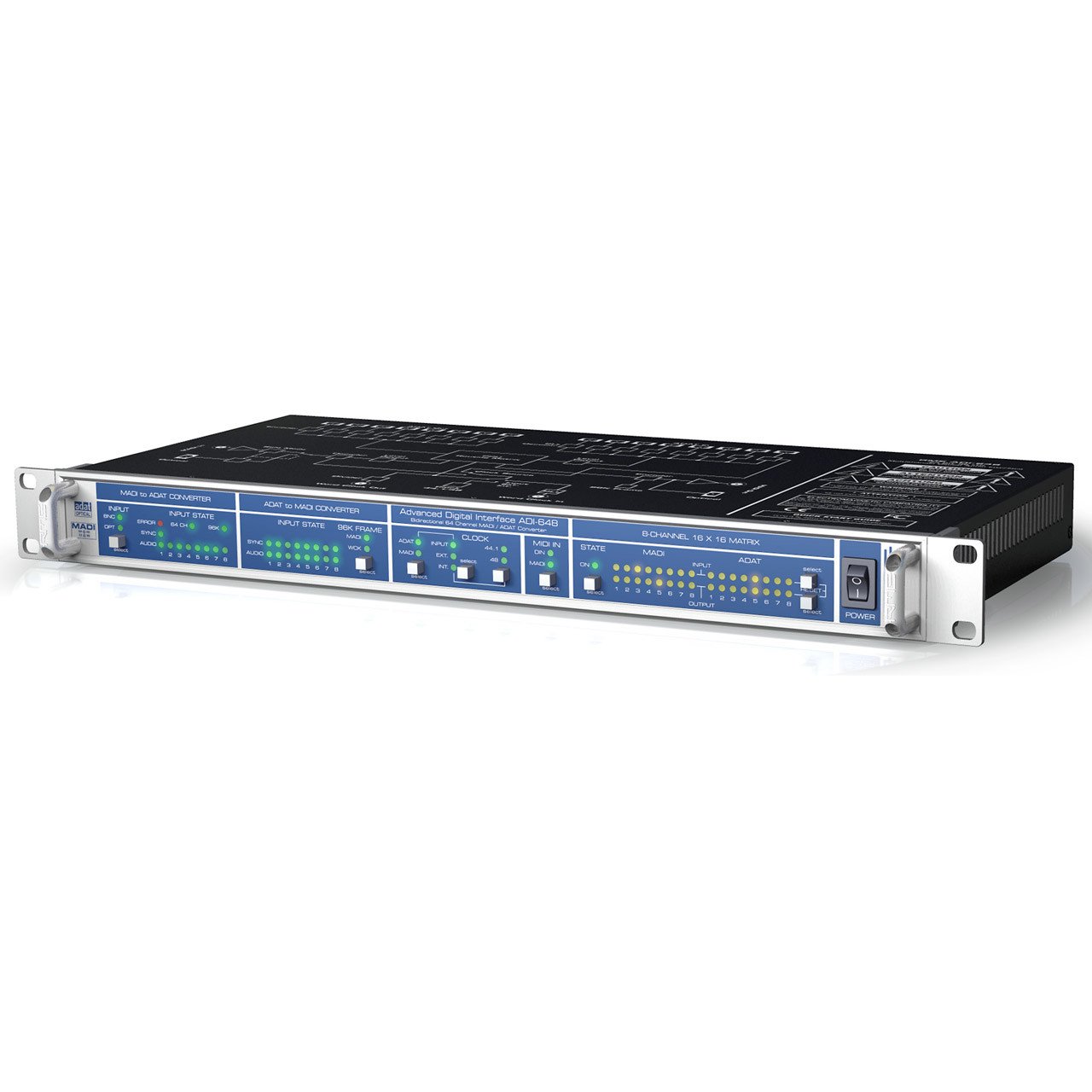

SyncAlign ® and SyncCheck ®, technologies known from and proven by other RME products, allow for perfect sync between all channels and easy notification of error states. And of course multiple devices can be cascaded and synchronized sample-accurate using word clock. The ADI-648 accepts 56 channels, 64 channels and 96k frame at its input, and can be set to generate those formats at its output. This way the ADI-648 even serves as perfect interface between otherwise incompatible MADI devices!

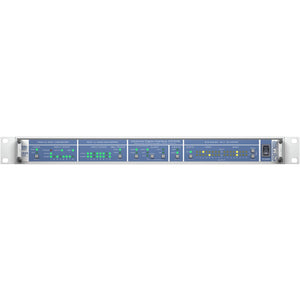

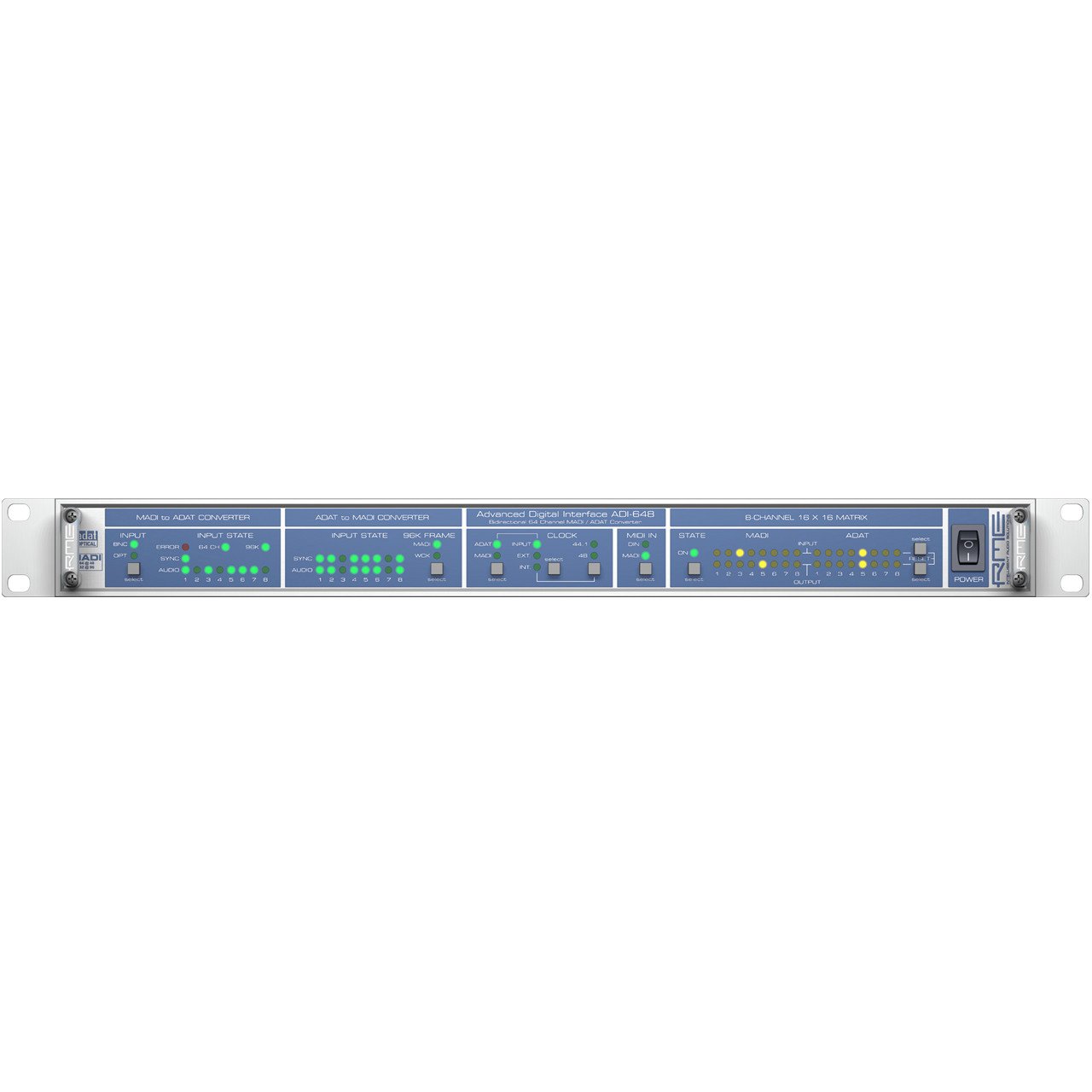

The compact device with 19" width and 1HU has numerous further outstanding features, like Intelligent Clock Control (ICC) and storing of the settings. It's even possible to transmit 16 MIDI channels in parallel to all 64 audio channels. A fully automatic input selection between optical and coaxial input offers a useful redundancy mode for critical applications. Extensive status displays give information about Lock and Sync states, audio content and the physical quality of the incoming signal.
Talking about clock: The ADI-648 includes SteadyClock(TM), a digitally controlled clock, especially developed by RME for MADI operation. It allows for operation without an additional word or AES clock line. The reference clock is extracted in highest quality from the MADI signal itself.

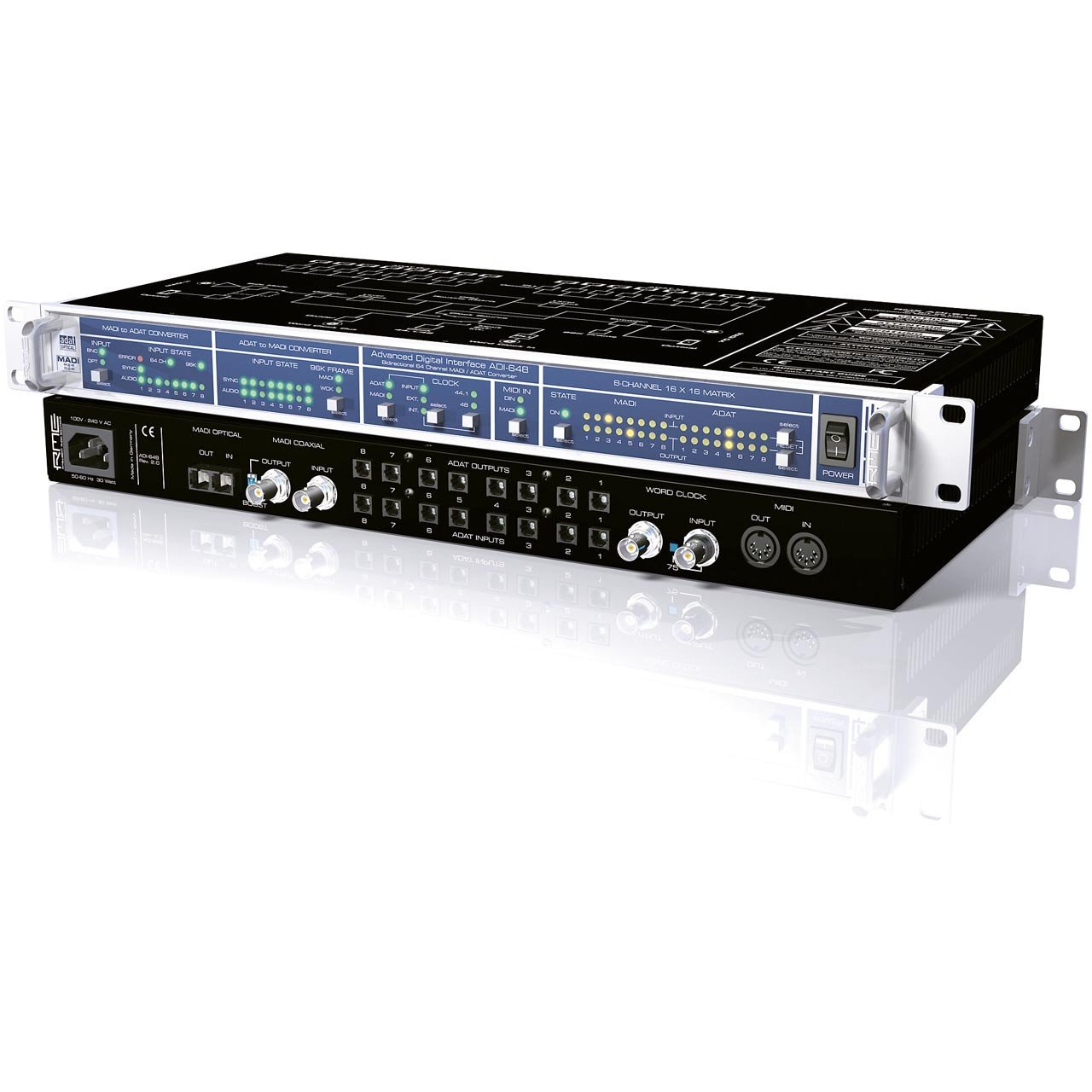

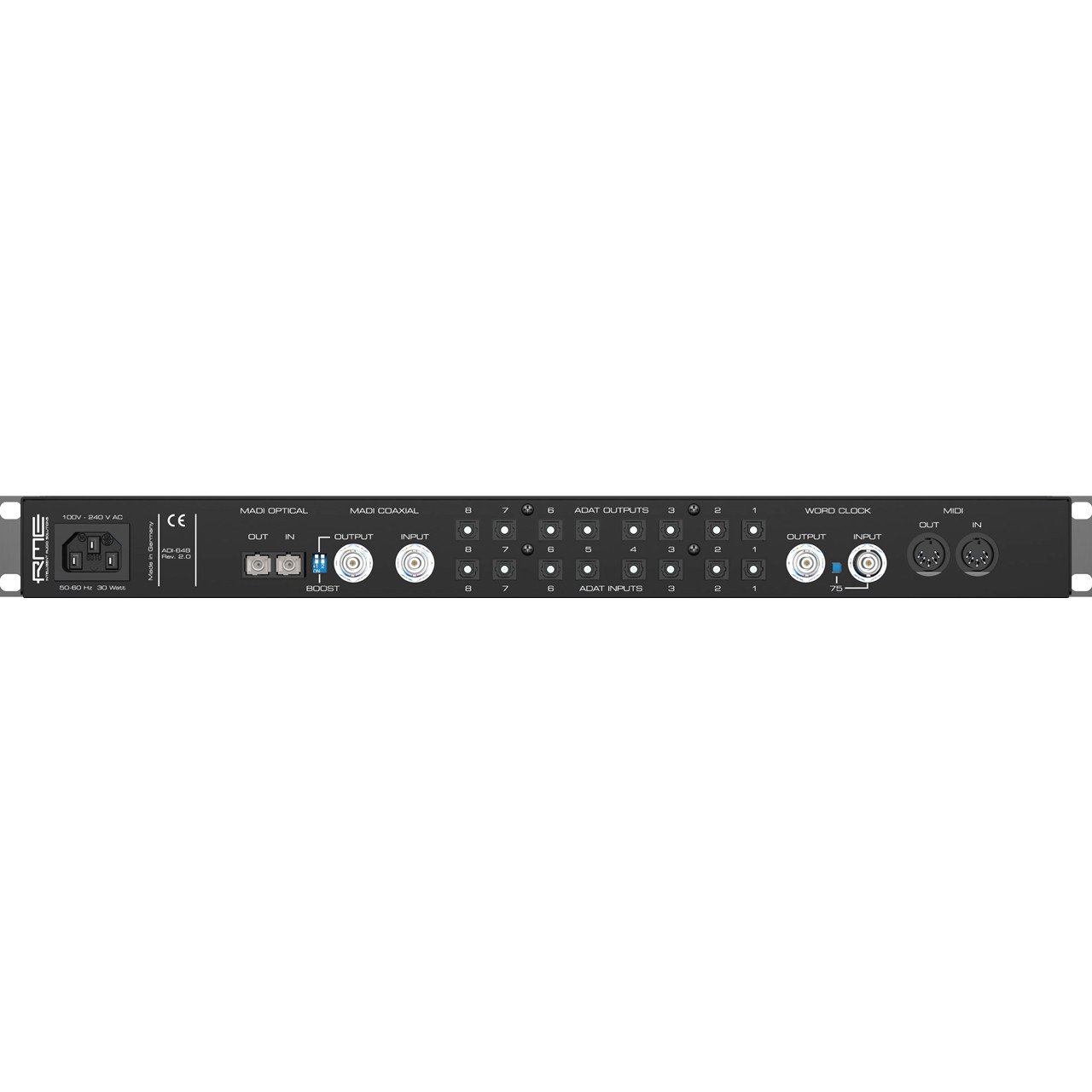

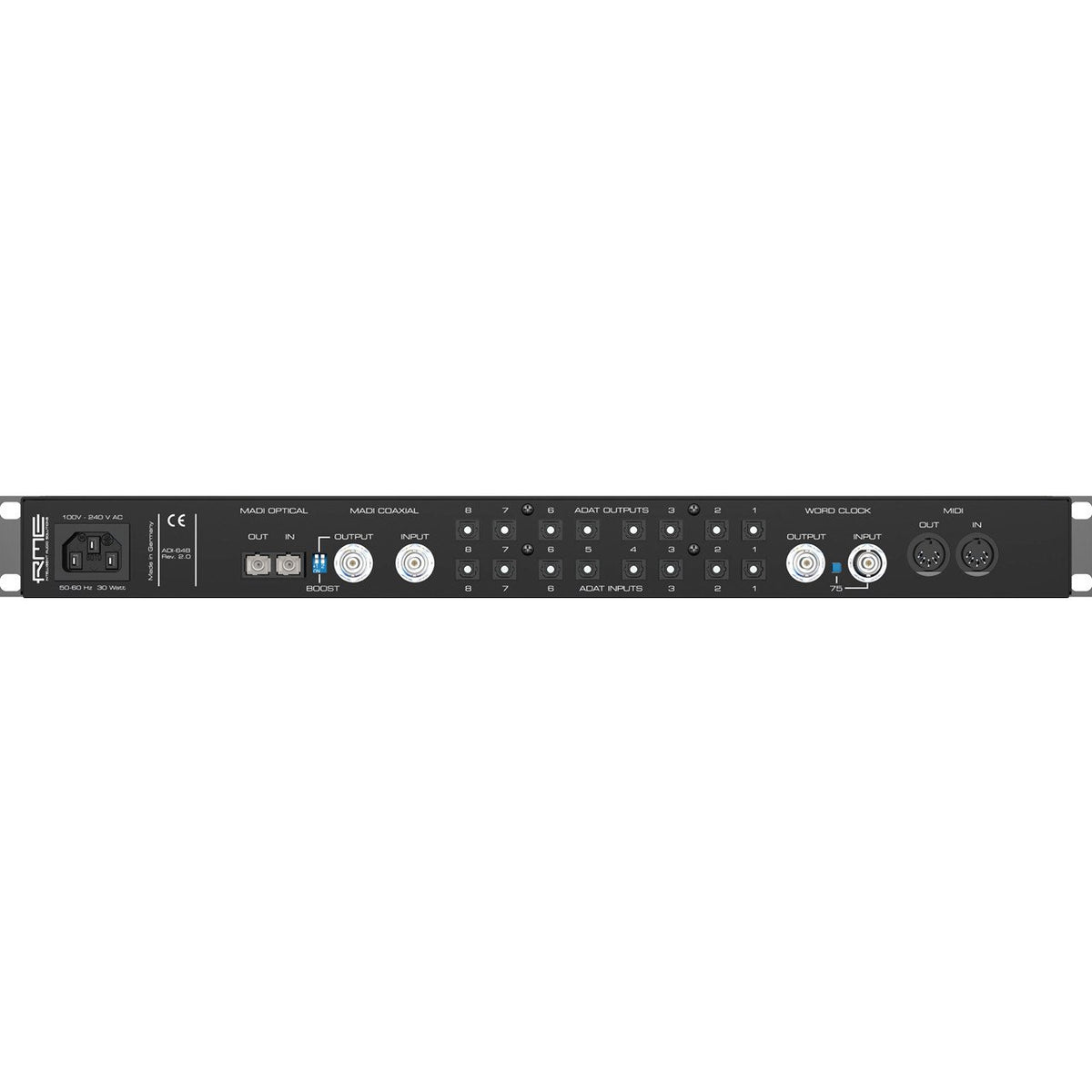

The rear of the ADI-648 looks clear and tidy. Eight ADAT optical inputs and outputs each, two MADI inputs and outputs each (coaxial, optical), word clock I/O (BNC) with switchable termination, and two DIN MIDI jacks offer unbeatable flexibility and compatibility.
The ADI-648 is compatible to MADI interfaces of companies like Sony, Merging, Lawo, Euphonix, Stagetec, Jünger, Audio Service, AMS and others.
Applications: Managing long distances with a single cable ADAT breakout box for devices with MADI interface Connecting MADI-based equipment to RME's Hammerfall series ADAT optical patchbay and router MADI coaxial / optical or vice-versa converter and splitter MADI redistributor, patchbay and router MADI Merger
Connectivity: 1 x MADI I/O (optical and coaxial) 8 x ADAT I/O (optical) 1 x MIDI I/O Word Clock I/O RME Remote
RME ADI-648 Specifications:
Input MADI: 1 x BNC, 1 x optical Output MADI: 1 x BNC, 1 x optical Input ADAT optical: 8 x TOSLINK, 24-Bit, Bitclock PLL Output ADAT optical: 8 x TOSLINK, 24-Bit Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), switchable termination Output word clock: BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof MIDI input and output: via two 5-pin DIN jacks Sync sources: MADI, ADAT optical, word clock, internal Varipitch: by input signal or word clock Sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, variable (Sync/word clock) Sample rate range: MADI: 32 kHz - 96 kHz, word clock: 27 kHz-105 kHz, ADAT: 33 kHz - 57 kHz Jitter: Internal clock < 1 ns, word clock In < 2 ns, ADAT In < 2 ns Jitter suppression on external clock: circa 30 dB (2.4 kHz) Jitter sensitivity: all PLLs operate even at 100 ns Jitter without problems Power supply: internal switching mode ps, 100 V-240 V AC, 50-60 Hz, 10 Watts Dimensions: 483 x 44 x 200 mm Warranty: 2 years
