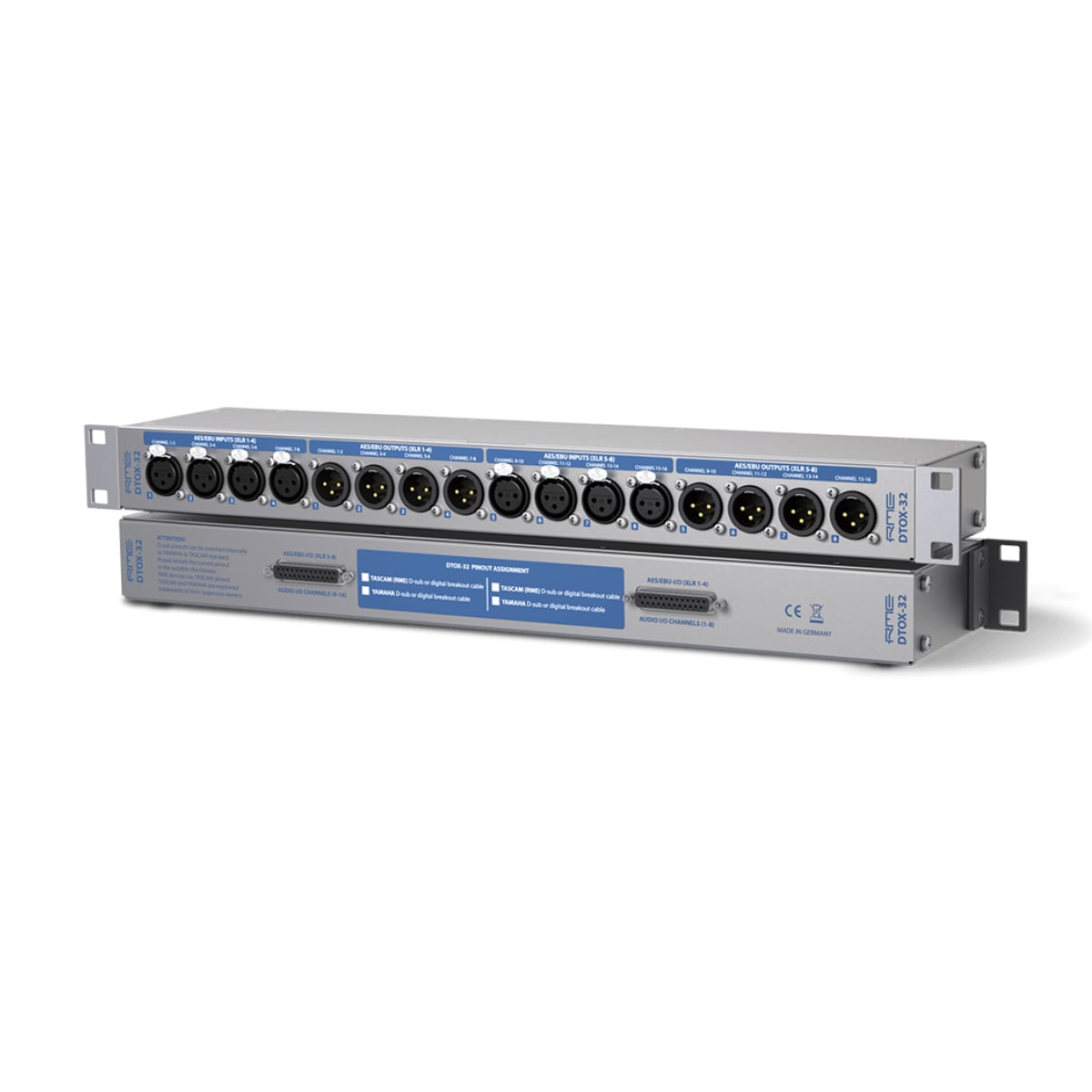

It includes two sets of D-sub to 4 x XLR male and 4 x XLR female each, replacing common breakout cables D-sub to XLR by a professional, solid, stable rack-mounted system. DTOX-32 is pin-compatible to TASCAM (=RME) and Yamaha formats.
The DTOX-32 (also DTOX-16) has removable rack-mount-brackets and can be mounted in front or back position.
There are two selectable pinout standards for the 25-pin D-sub connectors of the DTOX-32: the TASCAM-compatible one and the YAMAHA-compatible format. If not ordered specifically, the DTOX-32 is set to the factory default TASCAM (RME). The respective format is changed by an internal connector inside the panel. Changing the format requires opening the housing with a medium-sized cross-recessed screwdriver (PH-2 size).
