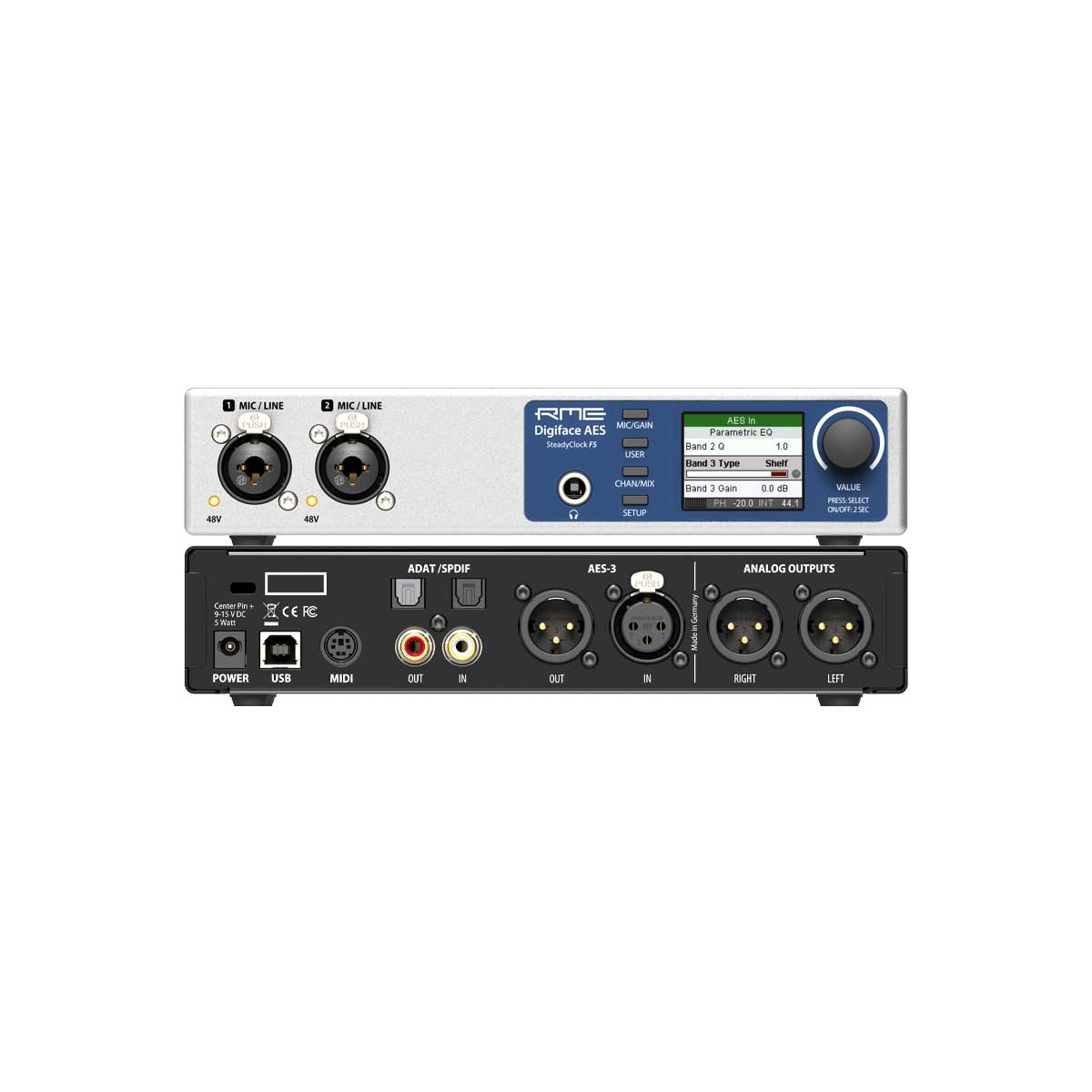

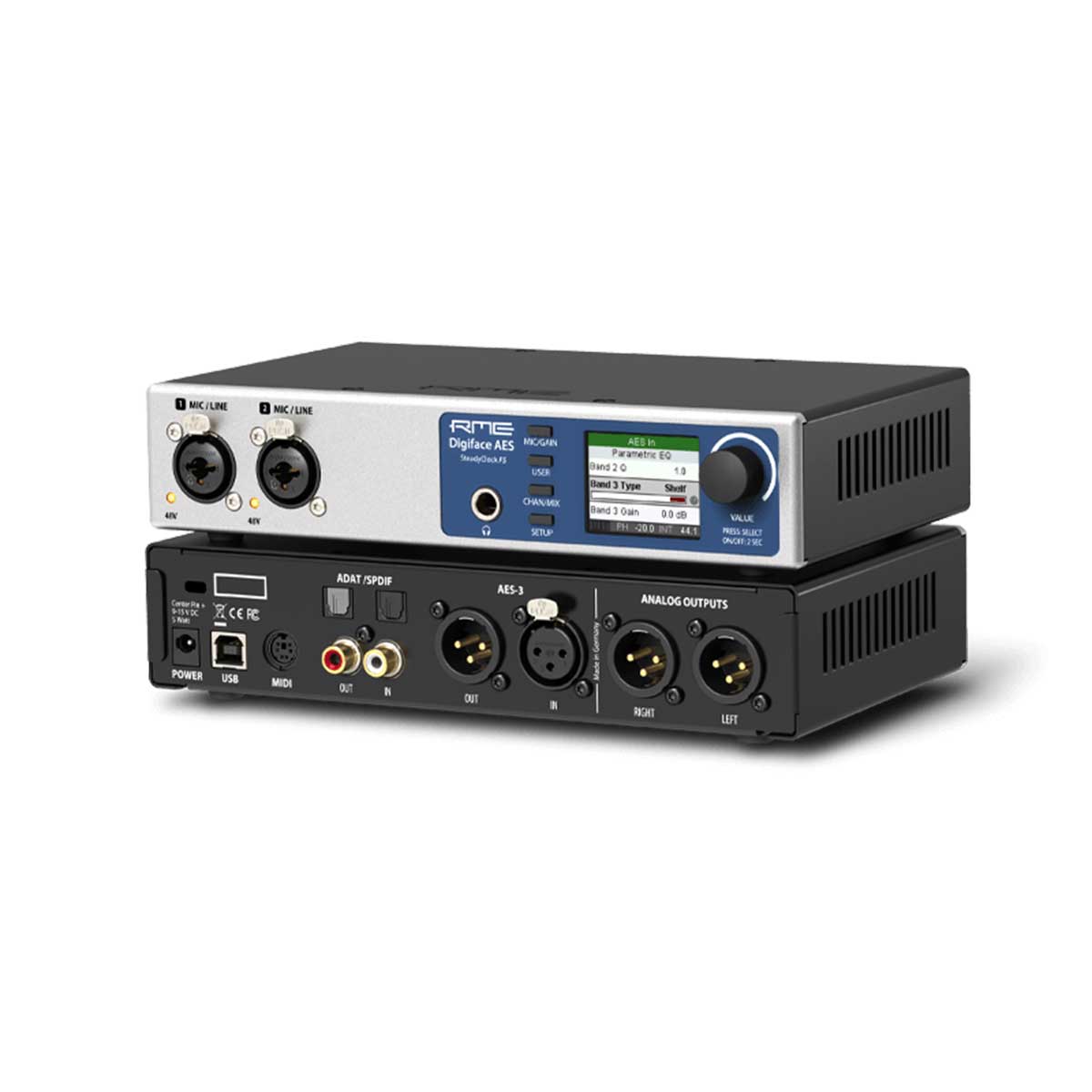

RME Digiface AES 192 kHz Digital USB Interface with AES/SPDIF/ADAT/Analog I/O

The latest Digiface AES is a professional, bus-powered 14 input and 16 output channel USB 2.0 interface with 2 Mic/Line universal analog input channels and 4 analog output channels (2 XLR, one TRS phone) complementing its digital I/O section. With an excellent set of digital connectivity, SteadyClock FS, full stand-alone operation and built-in parametric EQ, the Digiface AES shines as the perfect all-in-one solution for recording and playback of digital and analog sources, as well as flexible playback/monitoring via TotalMix FX.

Features

Bus power compatibility meets flexible Analog I/O Performance

For the main inputs, RME uses the proven mic/line preamps in the XLR combo configuration of the Babyface Pro FS. Two digitally controlled preamps provide individually switchable 48V phantom power. These circuits feature a gain range of 75 dB, adjustable in steps of 1 dB, including a relay-driven PAD, resulting in exceptional EIN (Equivalent Input Noise) performance as well as line overload protection, and enough gain for even the lowest level microphones.

On the back of the Digiface AES, there are 2 balanced analog outputs via XLR male to drive power amps, active monitor speakers, or recordings. The headphone output allows additional and independent high-quality monitoring, providing sufficient output power and volume on high and low-impedance headphones.

Versatile Digital Input and Output Connectivity

The comprehensive set of digital I/Os centred around an AES/EBU input and output via XLR, also includes SPDIF coax, SPDIF optical or 8-channel ADAT. All I/Os can be used simultaneously, turning the unit into a Swiss army knife interface that receives and sends all common digital audio formats. An integrated SRC (Sample Rate Converter) can be switched to one of the three inputs to solve clocking issues and to adapt to other sample rates. This allows, for example, the device to be AES clock-synchronized from the main source and to listen to SPDIF independently at the same time. MIDI I/O via an included breakout cable completes the package.

Full Stand-alone Functionality

Convenient, direct access and control of all features and the device is available directly from the front panel. Four keys and the encoder, the high-resolution and clear colour display, and a well-thought-out menu structure allow for quick changes and configuration of the device.

Six different device setups can be stored in internal memory. With these, the interface transforms into totally different devices with the simple click of a button, which is especially useful in stand-alone mode. Furthermore, TotalMix FX can also be controlled externally via MIDI.

Powerful Applications for Mixing, Monitoring and Measurement included

The Digiface AES also includes the powerful digital real-time mixer TotalMix FX. It allows fully independent routing and mixing of input and playback channels to all physical outputs. Independent stereo submixes plus a comprehensive Control Room section offer unrivalled monitoring capabilities and unsurpassed routing flexibility.

TotalMix Remote enhances the power of RME interfaces by enabling remote control via iOS, PC or Mac. With a straightforward setup process — simply enter the IP address of the computer you would like to control with TotalMix Remote and get going — users can quickly adjust any aspect of TotalMix FX on a host system while walking around the studio with their tablet, or from a control room located elsewhere in the facility.
