SF12

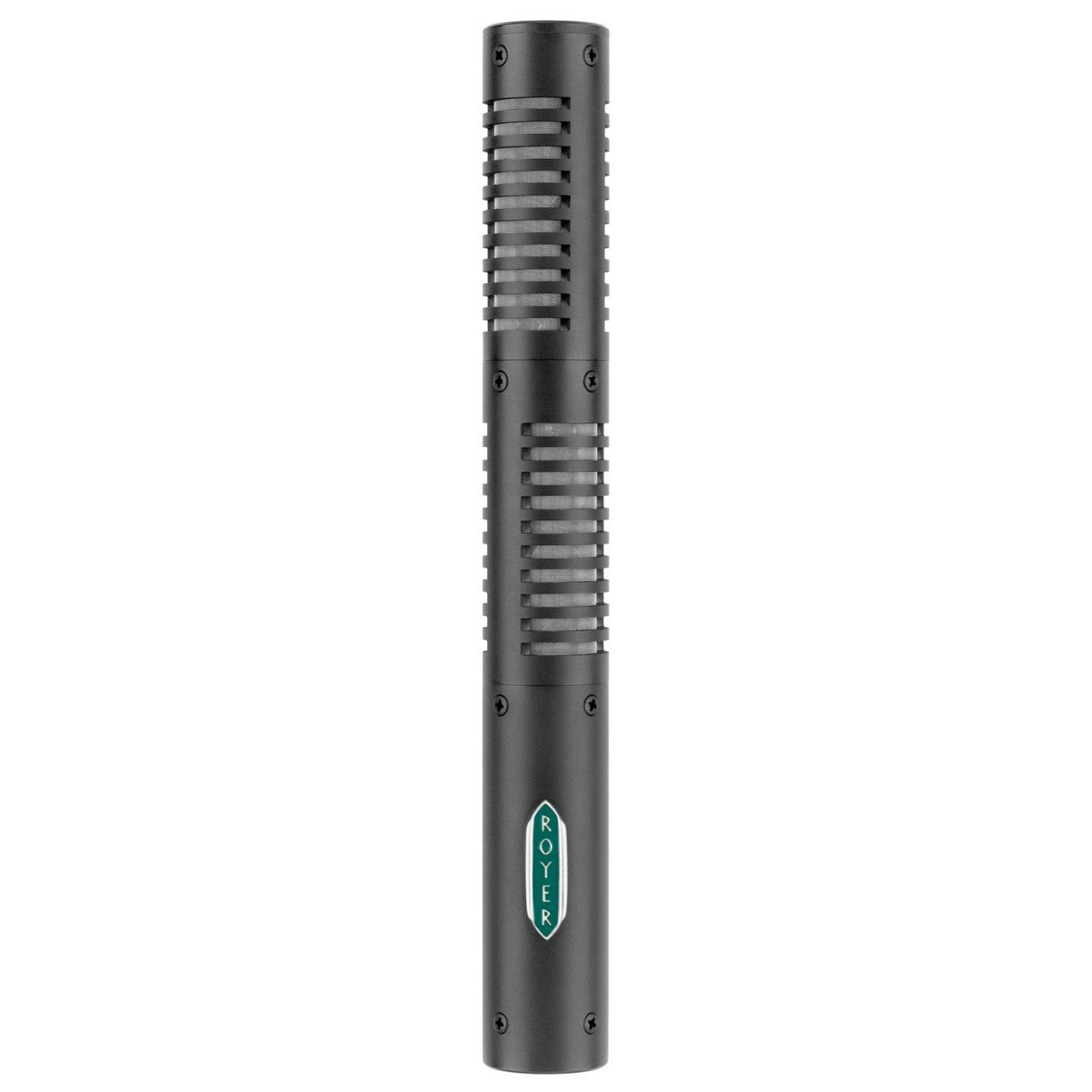

Royer Labs SF-12 Stereo Ribbon Microphone
The Royer SF-12 is a stereo ribbon microphone of the highest quality found in professional studios the world over. The SF-12 is commonly used for recording film scores and orchestral ensembles. Of key importance to the design of the SF-12, is that it incorporates 2 x matched ribbon microphones aligned on top of each other in a Blumlien stereo configuration. The SF-12 includes a Y cable, splitting into 2 x XLR three pin connectors for patching into a mic-preamp. The Royer SF-12 has an exceptionally detailed sound, with superb transient response. Be sure to check out some recordings on Royer Labs website.
Type: Ribbon Mics
-
-
Royer Labs SF-12 Features:
True stereophonic (Blumlein and M-S) recording from one microphone.
High SPL capabilities.
No internal active electronics to overload or produce distortion up to maximum SPL rating.
Extremely low residual noise.
Ribbon element not affected by heat or humidity.
Absence of high frequency phase distortion.
Equal sensitivity from front or back of elements.
Consistent frequency response regardless of distance.
High efficiency, matching toroidal transformers.
Very low magnetic leakage.
Applications:
Drum Overheads
Percussion Instruments
Brass and Woodwinds
Horn Sections
Acoustic Piano
Harp
Choirs
Solo Strings
String Sections
Orchestra
Acoustic & Electric Guitars
Background Vocals
Ambiance
Stereo to Mono
Recording in Mono:
Phase compatibility between the two sides of the SF-12 is excellent, allowing you to combine the two channels for mono recording without creating phase artifacts. This is particularly useful when capturing a wide sound field in mono; for instance, a singer who tends to move off the “sweet spot” of a mono microphone. Either side of the SF-12 can also be used individually as a mono microphone. -
Royer Labs SF-12 Specifications:
Acoustic Operating Principle: Electrodynamic pressure gradient
Polar Pattern: Symmetrical figure-8
Generating Element: 1.8-micron aluminum ribbon
Frequency Response: 30-15,000 Hz +/- 3dB
Sensitivity: > -52 dBv Re. 1v/pa
Output Impedance: 300 Ohms @ 1K (nominal)
Rated Load Impedance: >1500 Ohms @ 300 nominal impedance
Maximum SPL: >130dB
Output Connector: Male XLR 5 pin (stereo*)
Dimensions: 206 mm L X 25 mm W (8" L X 1" W)
Weight: 369 Grams (13 Oz)
Finish: Matte Black Chrome, Dull Satin Nickel (optional)
