RUP-R10

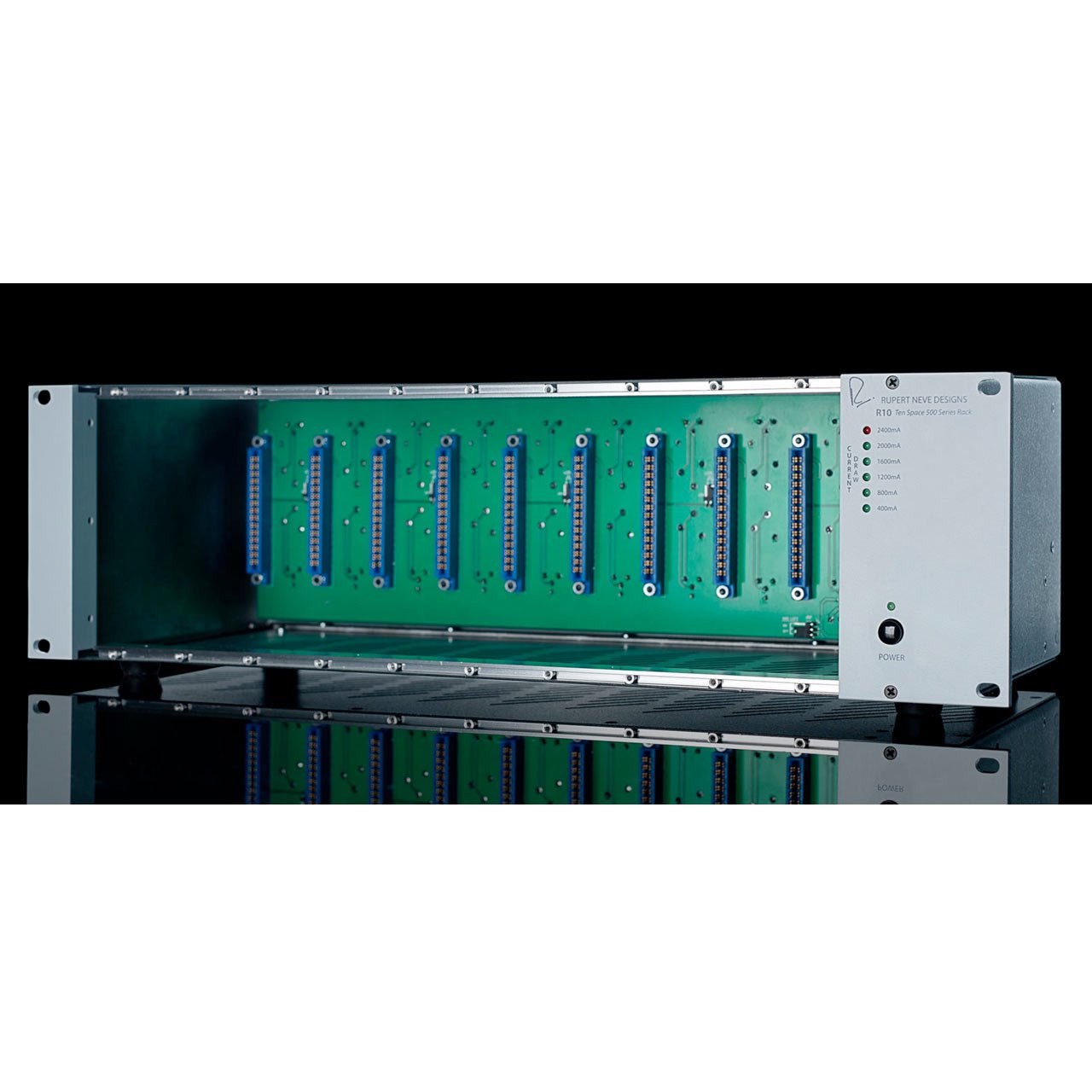

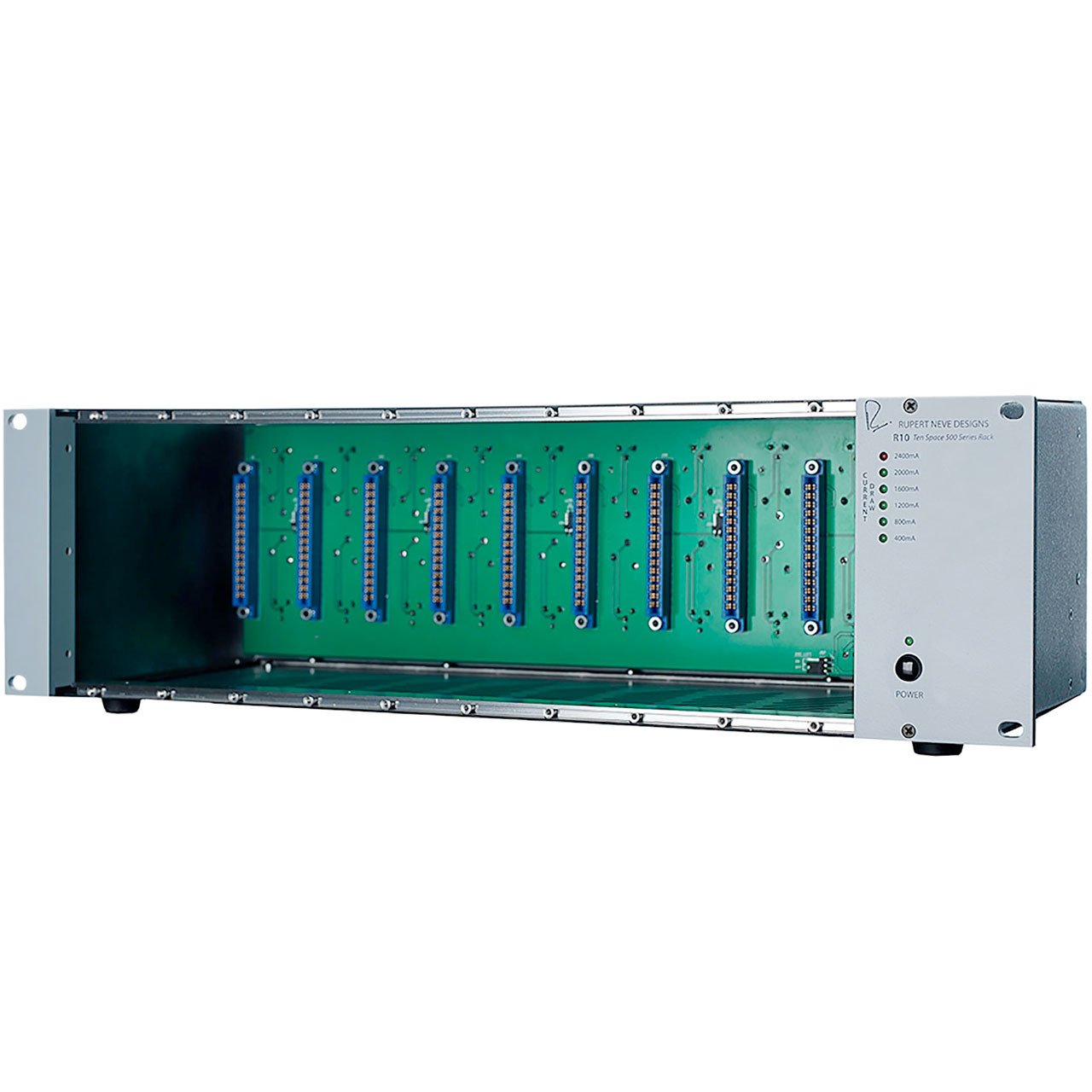

Rupert Neve Designs R10 - 10 Space 500 Series Rack
The R10 from Rupert Neve Designs (RND), is a 10-slot rack mountable power supply unit for 500-series modules. Key feature of the R10, is its 2, 400ma of internal power - twice the VPI specification for the 500 format. This means any 500 series module; including double-wide’s, will be no problem whatsoever for the R10. The power supply is also double shielded, to prevent any unwanted self noise entering the signal path.
Type: 500 Series
-
-
Rupert Neve Designs R10 Features:
Power You Can Trust
Power-wise, the R10 has more than 150% the required current for a 10-space chassis to prevent the power rails from failing under a higher-than-expected load. To help monitor and troubleshoot problematic modules, the R10 is equipped with LED current metering to show how much power is being used. The internal power supply itself has been carefully designed and double-shielded to avoid significant magnetic induction in any of the channel positions. With such attention to providing and monitoring power, the R10 helps your modules realize their fullest potential.
Solid Steel Construction
The chassis is comprised of solid steel with sliding nuts to accommodate various manufacturers modules. All connectors and fittings are of the highest quality to ensure that the R10 will hold up to many years of use.
A New Level of Confidence in the 500 Series
Because the R10 is built to 500 series specifications, it will work flawlessly with any properly-designed 500 series module you wish to include in it. To help accommodate modules that are slightly out of spec, the R10 has variable-position screw holes to help make the installation process as smooth as possible. The 500 series VCA buss link function can be enabled in pairs on the R6 using the link jumpers on Channels 1-2, 3-4, 5-6, 7-8 or 9-10. Enabling link allows compatible compressor modules like the 543 to share VCA control when their links are enabled. Matching blank panels are also available to cover any empty slots.
Feature Summary:
Supplies more than 2,400ma internal power (200% of VPI-spec required current) to handle any module
Double-shielded internal power supply designed to avoid magnetic induction in module slots
LED current consumption meter monitors what your modules are using
Variable-position screw holes make for quick and easy module insertion
Switching-mode PSU with frequencies considerably outside audible band
Onboard linking for stereo operation using two modules such as compressors
XLR and TRS I/O for custom channel strip flexibility -
Rupert Neve Designs R10 Specifications:
Number of Slots: 10

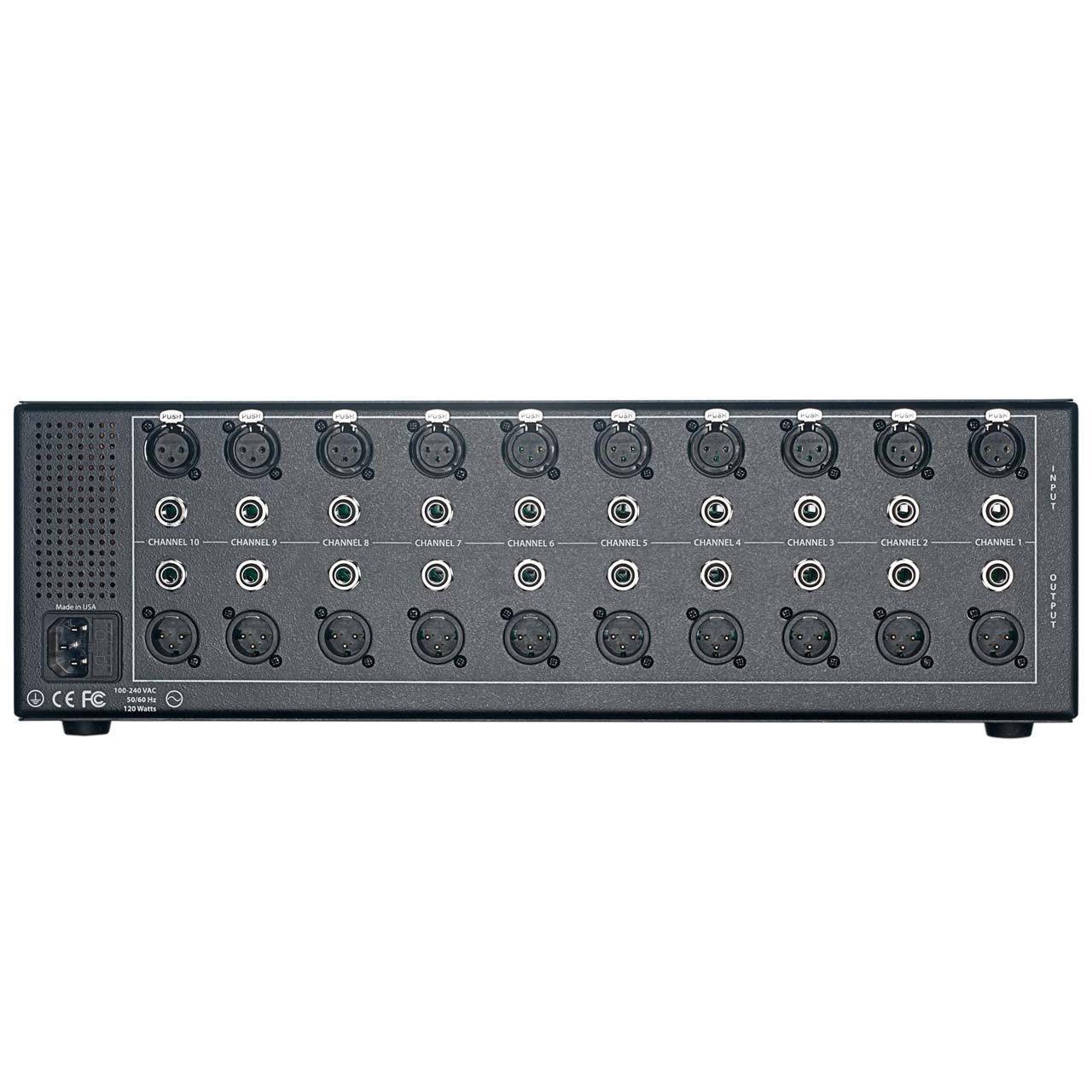

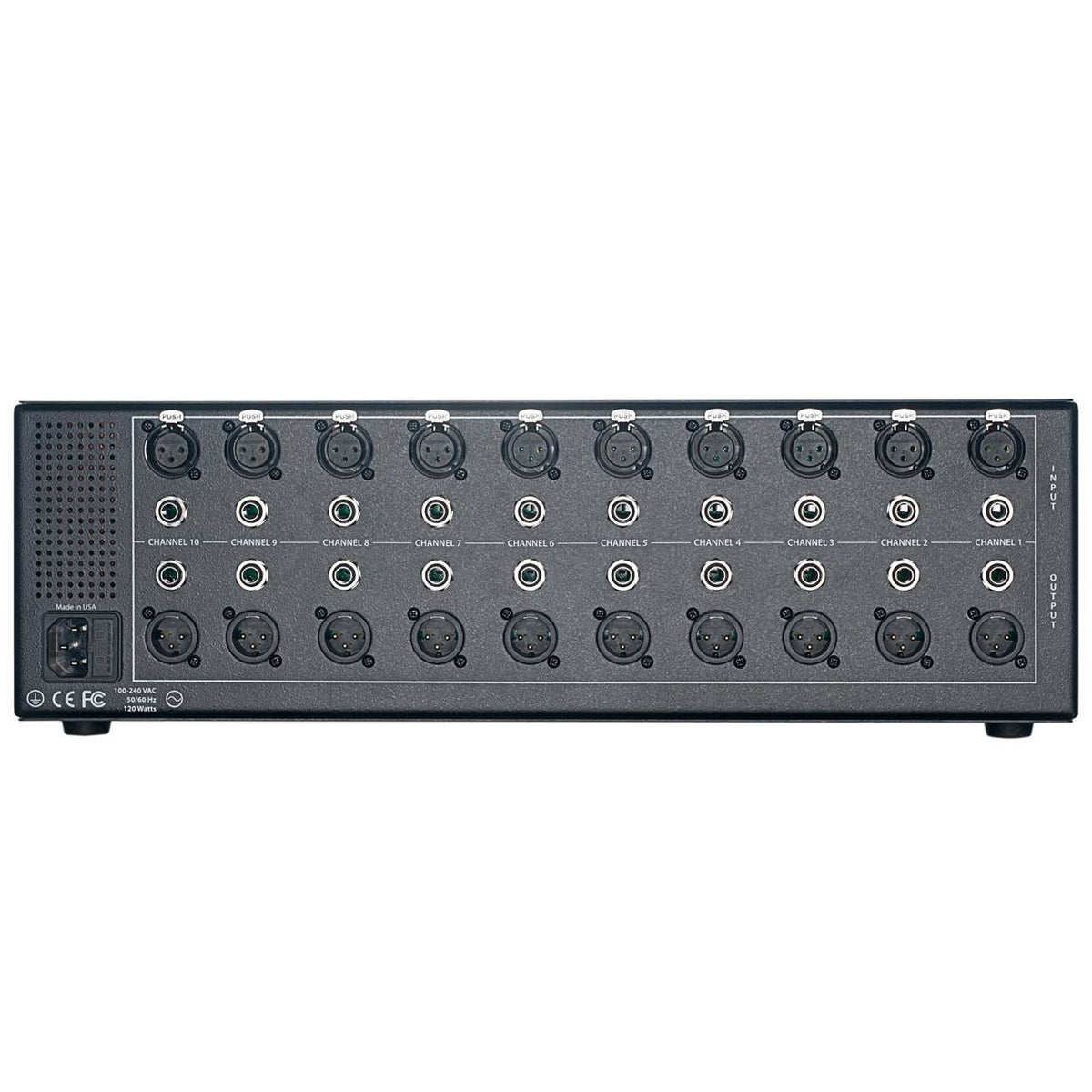

I/O Connections: 10 x XLR in, 10 x 1/4" TRS in, 10 x XLR out, 10 x 1/4" TRS out
Power Supply: Internal power supply supports all 10 modules
