29/MD1PRO

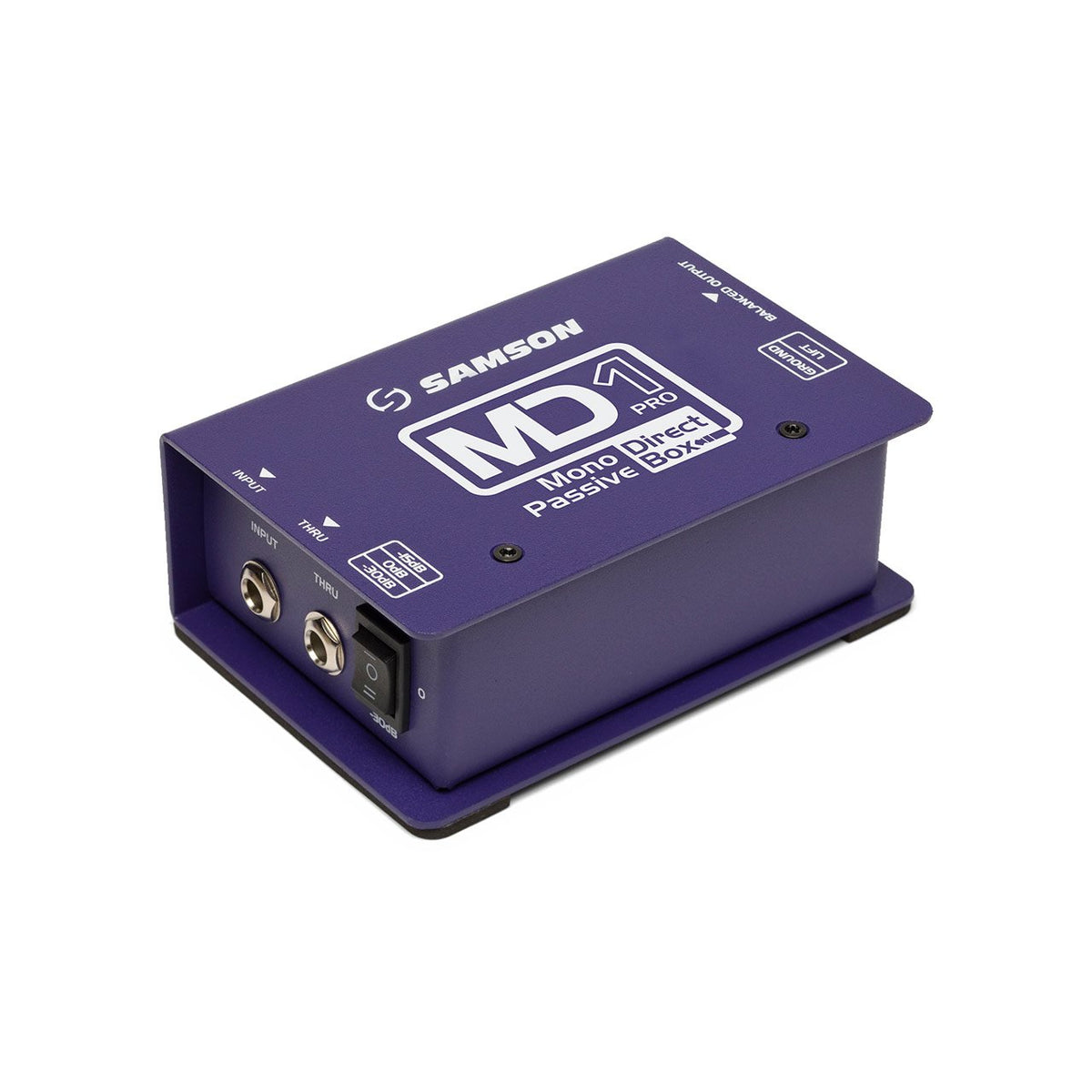

Samson MD1 Pro - Mono Passive Direct Box
The Samson MD1 Pro is a passive mono DI box that features Samson's STLX transformer features protection against RF interference, and delivers a clean even signal across all frequencies. Other key features include 3 selectable attenuation pads and a ground lift switch.
Type: DI Boxes
-
Samson MD1 Pro PRODUCT FEATURES:
To The Max.
The Samson MD1 Pro Mono Passive Direct Box combines premium sound circuitry with durable, roadworthy construction, providing high-quality solutions for line, instrument and speaker level signals. The MD1 Pro allows balanced lines to be sent from your instrument long distances without inducing noise.
Custom STLX Transformer
The MD1 Pro features Samson's STLX Mu-Metal shielded transformer that delivers an extended, flat frequency response with ultra-low distortion and superior protection against hum and RF interference. The MD1 Pro's balanced output provides a clean signal that is less susceptible to noise than an unbalanced line, allowing for longer cable runs. The MD1 Pro also includes a 3-position 0dB/-15dB/-30dB attenuation switch to toggle between line and speaker level signals.
Thru Jack
The MD1 Pro's Thru jack enables you to tap off the signal from the input and pass the signal to an amplifier or monitor without affecting the original audio. This can eliminate the need for miking guitar amplifiers, which depending on your application may be preferable, especially as more musicians are using in-ear monitors.
Roadworthy Construction
Housed in a 14-gauge steel chassis, the MD1 Pro is built to withstand the abuse of the most demanding live tours. Its rigid outer shell protects all the MD1 Pro's internal connections, switches and solder joints from failure, ensuring quiet, reliable performance. -
Samson MD1 Pro TECHNICAL SPECIFICATIONS:
All-metal, impact resistant design
Samson STLX Mu-Metal shielded transformer
3-position 0dB/-15dB/-30dB attenuation switch

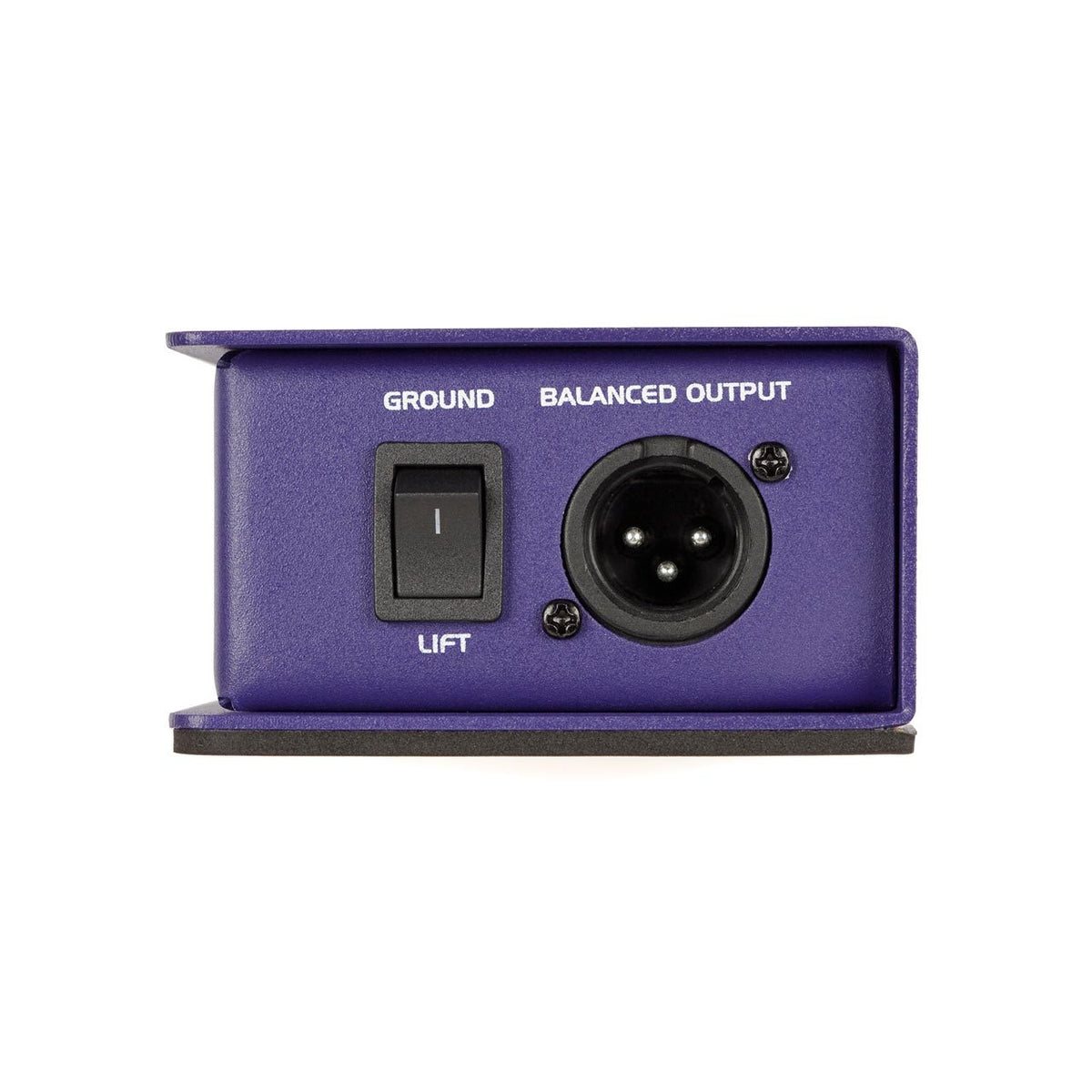

Ground Lift switch

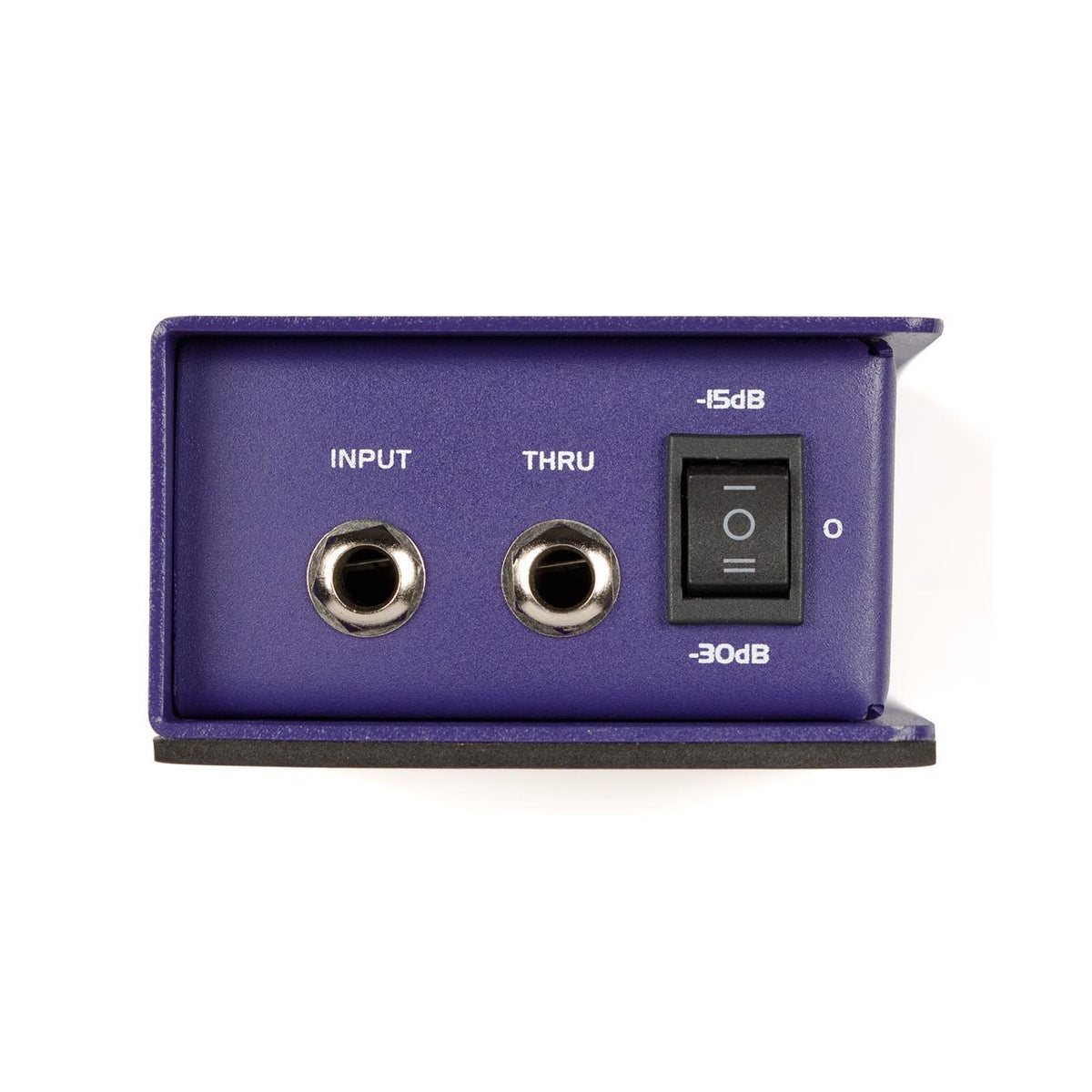

1/4" Input and Thru
Balanced XLR output
No Phantom or Battery power required
Frequency response of 18Hz–40kHz
