SEEL_DM2

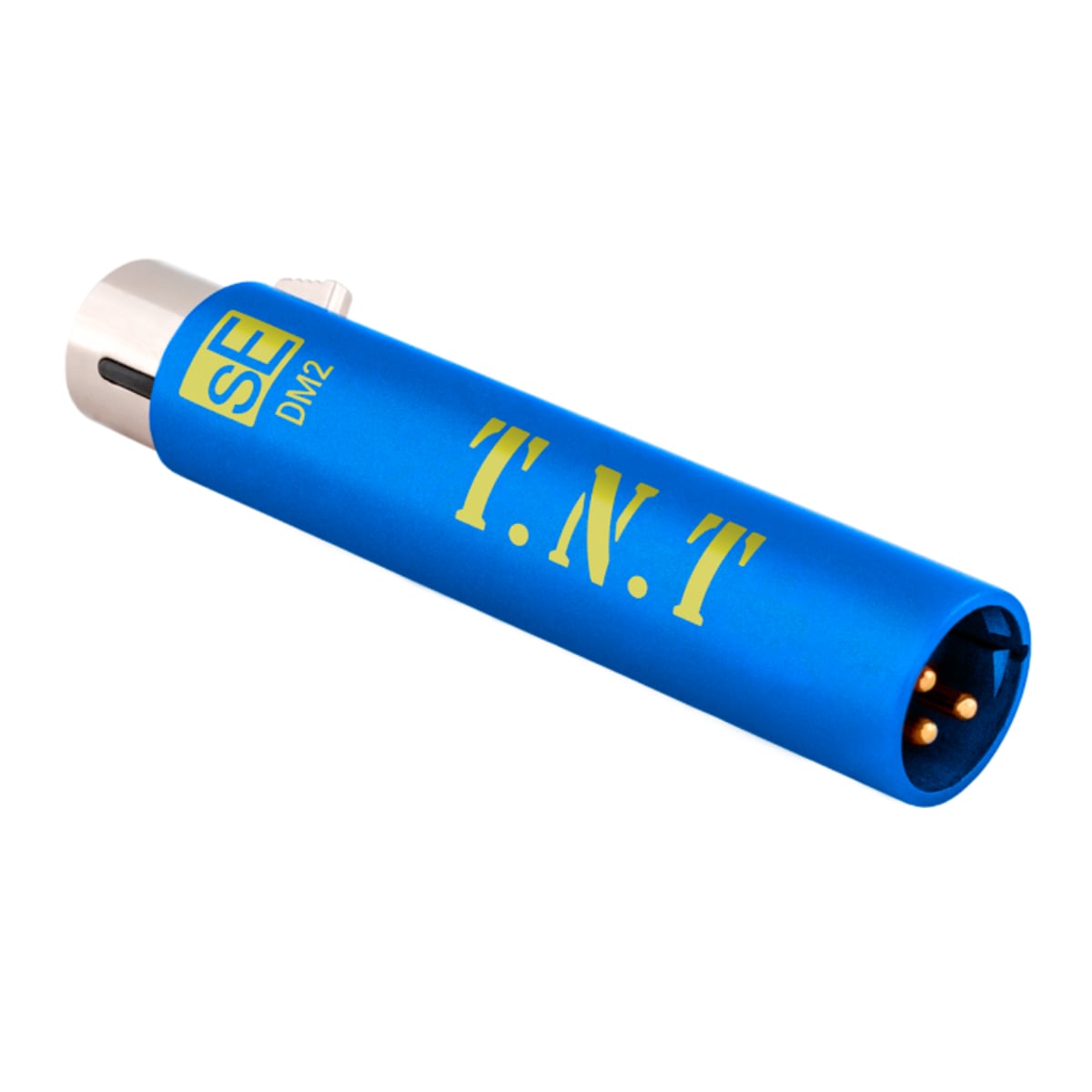

sE DM2 T.N.T Switchable Active Inline Microphone Preamplifier
The DM2 TNT lets you choose between a moderate +15dB or explosive +30dB of gain with an ultra-high impedance input and eight load settings to perfectly match any passive microphone. While the DM1 DYNAMITE provides a massive +28dB of clean, transparent gain.
For all your dynamic and passive ribbon microphones - perfect for podcasting, recording, or live sound.
With a sophisticated class-A design and specially-selected high-grade FETs, sE active inline preamps have vastly lower output impedance and nearly half the noise of anything else on the market. Additionally, the gain provided is always consistent regardless of the connected load, thanks to the DM2's eight switchable impedance setting and the DM1's dedicated buffer amplifiers.
Specifications
Frequency Range: 10 Hz - 120,000 Hz (-0.3 dB)
Gain:15 dB / 30 dB
Max output level (0.5% THD):9.5 dBV (3.0 V)
Output noise level:1 μV @ 15 dB / 6.6 μV @ 30 dB
Powering:48 Volts according to IEC 61938
Electrical impedance:135 Ohms
Recommended load impedance: >1k Ohms
Current consumption:3.1 mA
Connectivity:3-pin male/female XLR connector
Dimensions:Diameter: 19 mm (0.75 in.) Length: 95.5 mm (3.76 in.)
Weight:80 g (2.82 oz.)
In The Box
-
DM2 TNT
-
sE Logo Sticker
-
User manual with warranty card
System Requirements
REQUIREMENTS
- input: passive microphone (ribbon/dynamic)
- output: preamp/mixer/audio interface providing 48V phantom power
- not suitable for phantom-powered microphones (condenser microphones, active ribbon microphones)
Type: Microphone Preamps
