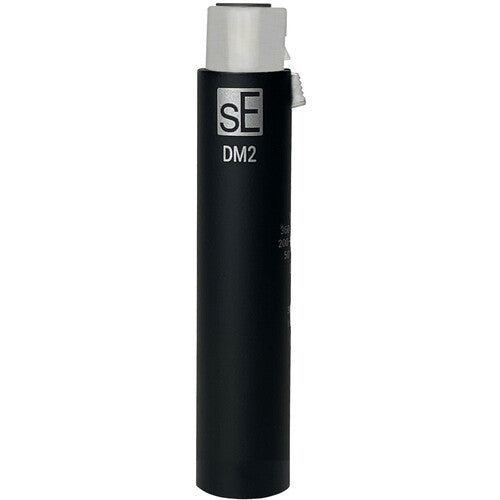

sE Electronics DM2 TNT Black Active Inline Preamp with Switchable Gain

The DM2 TNT: explosive level for all your passive mics.

The DM2 TNT Black, like its original version, lets you choose between a moderate +15dB or explosive +30dB of gain with an ultra-high impedance input and eight load settings to perfectly match any passive microphone.

Switchable, clean and consistent gain from moderate +15dB to explosive +30dB

• designed for neutral, balanced sound quality with minimal noise
• explore eight settings ranging from an unconventionally low 50 Ω to stunningly high 10 MΩ to match your preamp with any mic accurately
• two gain levels for even higher flexibility on various sources
• ruthlessly boosts the signal independent from load impedance or cable length

Slim, rugged, all-metal housing with Premium finish

• efficient rejection of any electrical interference and noise
• high-quality finish ensures a great look for many years
• slim design allows for easy placement in the studio or on stage

For optimum results, we recommend you plug the DM2 directly into your microphone’s output. If necessary, a cable can be used between the microphone and the DM2 – but the shorter the cable, the better the overall performance will be. Not for active microphones.

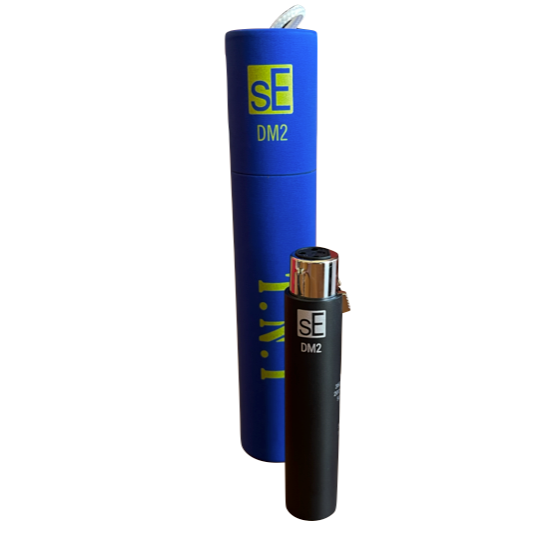

IN THE BOX

• DM2 Black
• sE Logo Sticker
• User manual with warranty card

SPECIFICATIONS

• Frequency Range: 10 Hz – 120,000 Hz (-0.3 dB)
• Gain: 15 dB / 30 dB
• Max output level (0.5% THD): 9.5 dBV (3.0 V)
• Output noise level: 1 μV @ 15 dB / 6.6 μV @ 30 dB
• Powering: 48 Volts according to IEC 61938
• Electrical impedance: 135 Ohms
• Recommended load impedance: >1k Ohms
• Current consumption: 3.1 mA
• Connectivity: 3-pin male/female XLR connector
• Dimensions: Diameter: 19 mm (0.75 in.) Length: 95.5 mm (3.76 in.)
• Weight: 80 g (2.82 oz.)

REQUIREMENTS

• input: passive microphone (ribbon/dynamic)
• output: preamp/mixer/audio interface providing 48V phantom power
