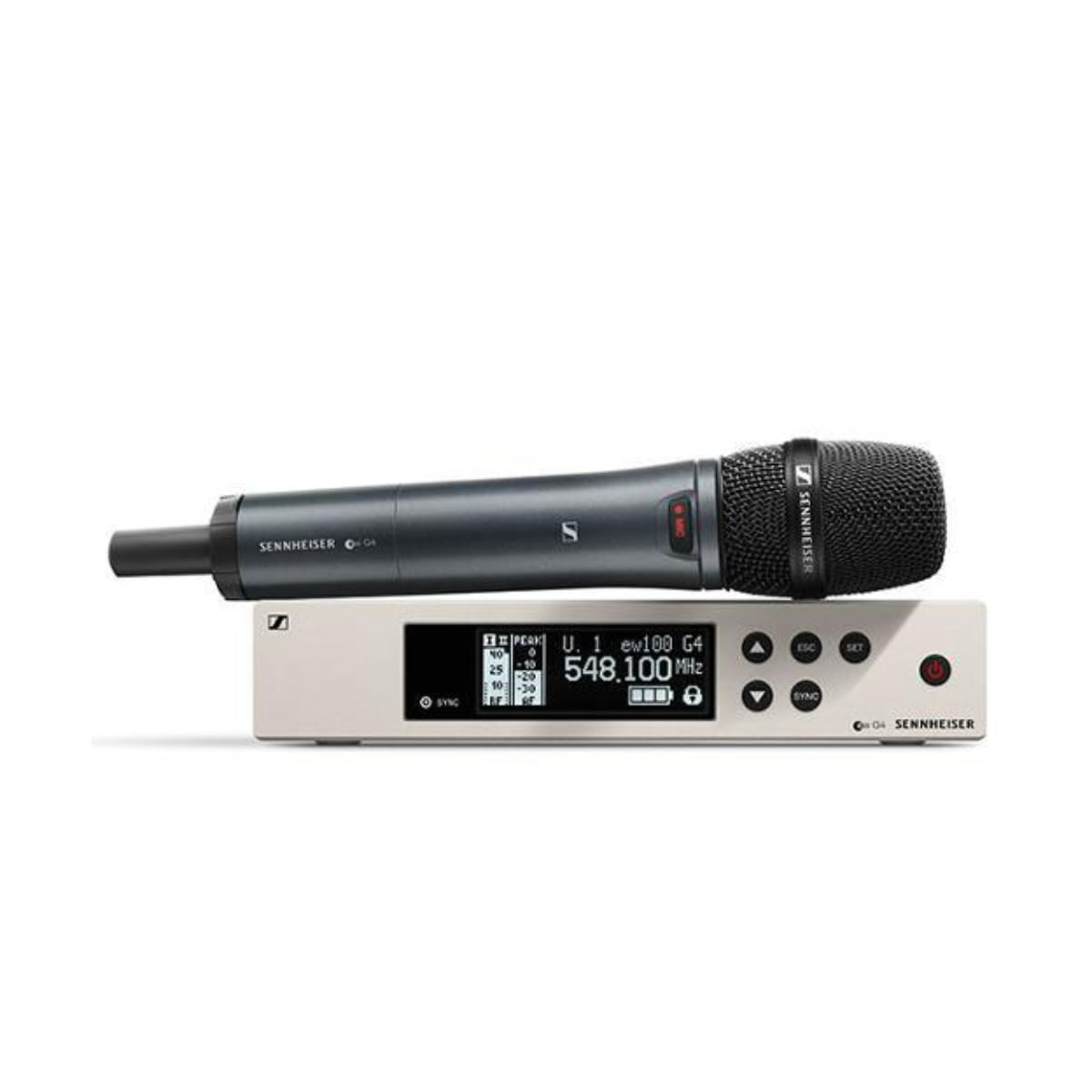

Sennheiser EW 100 G4-865-S-1G8

Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.

State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, and e 865 capsules on a lightweight aluminum transmitter with integrated mute switch.

Features

• Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.

• State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminum transmitter with an integrated mute switch

• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Fast frequency allocation for up to 12 receivers via new linking functionality

• Up to 20 compatible channels

• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

• Transmission Range: up to 100 meters / 300 feet

• High RF output power (up to 30 mW) depending on country regulations

Specifications

Dimensions Approx.

• 190 x 212 x 43 mm
• Approx. Ø 50 x 265 mm

Compander Sennheiser

• HDX

Sound pressure level (SPL)

• 152 dB SPL

THD, total harmonic distortion

• ≤ 0.9 %

Transducer principle

• pre-polarized condenser microphone

Weight

• Approx. 980 g
• (incl. batteries) approx. 450 g

Audio output

• 6.3 mm jack socket (unbalanced): +12 dBu
• XLR socket (balanced): +18 dBu

Pick-up pattern

• super-cardioid

Signal-to-noise ratio

• ≥ 110 dBA

RF output power

• Max. 30 mW

Switching bandwidth

• up to 42 MHz

Peak deviation

• ±48 kHz

Nominal deviation

• ±24 kHz

Operating time

• Typically 8 h

Modulation

• Wideband FM

Power supply

• 12 V DC
• 2 AA batteries, 1.5 V or BA 2015 accupack

Antenna connector

• 2 BNC sockets

Current consumption

• 300 mA
• at nominal voltage: typ. 180 mA
• with transmitter switched off: ≤ 25 µA

Adjacent channel rejection

• Typically ≥ 65 dB

Input impedance

• 40 kΩ

Intermodulation attenuation Typically

• ≥ 65 dB

Max. Input voltage

• 3 Veff

Powering

• 3 V battery / 2.4 V rechargeable battery

Receiving frequency

• Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

RF sensitivity

• < 2.5 μV for 52 dBA eff S/N

Sensitivity

• 1.6 mV/Pa

Squelch

• low: 5 dBµV middle: 15 dBµV high: 25 dBμV

Transmission frequency

• Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

Equalizer

• Preset 1: Flat
• Preset 2: Low Cut (-3 dB at 180 Hz)
• Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
• Preset 4: High Boost (+6 dB at 10 kHz)

AF frequency response

• 80 – 18,000 Hz

Temperature Range

• -10 °C to +55 °C

Receiver Principle

• True diversity

Frequency stability

• ≤ ±15 ppm

Blocking

• ≥ 70 dB
