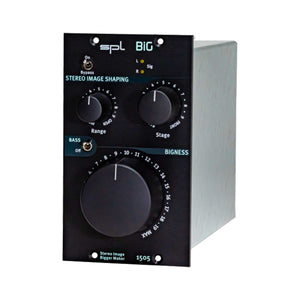

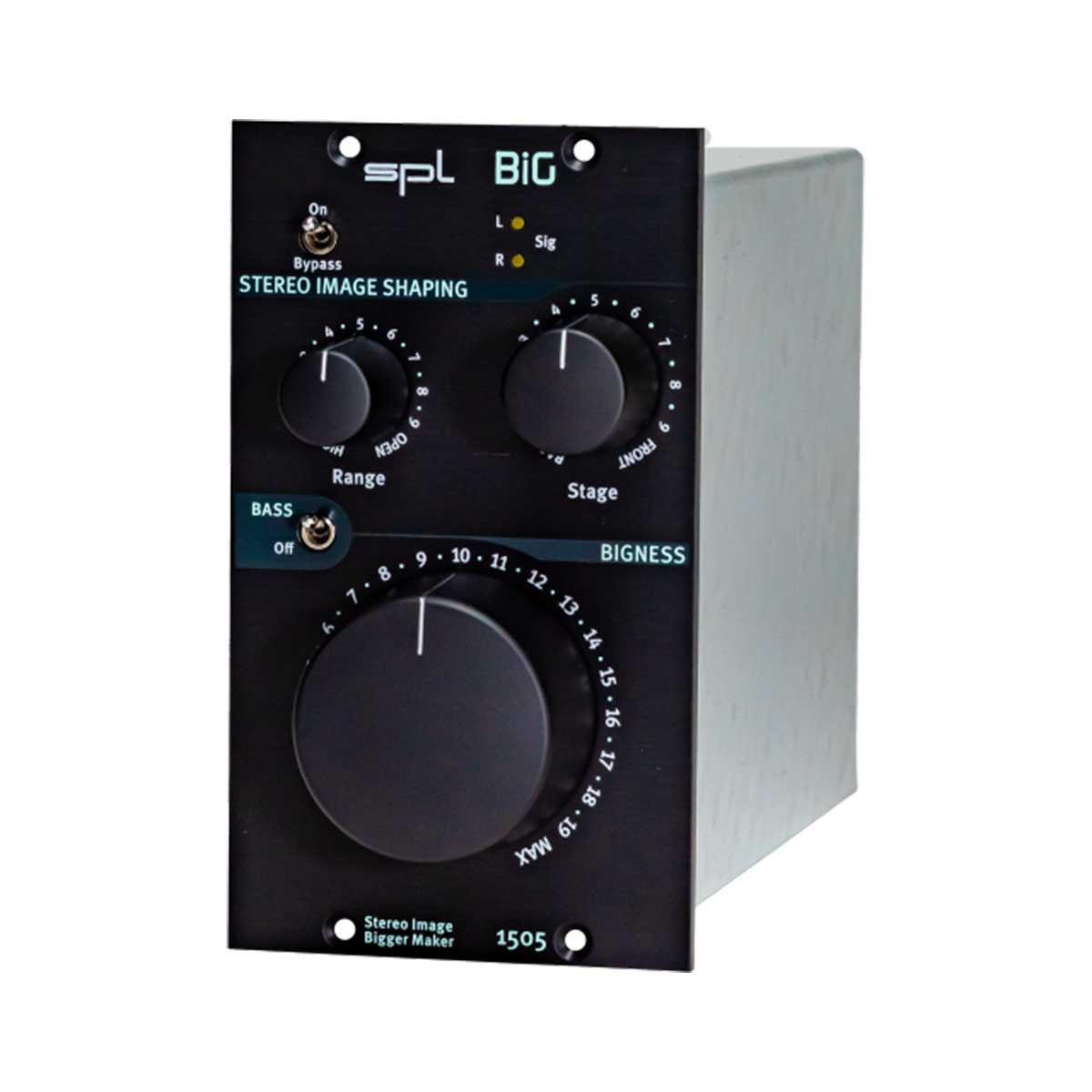

SPL-BIG
Type: 500 Series
Big enlarges the stereo image in a new manner and opens up new creative ways of sound shaping. Intuitive with just three controls.

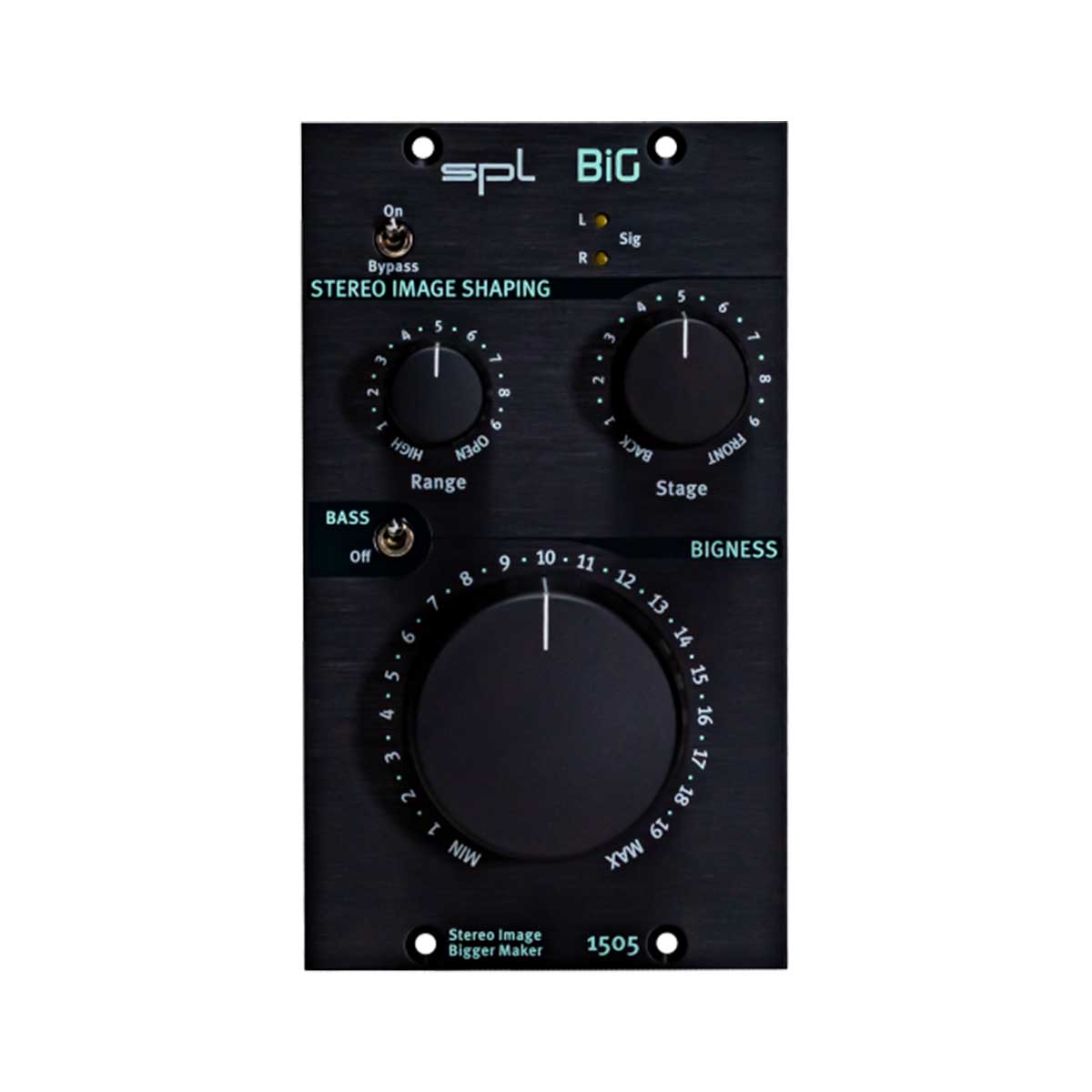

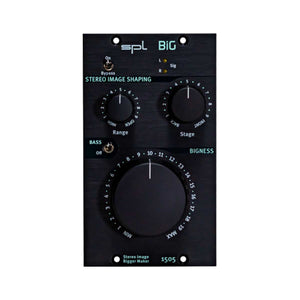

The On/Bypass switch activates (On)
or deactivates (Bypass) the module.
This allows you to quickly switch between
processed and unprocessed signal.
The signal LEDs (Sig) indicate whether an audio signal is present at the input of the respective channel.
(With a level higher than -20 dBu)
With the Range control, the frequency Range which should be processed can be selected.
With the Stage control, the frequency range previously selected with the Range control can be moved backwards or forwards on the stereo stage.
The huge BIGNESS
control adjusts the intensity of the
STEREO IMAGE SHAPING.
The BASS/Off switch can be used to
activate (BASS) or deactivate (Off) an
additional bass boost following the
BIGNESS section.
The bass boost is performed by a passive filter implemented in a similar circuit to
the one used in the AirBass function of the SPL IRON Mastering Compressor.
