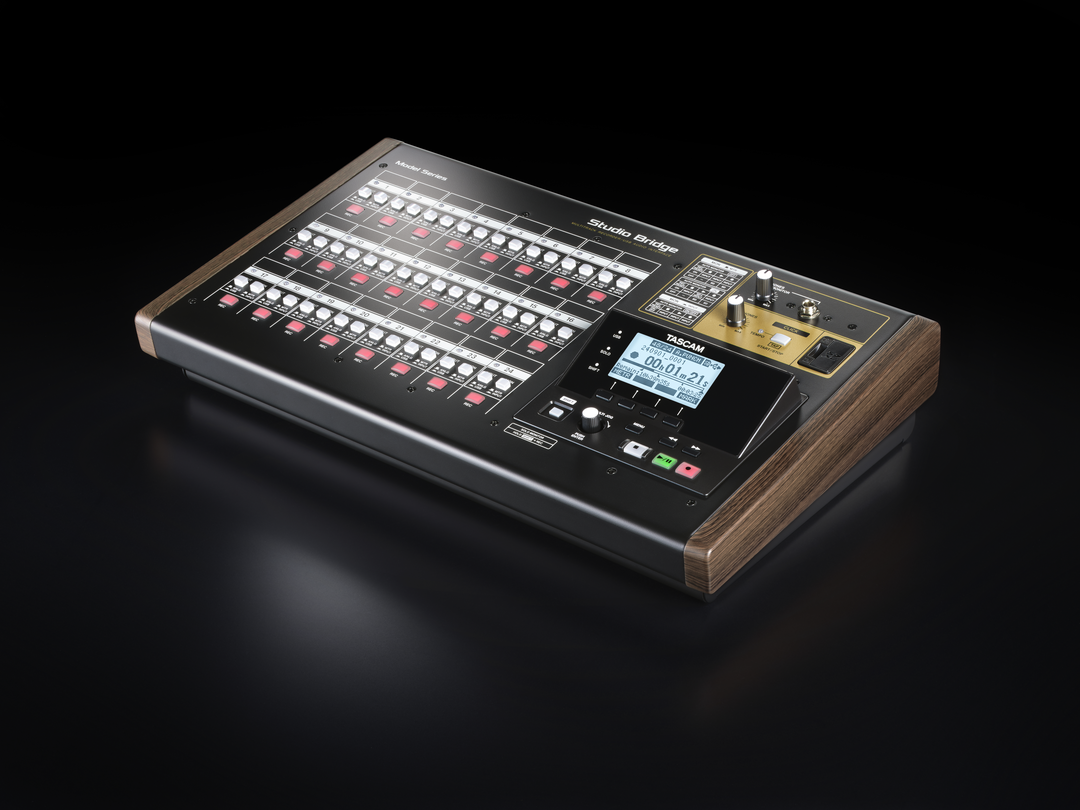

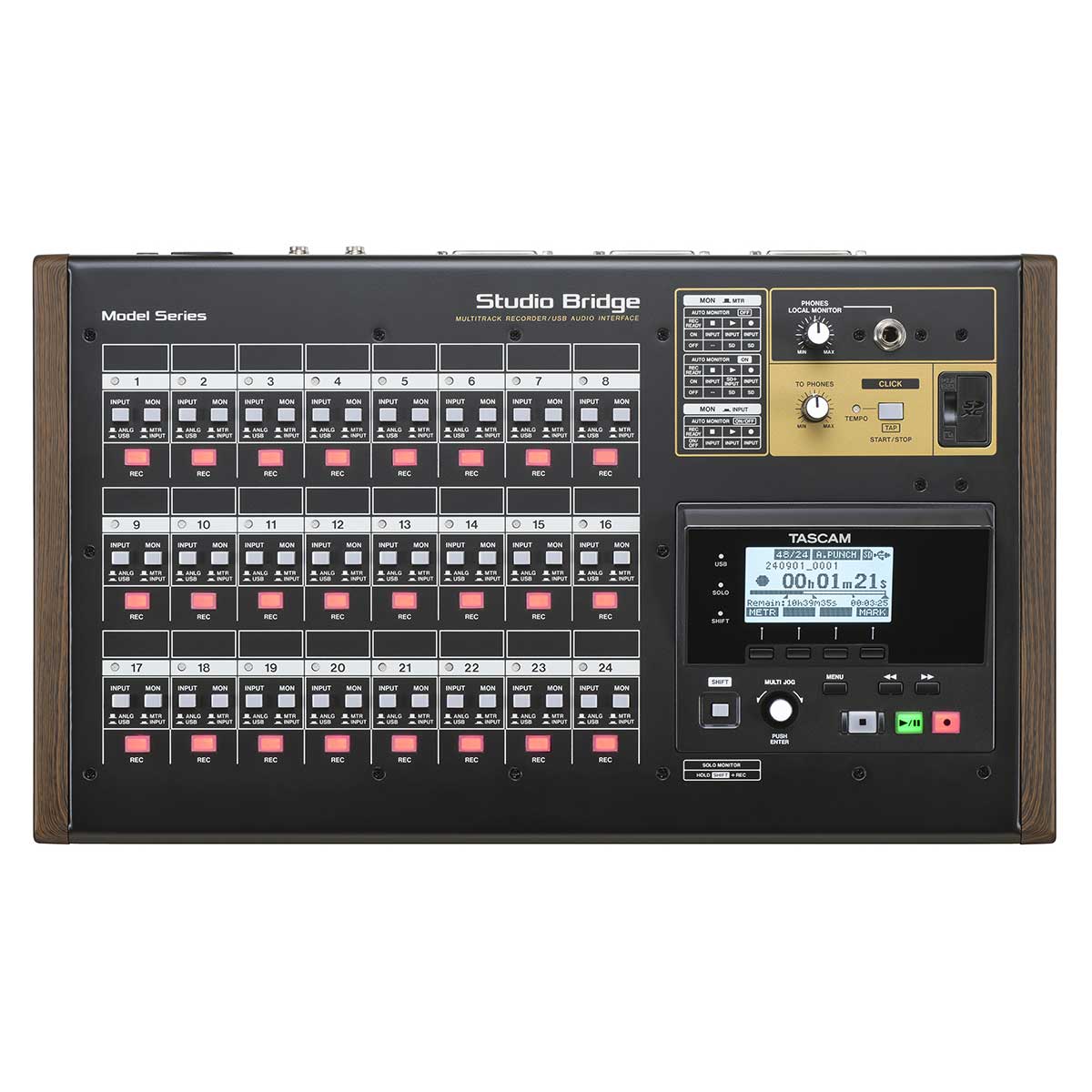

Tascam Studio Bridge Multitrack Recorder / USB Audio Interface

The TASCAM Studio Bridge Multitrack Recorder / USB Audio Interface is a highly functional ‘bridge’ between the analog and digital recording domains. By connecting analog consoles, the Studio Bridge can be used as a USB audio interface for multitrack recording or recorded directly to its internal recorder, which utilizes an SD card slot that can accommodate storage sizes up to and including 512GB.

The new Studio Bridge makes it easy to connect analog consoles and even full racks of outboard gear to capture the analog signal chain that engineers have painstakingly created and wish to preserve. With the Studio Bridge, recording engineers can record to a DAW (Digital Audio Workstation) using the Studio Bridge as a 24-in/24-out USB audio interface or, alternatively, recording directly to the Studio Bridge itself. This flexibility exists because the Studio Bridge has its internal 24-In/24-Out multitrack recorder—with support for Punch In/Out—that uses an SDXC SD card as its media format. The recorder supports 24-bit digital audio at 44.1 kHz and 48 kHz.

Key Features

• On-board 24-track multitrack recorder using SDXC SD card (punch-in/out supported)
• 24-IN/24-OUT USB audio interface

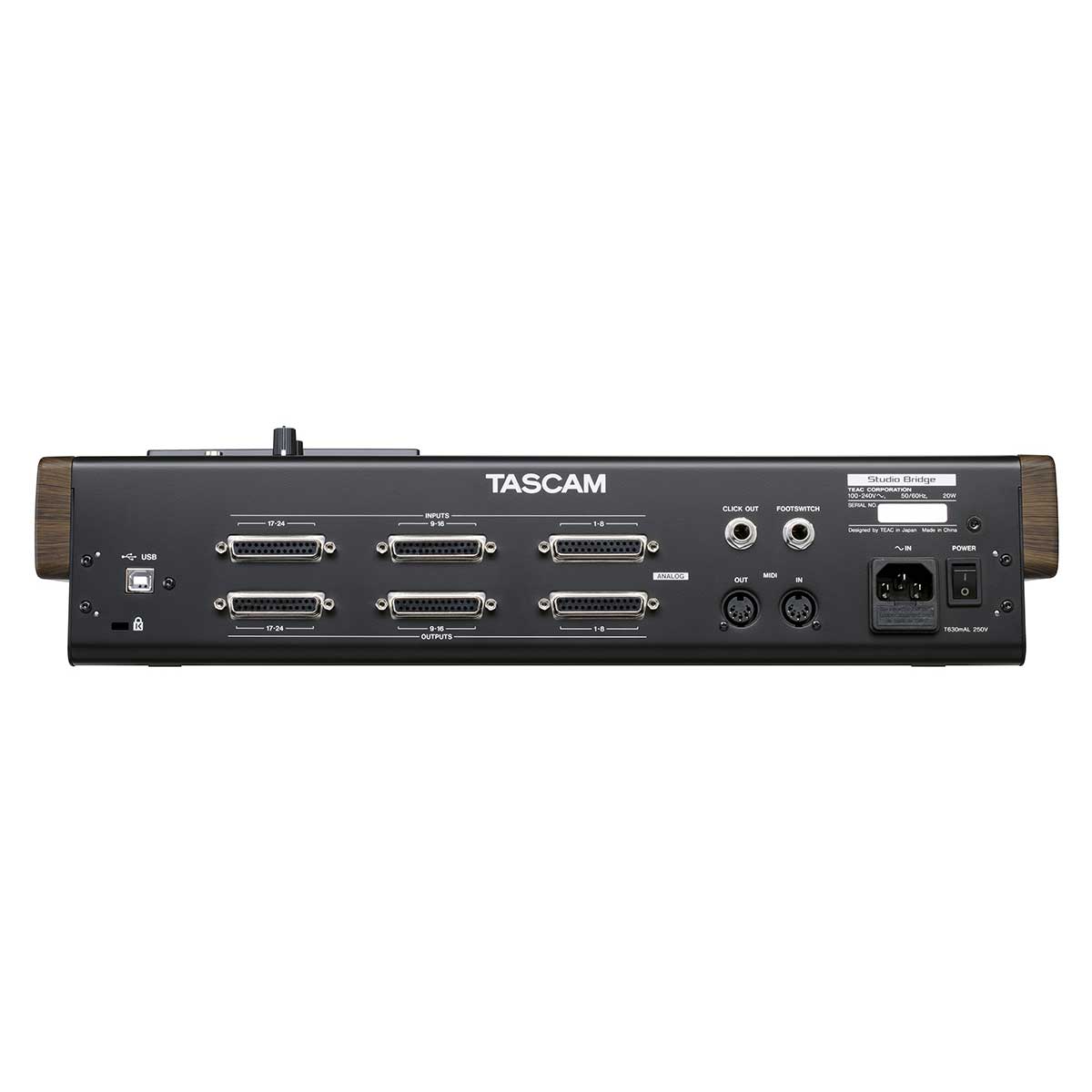

• 24 DB25 analog line level input and output
• DAW transport control and REC READY control via HUI/MCU
• Dedicated Settings Panel application with Meter Bridge MIDI IN/OUT allows USB MIDI interface and MIDI sync, 1/4" audio click output with tempo control

Additional Features

• Headphone and Local Monitor Output
• Dual Footswitch control
• 44.1k/48kHz 16/24bit WAV(BWF) format
• Recording media SD card up to 512GB
• MTC output and MIDI clock with Song Position Pointer
• Built in Metronome and Click Out

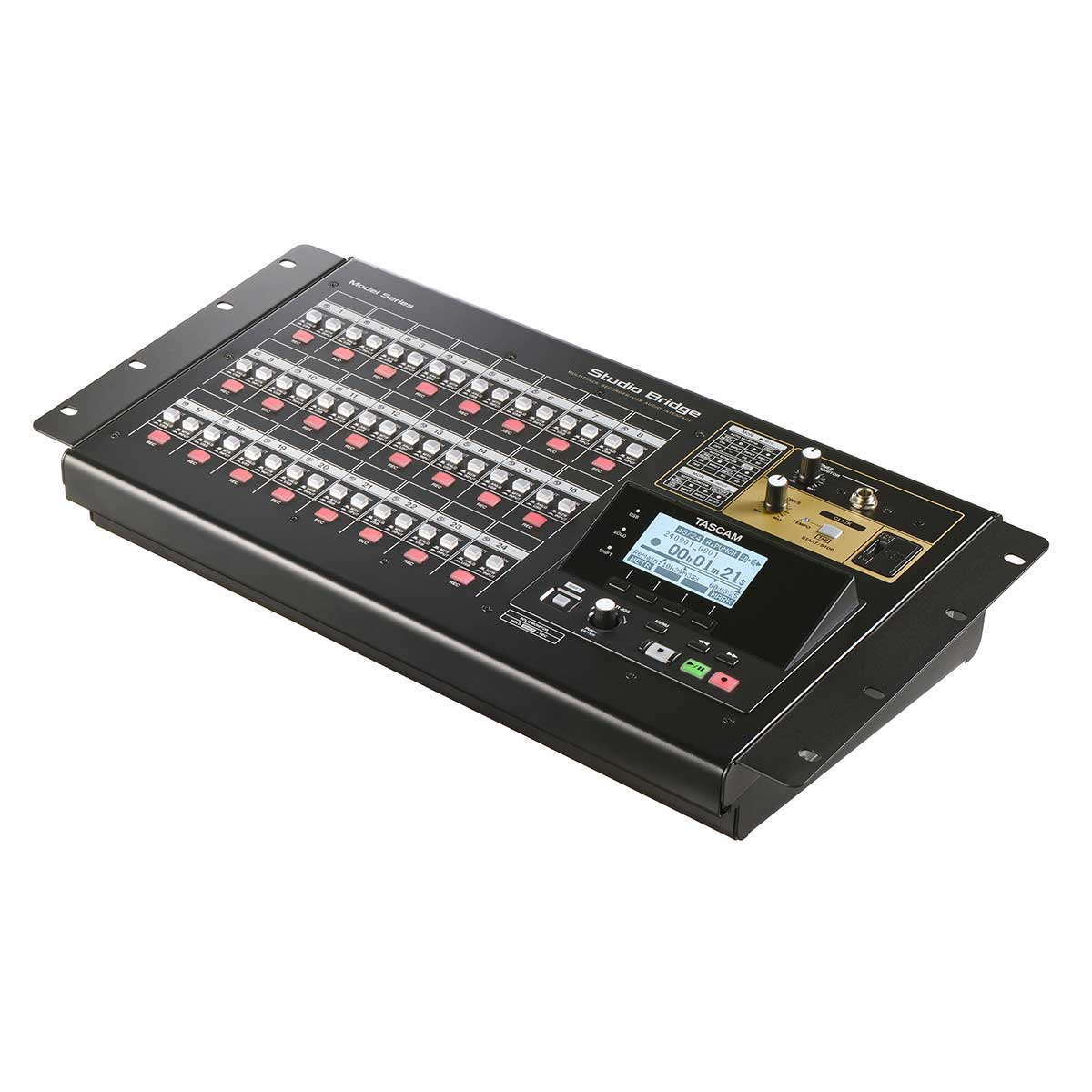

• 19-inch Rack-mountable with optional AK-RMSTBG
