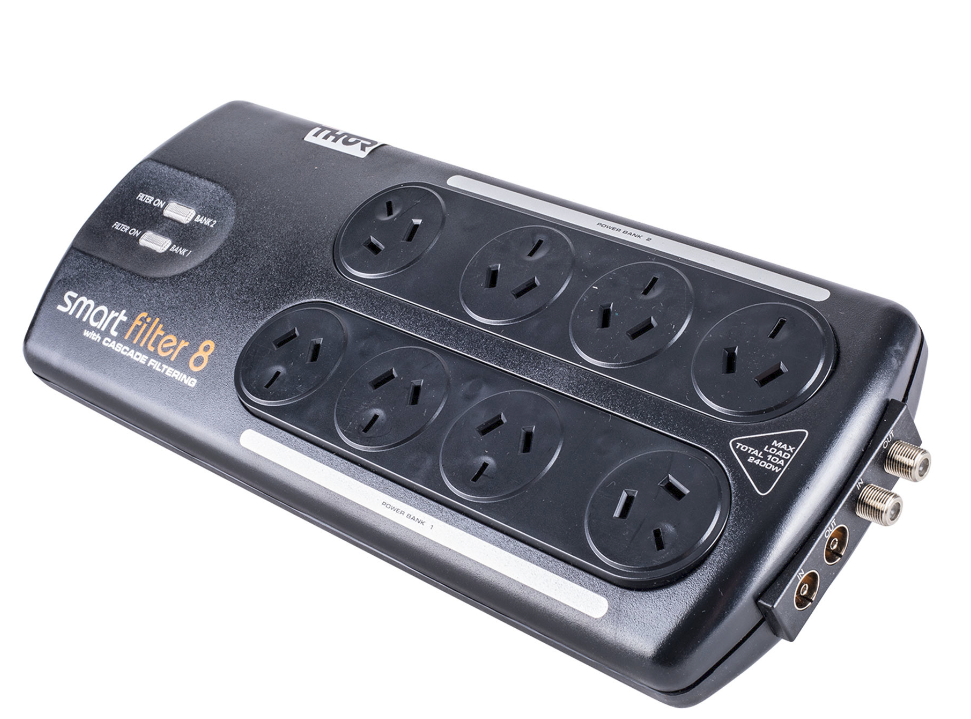

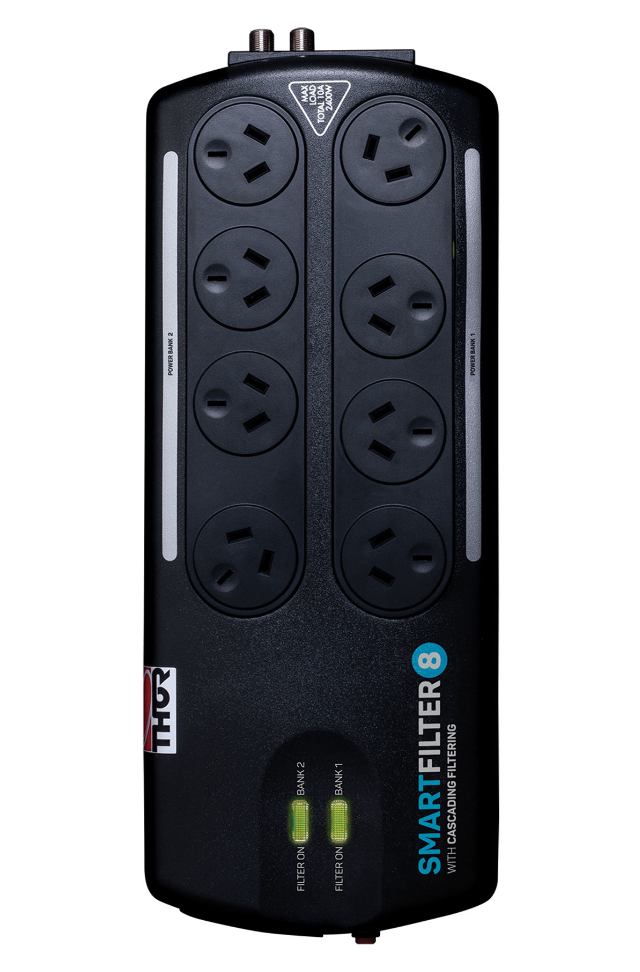

Thor Smart Filter 8. Universal Filter and Surge Protector. Cascade Filter Tech

SMART TECHNOLOGY POWER PROTECTION AND FILTRATION

SmartFilter 8 has two unique isolated banks offering fail-safe protection for your valuable electronic equipment, plus advanced noise filtering for improved sound and video quality.

The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise. Cascade Filter “cleans” around 20% more frequencies than other filtered boards to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound. Can also improve computer gaming speeds and fix internet dropouts.

INSIDE THE BRAIN

There are 4 separate earth lines which is a hum/loop reducing feature. This feature stops component cross talk and ensures isolation between the 2 x AC Banks (2 x 4 outlets) as well as the antenna/F type and Data connections. True circuit isolation ensures best performance for all connected equipment.

FEATURES

• 8 PROTECTED OUTLETS
• 2 ISOLATED BANKS
• PAY/TV PROTECTION
• DATA/VOICE PROTECTION
• LARGE PLUG ADAPTORS
• 1.8M CABLE LENGTH
• FIRE RETARDANT
• 6 YEAR REPLACEMENT WARRANTY


PROTECTS

• OLED/LCD TV
• HIFI AND HOME THEATRE
• ACTIVE/PASSIVE SPEAKERS
• INTERNET REDUCES NEN/ADSL DROPOUT
• COMPUTERS
• PRINTERS AND SCANNERS
• GAMING

TECHNICAL SMARTS

• Product Dimensions: 350mm(L) x 45mm(H) x 140mm(W)
• Supply voltage 240/V AC 50/Hz
• Maximum current rating 10amps/2400 W (VA)
• Clamping voltage 300 V AC
• Reaction time less than 1 nanosecond
• Maximum transient spike impulse current 196,000 amps (equivalent to 49,000 amps using UL1449 standard)
• Maximum energy dissipation 5868 Joules (equivalent to 2100 Joules using UL1449 standard)
• Protection modes (all 8 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth)
• EMI/RFI noise reduction filter type. Cascade dual bank isolation with 2 cascading circuits
• Number of multi-stage filter banks: 2
• Number of isolated banks: 2
• Number of dedicated outlets: 4+4
• Total number of protected AC outlets: 8
• RJ 45 data protection: 1 in and 2 out
• AV/TV Connection: In and out
• Cable TV ‘F’ type connection: In and out
• Earth potential rise protection
• Earth leakage range less than 1 milli amp
• Operating conditions: Indoor/AC mains
• Operating temperatures: -10C/+60C
• Cable length: 1.8m
• Model No: B8+
