WAR-DIP

Warm Audio Direct Box Passive

1 In Stock

Every aspect of our direct boxes are designed for maximum sonic integrity, from the custom-wound CineMag USA transformer to the rugged metal knob and switches.  You can expect warm, rich tone even after long cable runs, and the extruded aluminum enclosure ensures a long life span.  When you need to convert an instrument-level signal to mic-level, with sonic quality as your top priority, you'll be well-served with the Direct Box Passive from Warm Audio.



Specifications

  • CUSTOM-WOUND CINEMAG USA OUTPUT TRANSFORMER

  • CONVERTS INSTRUMENTS TO MIC-LEVEL SIGNALS WITHOUT SIGNAL DEGRADATION

  • IDEAL SOLUTION FOR PLUGGING YOUR INSTRUMENT DIRECT INTO ANY MIC PRE

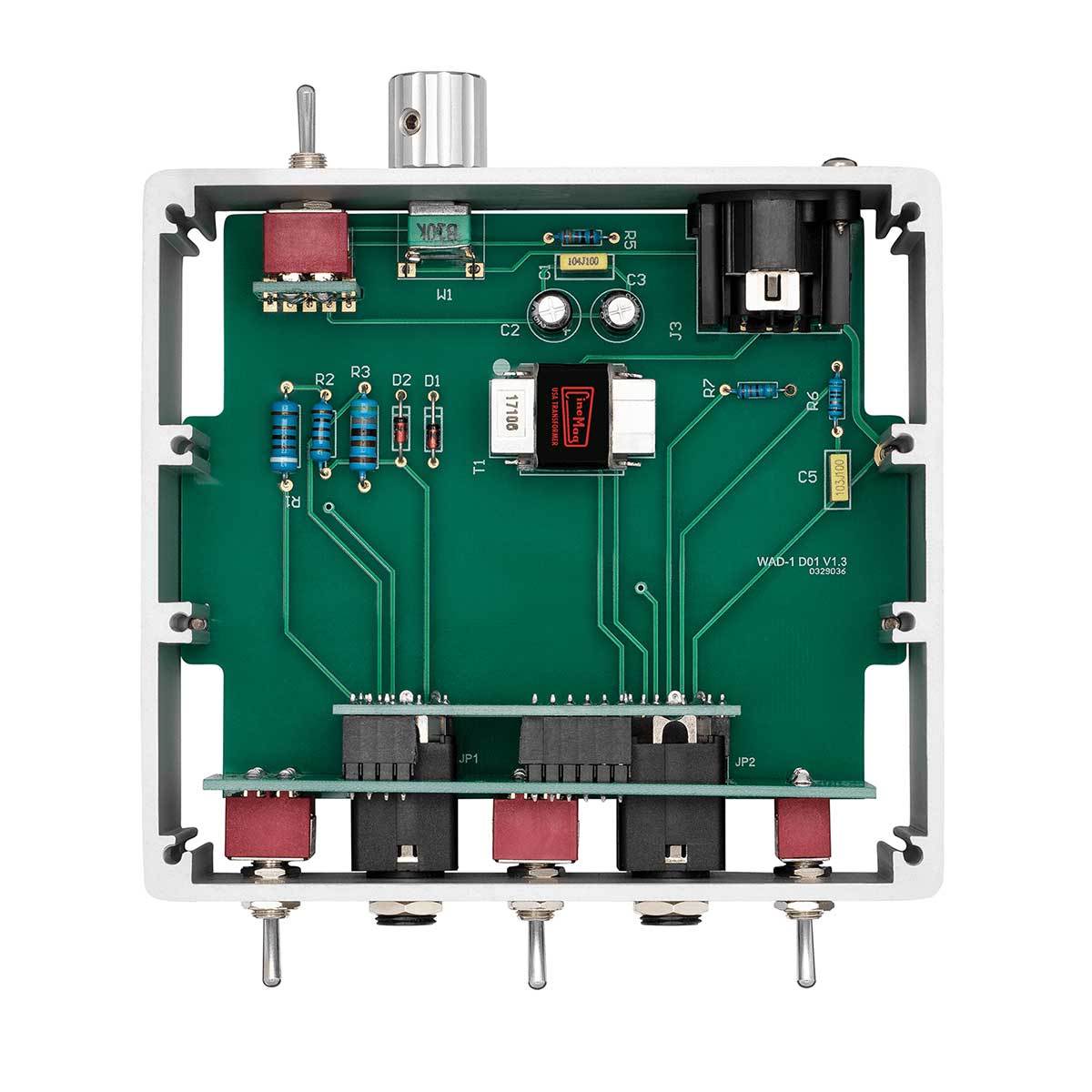

  • TOP-QUALITY CLASS A COMPONENTS WITH GOLD-PLATED TRACES ON CIRCUIT BOARD

  • RUGGED ALUMINUM CONSTRUCTION

  • PAD: VARIABLE FROM -3DB TO -30DB

  • BALANCED OUTPUTS: 600 OHMS, MIC LEVEL

  • INPUT IMPEDANCE: 1 MEG OHMS

  • THD: .01% FROM 20HZ TO 100HZ. LESS THAN .004% FROM 100HZ TO 20KHZ

  • FREQUENCY RESPONSE: 20HZ TO 70KHZ +/- 0.5DB
