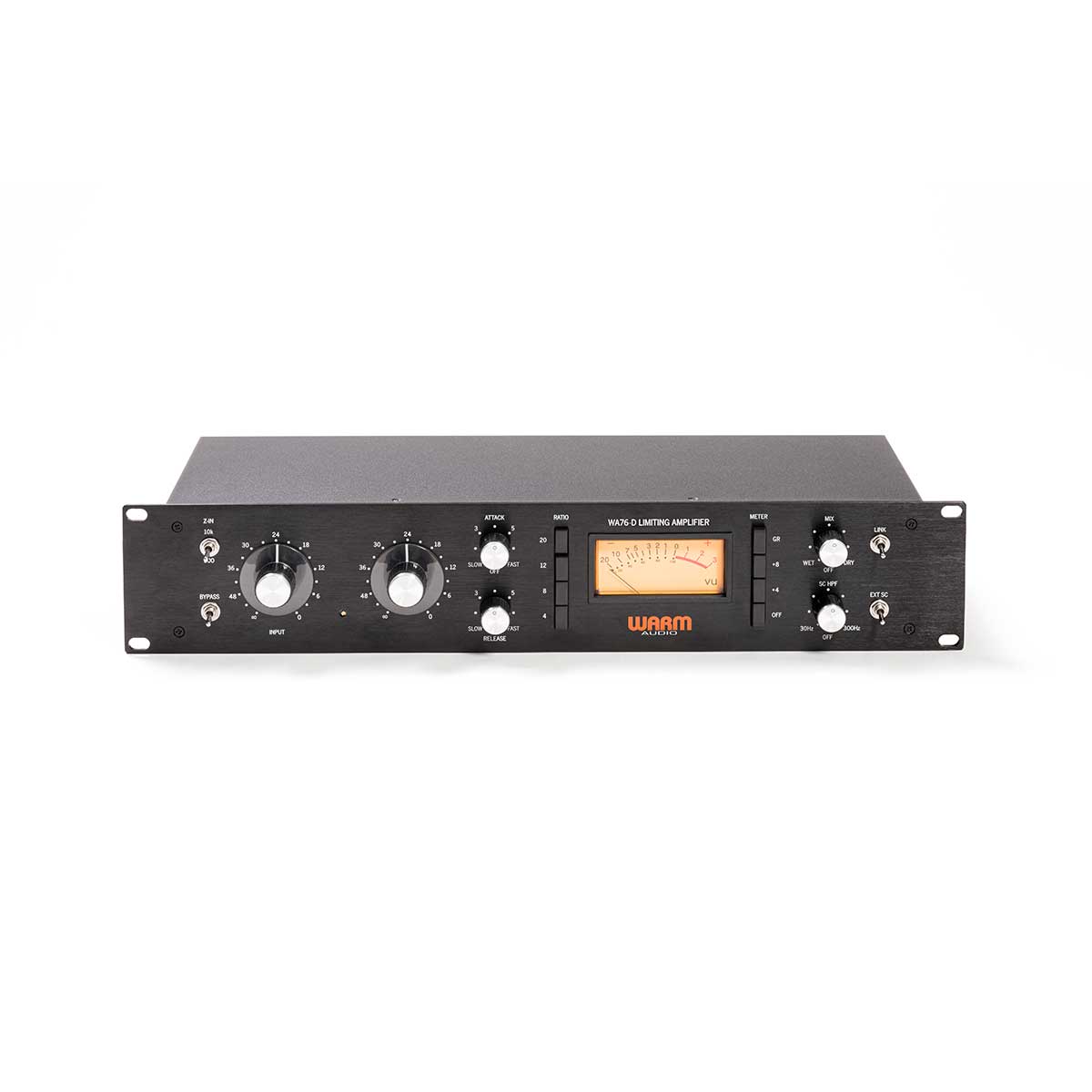

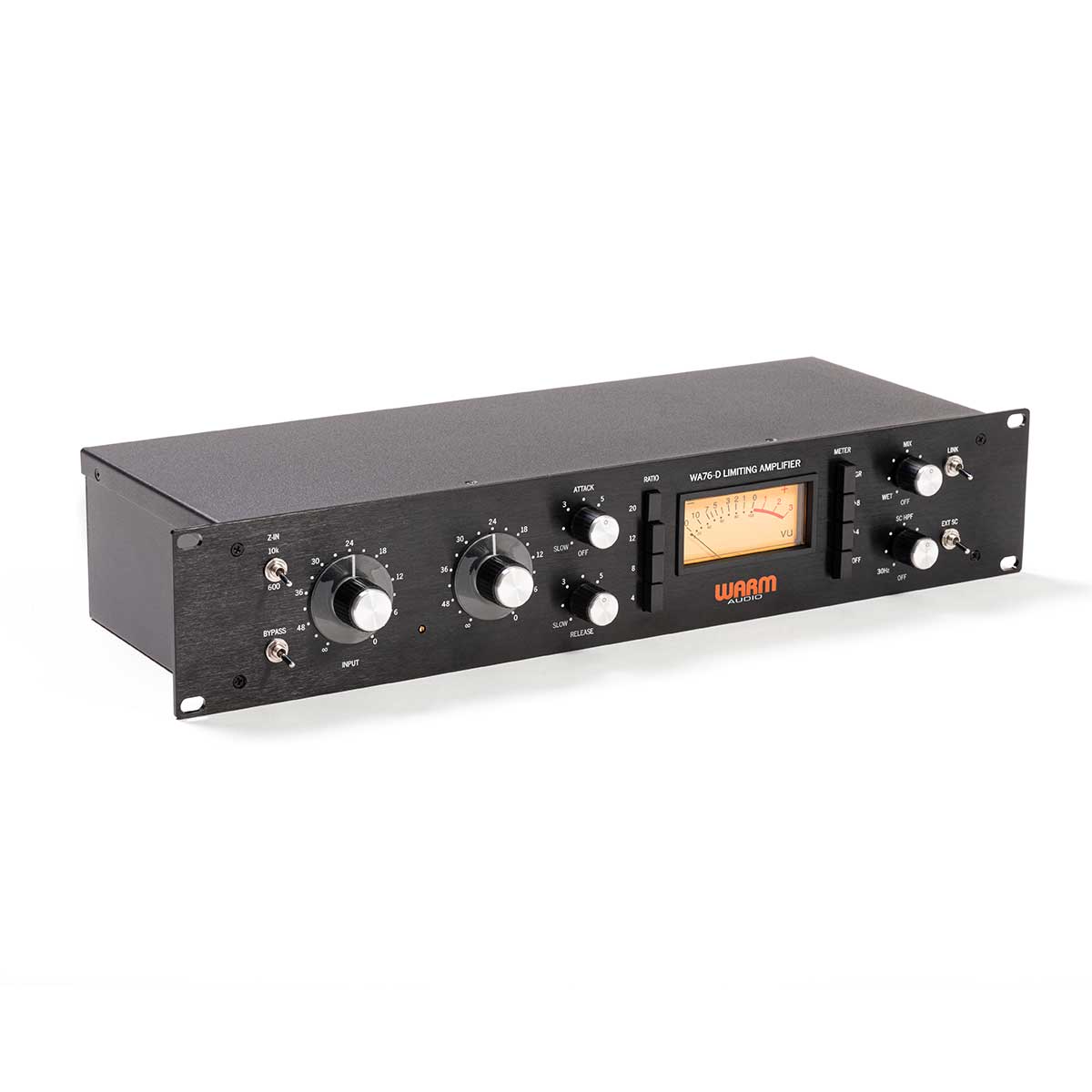

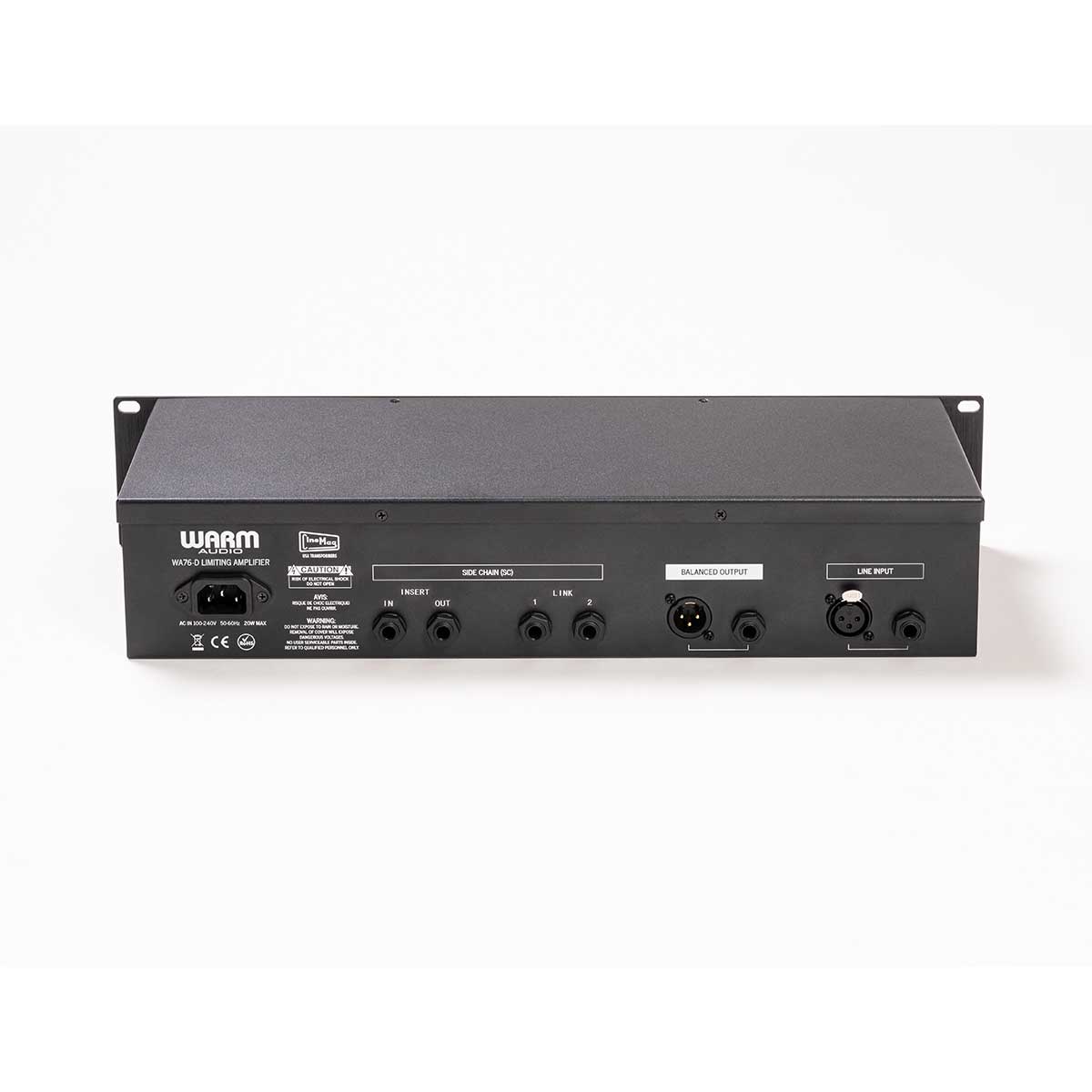

Warm Audio WA-76 REV D Single Channel
Warm Audio WA-76 REV D Single Channel
Warm Audio WA-76 REV D Single Channel
Warm Audio WA-76 REV D Single Channel
Warm Audio WA-76 REV D Single Channel
Warm Audio WA-76 REV D Single Channel
$1,199.00

Warm Audio

WAR-WA76D

Warm Audio WA-76 REV D Single Channel

5 In Stock

Type: Compressors/Limiters

The WA76-D accurately reproduces one of the fastest and most powerful studio compressors of all time known for its generous headroom, ultra-fast dynamic control, and rich analog tone. Using premium and custom components like O-12 (input) and 5002 (output) transformers from CineMag, WA76-D achieves authentic 76 rev-D style compression, known for having a “low noise” preamp stage with unmistakably analog character. Added modern controls to achieve parallel compression, active & true-bypass, selectable input impedance, and sidechain flexibility make WA76-D an ideal choice for modern recording workflows that require vintage tone shaping. WA76-D recreates the legendary tone & control of the vintage 76-style compression used in studios by artists like Chris Lord-Alge, Missy Elliot, Timbaland, Van Halen, Rick Rubin, Daft Punk, and many more.

Tech Specs

  • 100% Analog Discrete FET Compressor

  • Faithful Recreation Of The Vintage “Rev-D” FET Compressor With Added Recording Features

  • VU Meter Options: Gain Reduction | +8dB Output | +4dB Output | “Off” Powers off unit

  • 100-230v IEC Inlet Universal Power Supply

  • Class-A Line-Level Output Amplifier

  • 100% Discrete Audio Signal Path Using 600Ω Input ImpedanceAttenuator

  • Selectable 10kΩ Input Impedance To Better Match Modern Audio Interface Specifications

  • 100% Dry-Wet Mix Control

  • Variable Sidechain High Pass Filter: 30 - 300Hz, 12dB/Octave

  • ¼” Stereo Link & External Sidechain Access

  • Active Bypass For Running Unit As Line Amplifier & True Bypass Option For A/B Comparisons

  • 2U 19″ Rackmount Chassis

  • Utilizes Premium O-12 Input & 5002 Output Transformers From CineMag USA

  • Vintage-Spec Attack & Release: Attack = 20 µS - 800 | Release: 50 mS - 1.1 Second

  • “All-Buttons-In” Setting For Experimental & Hard-Limiter Tones

  • Frequency Response: ± 1 dB 20 Hz - 20 kHz

  • BalancedXLR & TRS Inputs & Outputs

  • Total Amplifier Gain: 53dB

  • Signal-To-Noise Ratio (SNR): 86dB |

  • Total Harmonic Distortion (THD): -64dB (at -8dBu)

Popular Uses

  • Add Polish & Dynamic Control To Vocals

  • Perfect Drum Room/Overhead Mic Compression

  • Tight Acoustic Guitar Rhythms For Dense Track Counts

  • Dynamic Control For Heavy Electric Guitars

Artists, Producers, & Engineers Of The Original Style of Compression

  • Missy Elliot

  • Daft Punk

  • Timbaland

  • Rick Rubin

  • Chris Lord-Alge
